30 kw 40 hp 4-pole 1475 rpm 415 volt B3 Foot mount 200LC frame AC Electric Motor Teco Type AEMBUCD40 New Unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Power: 30 KW (40 HP)
Speed: 4-pole (1475 rpm)
Rated frequency: 50 hz
Rated Voltage: 415 v
Full Load Amperage: 51.4 A
Mount: B3 Foot
Frame: 200LC
Weight: 287 kg
Critical Measurements:
Shaft DIA: 55 mm (by 110 mm long)
Centre shaft height: 200 mm
Total Length: 770 mm (incl. shaft)
Total Width: 584 mm (incl. terminal box)
Total Height: 469 mm
Feet Measurements: Across 'A' - 318 mm, Front to Back 'B' - 305 mm
Front hole to shaft 'C': 133 mm
Available QTY: 1

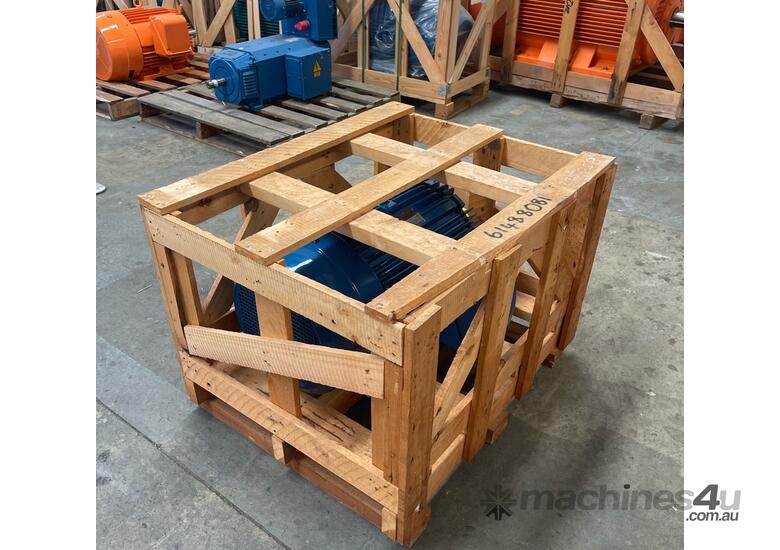

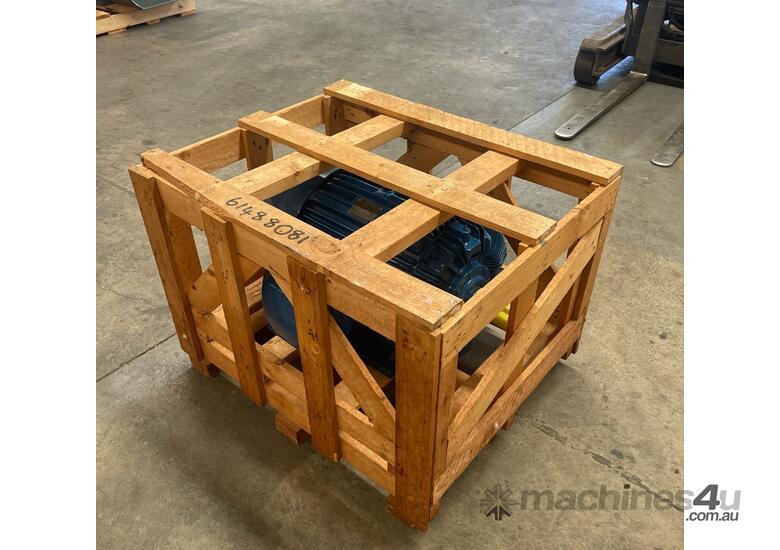

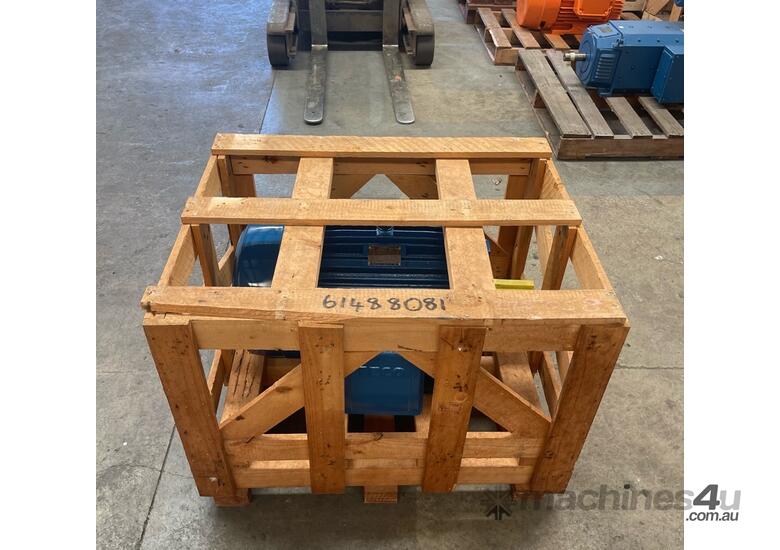

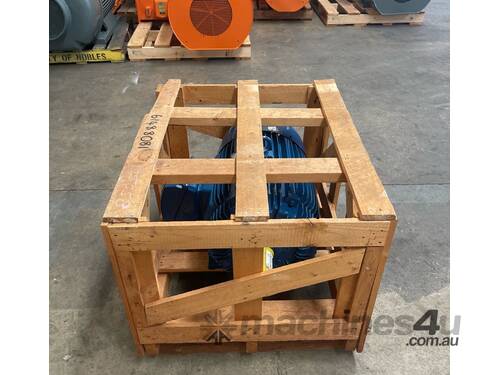

Condition: New / Unused in crate
exStock Seaford VIC 3198 Australia
Available for immediate despatch - freight services Australia Wide on request
