30 kw 40 hp 4-pole 1475 rpm 415v 200L frame IP66 IE3 TEFC AC Electric Motor Techtop Type TDP200L-4

Name: 30 kw 40 hp 4-pole 1475 rpm 415v 200L frame IP66 IE3 TEFC AC Electric Motor Techtop Type TDP200L-4
Brand: Techtop
SKU: 890666
Price: 1750 AUD
Availability: InStock

SEAFORD, VIC - Delivers Nationally

$1,750 AUD($1,925 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

AC Motors

Make:

TECHTOP

Model:

TDP200L-4

No. in Stock

Year:

2022

Member Since: Mar 2017

Gold Member

Listings: 249

Amps:

52 Amp

Electrical Phase:

Three Phase

Kw:

30 kW

Voltage (V):

415 V

Description

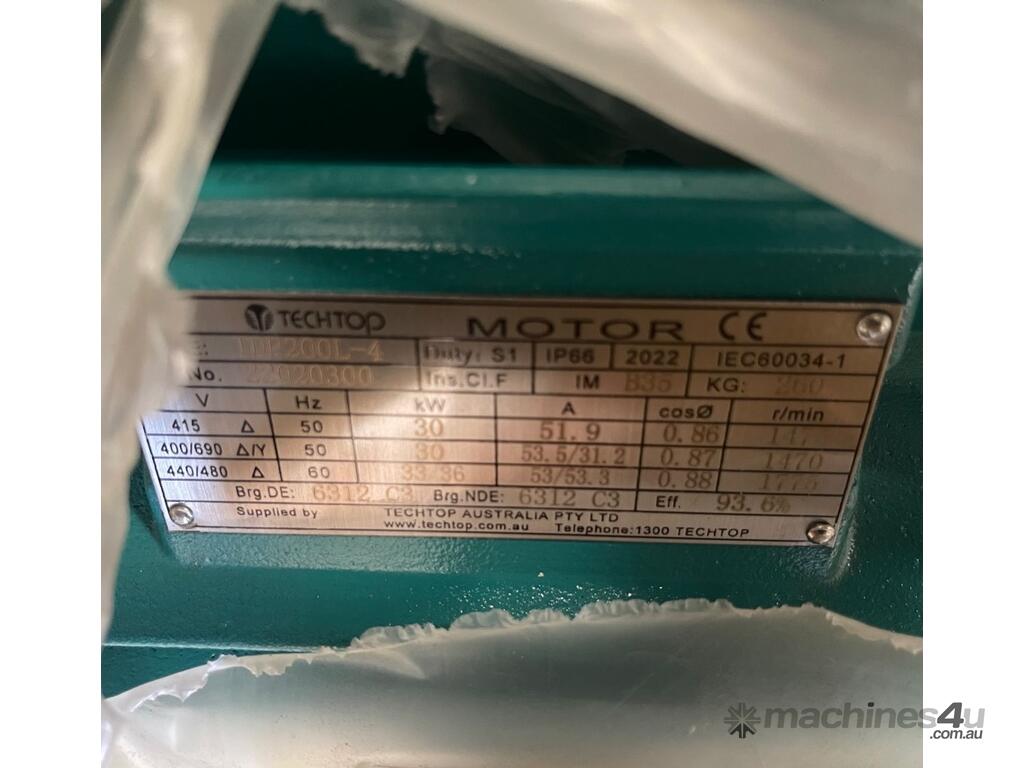

30 kw 40 hp 4-pole 1475 rpm 415v Foot Mount 200L frame IP66 IE3 TEFC AC Electric Motor Techtop Type TDP200L-4 New

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Techtop
Type: TDP200L-4
YOM: 2022
Power: 30 kw (40 hp)
Speed: 4-pole (1475 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 51.9 A
Mount: B3 Foot (Can be B5 flange, or B35 foot & flange)
Frame: 200L
Protection rating: IP66
Efficiency: IE3
Duty: S1
Insulation class: F
Weight: 260 kg

Critical measurements:
Shaft DIA: 55 mm (by 110mm long)
Centre shaft height: 200 mm
Total Length: 768.5 mm (incl. shaft)
Total Width: 392 mm
Total Height: 500 mm (incl. top mount terminal box)
Feet Measurements: Across 'A' - 318 mm, Front to Back 'B' - 305 mm
Front hole to shaft 'C': 133 mm

Available QTY: 1

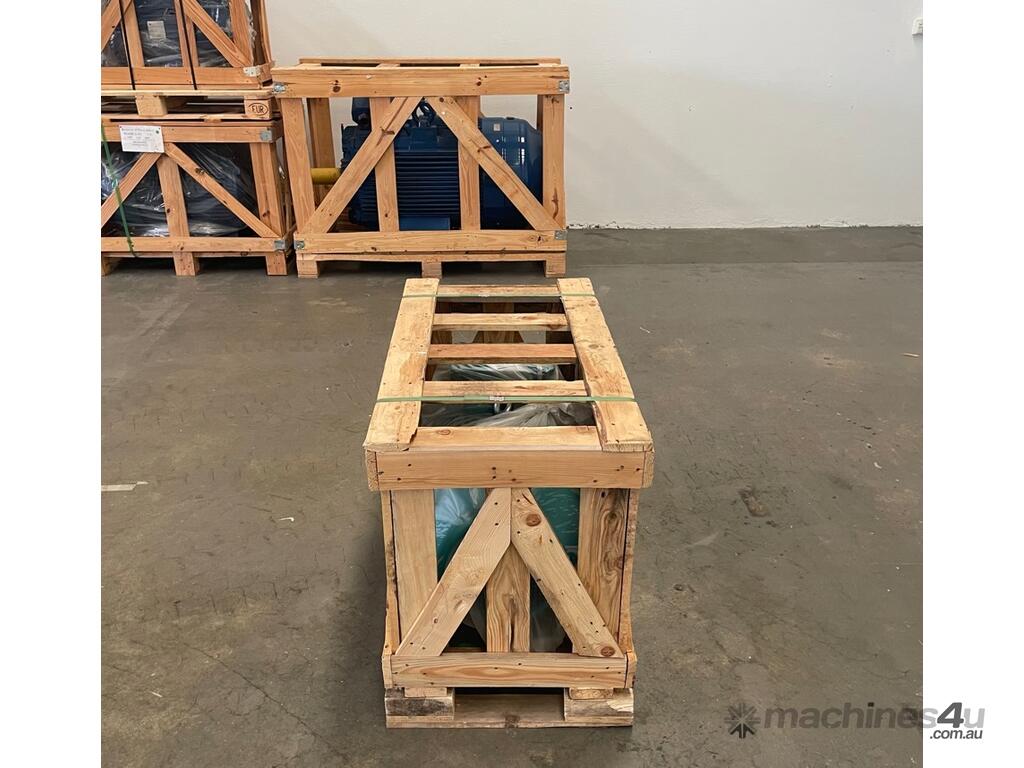

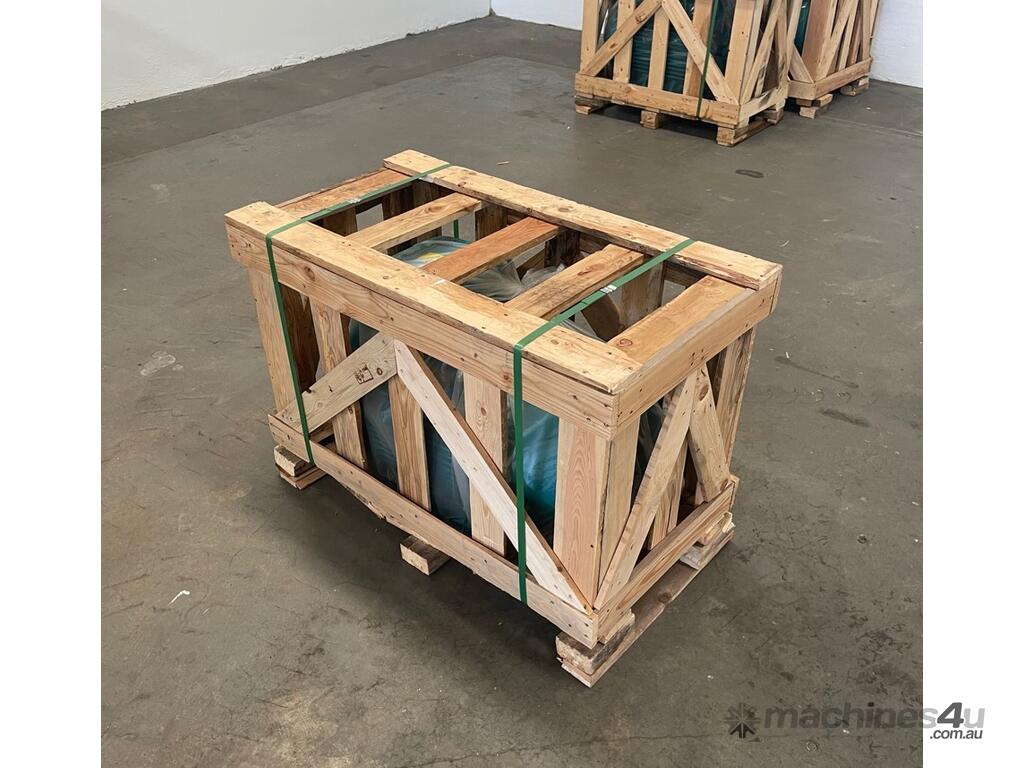

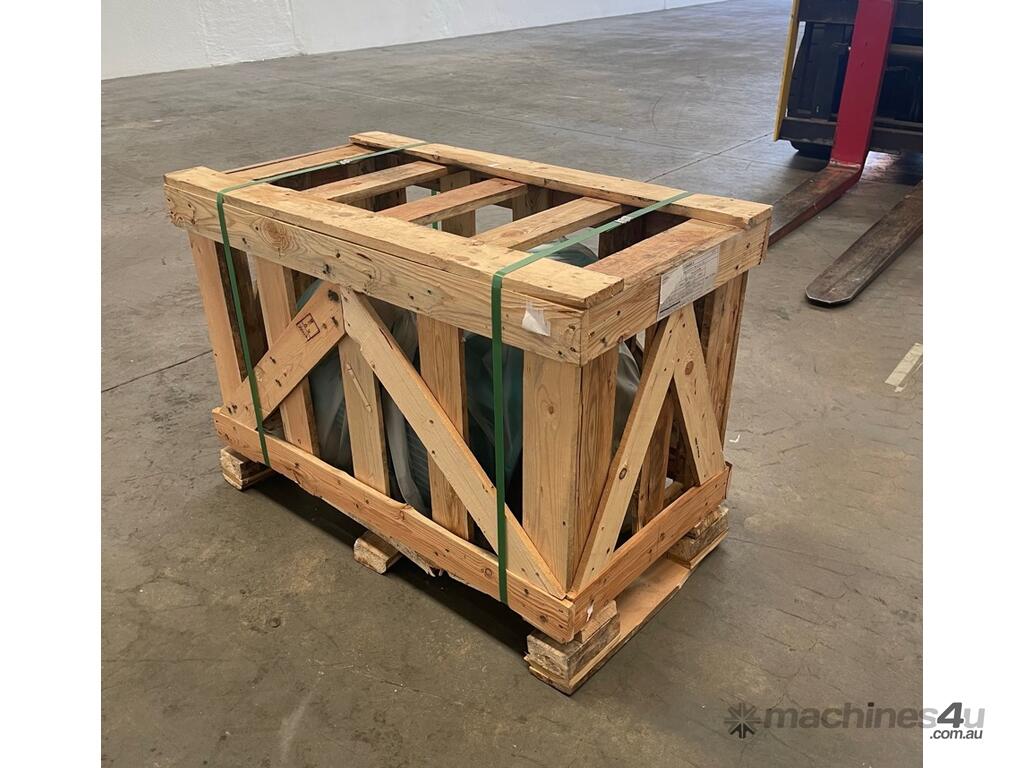

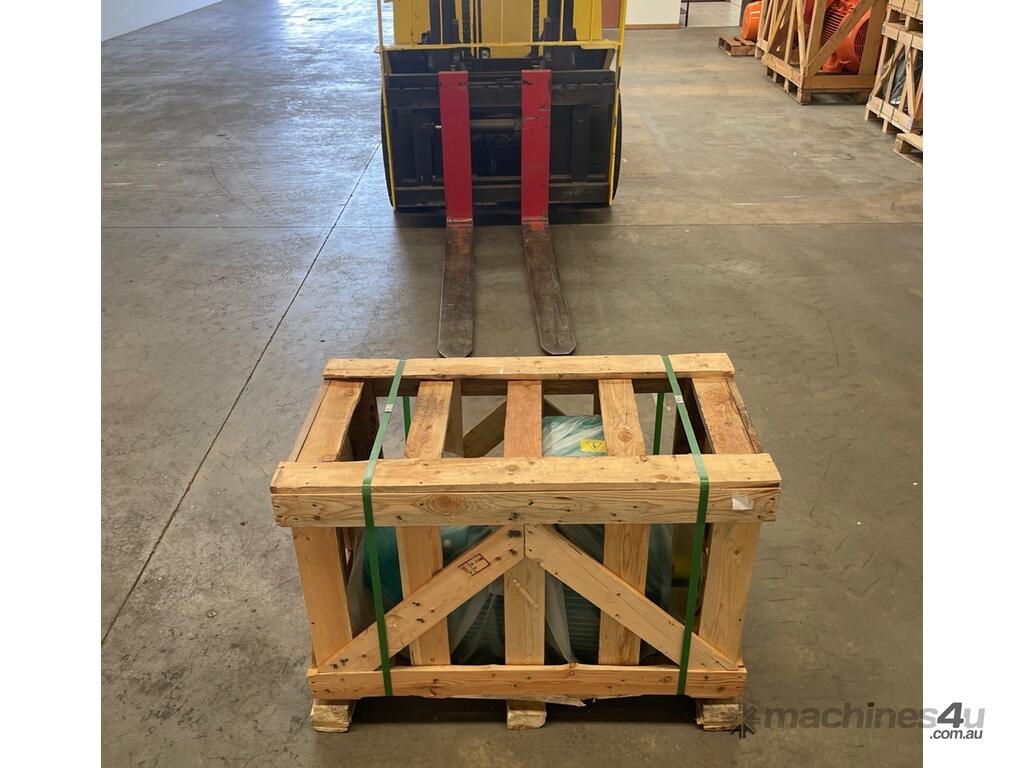

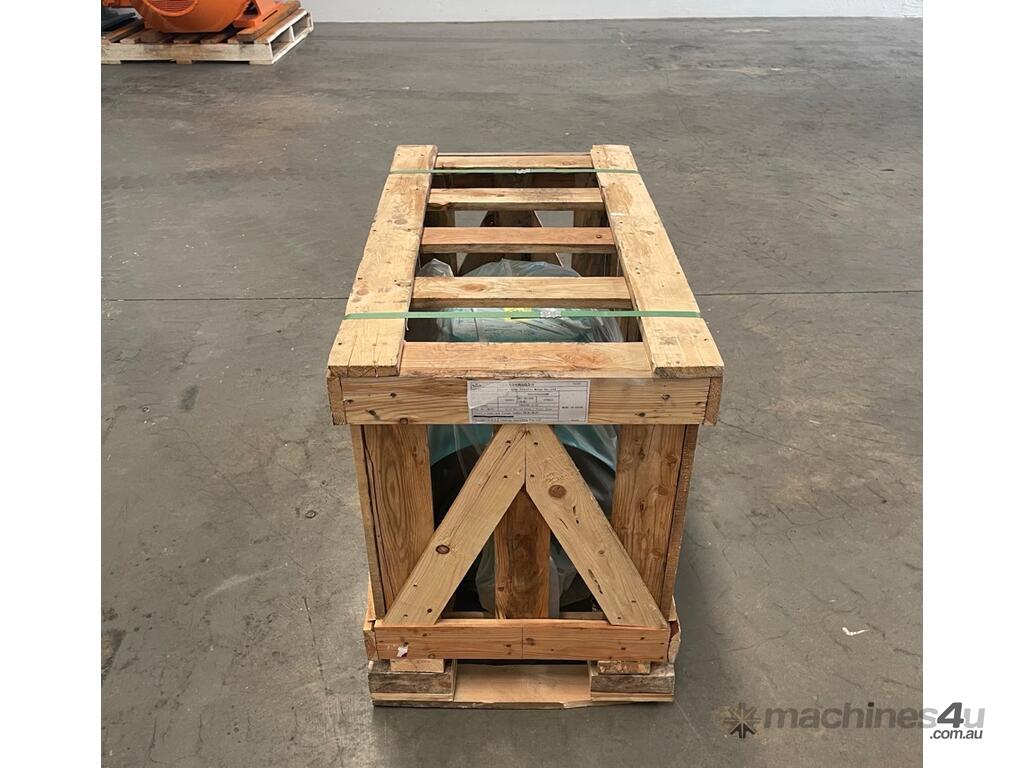

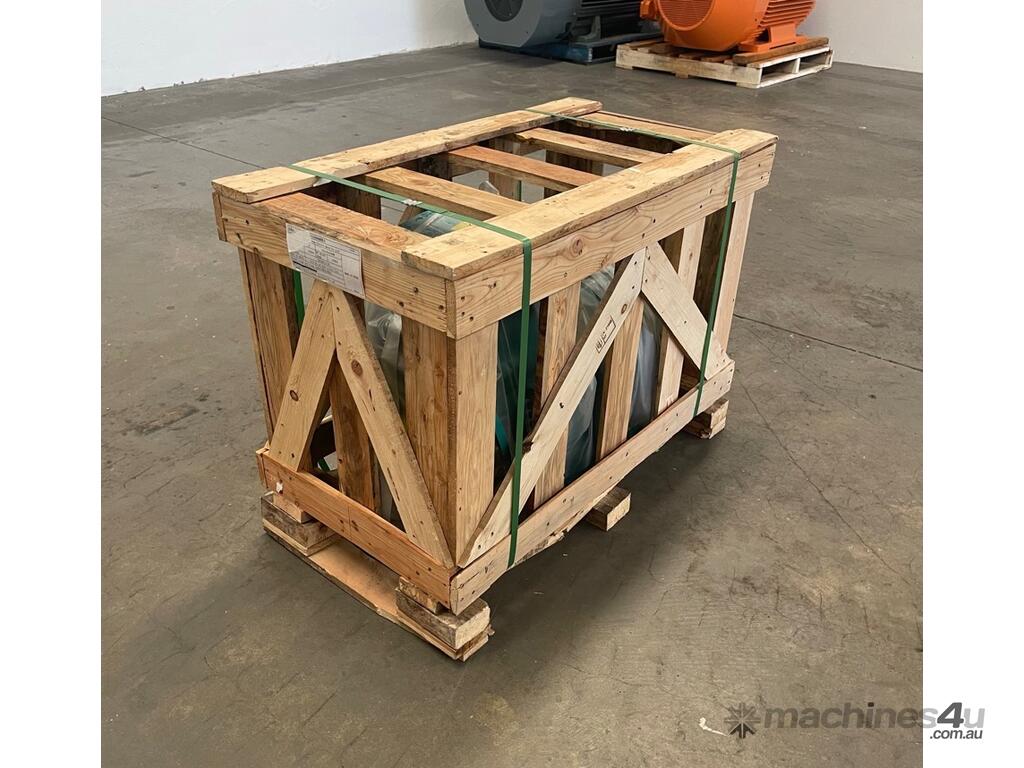

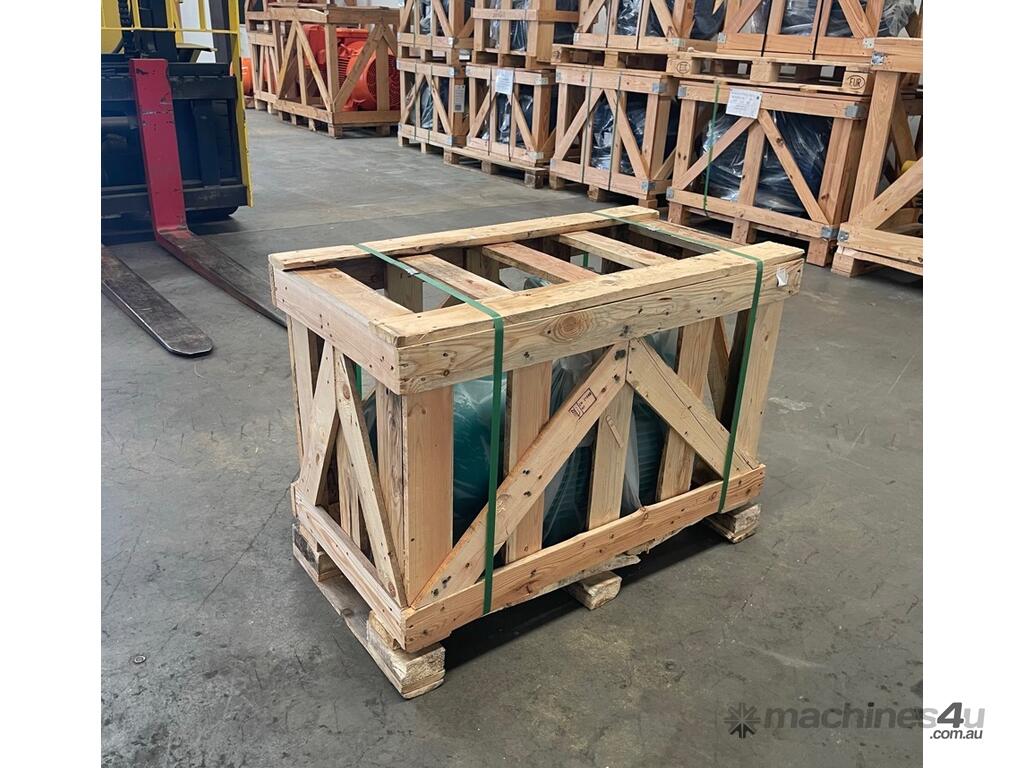

Condition: NEW in crate
exStock Seaford VIC 3198 Australia
Freight services available Australia Wide on request, immediate despatch
