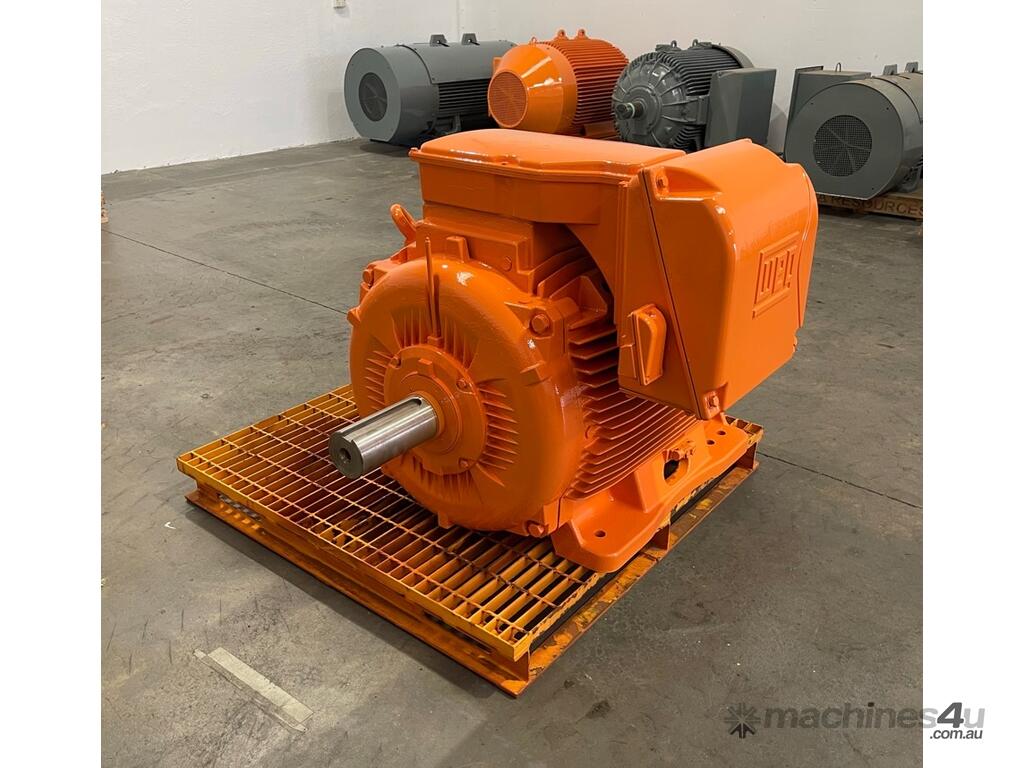

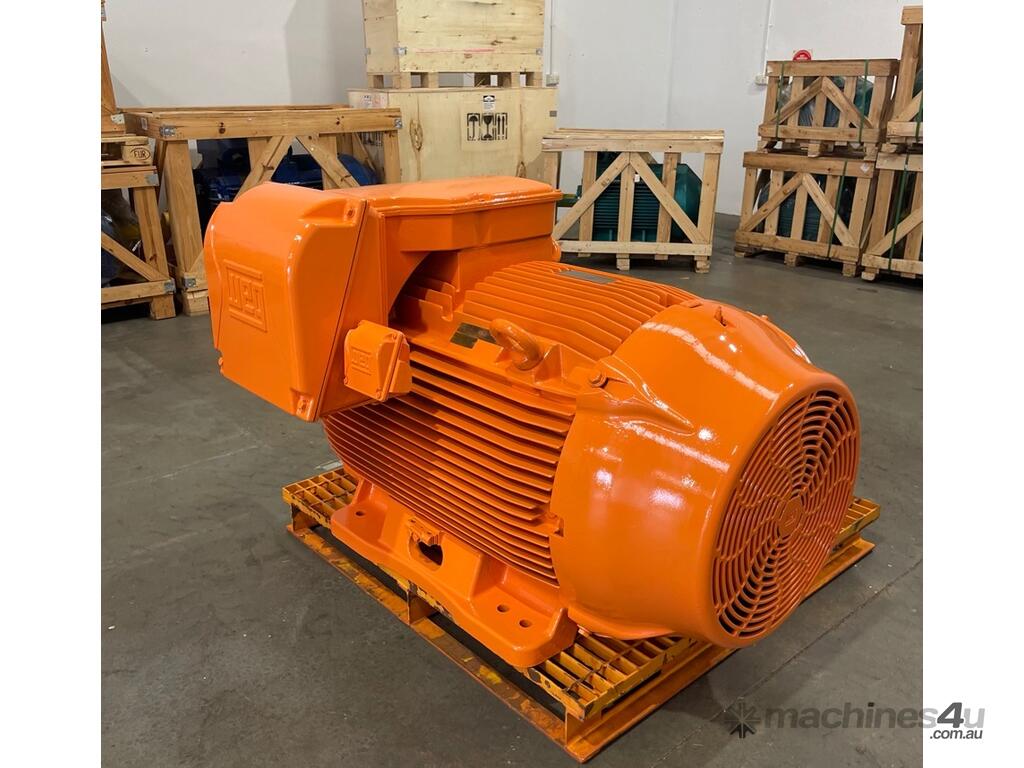

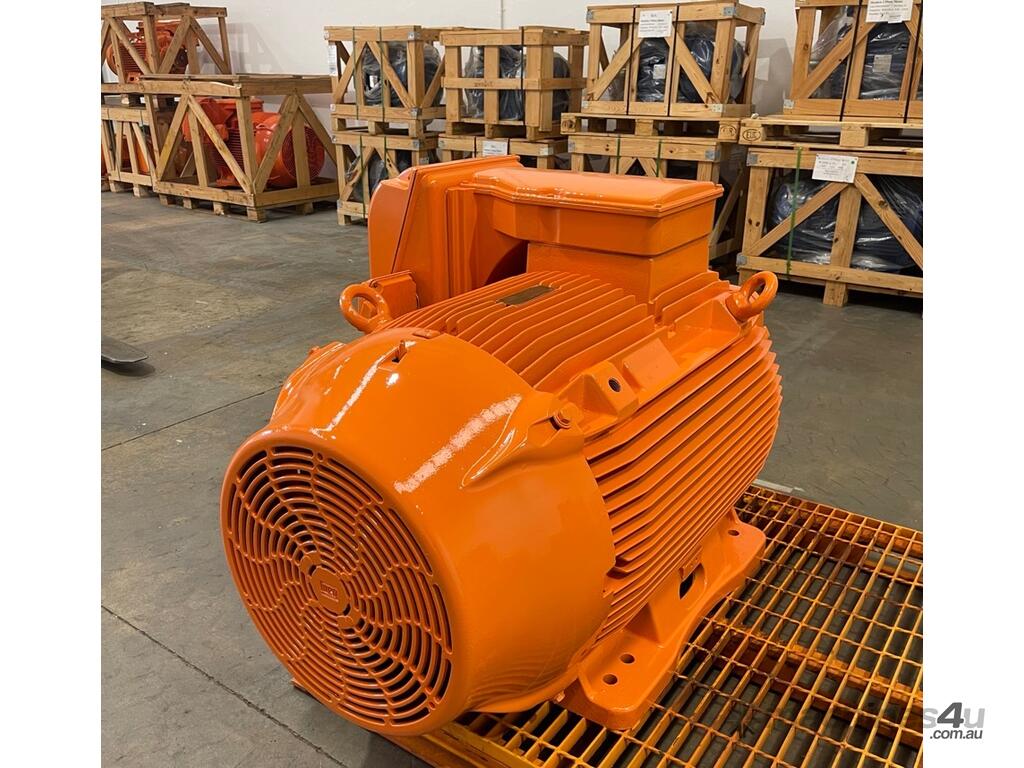

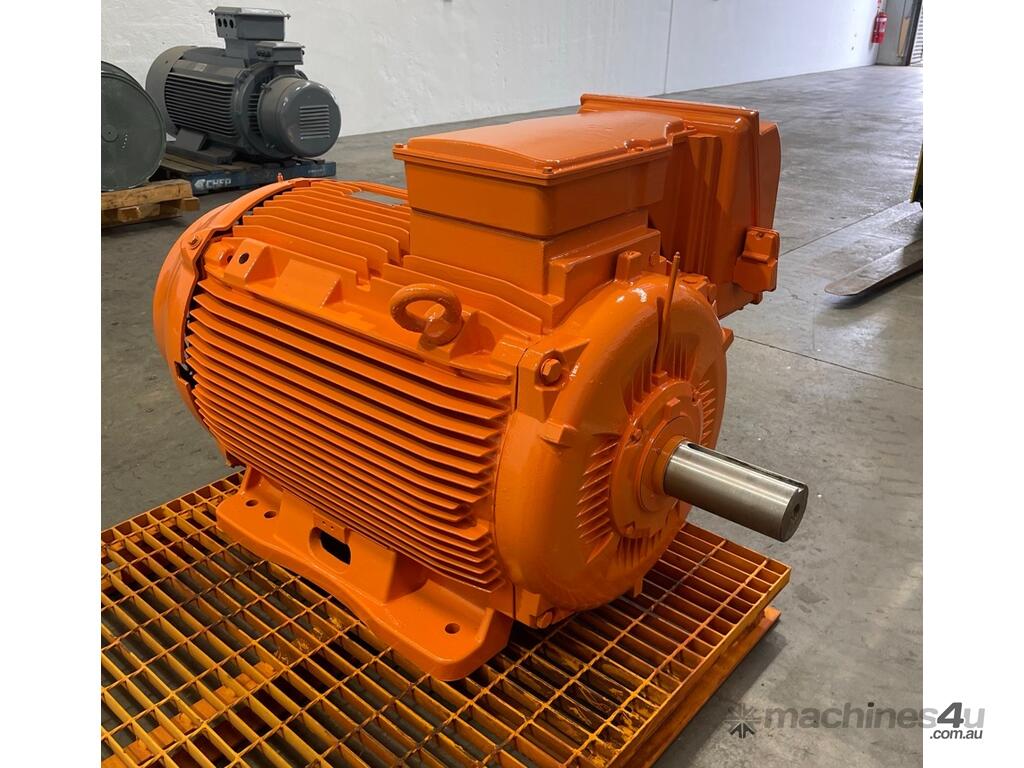

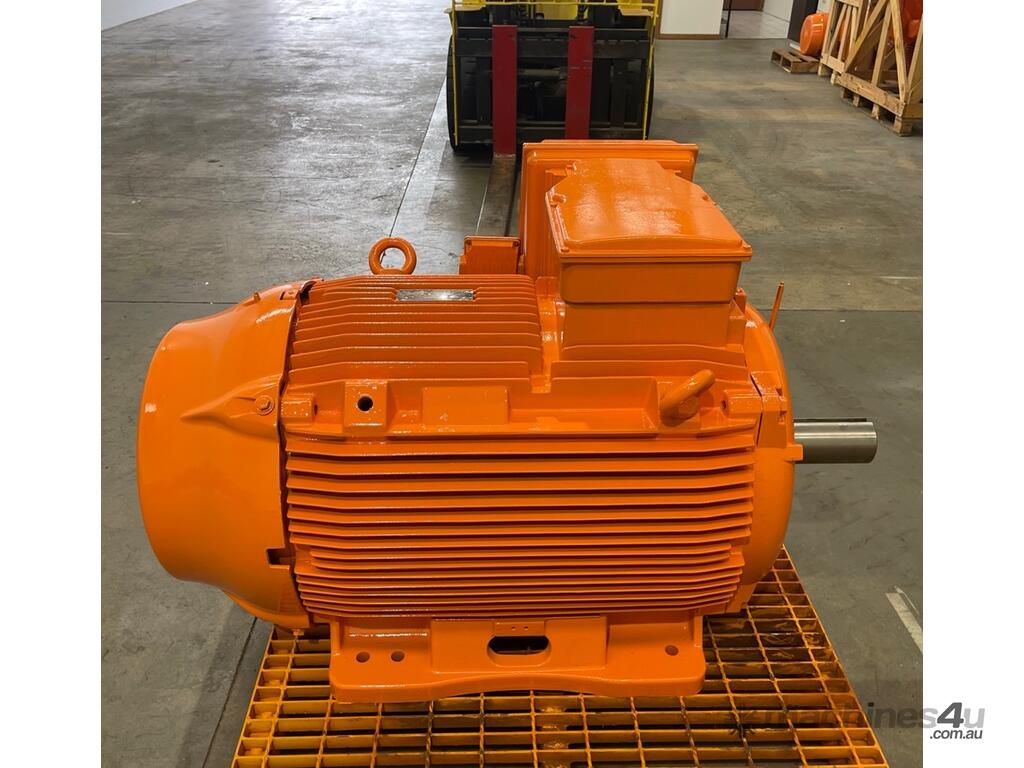

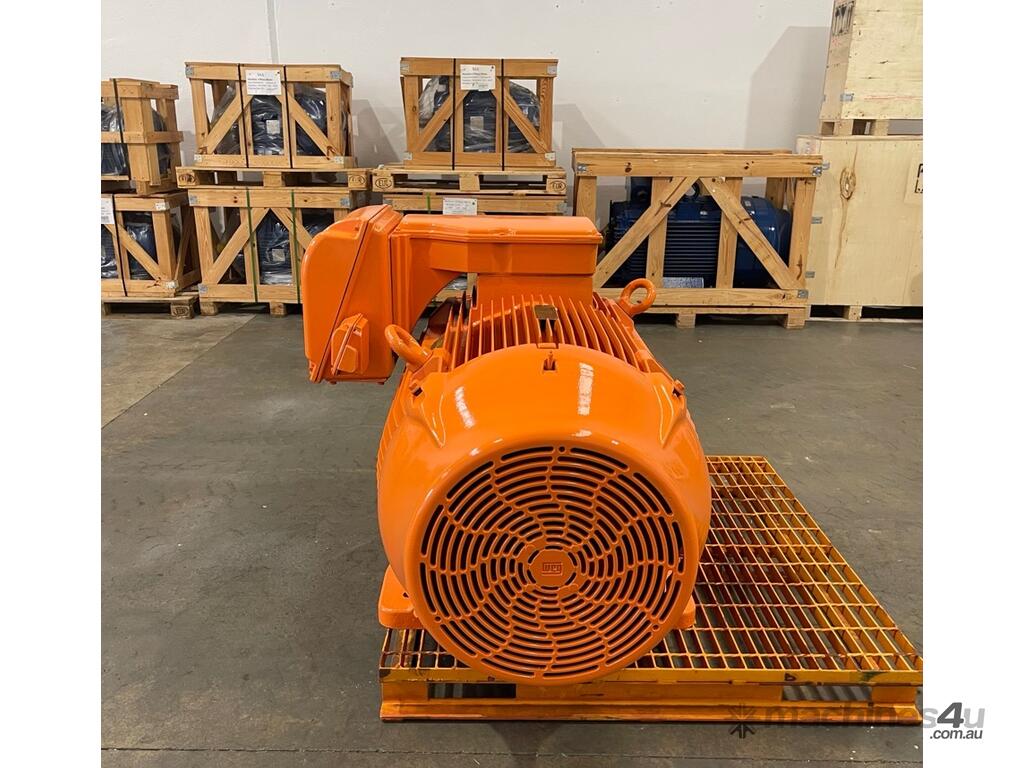

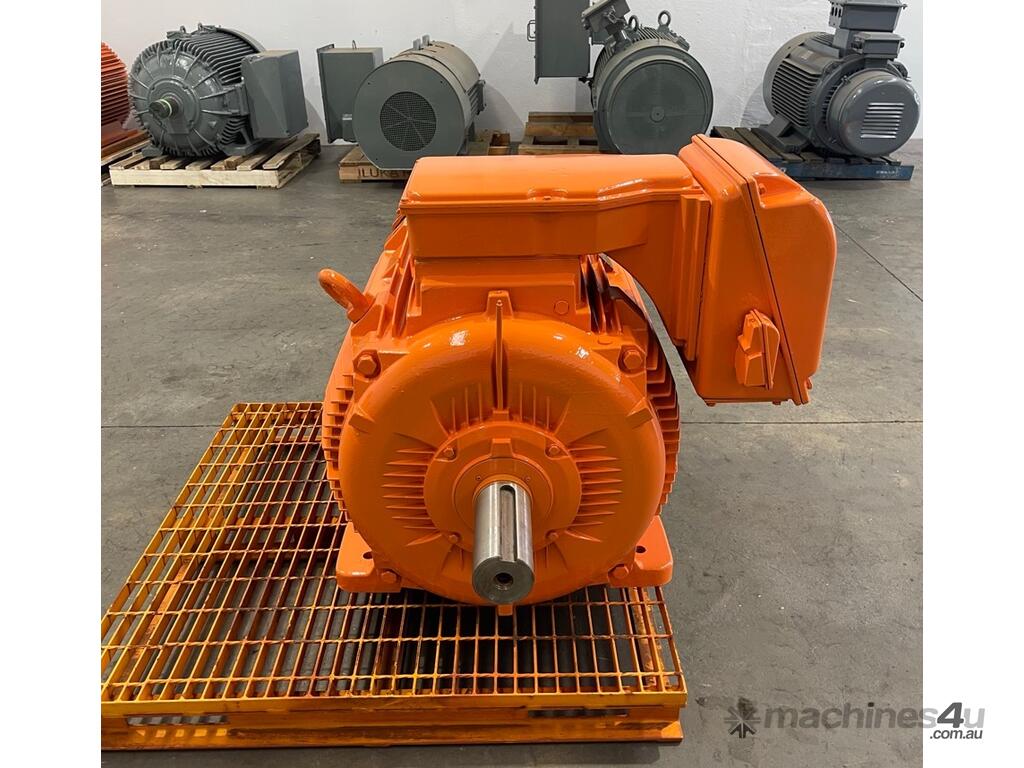

300 kw 400 hp 4-pole 1490 rpm 415v Foot Mount 355M/L frame IP66 Mining TEFC AC Electric Motor WEG Model KTE60 W22M
Category: AC Squirrel Cage Electric Motor

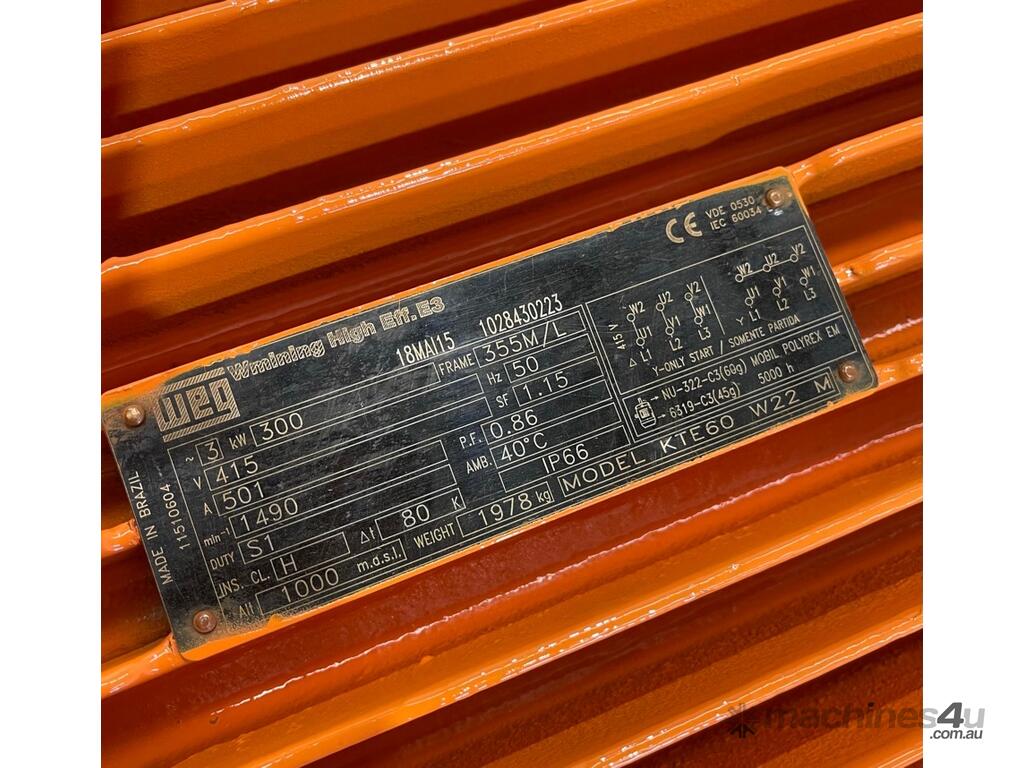

3-phase induction motor
Make: WEG
Model: KTE60 W22M
Origin: Brazil
YOM: 2015
Power: 300 KW (400 HP)
Speed: 4-pole (1490 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 501 A
Mount: B3 Foot
Frame: 355M/L
Protection Rating: IP66 Mining
Insulation Class: H
Duty: S1
Weight: 1978 kg
Inclusions:
- Drive-end roller bearing (for belt-driven application)

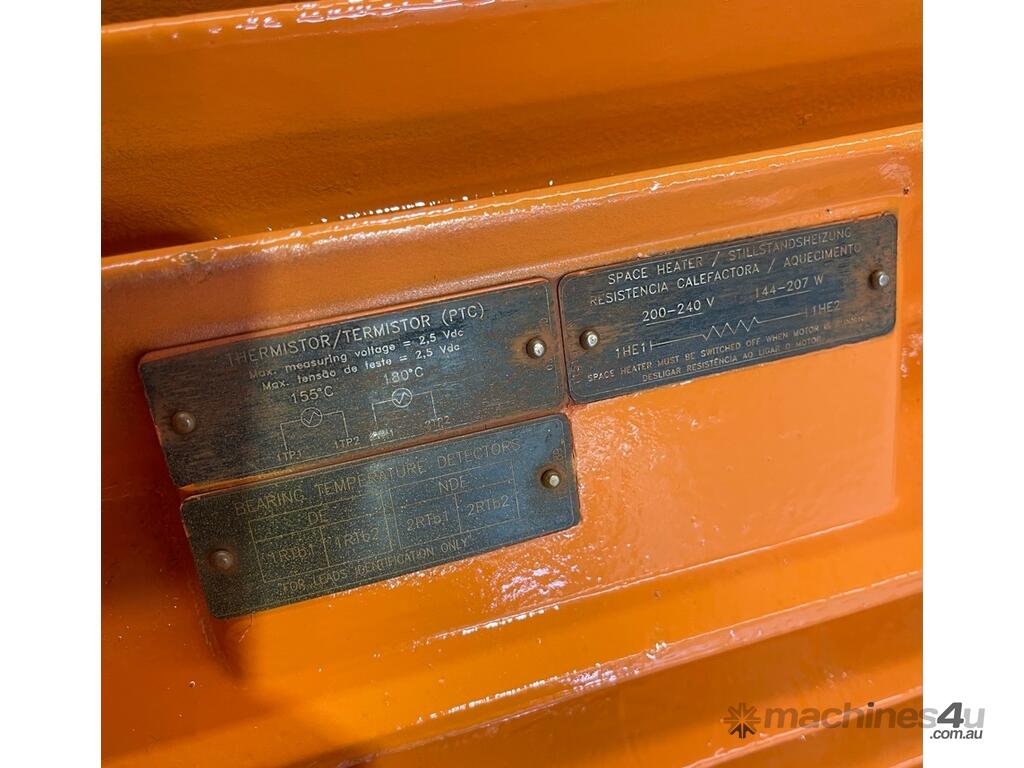

- Heaters & Thermistors
- Insulated end shield
Critical Measurements:
Shaft DIA: 100 mm (by 210 mm long)
Centre shaft height: 355 mm
Total Length: 1482 mm (incl. shaft)
Total Width: 984 mm (incl. RHS to D.E. Terminal Box)
Total Height: 850 mm
Feet Measurements: Across 'A' - 610 mm, Front to Back 'B' - 560 mm & 630 mm
Front hole to shaft 'C': 254 mm
Available QTY: 1
Condition: Decommissioned critical spare VGC. New bearings, N/L test run & painted in motor workshop July 2023
exStock Seaford VIC 3198 Australia
Freight services available on request Australia Wide - Immediate despatch
