3000 kw 4000 hp 10 pole 11000 v AC Electric Motor
Type: Squirrel Cage AC Electric Motor
3 phase induction motor

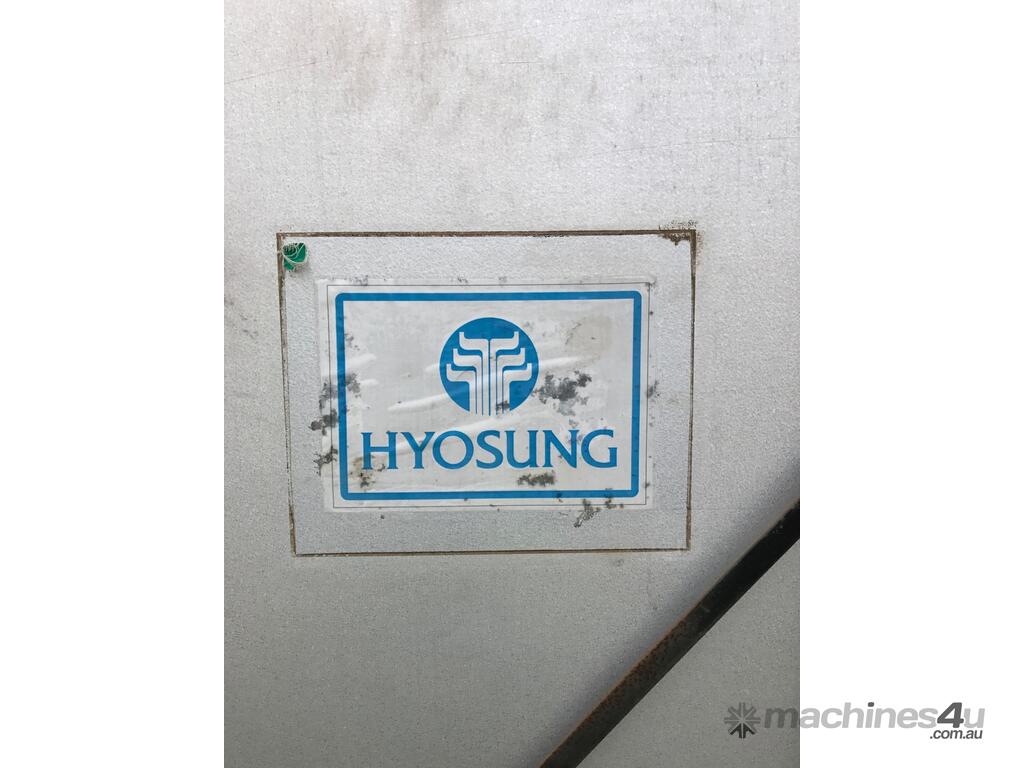

Make: Hyosung
Power: 3000 kw (4000 hp)
Speed: 10 pole (595 rpm)
Volts: 11000 v
Hz: 50
No load current: 54 Amps
Full load current: 192 Amps
Starting current: 1056 Amps
Mount: B3 Foot
Frame: 900(500)

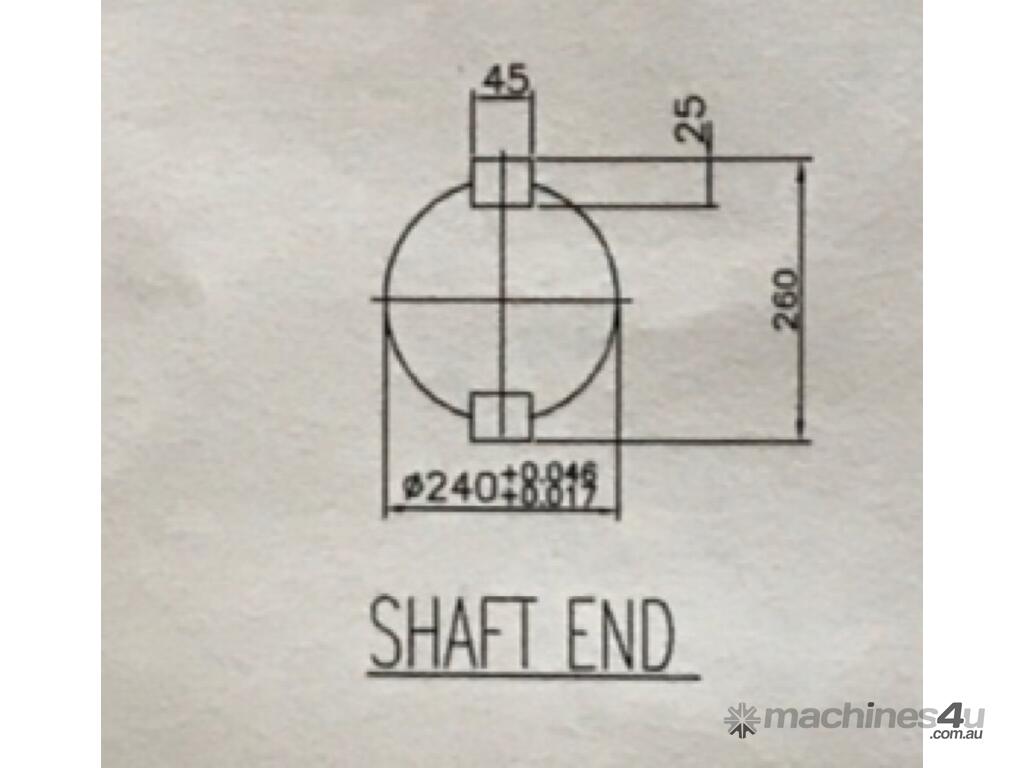

Shaft diameter: 240 mm
Type: HSWC
Enclosure: TE
Cooling method: WC Water Cooled
Insulation Class: F
Protection grade: IP55
Quantity: 1
Condition: New in Box
Availability: Available for transport/shipping now

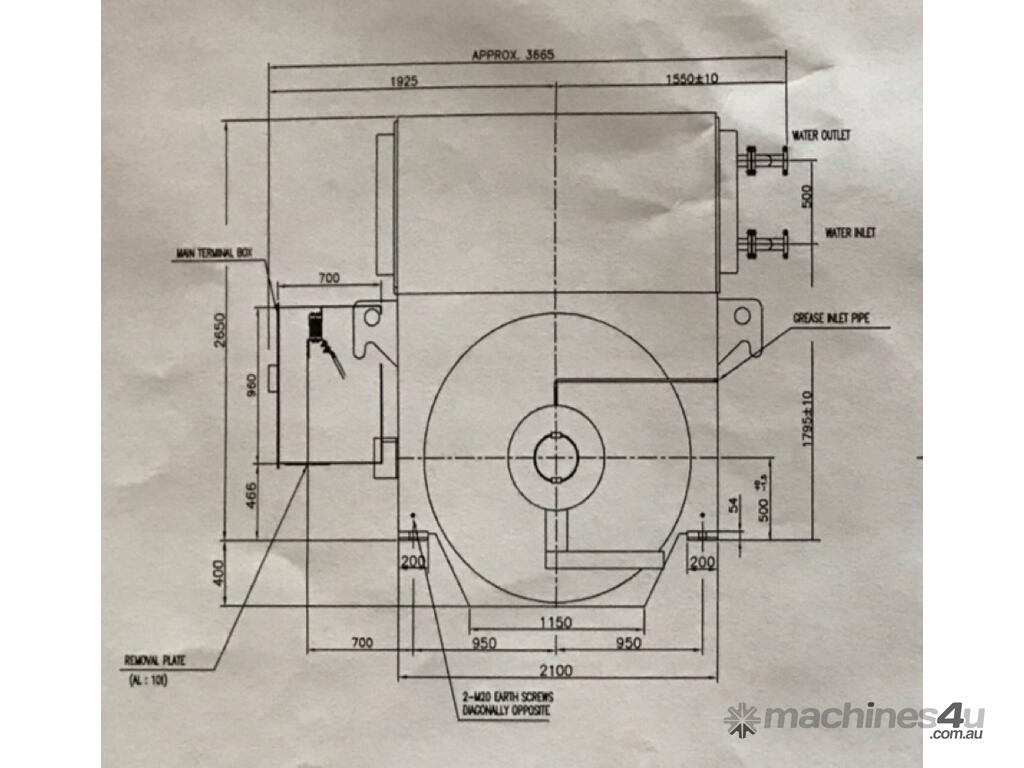

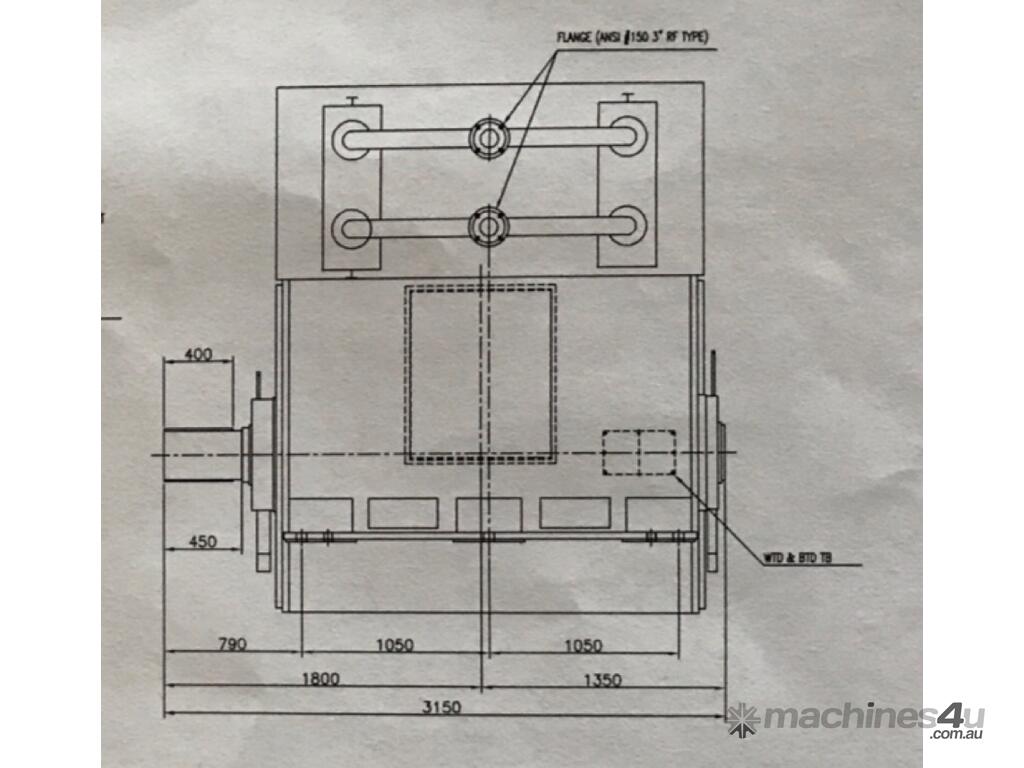

Note: Drawings/Dimensions and Full Data sheet available upon request
