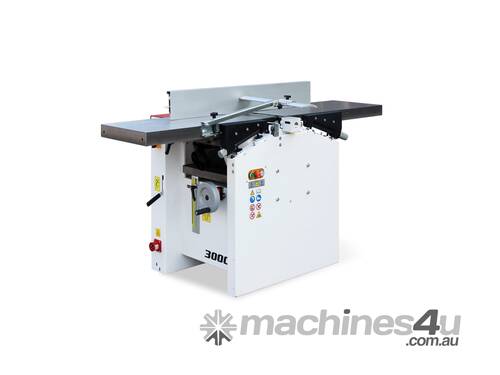

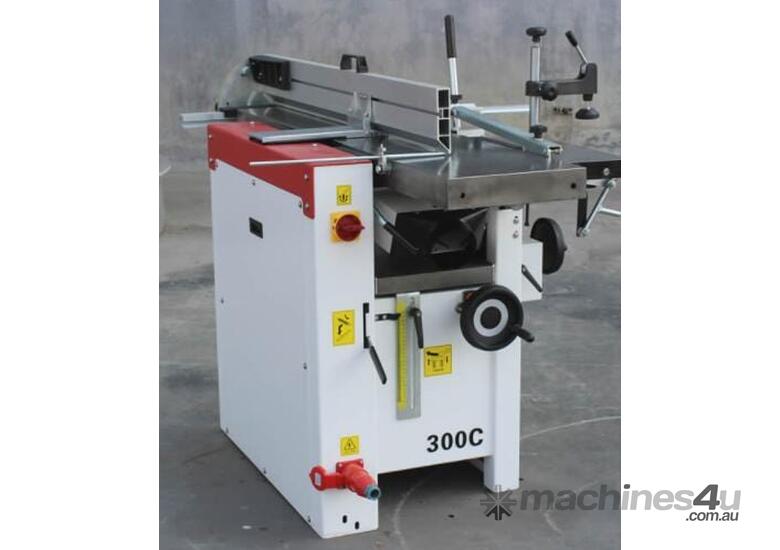

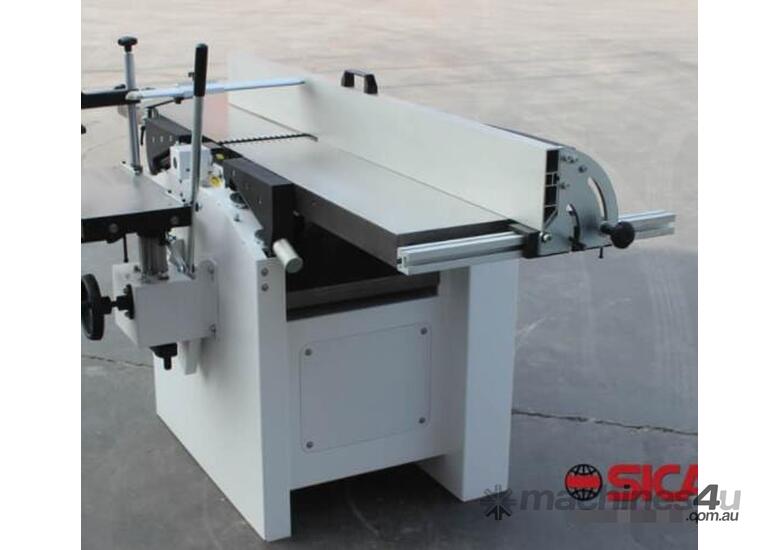

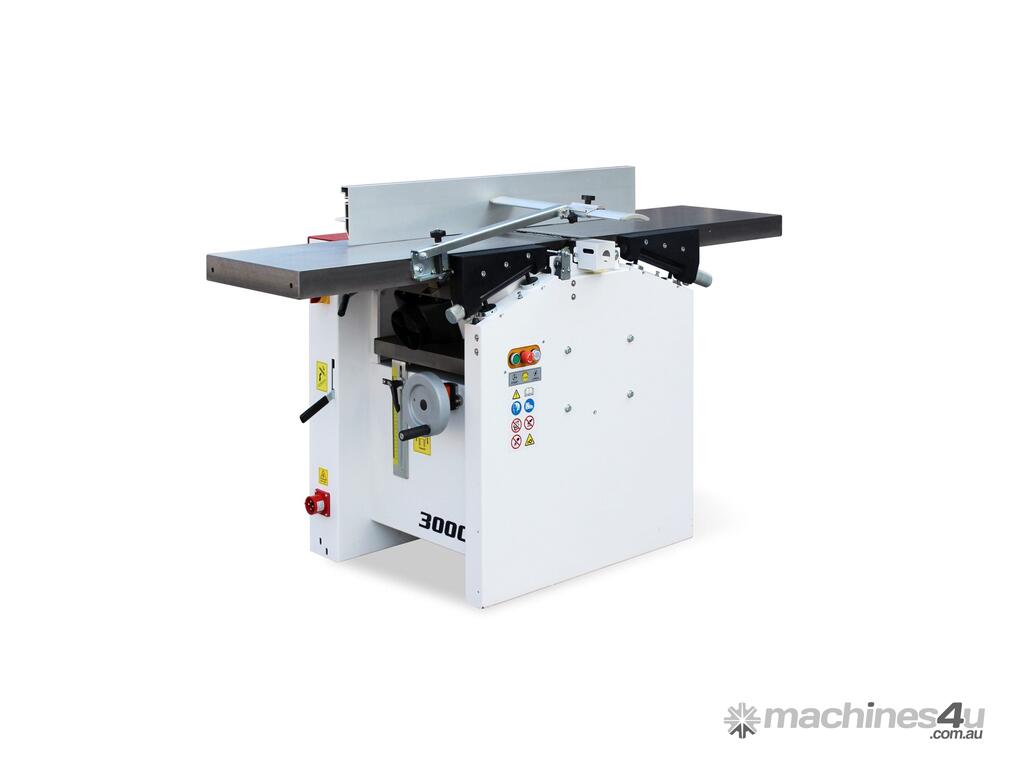

300mm (12") Italian Designed Professional Combination Planer & Thicknesser with Spiral Head Cutter B

The 300C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.



The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.



Several further options are also available, each machine can therefore be tailored to the users specific needs.



Specifications :



Planer

Working table: 300x1500mm

Cutter block diameter: 70mm

Cutterblock rotation speed: 5700rpm

Max table adjustement: 4mm



Thicknesser

Working table: 300x660mm

Feeding speed: 7m/sec

Working height: 4-220mm



True Sprial Cutterhead

Carbide insert (15x15x2.5mm 30 °ï¼‰



Power

1 Phase 230V 50Hz 2.2KW 3HP Motor



Packaging

Diamension: 1576x666x1130mm

Weight: 300kg

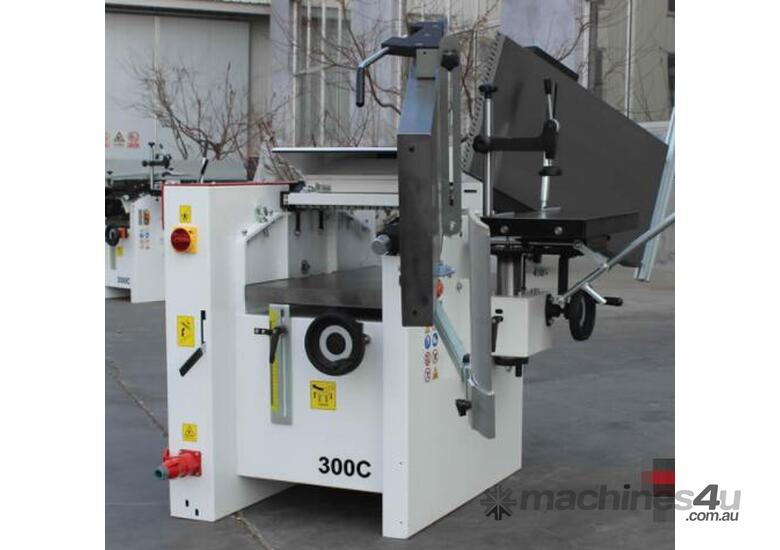

Mortiser (Optional)

Working table: 250x500mm

Longitudinof/Trosversof/Verticol stroke: 205/95/90mm

Chuck (M18*1.5-S): 0-16mm
