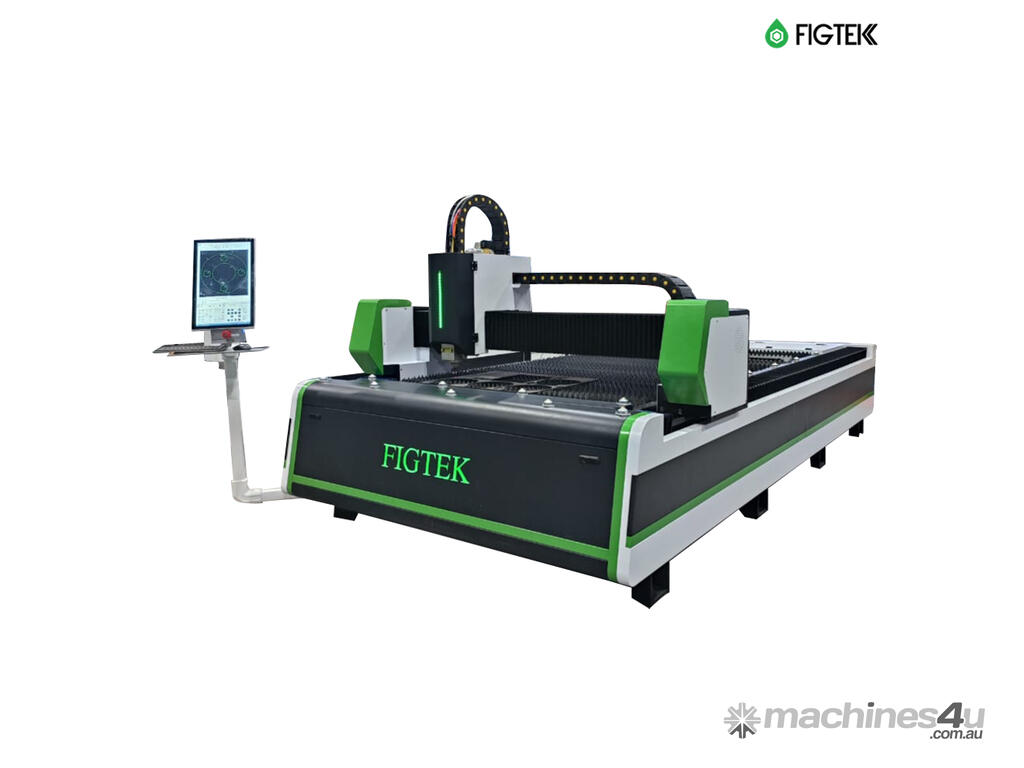

Working Size: 3000mm x 1500mm x 2m
Cutting Head: Raytools
Fuji Servo Motor
Taiwen HIWIN Guide Rails
Reducer: France Motorvalia
Pneumatic Part: Taiwan Air Tec
Cooling Way: Hanli Water Chiller
Voltage:380V/50Hz, 3 Phase
Watts: 2000W
AC Servo Motor and Driver
Fiber Laser Cutting Data Base
External optical path and cutting head
CNC control and software System

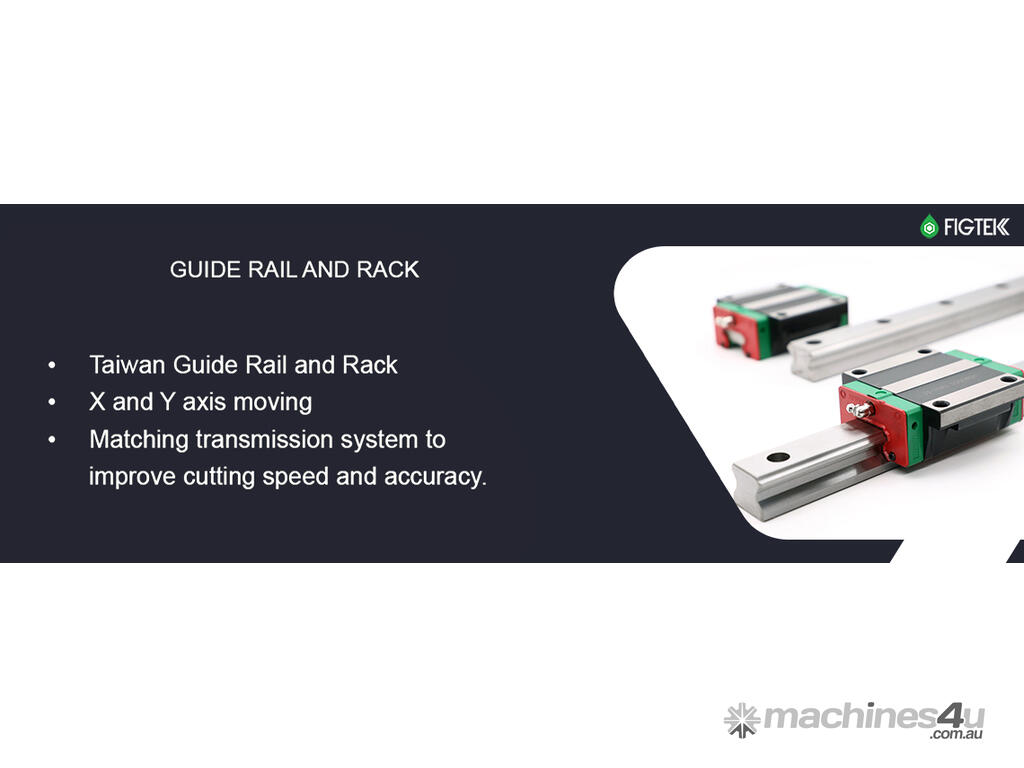

High-precision linear guide transmission system
Electrical Components and Pneumatic Systems
CYPCUT CNC control System

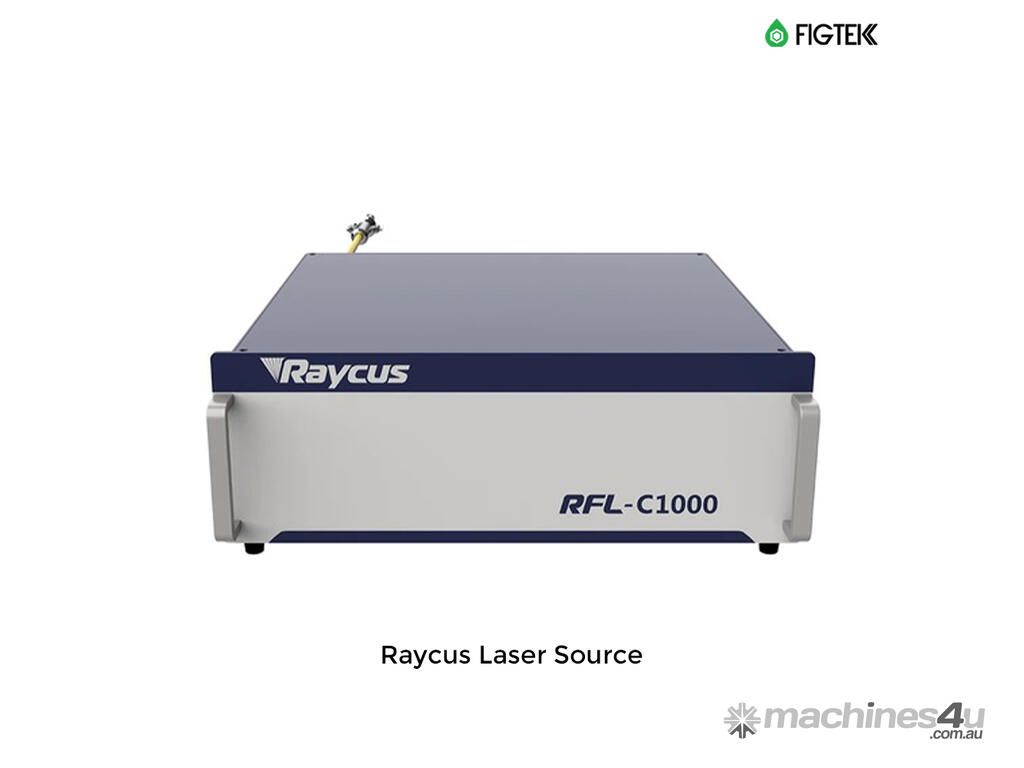

Laser Resource:
• High electro-optical conversion efficiency
• Altitude stress-resisting capacity
• Sheet cutting efficiency
• Customized output fiber length
• Maintenance-free operation
• Wide modulation frequency range

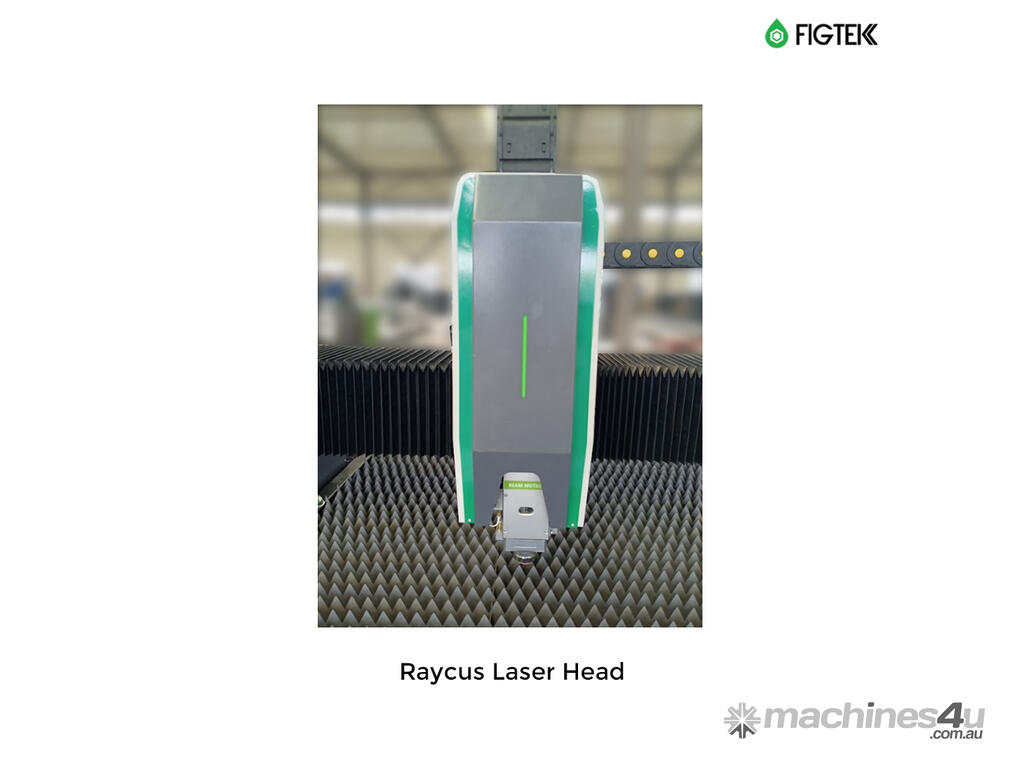

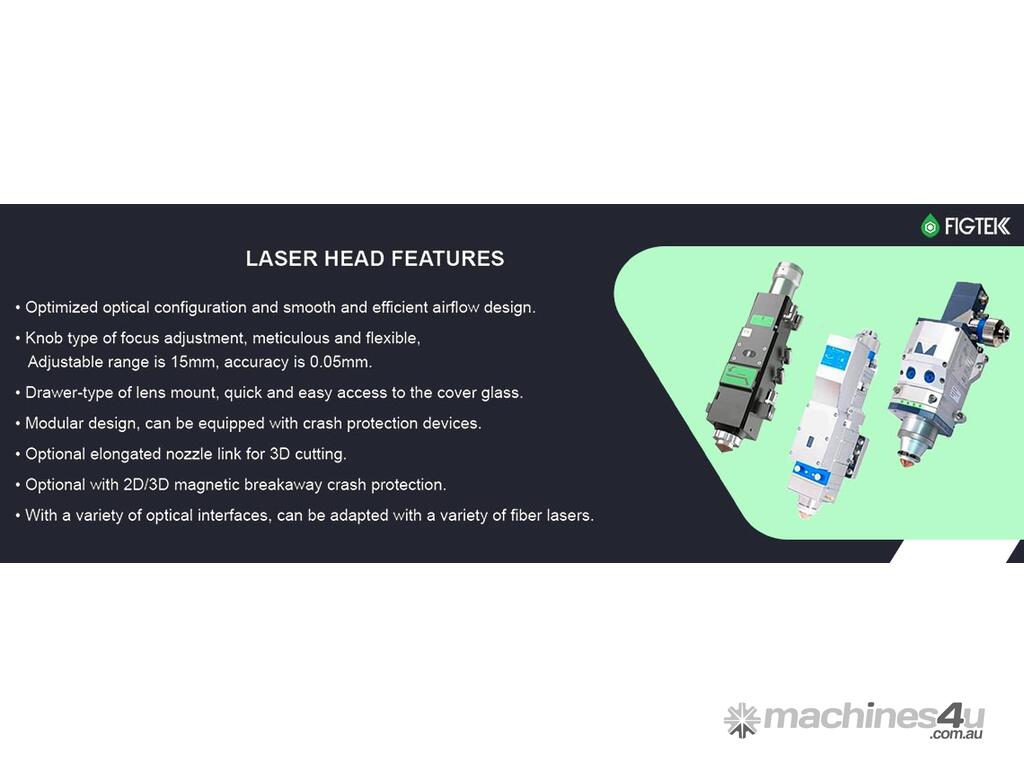

Laser Head Features:
• Optimized optical configuration and smooth and efficient airflow design.
• Knob type of focus adjustment, meticulous and flexible, Adjustable range is 15mm, accuracy is 0.05mm.
• Drawer-type of lens mount, quick and easy access to the cover glass.
• Modular design can be equipped with crash protection devices.
• Optional elongated nozzle link for 3D cutting.
• Optional with 2D/3D magnetic breakaway crash protection.
• With a variety of optical interfaces, it can be adapted with a variety of fiber lasers.
Cost-Effective Benefits of a Fiber Laser Machine:
Stable and enhanced marking performance
Reduced costs associated with maintenance
Longer up-time
Enhanced production quality due to less scrap
Strong machine structure
Ideal for even the most demanding industrial environment.
