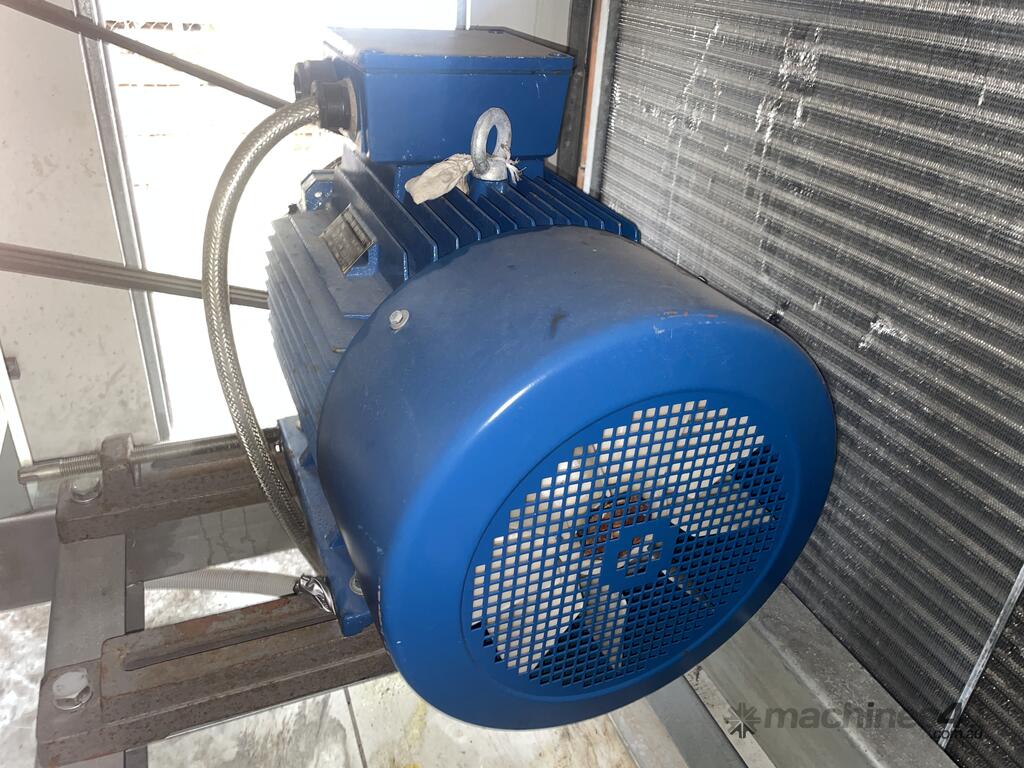

30KW motor on Fan
AHU Air Handling Unit Air Conditioning HVAC

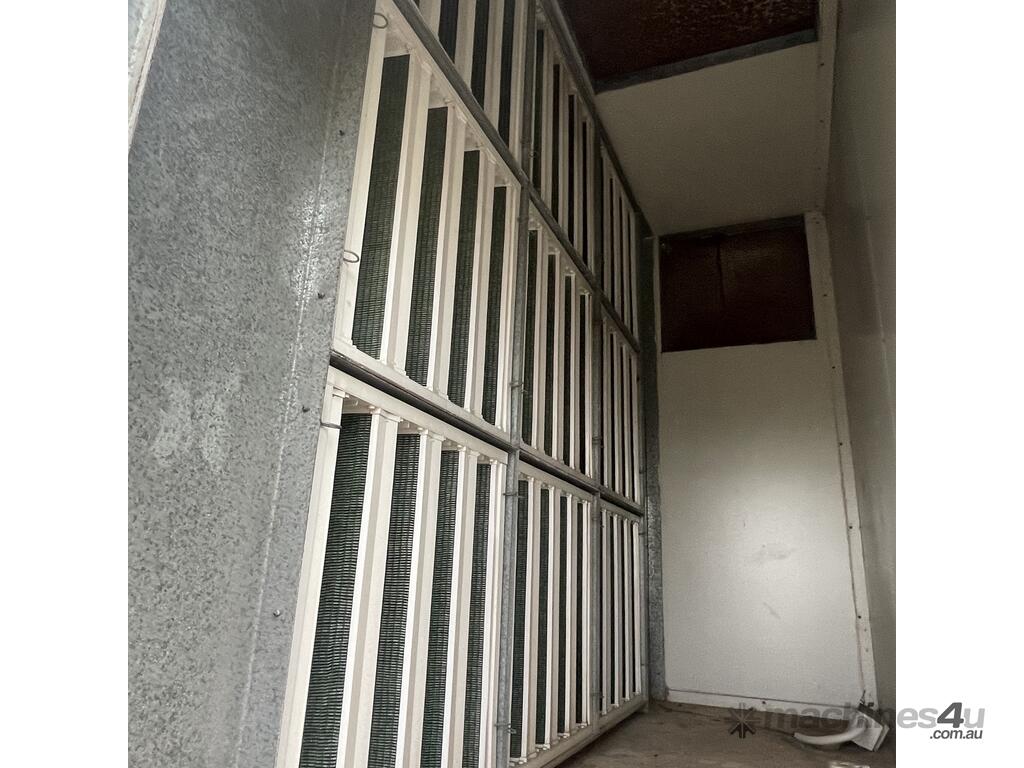

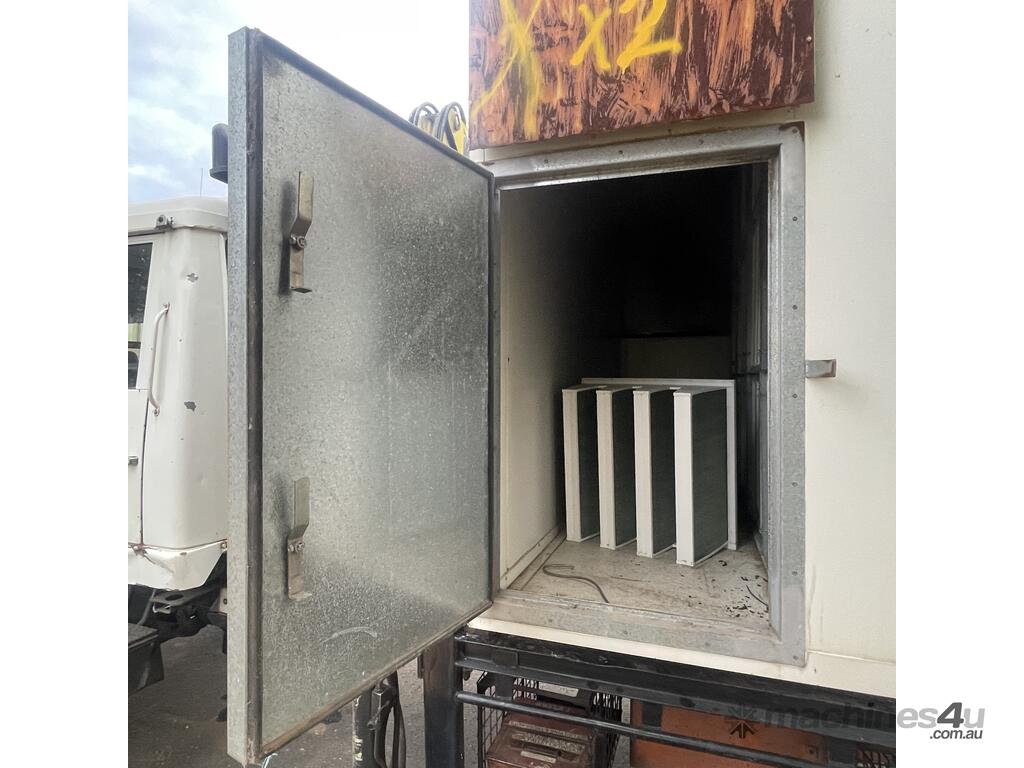

Pocket air filters.
We have another two 11kW units:
11kw Pocket AHU Air Handling Unit Conditioning Copper Coil heat exchanger HVAC

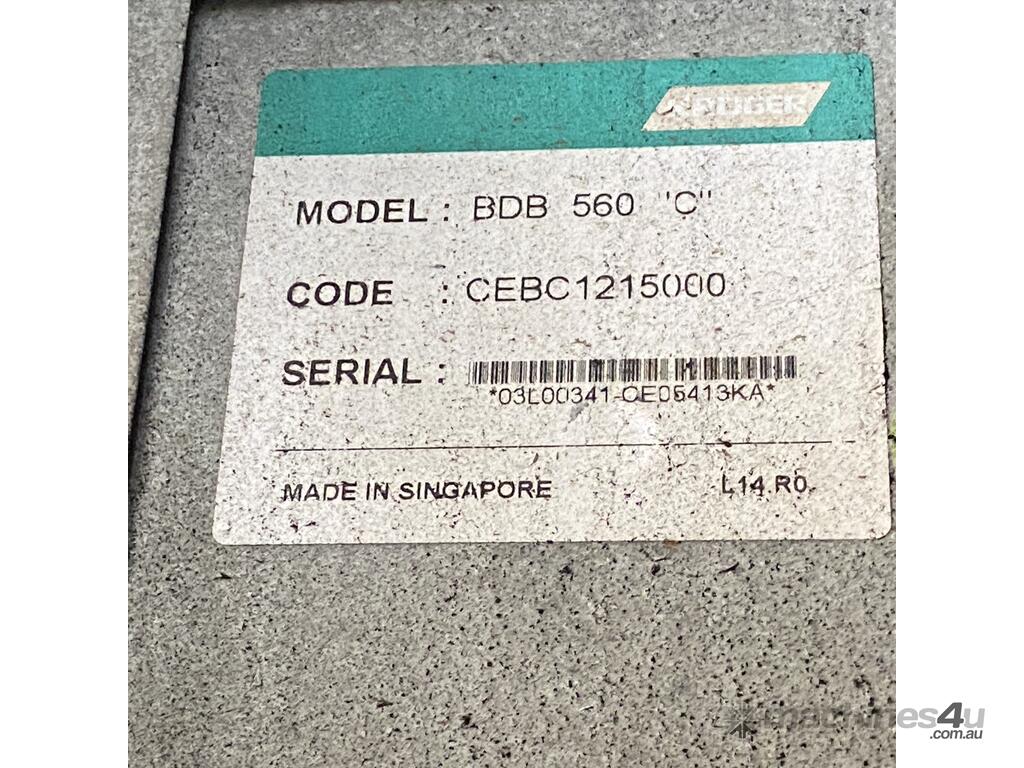

11kw KRUGER BDB 630 "C" AHU Air Handling Unit Conditioning heat exchanger HVAC

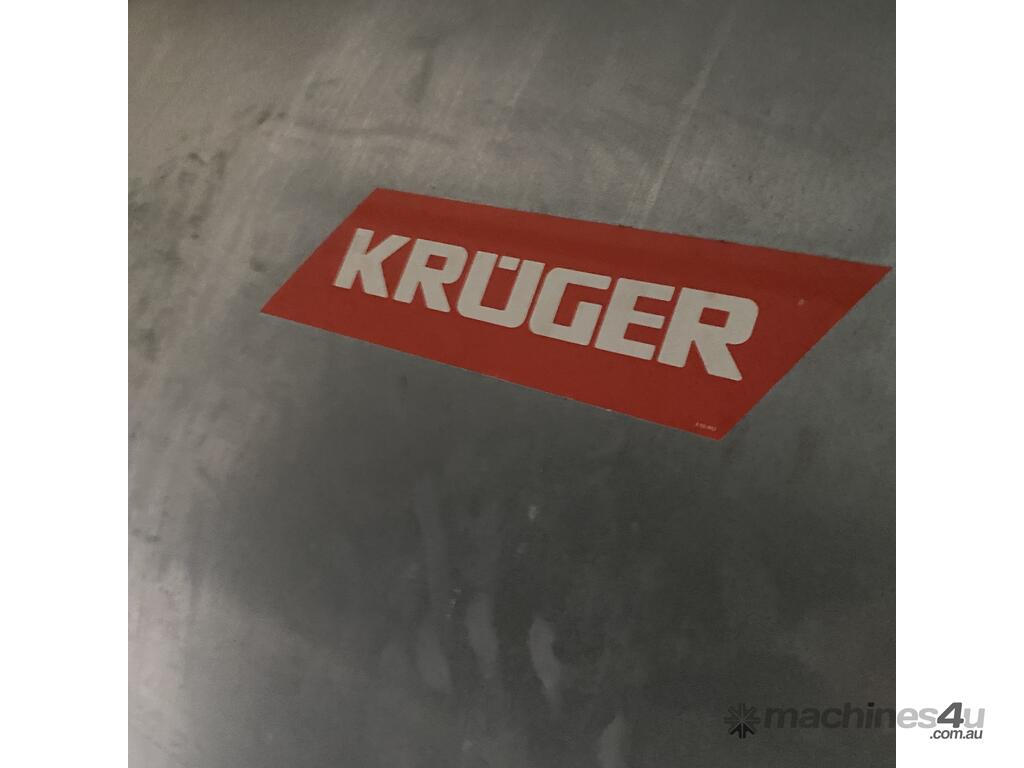

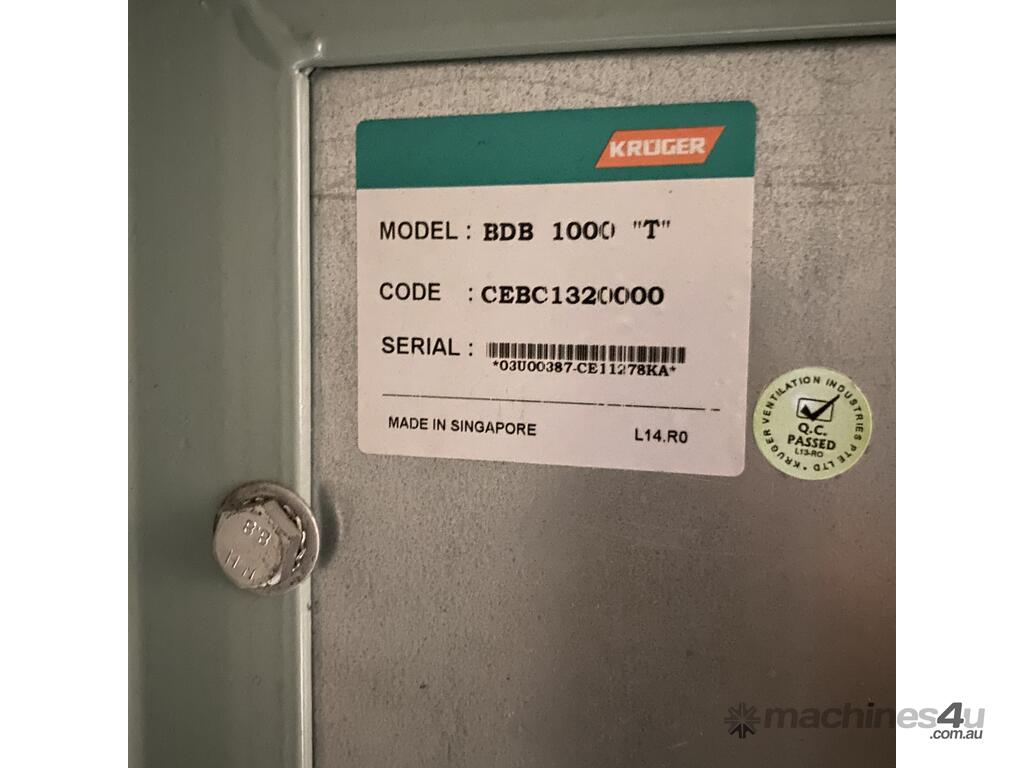

The fan is a KRUGER BDB 1000 "T" CEBC 1320000

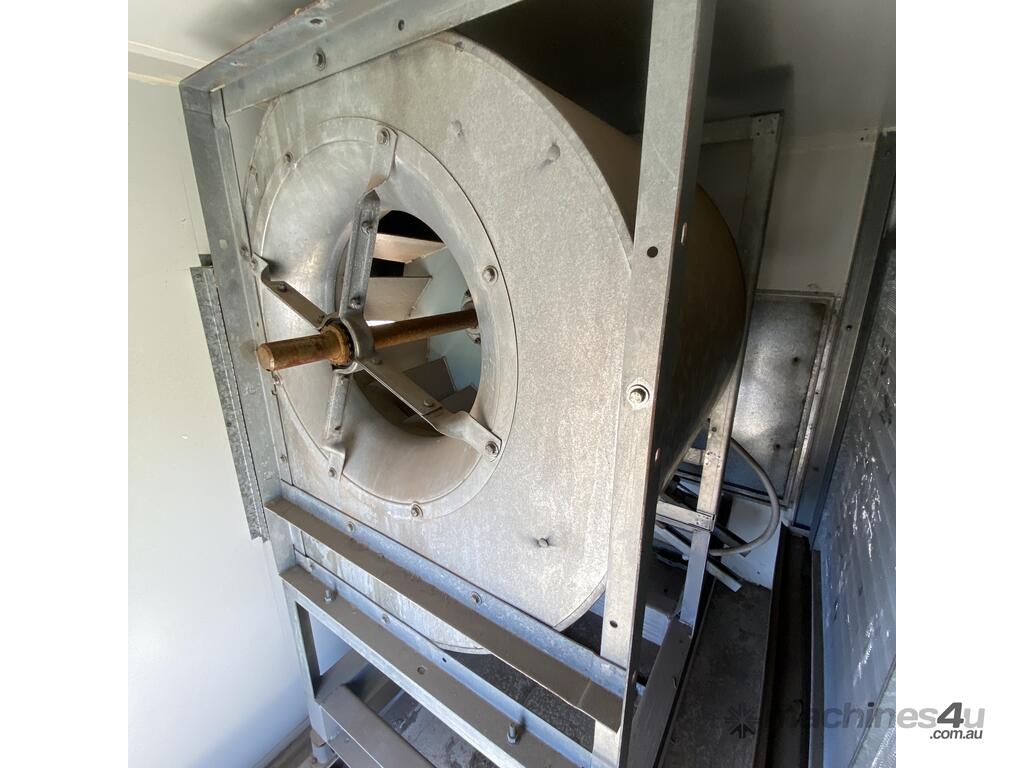

Double Inlet Centrifugal Fan
Fan is approx 1000mm and 1000mm deep in diameter

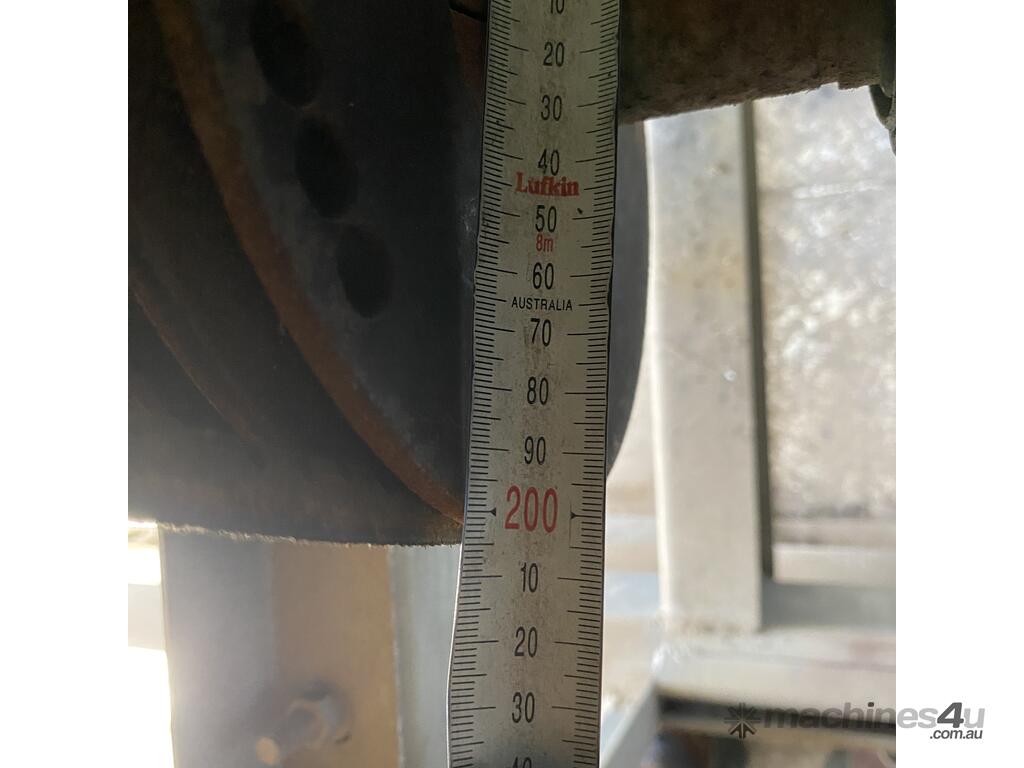

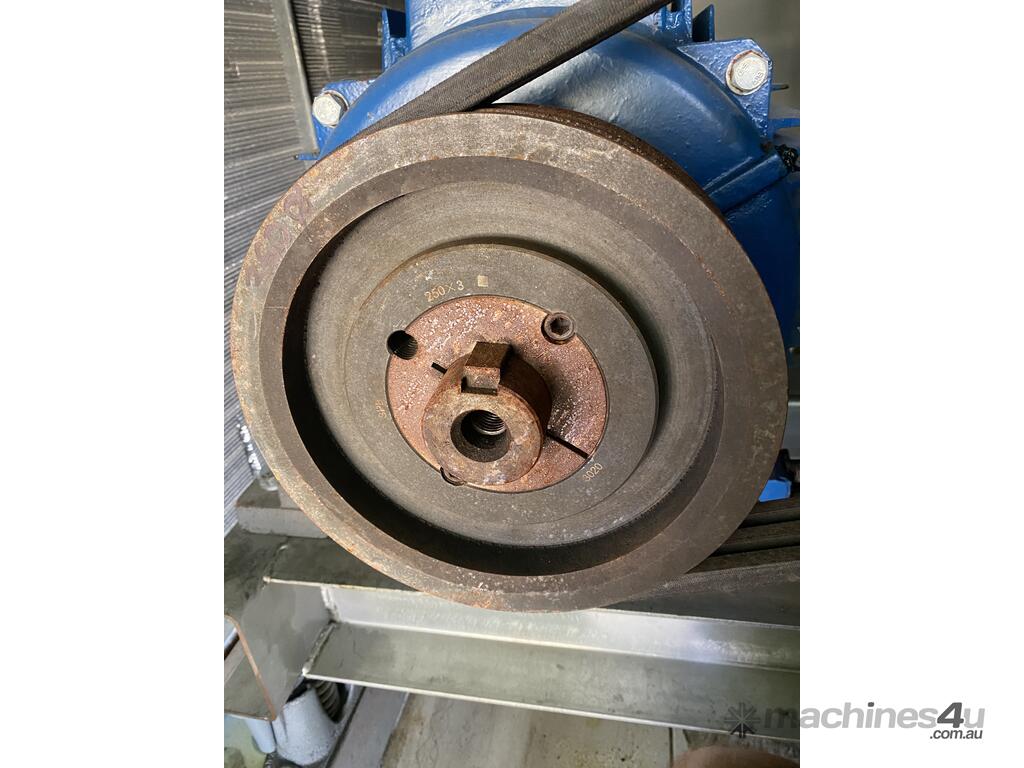

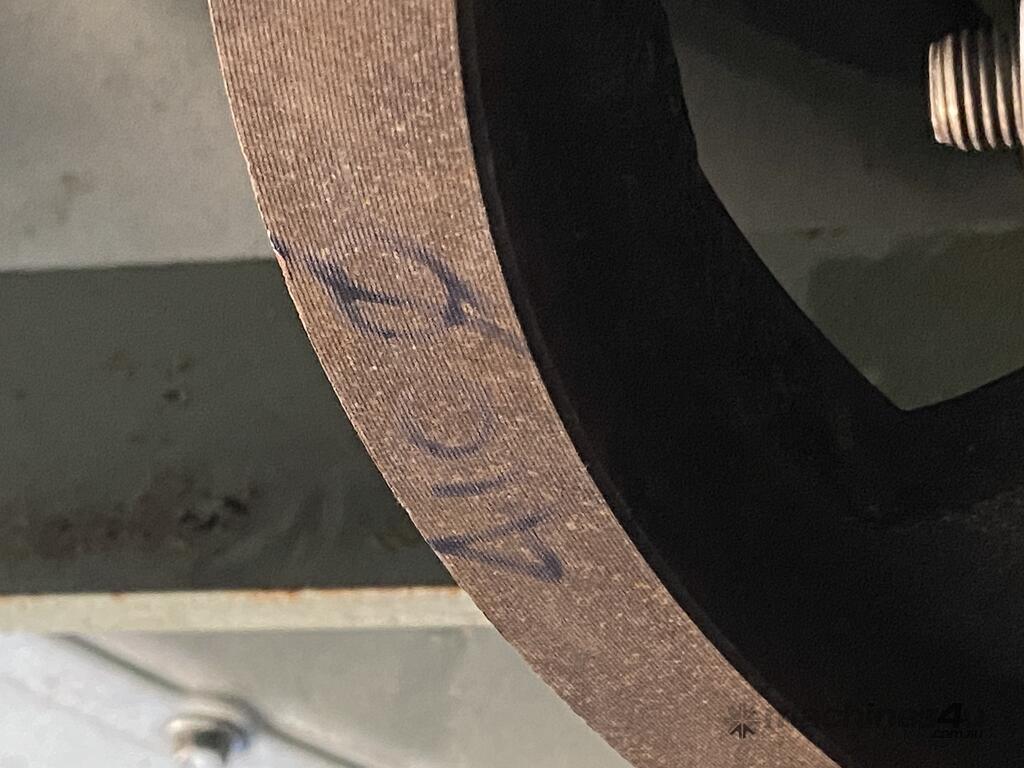

See fan curve in photos.... we believe that this configuration with the motor at 1440rpm with pully on motor at 250mm and fan pulley at 410mm puts the fan at around 900rpm.
(More info and pump curve here: statics.solerpalau/media/import/documentation/BDB_en)

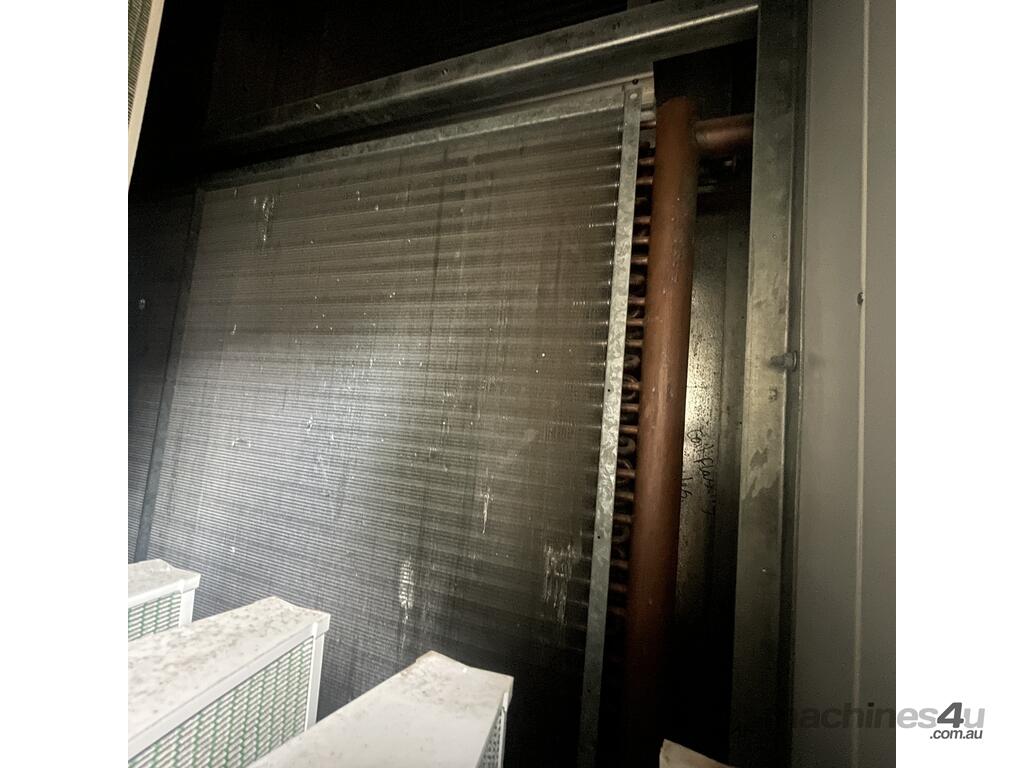

Austcoil heat exchanger radiator

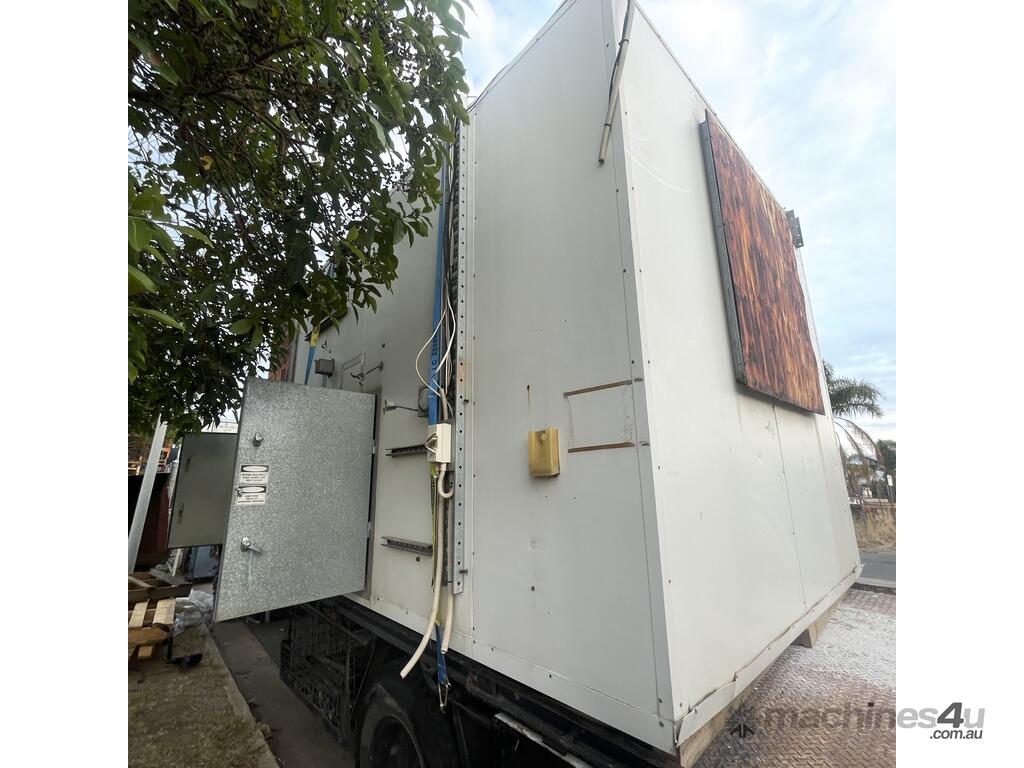

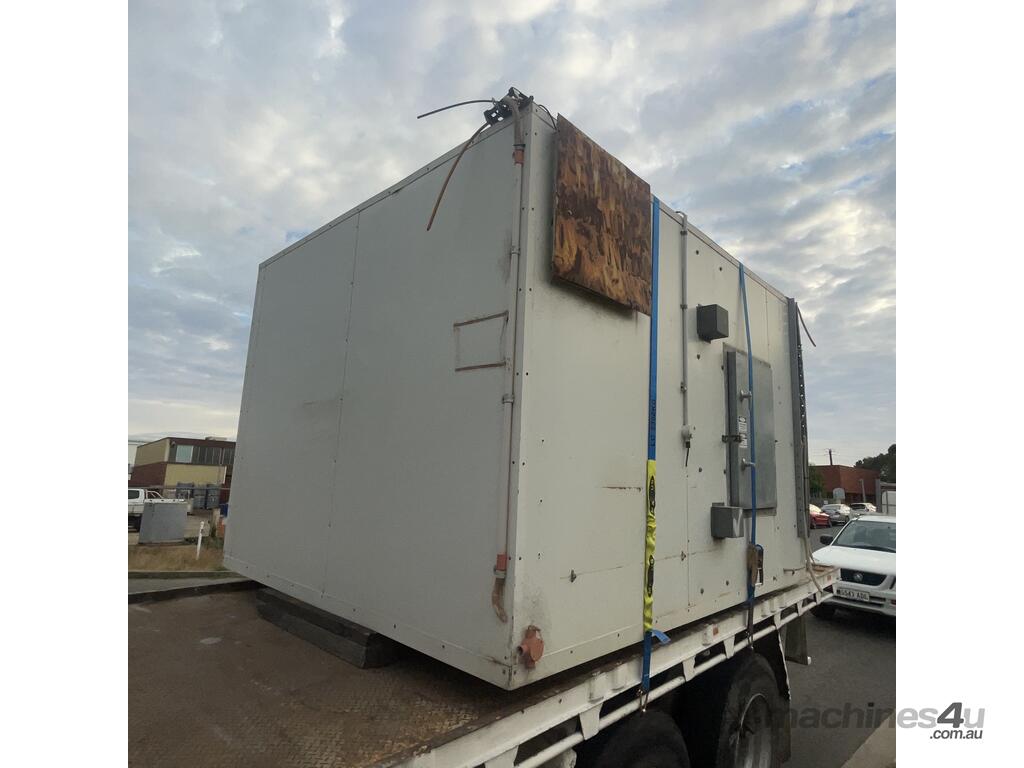

4420 x 2620 x 2560mm
Labelled as unit A for storeman.
Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
