3200MM X 6MM GUILLO & 3200MM X 135TON PRESSBRAKE

FINANCE AVAILABLE FROM $165 / WEEK – START EARNING MONEY WITH THESE BEAUTIES
THE BEST 3200MM X 6MM & 3200MM X 135TON PRESSBRAKE COMBO PACKAGE DEAL AROUND
DO THE ASSET DEAL – CALL NOW!! FOR THE BEST RANGE, PRICES, SERVICE AND SUPPORT THAT OTHERS JUST TALK ABOUT

PRESSBRAKE:

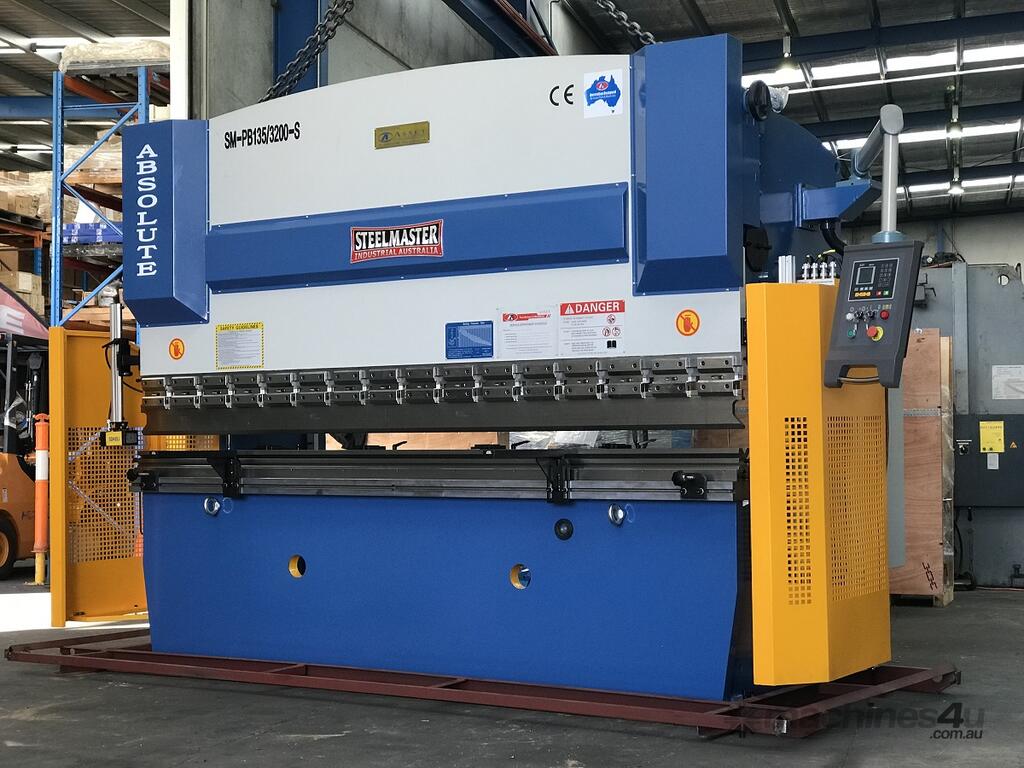

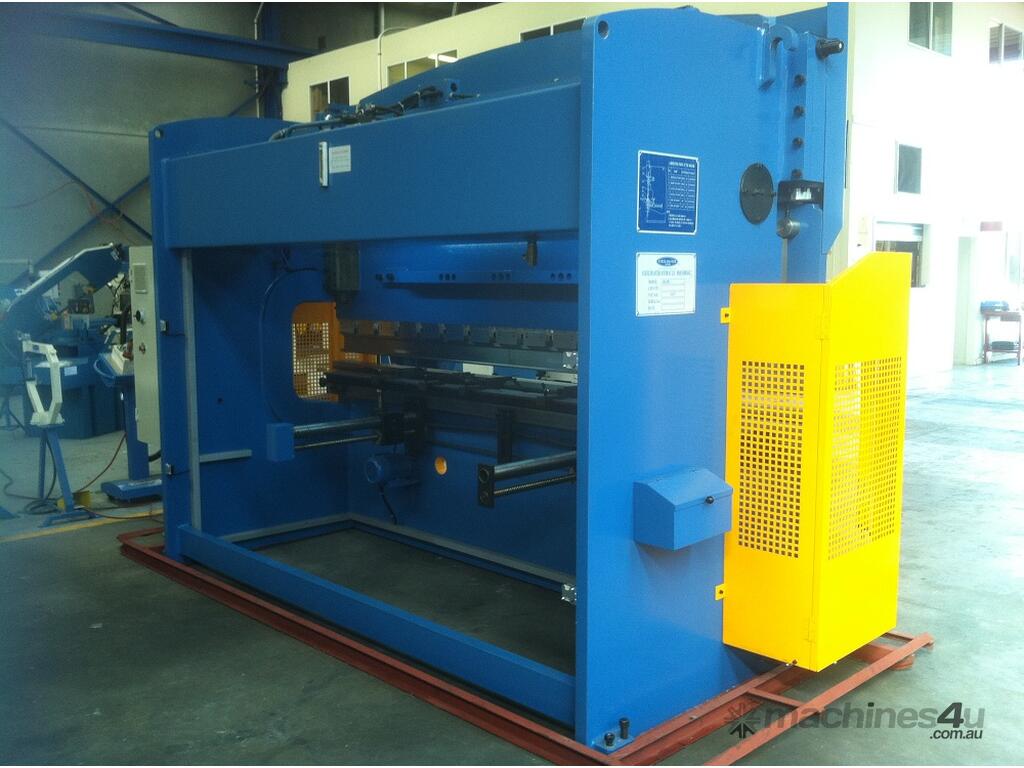

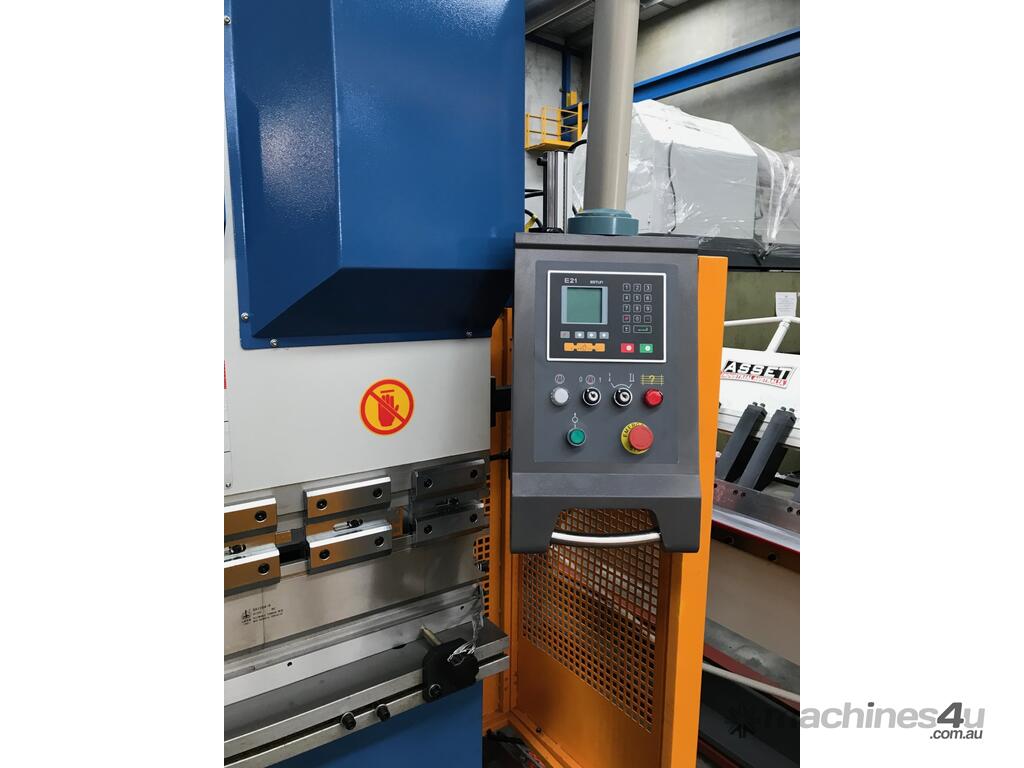

SM-PB135/3200NC Absolute Hydraulic Pressbrake NC. 3200mm x 135Ton. 2 Axis Programmable Etsun E21Controller

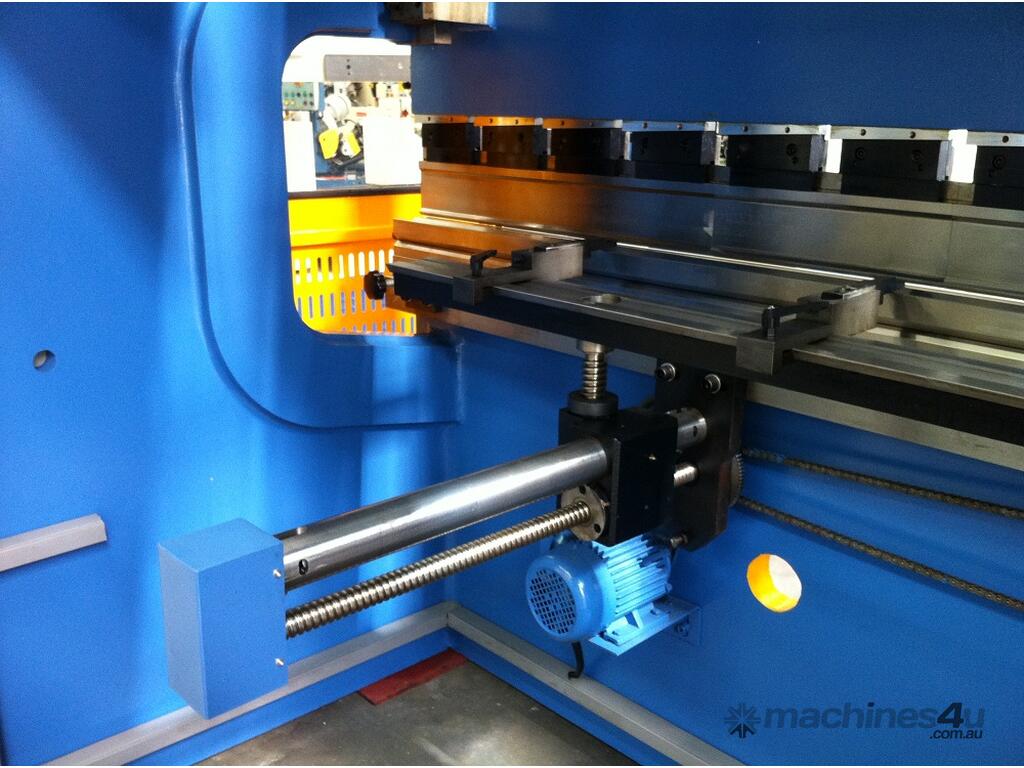

Top & Bottom Tooling, 425mm Side Throat, 2900mm Between Frames, Leadscrew Backguage with 4 Fingers.

Technical Data Snap-Shot
- 135 Ton Bending Capacity
- 3200mm Bending Length
- 2900mm Distance Between Frames
- 425mm Side Throat Depth
- 150mm Ram Stroke
- 420mm Open Height
- 600mm Back Gauge Travel
- 7.5Kw / V Motor Power
- 3580mm x 1850mm x 2690mm Footprint
- 9200Kg Weight
Please note:
**Front SDKelli Safety Light Guards are at additional cost.**

GUILLOTINE

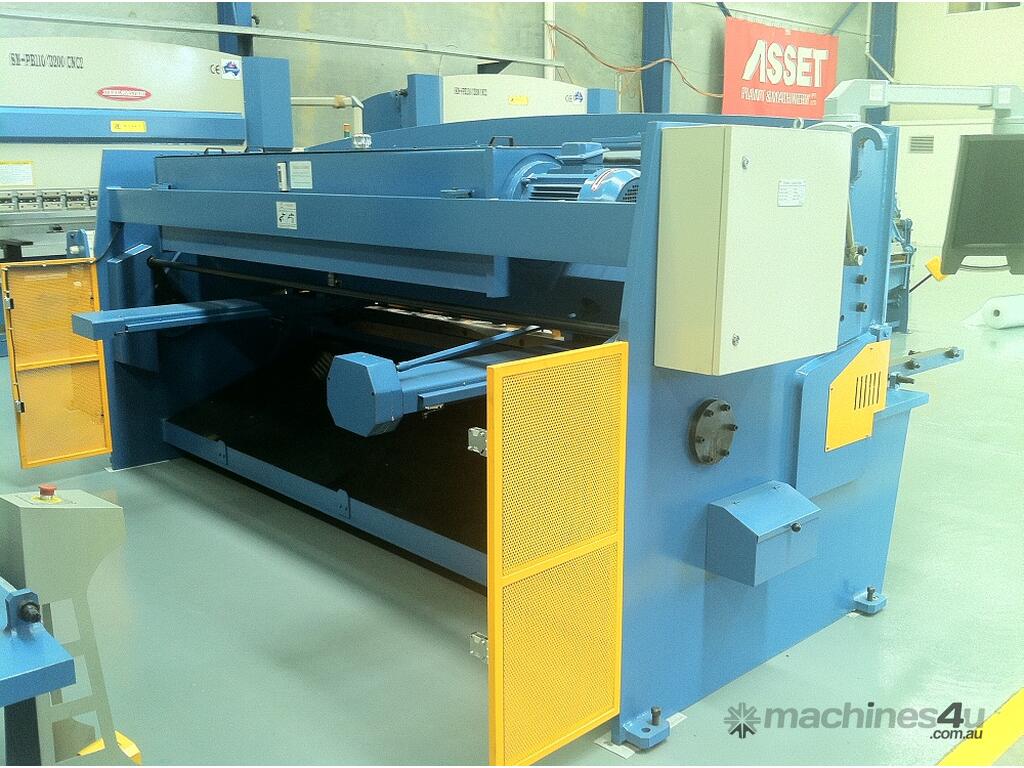

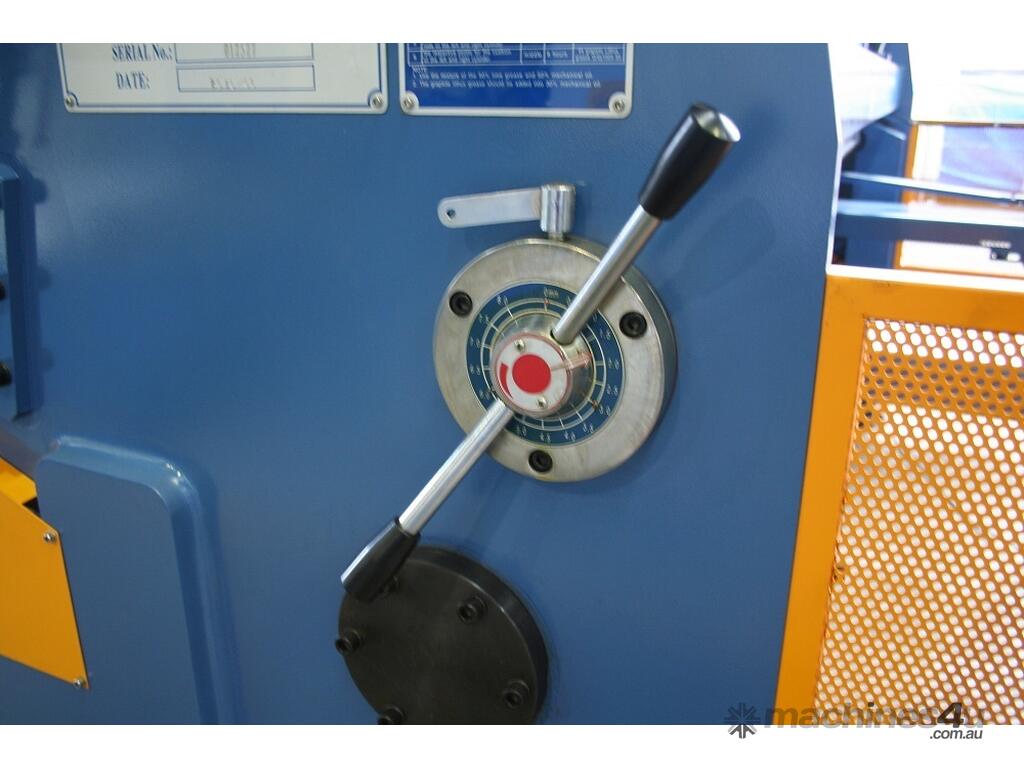

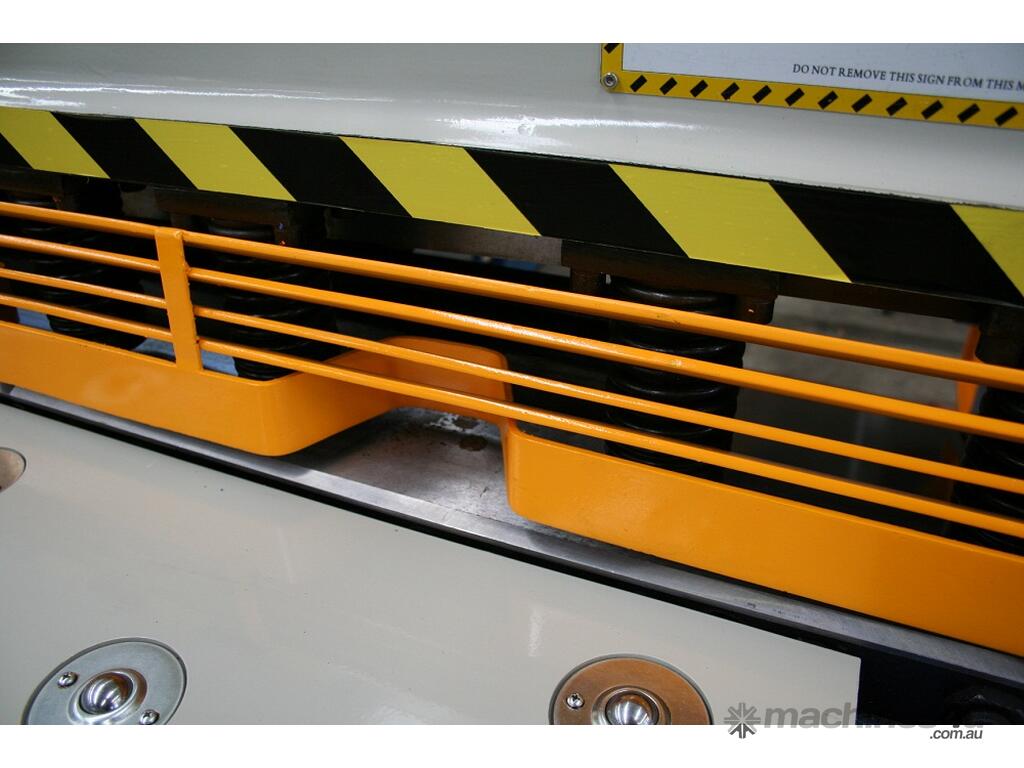

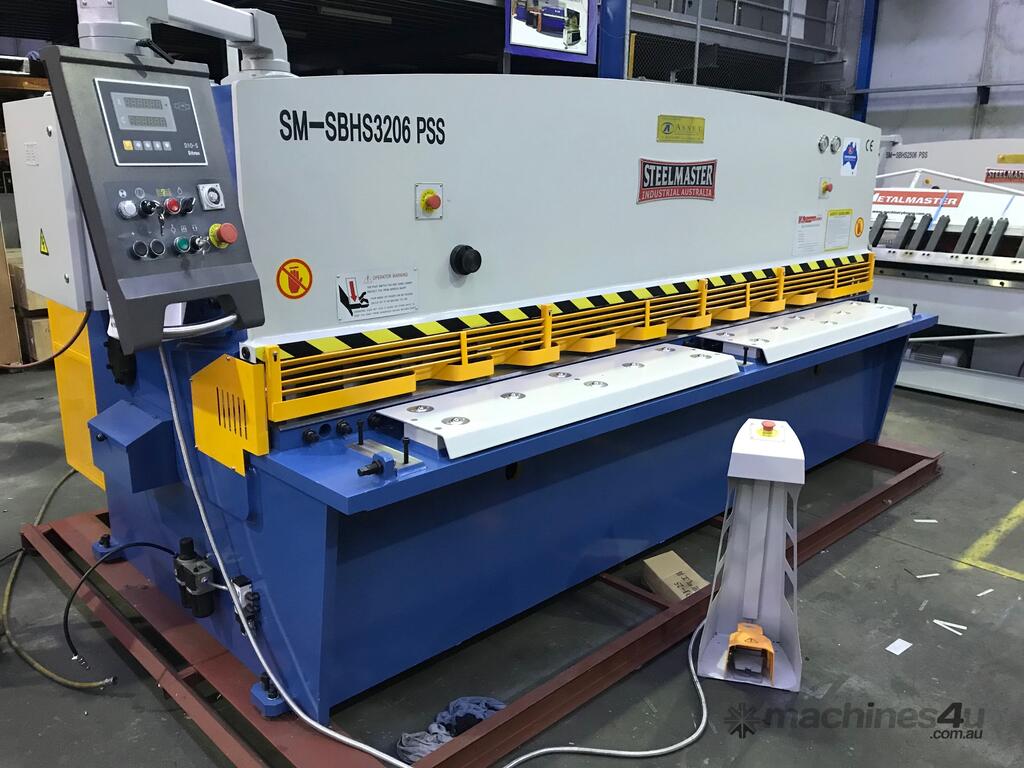

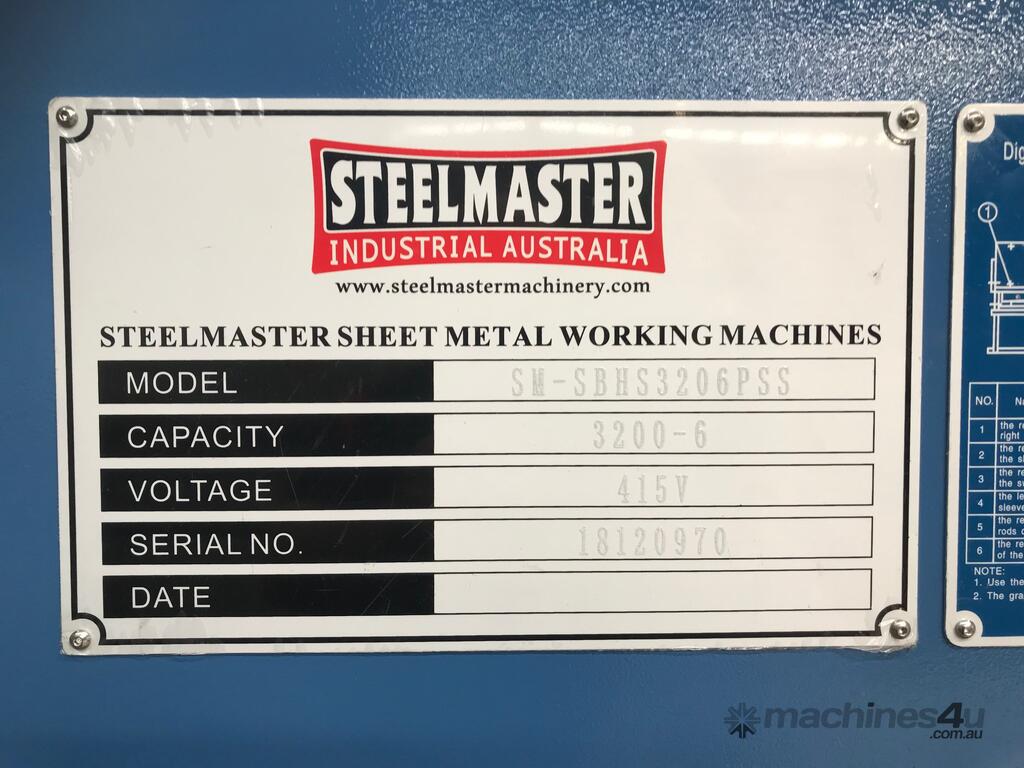

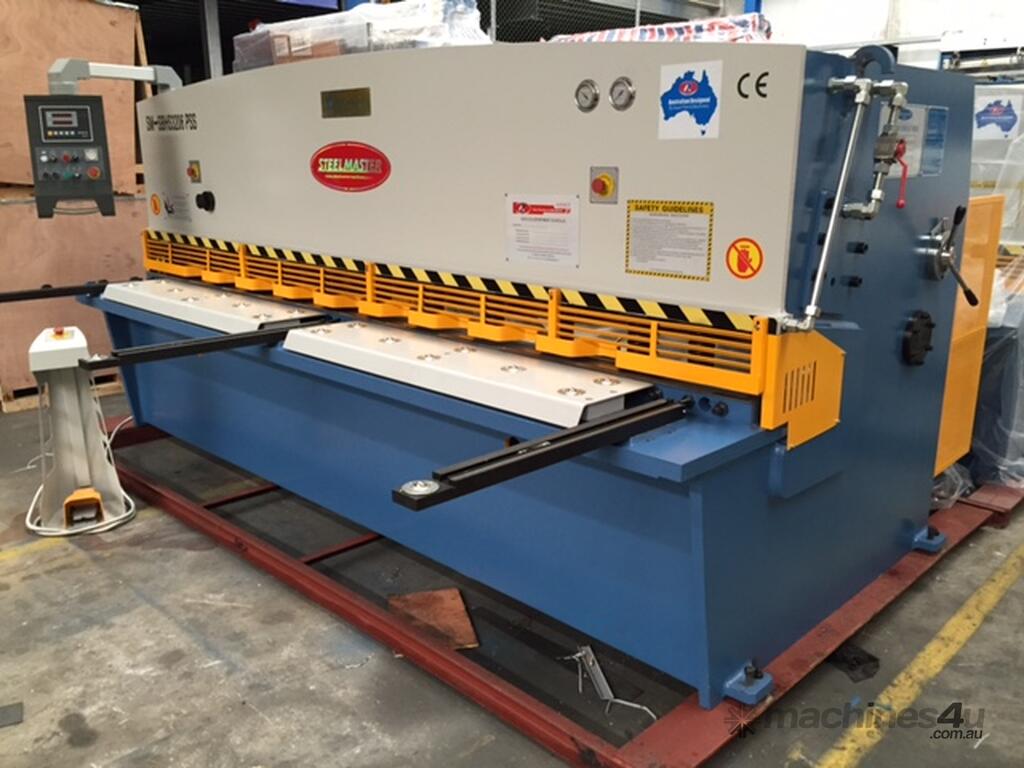

SM-SBHS3206. Hydraulic Guillotine. Steelmaster 3200mm x 6.5mm with Power Ballscrew Back Gauge. Quality Reversable Blades, 250mm Side Throat, Quick Action Gap Setting, Squaring Arm & Supports.

Technical Data Snap-Shot
- 3200mm x 6.5mm cutting capacity

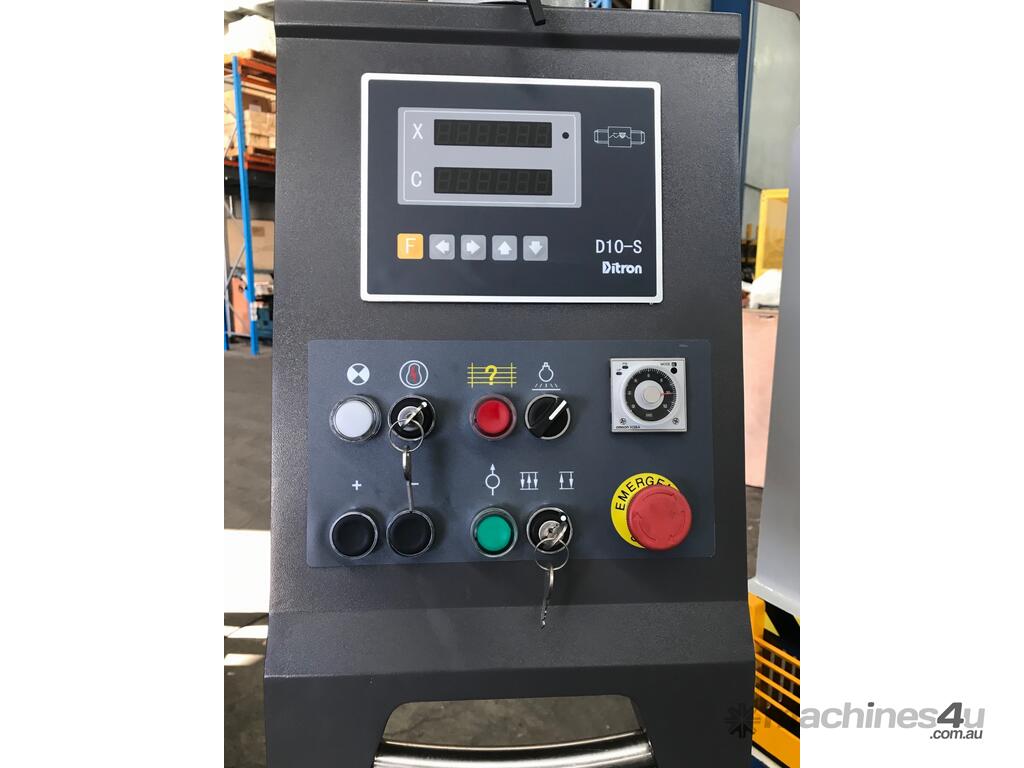

- 0 - 900 power operated ballscrew swing out backgauge
- 250mm deep side throat
- variable stroke control & stroke counter.
- shipping dimensions - 3840mm x 1610mm x 1620mm
- weight - 6700Kg
- power - 3 phase, 7.5Kw

IF YOU CANT FIND IT HERE - CALL - US AS WE HAVE MANY OTHER NEW & USED MACHINES FOR SALE

Steelmaster Metalworking Hydraulic Panbrake Folders.
When looking for a quality Metalworking Hydraulic Panbrake Folder, look no further than Steelmaster Industrial. Australian Designed & Engineered our Steelmaster Industrial Metalworking Hydraulic Panbrake Folders offer the Sheetmetal worker a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 20 models of Metalworking Hydraulic Panbrake Folders in stock at all times for quick shipments. Steelmaster Industrial’s ever growing line of Metalworking Hydraulic Panbrake Folders consist of our manual operated machines, our Standard Simple Angle Model, our NC1 Programmable Angle Fold model, to our full CNC2 model offering 2 Axis control with our powerful iBEND CNC programming system along with a large range of tooling & accessories. Depending on your needs we have the model for you, starting with our cost effective manual panbrake folder to our iBEND CNC2 Graphical Models. You won’t be disappointed.

Manually Operated Panbrake Folder
With many models to choose from our Manual Operated Panbrake Folders offer the best “bang for the buck”. The manual model comes standard with a quick action gap setting feature, extra large open height for large box folding, hardened & ground folding fingers and a well balanced clamp & fold weighted system We fully believe that we have packed our Panbrake Folders with as many features that we can think of to assist you with working smarter – not harder! We offer our Manual Panbrake Folders in sizes from 1270mm -2500mm with larger models available on request.

Standard (STD) Hydraulic Panbrake Folders
We understand that not everybody wants an NC or programmable Hydraulic Panbrake Folder. Some operates just require a simple system that works. Our STD Hydraulic Panbrake Folders offer the KISS factor! “Keep it simple silly”. Simply set the angle setting on the side of your folder and away you go. Our STD Hydraulic Panbrake Folders offer the same “high quality” frame build and fit our as our NC & CNC2 models – just simple and setting feature! How goods that? Sizes from 1320mm x 4mm -4000mm x 4mm with larger models available on request. Safety Laser Light Guards are fitted standard on all our Hydraulic Panbrake Folders to ensure full safety is met! All this at a very competitive price.

NC1 Operated Hydraulic Panbrake Folders.
With many models to choose from our Hydraulic NC1 Hydraulic Panbrake Folders offer programmable folding features. The NC1 model comes standard with an Estun fully programmable controller operating the folding axis. We fully believe that we have packed our Hydraulic NC1 Panbrake Folders with as many features that we can think of to assist you with working smarter – not harder! In addition to the NC1 we have fitted a heavy duty sliding Backguage system running on dovetail guides with panbrake style adjustable fingers. We offer our Hydraulic NC1 Panbrake Folders in sizes from 1300mm - 4000mm in length with larger models available on request. Safety Laser Light Guards are fitted standard on all our Hydraulic Panbrake Folders to ensure full safety is met! All this at a very competitive price.

CNC2 eBend Graphical Hydraulic Panbrake Folders
Steelmaster Industrial offers our new ebend CNC Controller on our CNC range. This would have to be the best CNC system on the market for power and ease of operation. Our Hydraulic CNC2 Hydraulic Panbrake Folders have been fitted up to offer you the best selection of features. In addition to the NC models our CNC2 models offer, 2 Axis Programming drive, rear roller ball table, ebend CNC graphical controller, quality imported precision backgauge system and fingers & safety light laser guards are included!!!

Steelmaster Sheetmetal Metalworking Guillotines.
When looking for a quality Sheetmetal Metalworking Guillotine, look no further than Steelmaster Industrial. Steelmaster Industrial’s Sheetmetal Metalworking Guillotines offer the Sheetmetal worker a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 20 models of Sheetmetal Metalworking Guillotines in stock at all times for quick shipments. Steelmaster Industrial’s ever growing line of Sheetmetal Metalworking Guillotines consists of Manual Treadle, EMS Electro Shears, Swing Beam & Variable Rake Guillotines, along with a large range Pressbrakes, Panbrakes and other Sheetmetal Machinery. Depending on your needs we have the model for you, starting with our cost effective manual machine to our large hydraulic models.

Sheetmetal Manual Treadle Guillotine
With several models to choose from our manually operated Guillotines gives the best “bang for the buck” of any of the Steelmaster Guillotines. This model comes standard with squaring arm, quality blades & adjustable gibs. Heavy steel fabricated frame – Australian Designed & Engineered!

Sheetmetal Electro Shear Guillotine
Steelmaster offer our Electro Shear Guillotine range - fast, efficient & affordable guillotine for use both in jobbing and production. Features a heavy fabricated body with foot control, precision ground blade, spring activated hold down, flat working table with calibrated front guides & squaring arm.
Our Electro Shear Guillotines also offer front extension arms for those longer jobs, stainless foot pedal cable and all safety cut offs to ensure a safe work place. Models start from 1270mm – 3.2mm up to 3200mm x 3.2mm. Designed from the English “Tru Cut” these Electro Shear Guillotines are a winner!

Hydraulic Swing Beam Guillotine
Steelmaster Industrial offer one of the best Swing Beam Guillotines around. Price, Quality and Performance – With ongoing innovations from our Aussie Engineers our market leading models range from our SM-SBHS2504 – 2500mm x 4mm to our heavy duty SM-SBHS6016 – 6000mm x 16mm. Our Swing Beam Guillotines have been fitted up to offer you the best selection of features including rapid blade gap setting, precision ballscrew back gauges, deep side throats, variable stroke control and much more. Along with this numerous safety e stops, front and rear safety guards, stainless braided foot pedal cable, ensure all round safe operation.

Heavy Duty Variable Rake Guillotine
Our heavy duty range of Variable Rake Guillotines around. Our Variable Rake Guillotine series are designed and constructed to provide excellent shearing of material with clean, square edges, and to exacting tolerance. Variable Rake Guillotines shears are equipped with the productive features and safety devices for optimum, accurate cutting performance usually only found on more expensive units. Feature for feature, they are a smart, economical choice for cutting plate. Three pairs of rollers ensure optimum guiding of the cutting beam. All of these features combined with variable rake angle minimise any deformation of materials even with thin strip cutting.
Our Variable Rake Guillotines are supplied up to 9000mm in length & cutting capacities up to 30mm plate thickness on request.
