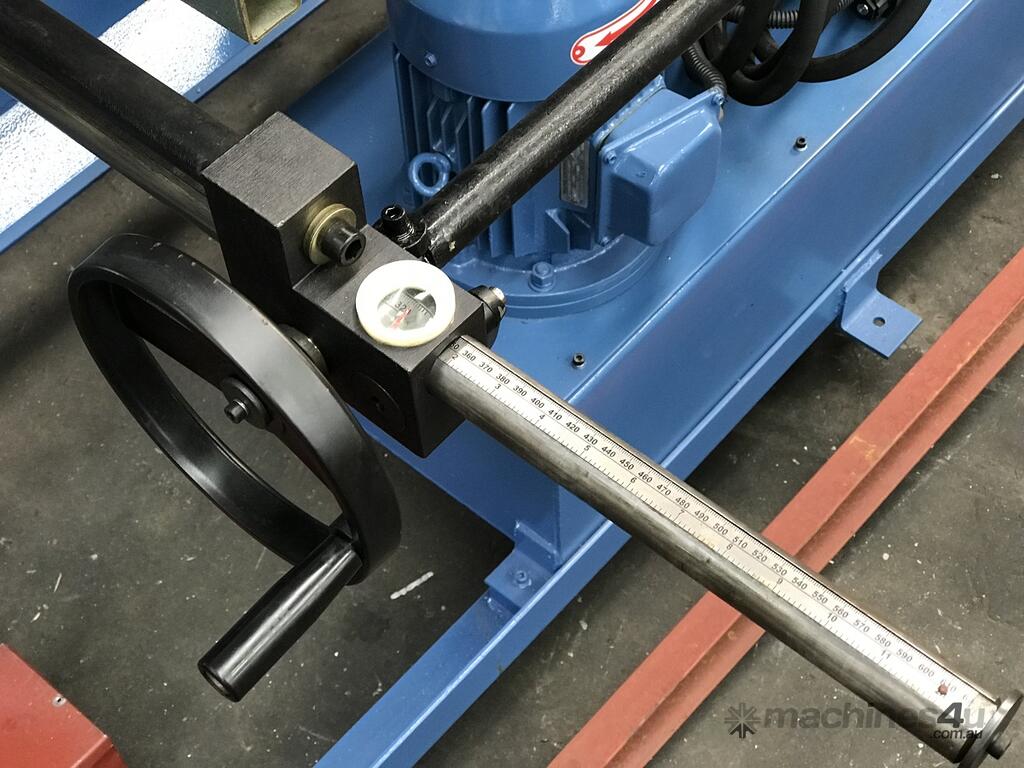

3200mm x 4mm Aussie Designed Heavy Duty Model - Calibrated Backgauge

**CURRENTLY ON SPECIAL. LIST PRICE IS $24,850.00 + GST**

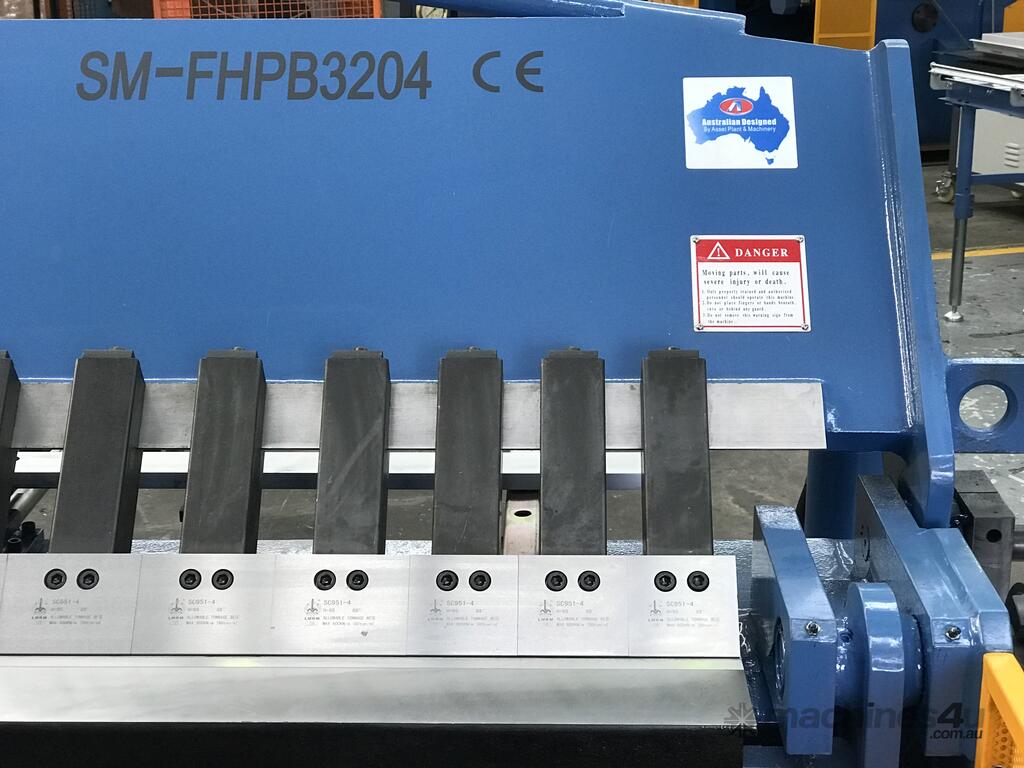

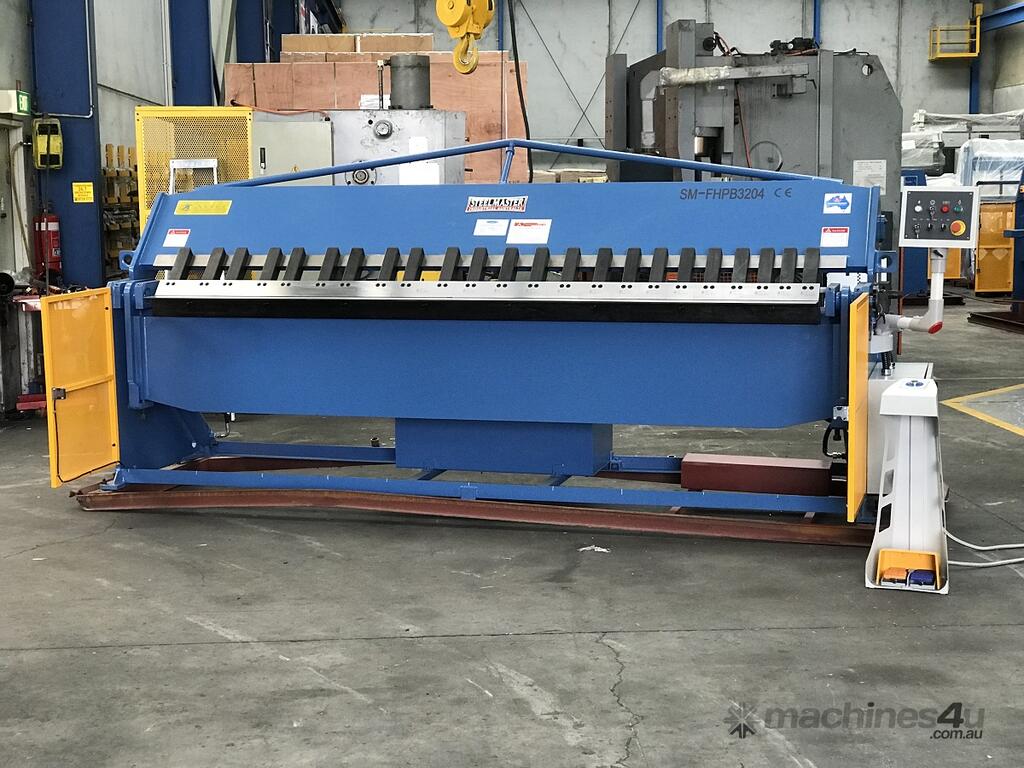

SM-FHPB3204. Panbrake Folder. Full Hydraulic. 3200mm x 4mm with Quick Set Angle Fold Setting.

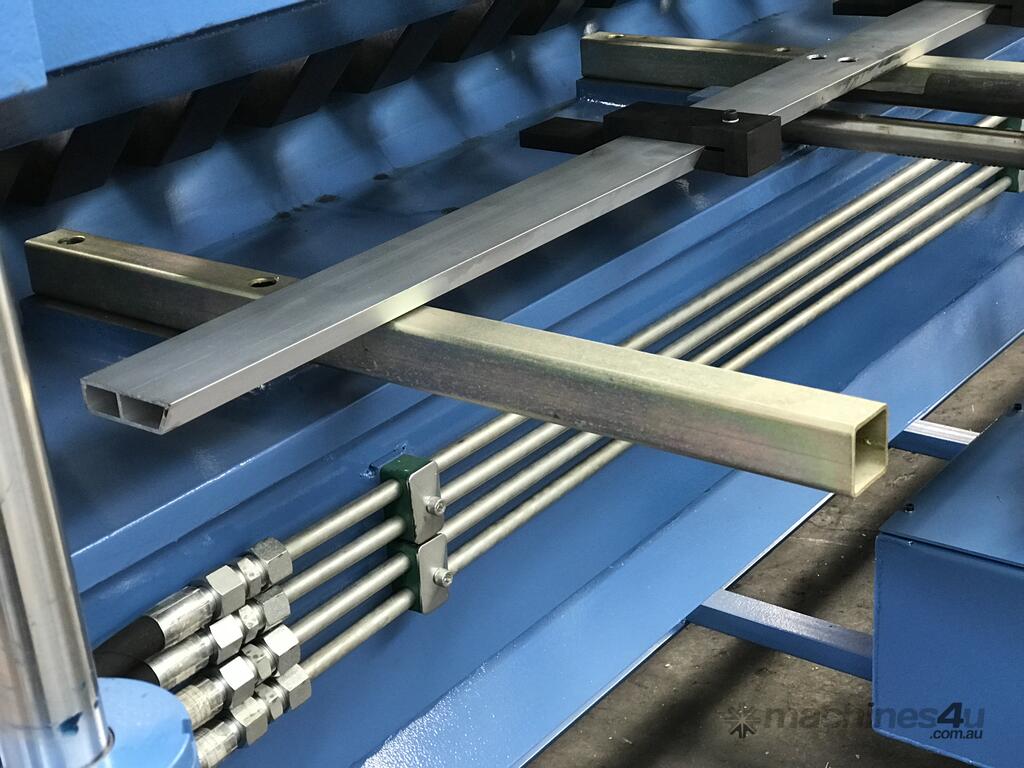

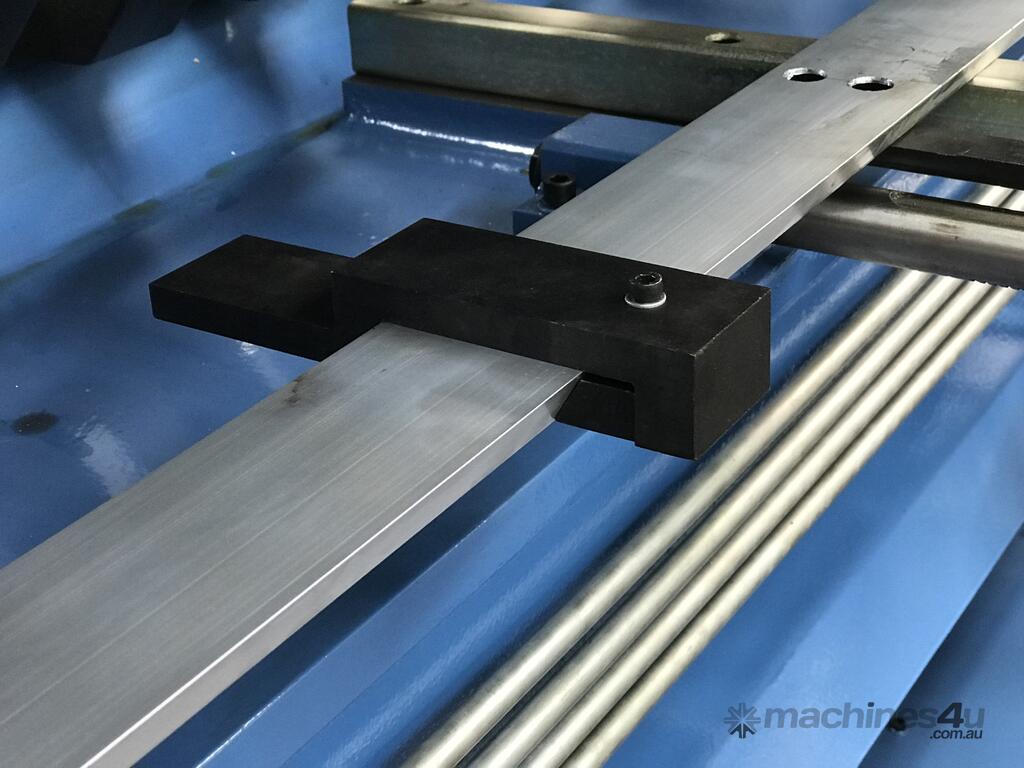

Hardened & Ground Fingers, Backguage with 4 Adjustable Fingers, Safety Guards, Australian Designed.

Description:
Our Australian designed & engineered Full hydraulic Panbrake will blow the competition away.
Quality and ease of operation, our standard machine offers a quick set angle controller for quick and accurate folding of all applications.
Produced exclusively for Asset by Australian Engineers.

Structural & Operating Features
hydraulically operated bending and clamping beam for efficient heavy duty operation
high structural rigidity from heavy plate steel box construction with continuous welded seams
bending beam powered by dual hydraulic cylinders

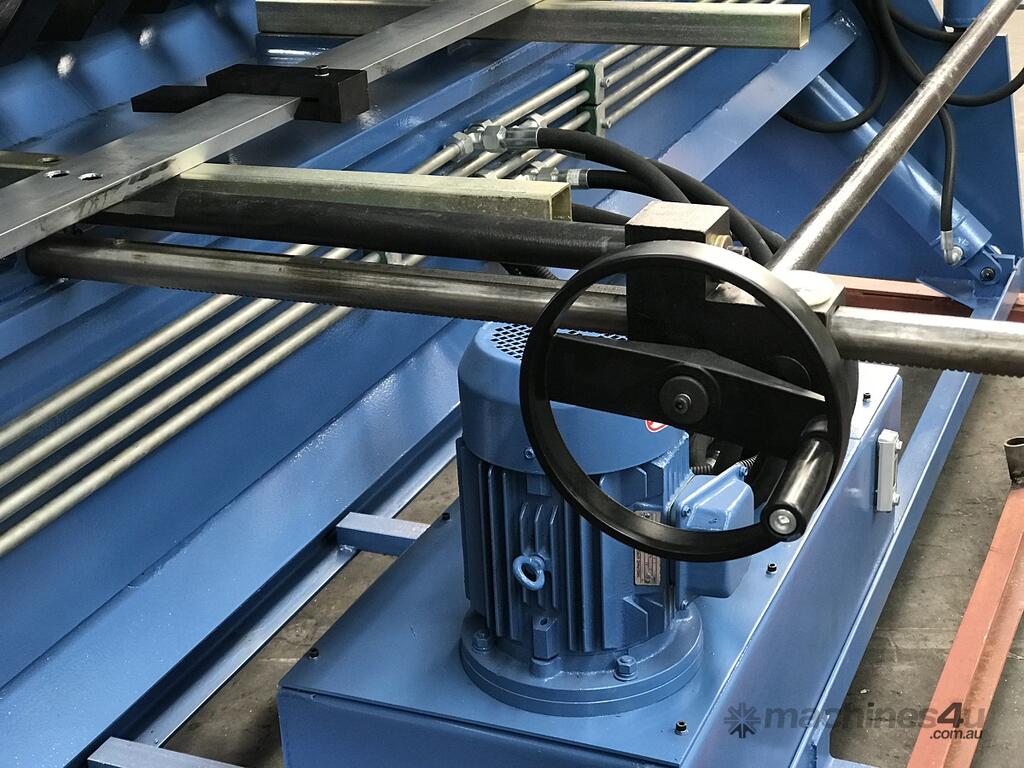

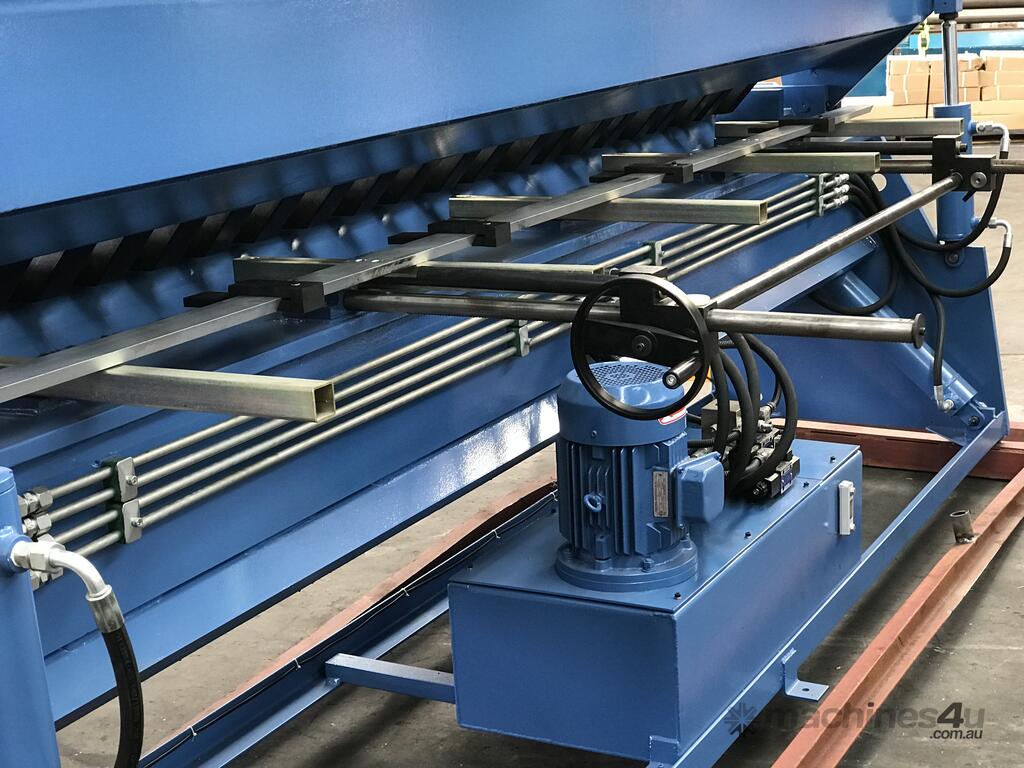

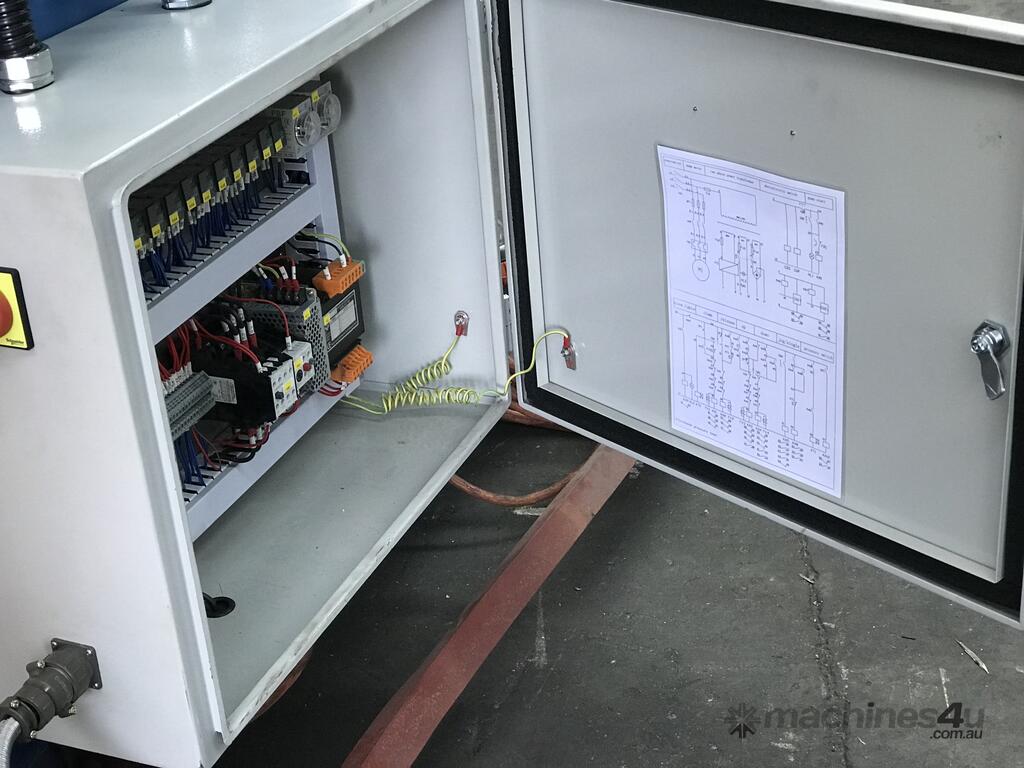

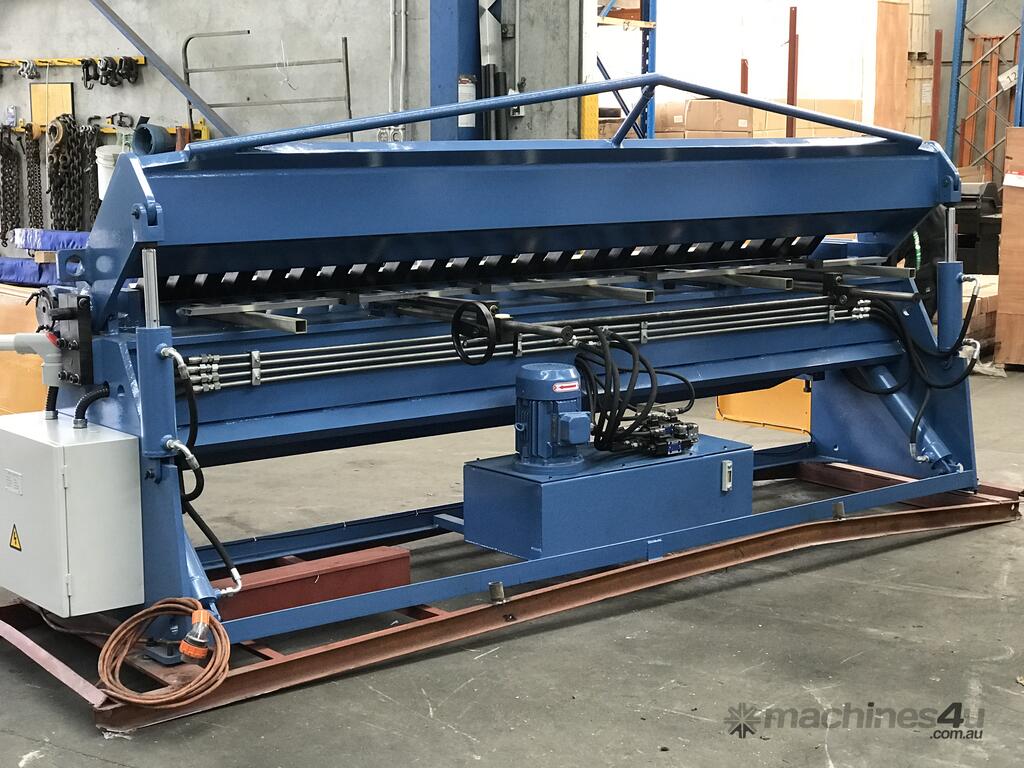

fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings

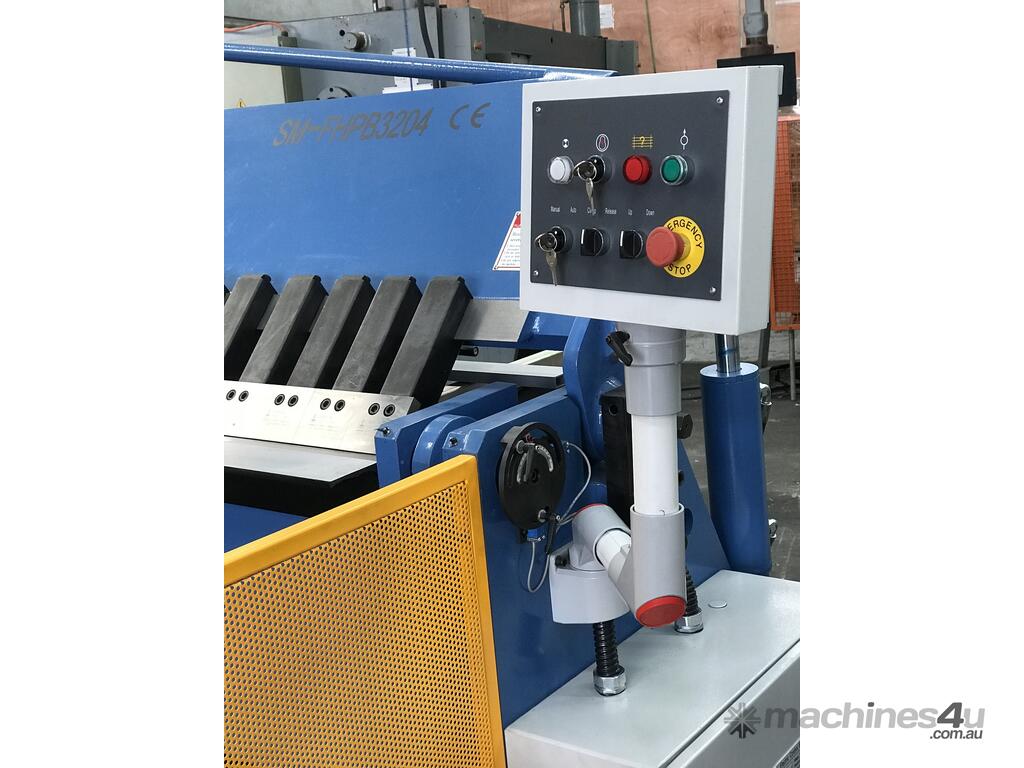

precise electric / hydraulic controls with manual inching of bending beam

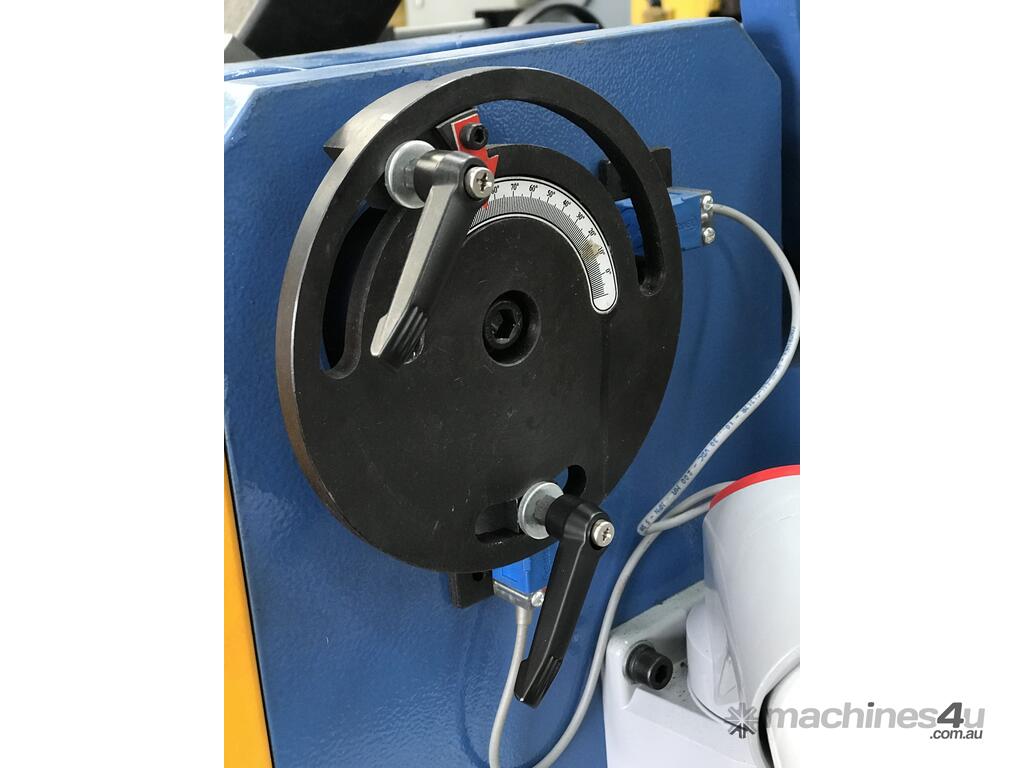

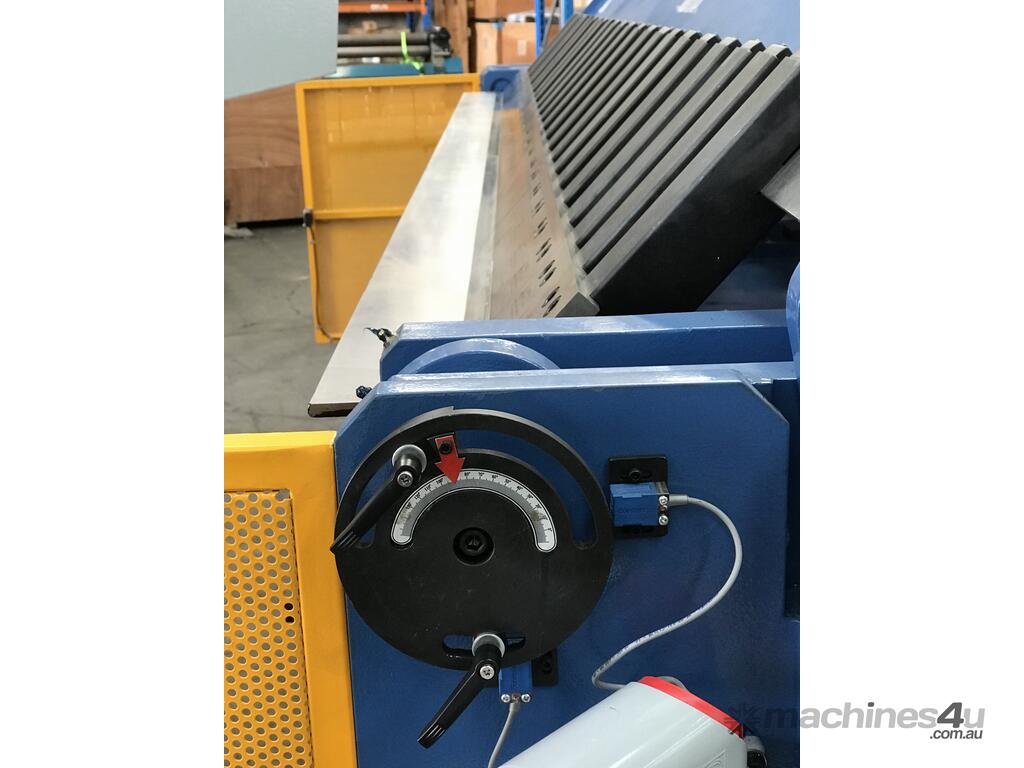

utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron

Key Features:
capacity 3200mm x 4mm mild steel
high bending angle of 0-125°
greatest depth of box bent 160 mm
powerful motor
150 mm 5`lift of clamping beam
hydraulically operated bending and clamping beam for efficient heavy duty operation
24 volt control wiring

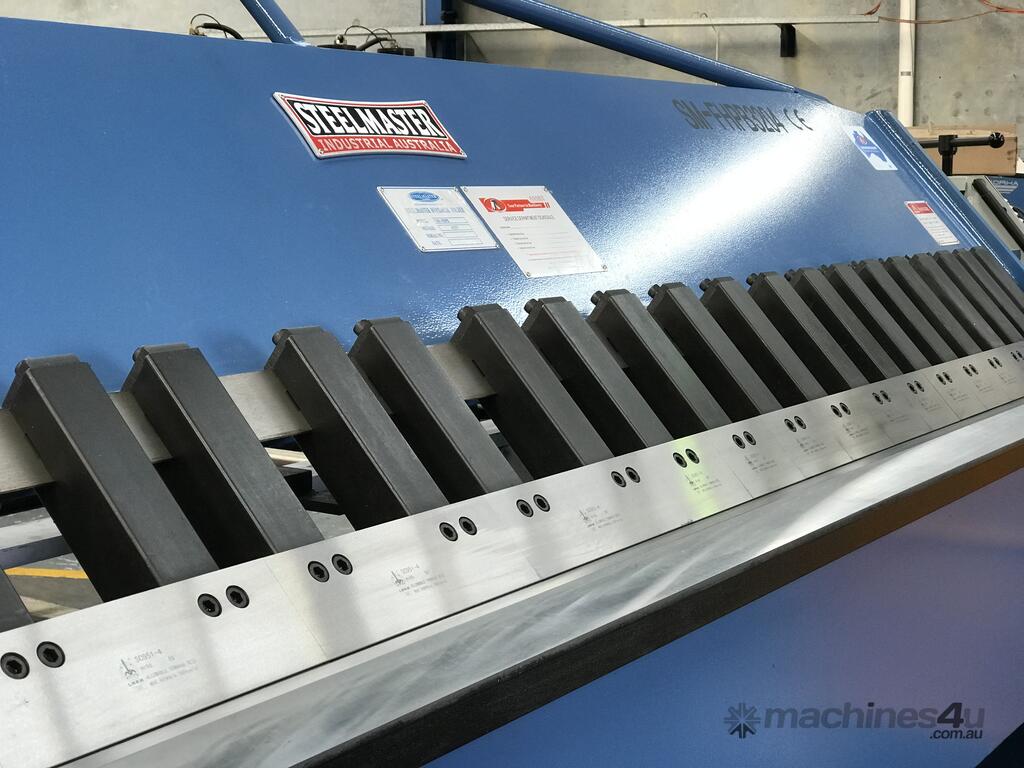

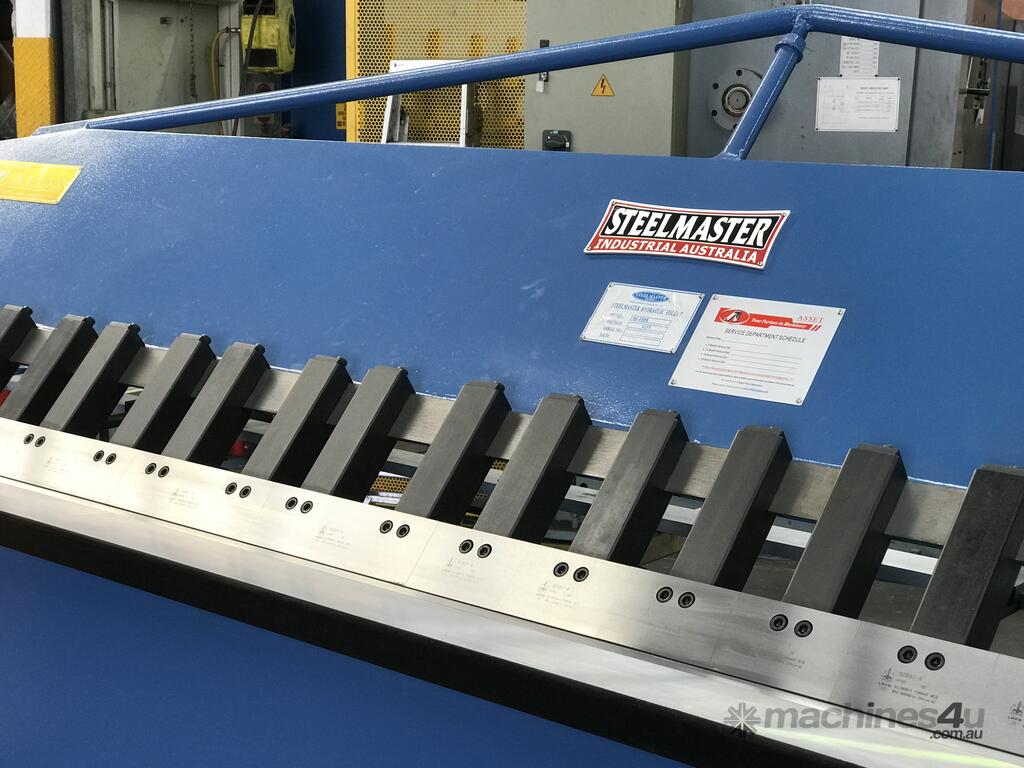

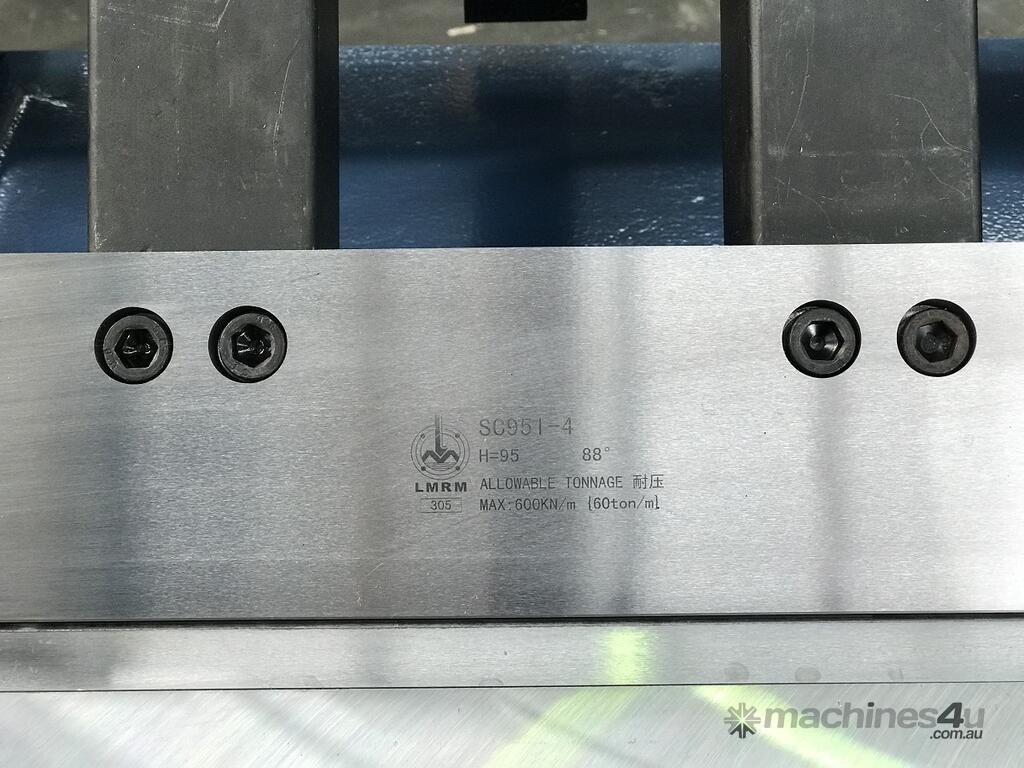

bending fingers made from hardened material, maximizing life
Please quote SKU: 18-0113
Need more details? Can't find what you are looking for?
We have many more items available than listed here.

Steelmaster Metalworking Hydraulic Panbrake Folders.
When looking for a quality Metalworking Hydraulic Panbrake Folder, look no further than Steelmaster Industrial. Australian Designed & Engineered our Steelmaster Industrial Metalworking Hydraulic Panbrake Folders offer the Sheetmetal worker a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 20 models of Metalworking Hydraulic Panbrake Folders in stock at all times for quick shipments. Steelmaster Industrial's ever growing line of Metalworking Hydraulic Panbrake Folders consist of our manual operated machines, our Standard Simple Angle Model, our NC1 Programmable Angle Fold model, to our full CNC2 model offering 2 Axis control with our powerful iBEND CNC programming system along with a large range of tooling & accessories. Depending on your needs we have the model for you, starting with our cost effective manual panbrake folder to our iBEND CNC2 Graphical Models. You won't be disappointed.

Manually Operated Panbrake Folder
With many models to choose from our Manual Operated Panbrake Folders offer the best ``bang for the buck``. The manual model comes standard with a quick action gap setting feature, extra large open height for large box folding, hardened & ground folding fingers and a well balanced clamp & fold weighted system We fully believe that we have packed our Panbrake Folders with as many features that we can think of to assist you with working smarter -- not harder! We offer our Manual Panbrake Folders in sizes from 1270mm -2500mm with larger models available on request.

Standard (STD) Hydraulic Panbrake Folders
We understand that not everybody wants an NC or programmable Hydraulic Panbrake Folder. Some operates just require a simple system that works. Our STD Hydraulic Panbrake Folders offer the KISS factor! ``Keep it simple silly``. Simply set the angle setting on the side of your folder and away you go. Our STD Hydraulic Panbrake Folders offer the same ``high quality`` frame build and fit our as our NC & CNC2 models -- just simple and setting feature! How goods that? Sizes from 1320mm x 4mm -4000mm x 4mm with larger models available on request. Safety Laser Light Guards are fitted standard on all our Hydraulic Panbrake Folders to ensure full safety is met! All this at a very competitive price.

NC1 Operated Hydraulic Panbrake Folders.
With many models to choose from our Hydraulic NC1 Hydraulic Panbrake Folders offer programmable folding features. The NC1 model comes standard with an Estun fully programmable controller operating the folding axis. We fully believe that we have packed our Hydraulic NC1 Panbrake Folders with as many features that we can think of to assist you with working smarter -- not harder! In addition to the NC1 we have fitted a heavy duty sliding Backguage system running on dovetail guides with panbrake style adjustable fingers. We offer our Hydraulic NC1 Panbrake Folders in sizes from 1300mm - 4000mm in length with larger models available on request. Safety Laser Light Guards are fitted standard on all our Hydraulic Panbrake Folders to ensure full safety is met! All this at a very competitive price.

CNC2 iBEND Graphical Hydraulic Panbrake Folders
Steelmaster Industrial offers our new iBEND CNC Controller on our CNC range. This would have to be the best CNC system on the market for power and ease of operation. Our Hydraulic CNC2 Hydraulic Panbrake Folders have been fitted up to offer you the best selection of features. In addition to the NC models our CNC2 models offer, 2 Axis Programming drive, rear roller ball table, iBEND CNC graphical controller, quality imported precision backgauge system and fingers & safety light laser guards are included!!!
