3200mm x 8mm Heavy Duty Variable Rake Ex Stock - CNC Touch Screen Controller

SM-ADH-3208. Guillotine Variable Rake 3200mm x 8mm Capacity, P40T CNC Touch Screen Controller, CNC Blade Gap, Angle & 1000mm Ballscrew Backgauge Positioning – Heavy Duty Industrial Model. Volt

Description

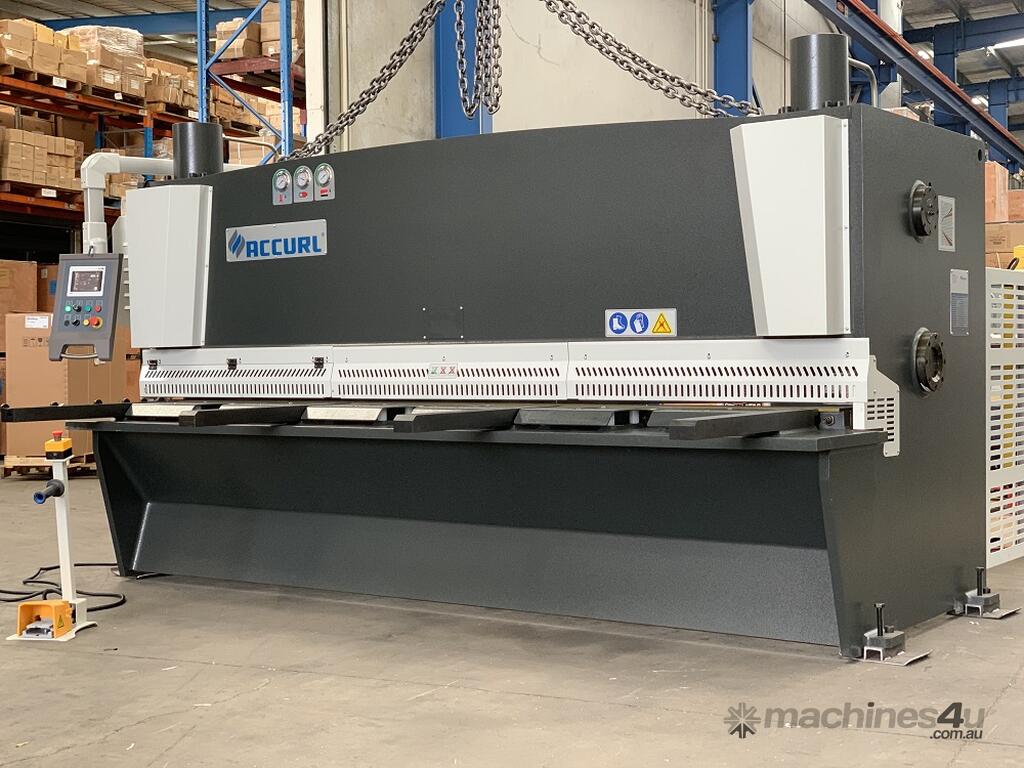

STEELMASTER INDUSTRIAL – ADH Series Variable Rake hydraulic guillotines are built to a heavy duty industrial quality.
Designed and constructed to provide excellent shearing of material with clean, square edges, and to exacting tolerance.
VR Series hydraulic shears are equipped with the productive features and safety devices for optimum, accurate cutting performance usually only found on more expensive units.
Feature for feature, they are a smart, user friendly and reliable choice for cutting plate. Three pairs of rollers ensure optimum guiding of the cutting beam.
All of these features combined with variable rake angle minimise any deformation of materials even with thin strip cutting.

Features:
?precision Ballscrew motorized back gauge to 1000 mm range.

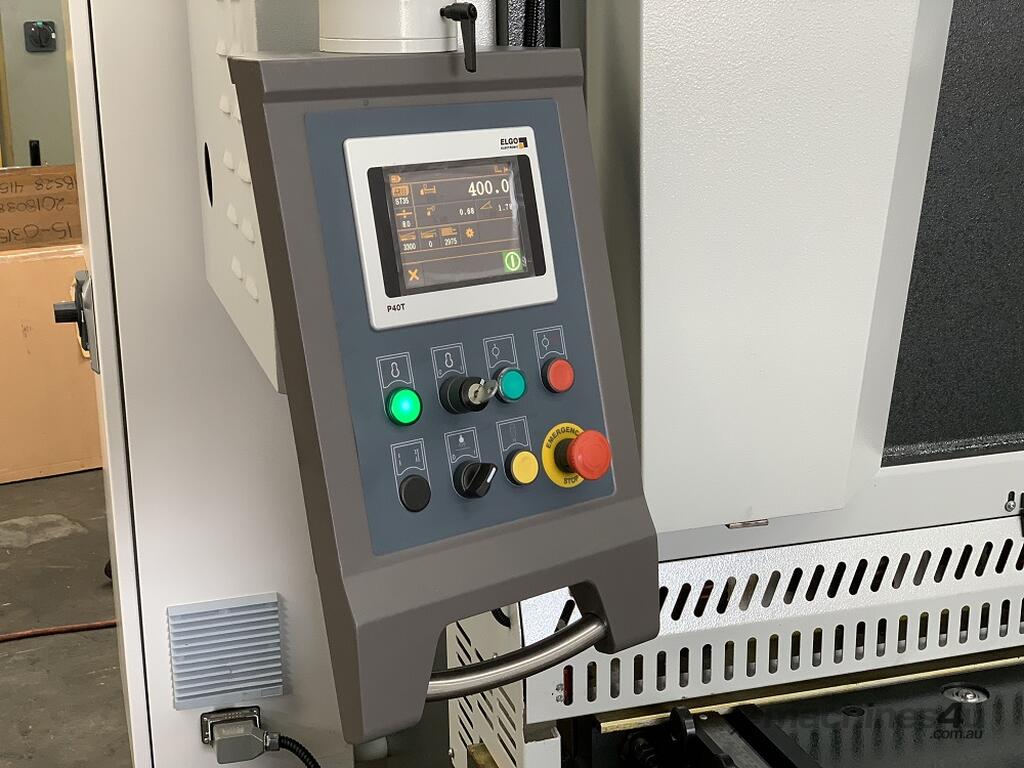

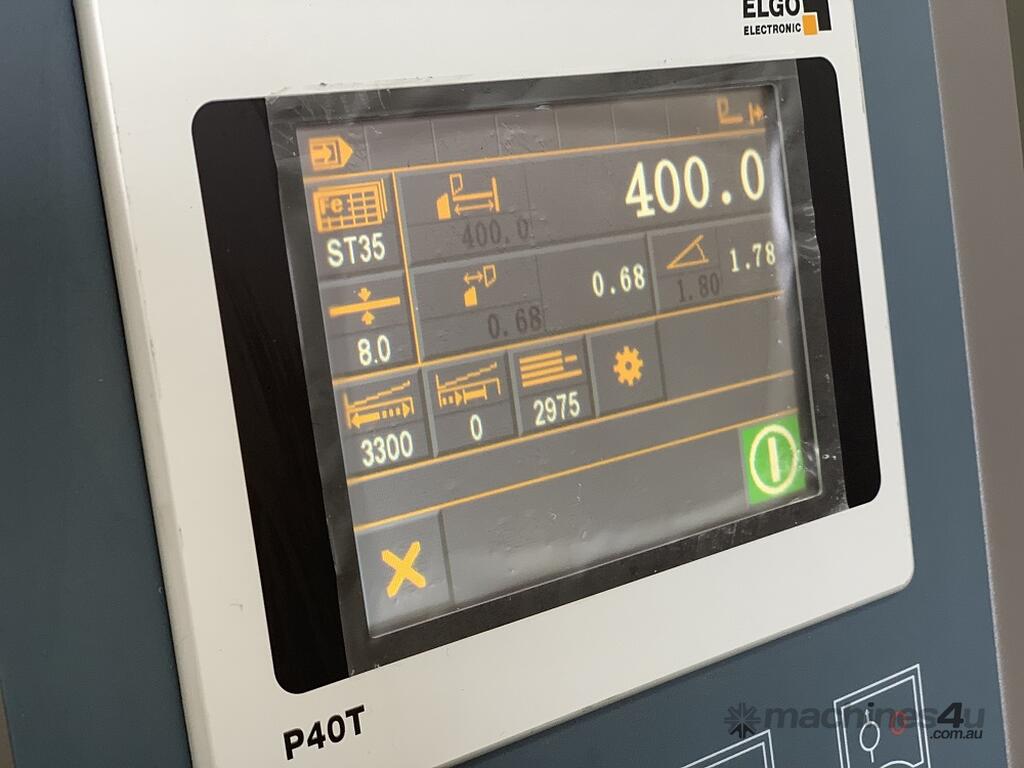

?German P40T Touch screen system with programmable angle blade setting
?unique front angle gauge with calibrated setting.
?laser line pointer displaying operator cutting line

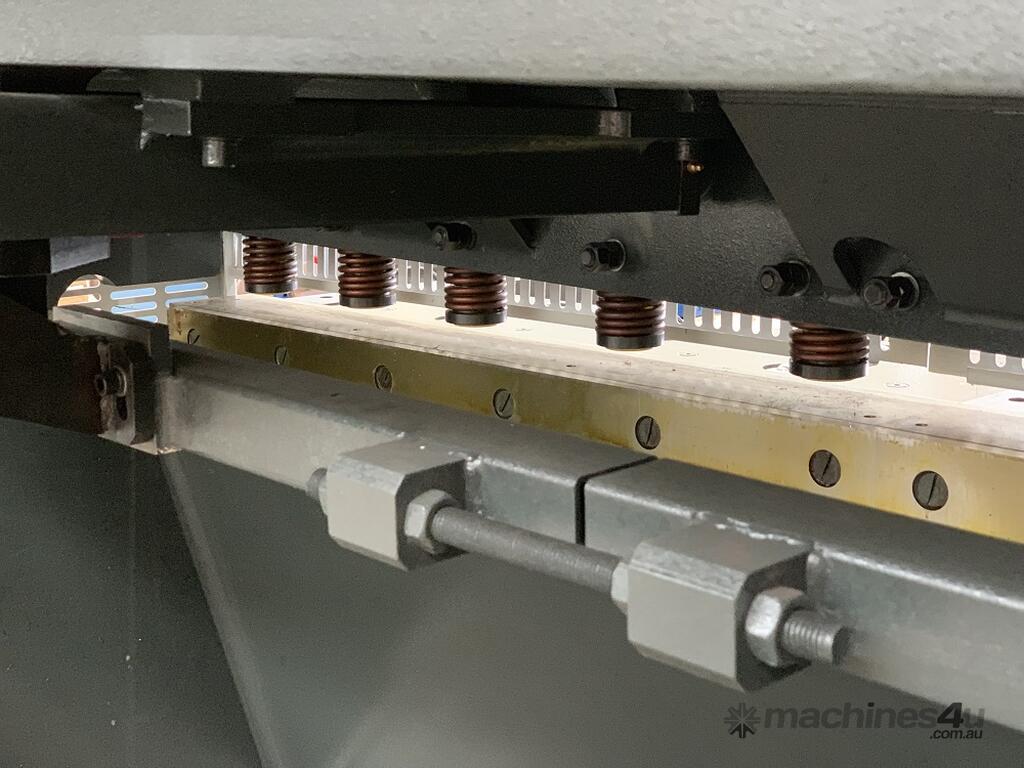

?multi edge quality cutting blades

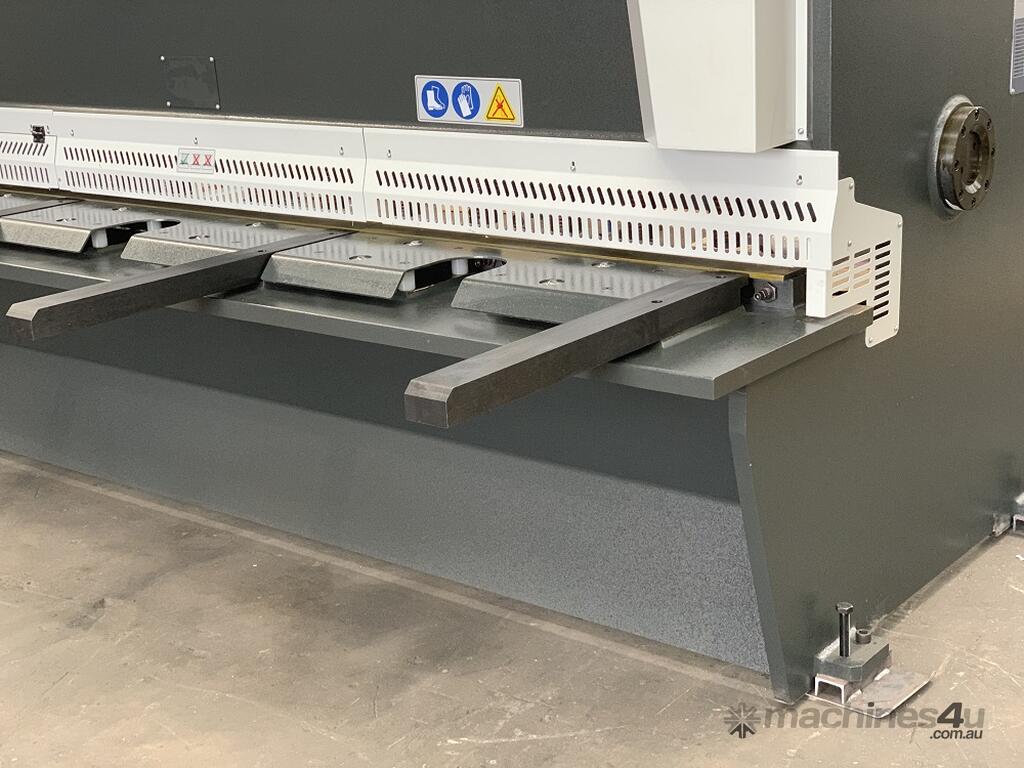

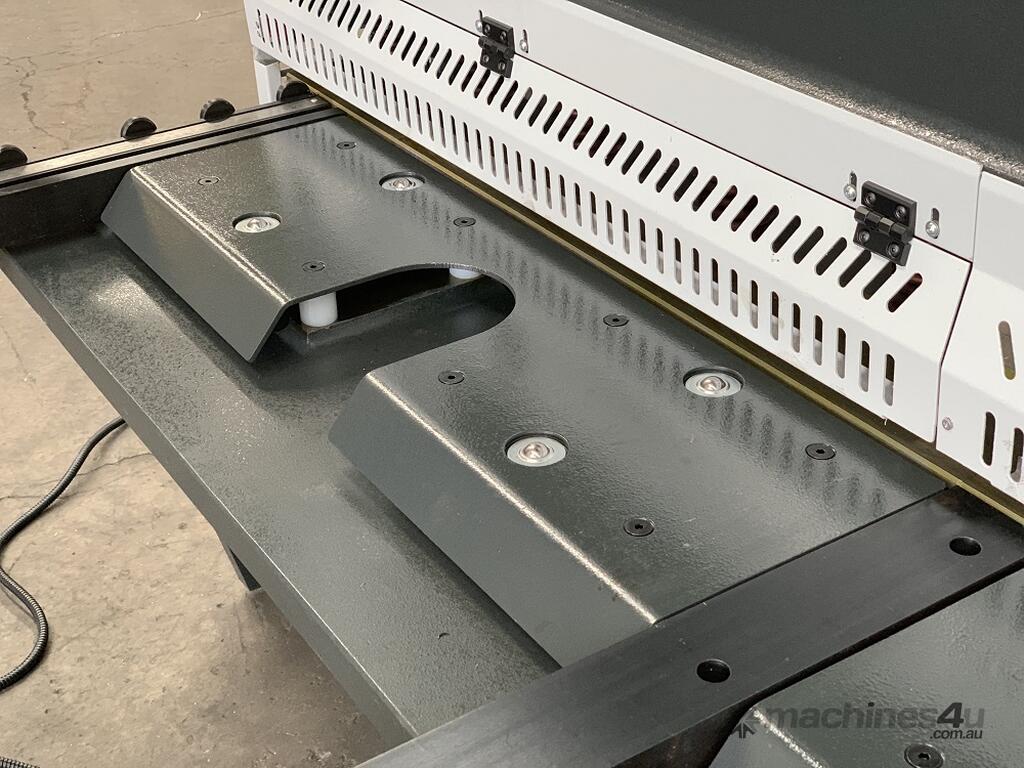

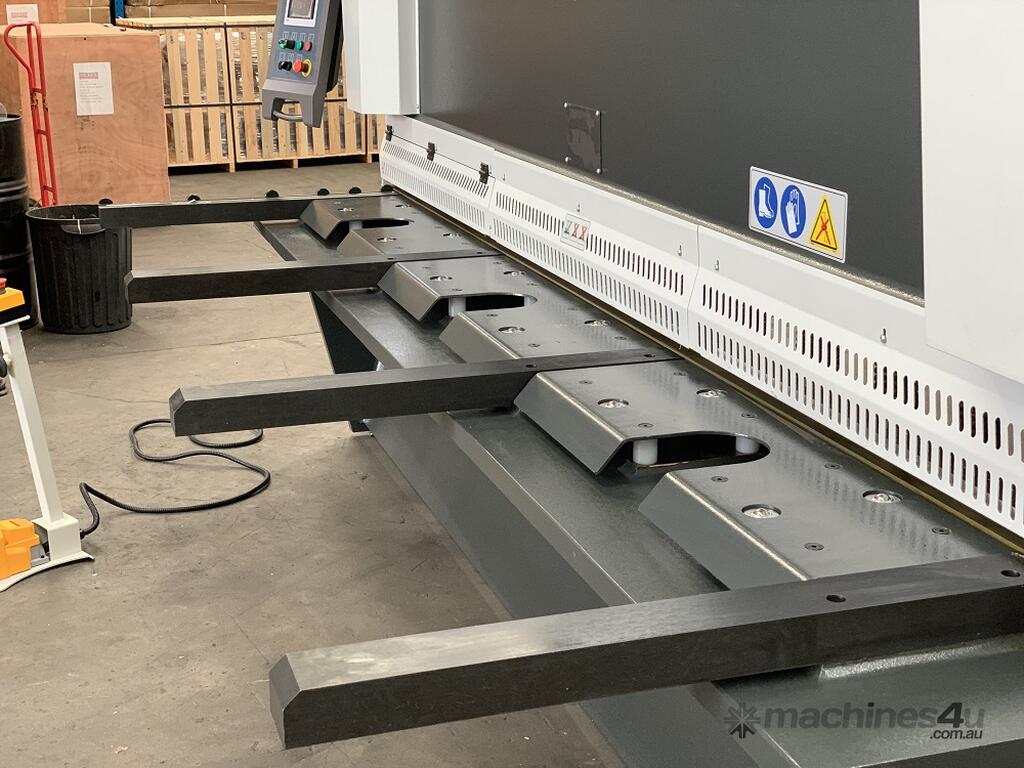

?heavy duty 'ball transfers' fitted as standard

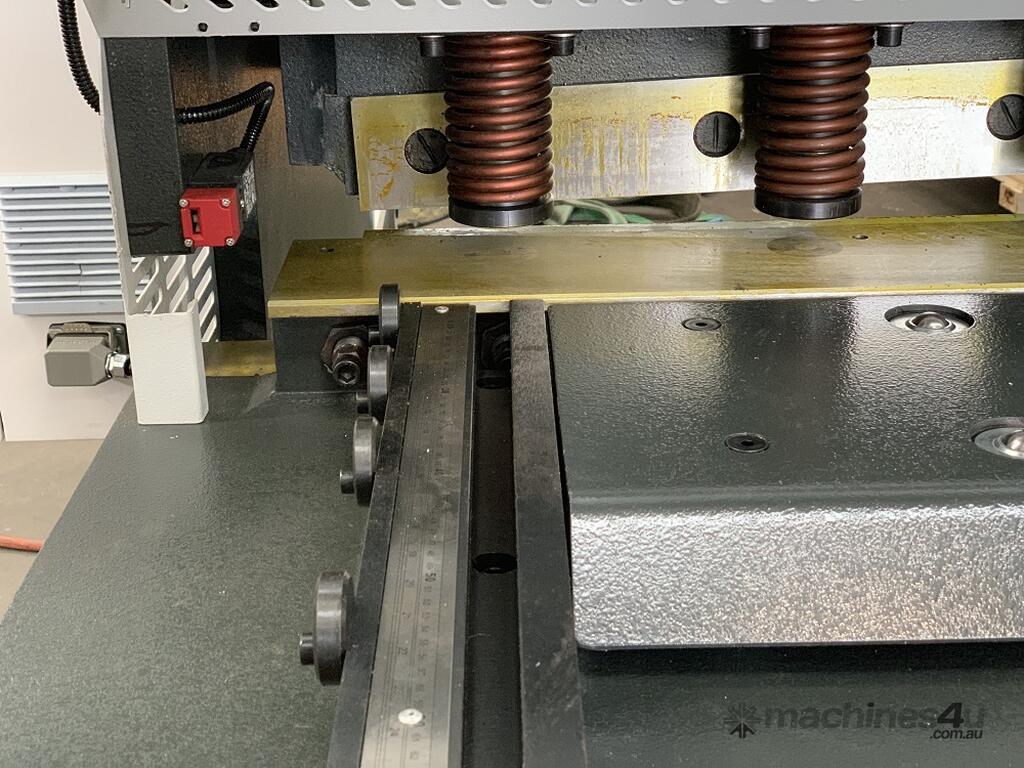

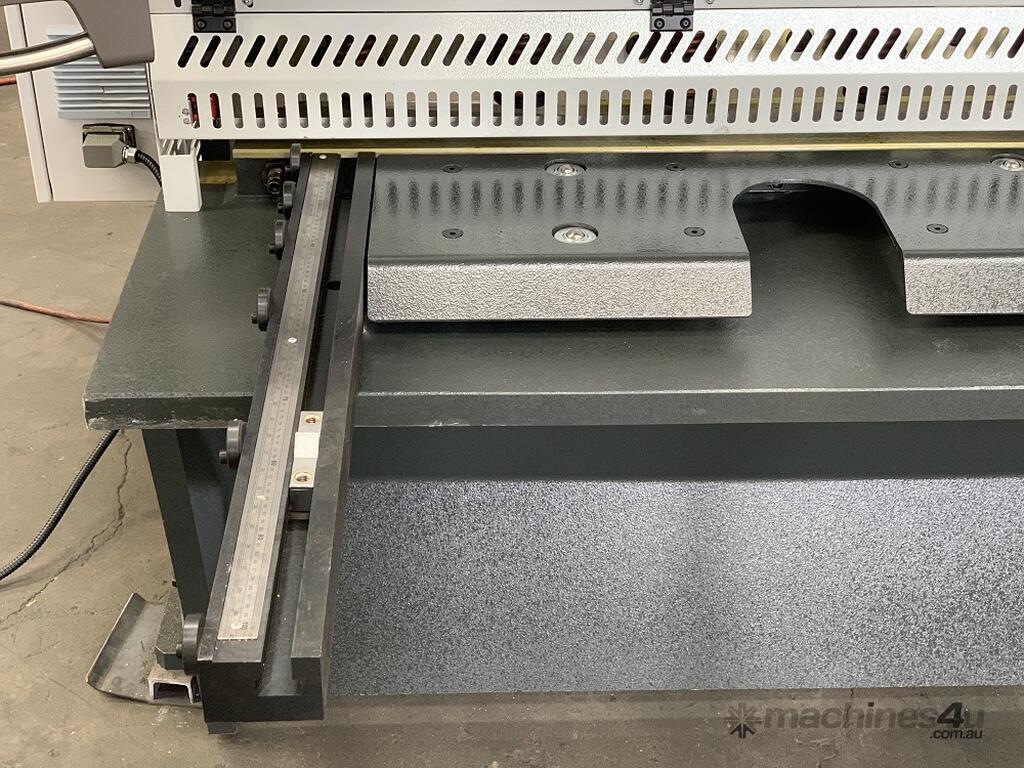

?heavy duty squaring arm with stainless steel scales

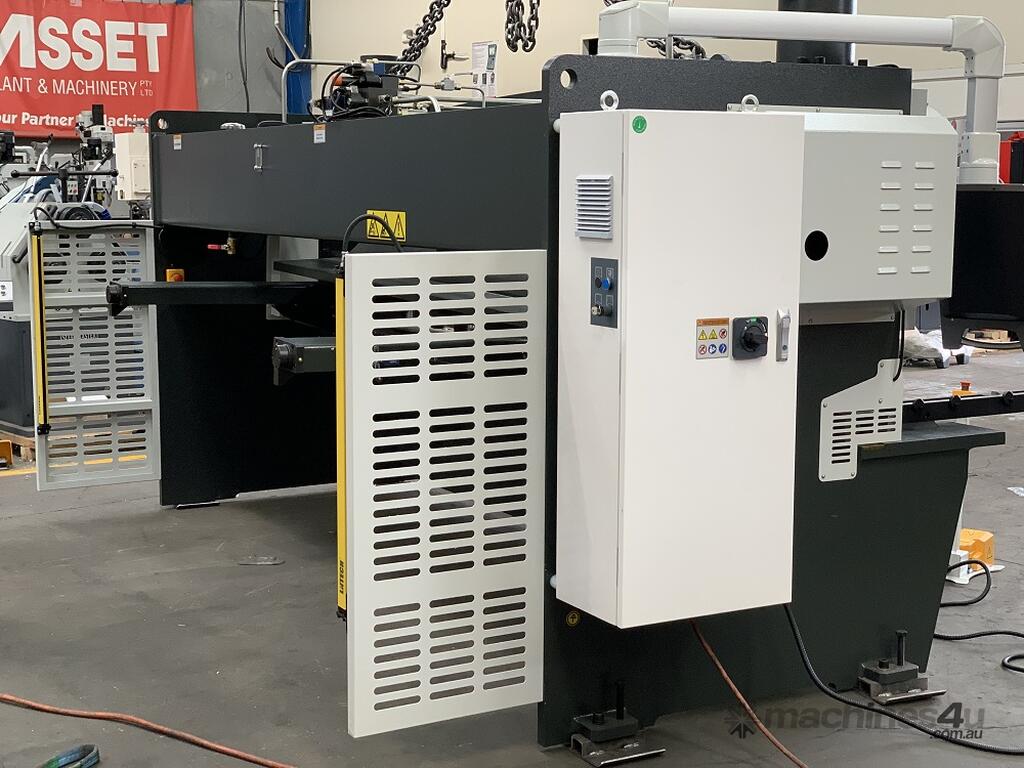

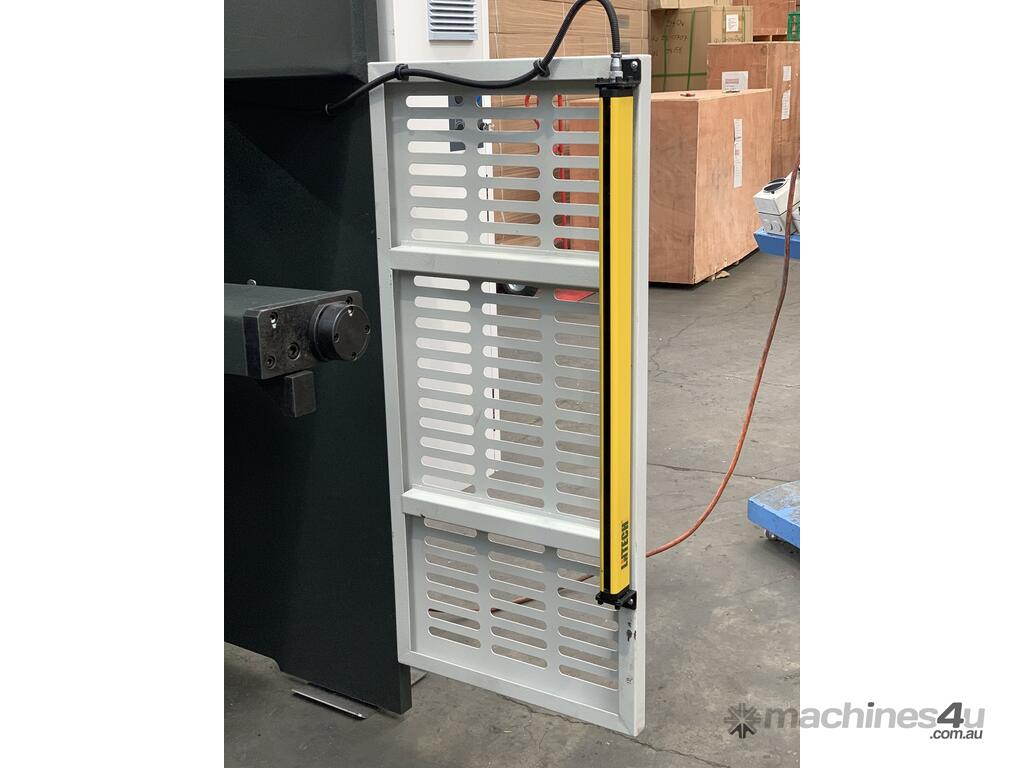

?rear safety fencing with 'safety cut-off' guards
?open side throat for long length slitting

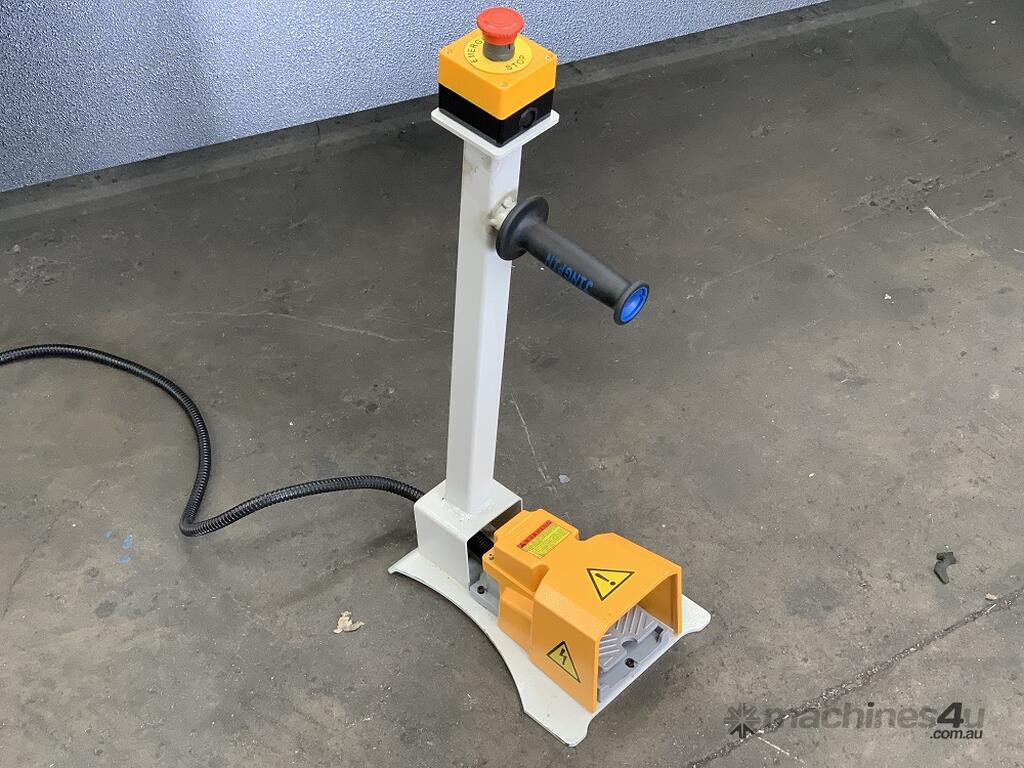

?sturdy remote operation foot-pedal with 'emergency stop' fitted
?CE compliant

Technical Data Snap-Shot.
?3200mm x 8.0mm cutting capacity
?100mm standard side throat depth
?0 ~ 1000mm back gauge range
?0.5 ~ 2.0 degrees variable rake setting
?shipping dimensions - 4100mm x 1900mm x 2150mm
?weight - 7200Kg
?power - V 11Kw
