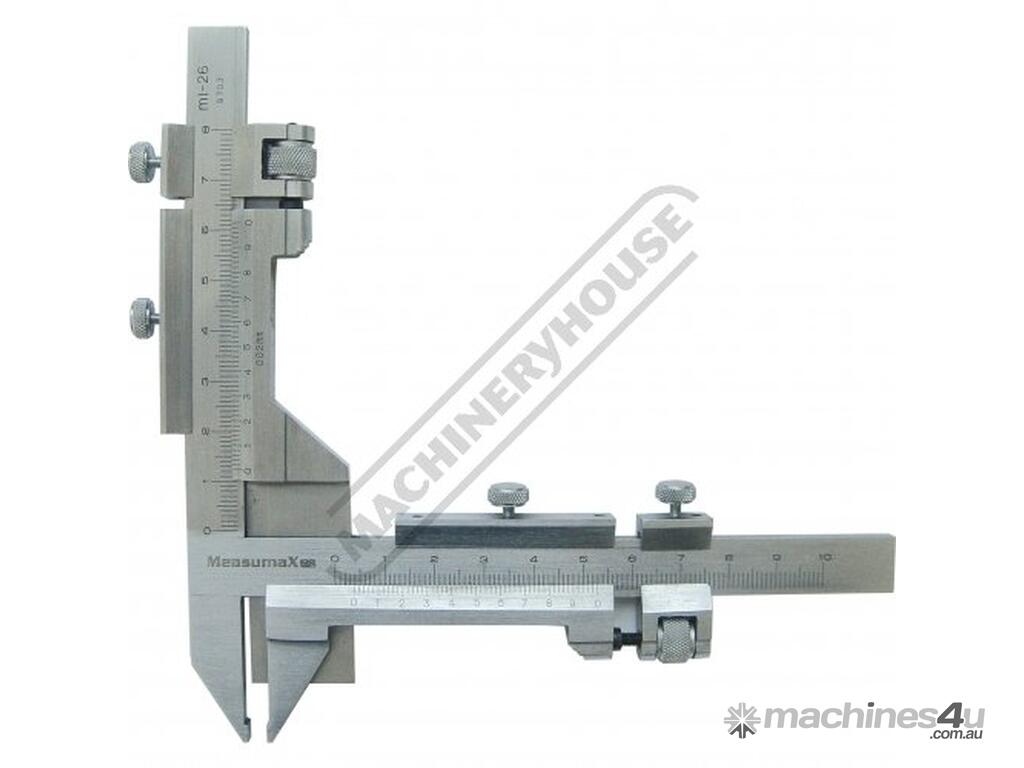

33-234 Gear Tooth Vernier Caliper 1-26 module

MEASUMAX 33-234 Gear Tooth Vernier Caliper 1-26 module
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q234

Features:

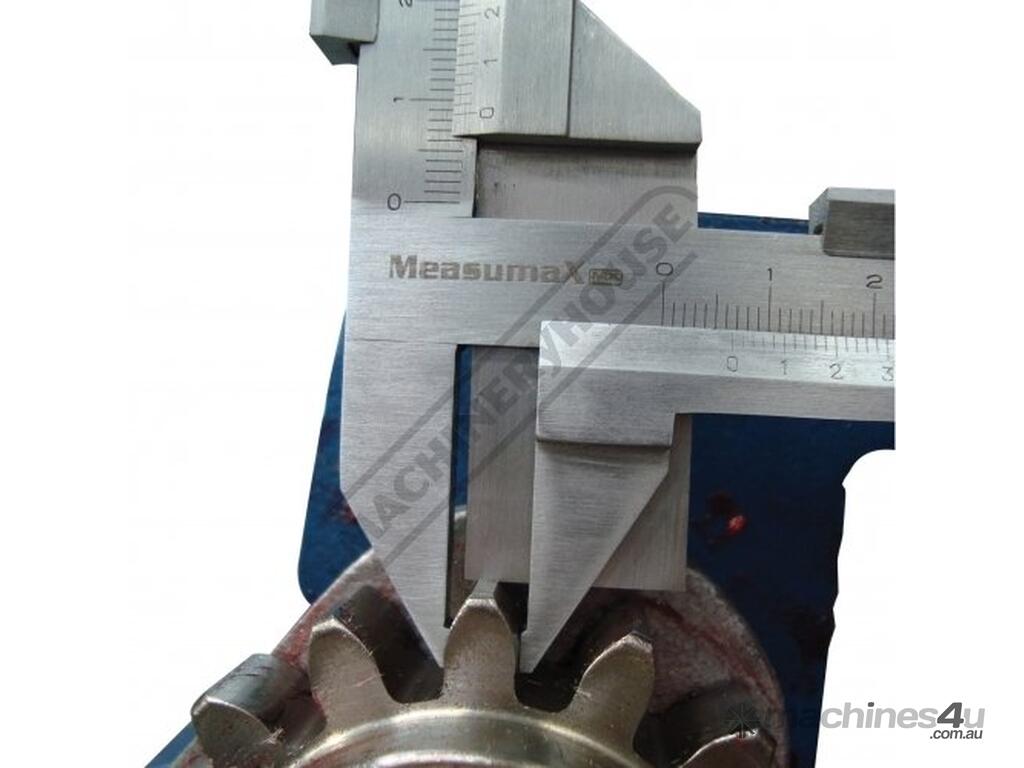

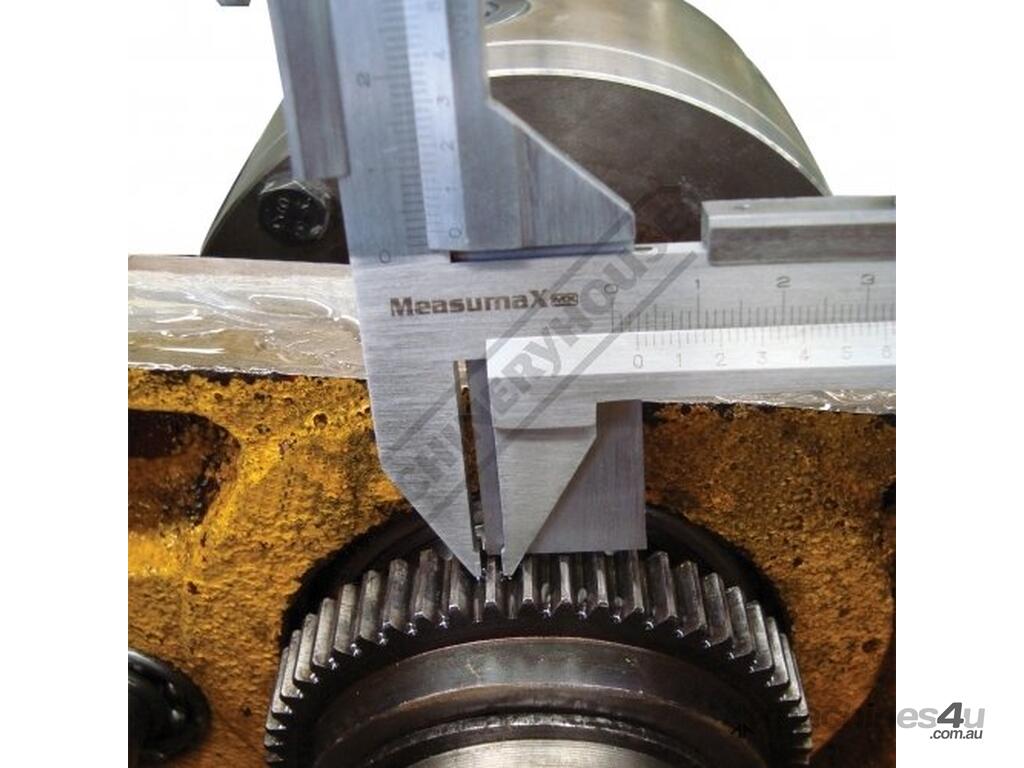

One of the benefits using a caliper is that the gear does not have to be removed from the machine
The caliper consists of two adjustable verniers that reference two dimensions on the gear and provide a measurement
Vertical scale: Measures the depth of the teeth from the top of the pitch line
Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth


Specifications:
ORDER CODE: Q234
Range: 1 - 26 Module
Graduations (mm): 0.02
Accuracy (mm): ±0.02


To Purchase Online Please Visit The Machineryhouse & Search For 'Q234'
