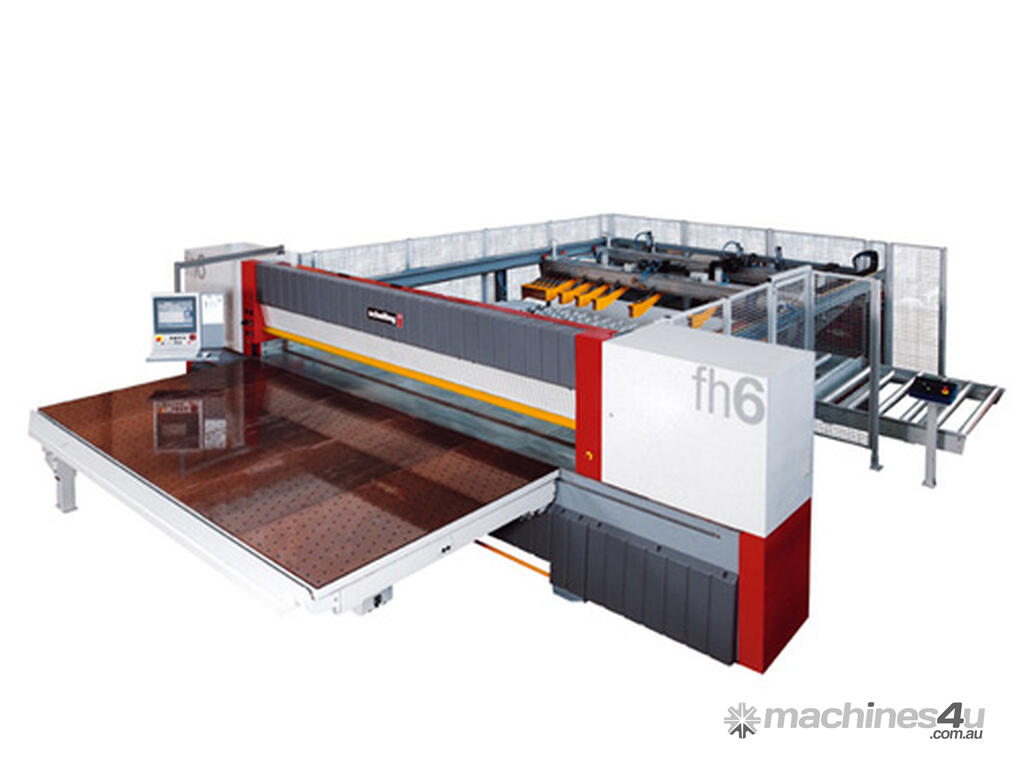

3300 - 6300mm Beam Saw. Schelling FH6 Made in Austria

Schelling by Wood Tech. Aus Owned and Operated. Local Service and Parts in 5 States. Download Brochure Now.

The fh6 Beam Saw features a solid construction for the highest degree of precision.

With 27 kW of power, the fh6 offers productive solutions for industrial tasks. The automation ensures optimum processes from the material feed to the finished board part. Whether particle board, medium-density fibre board, oriented strand board, high-density fibre board or high pressure laminate panels or modern wooden materials, the fh6 stands for smooth production. Ergonomic, safe, precise and quick.

Outstanding features
Powerful and efficient – 27 kW motor output
Maximum productivity due to automation options with:
Turntable and
Lift table with separate push-off carriage or
Vacuum infeed
Simple material handling – Material advance to air flotation table
Highest angular accuracy due to double strip aligning device
Trendsetting ergonomics and security
Cutting of the narrowest strips
Single sheet and book cut to 120 mm (depending on material)
Solid wood cut
Postforming and softforming cut
Grooving and rabbeting
Insert grooving / insert rabbeting
Window cutting
Laminate and veneer cut
MCS control (Windows platform) – simple and intuitive to control incl. cutting pattern generator
Comes standard with large 22? display
HPO cutting pattern optimization (optional) for optimum creation of cutting patterns

SPECIFICATIONS:

Feeder travel speed:
forward 0 – 80 m/min (0 – 25 m/min CE) 0 – 262 ft/min
back 0 – 80 m/min 0 – 262 ft/min
Saw travel speed:
forward 0 – 150 m/min 0 – 492 ft/min
back 0 – 150 m/min 0 – 492 ft/min


Clamp opening:
125 mm 4.92?


Main saw motor power:
27 kW 37 HP


Main saw blade:
Diameter max. 460 mm 18.11“
Projection max. 135 mm 5.31“
Cutting height dep. on material/blade type


Cutting length:
fh ,300 mm 129?
fh ,300 mm 169?
fh ,800 mm 228?
fh ,300 mm 248?


Weight:
fh 6 430 man. Approx. 10,000 kg 22,000 lbs
