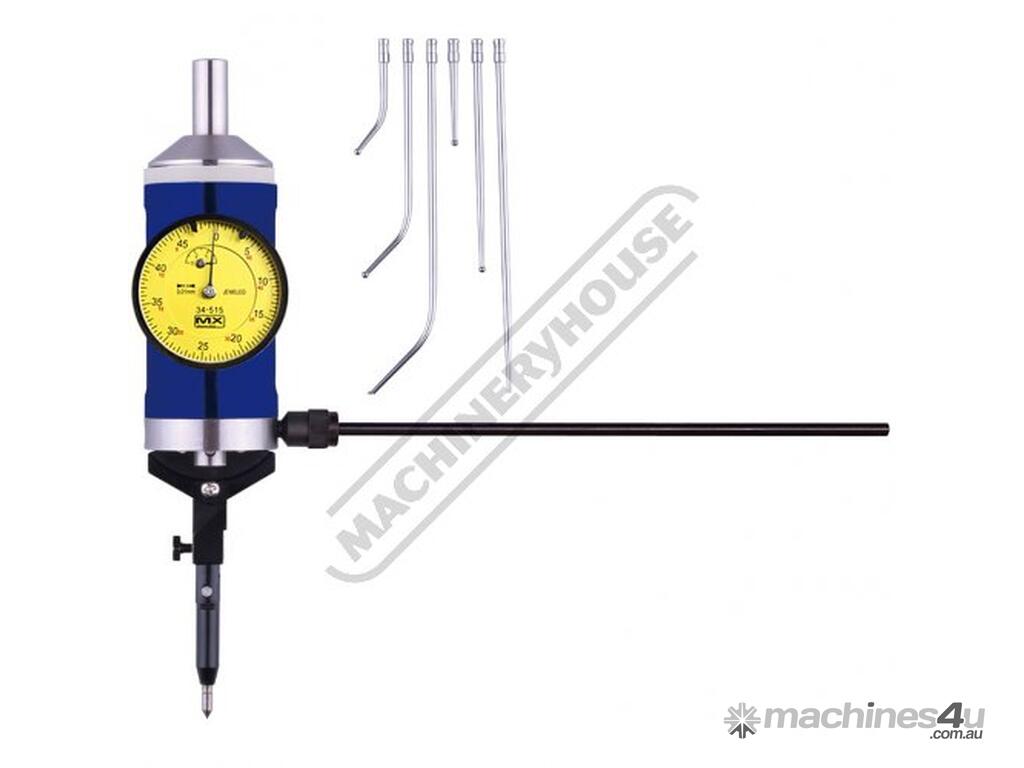

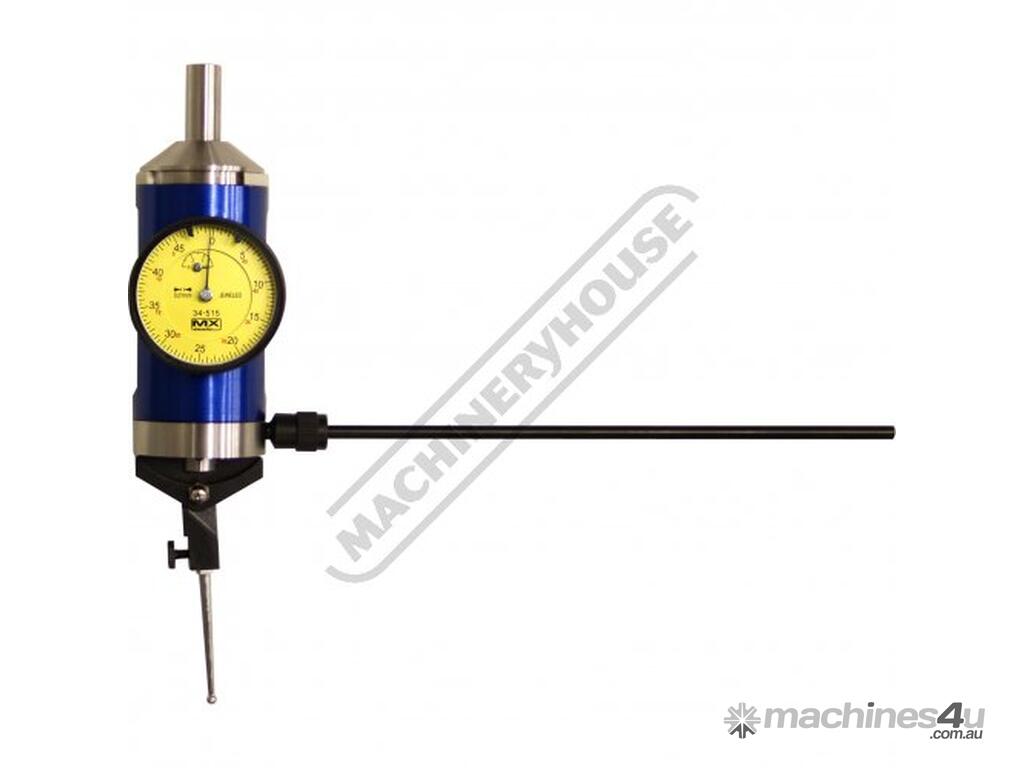

34-515 Centering Dial Indicator 0 - 3mm

MEASUMAX 34-515 Centering Dial Indicator 0 - 3mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q515

Used to locate a work piece center quickly and accurately whilst the indicator faces the operator at all times by way of a restraining arm.

Features:
Quick and accurate centering internal & external
Operates at any angle from horizontal to vertical
The dial indicator remains stationary while rotating the spindle manually.

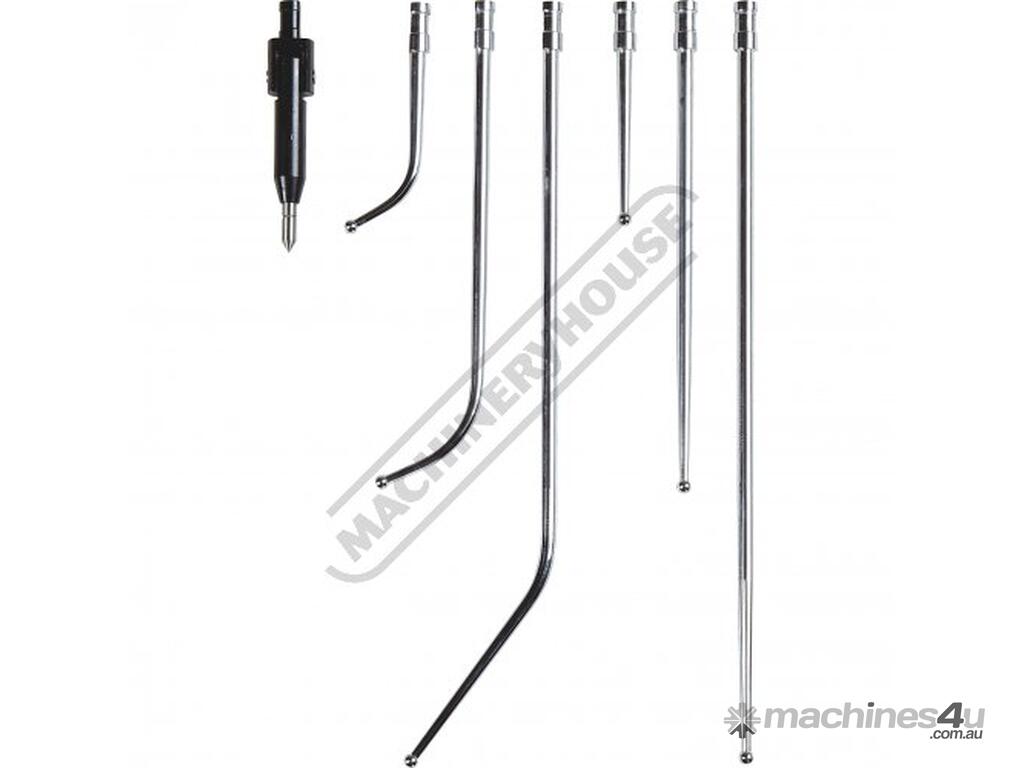

The set includes 7 stylus probes and a restraining arm.

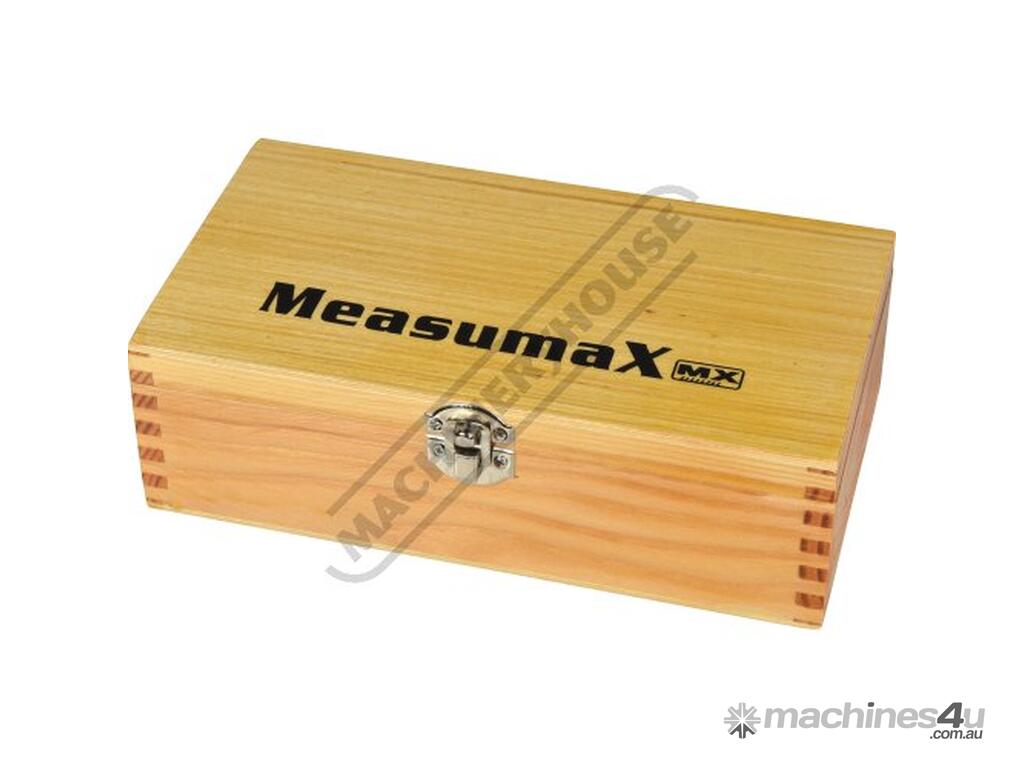

Packed in wooden box


Specifications:
ORDER CODE: Q515
Range (mm): 0 - 3

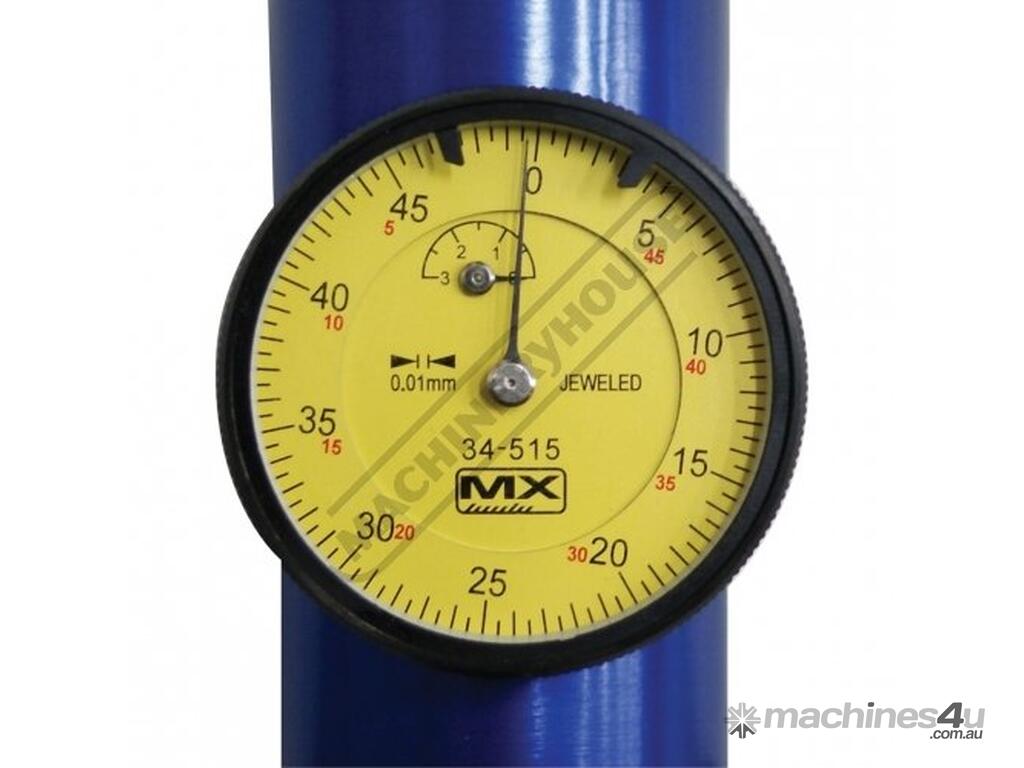

Graduations (mm): 0.01
Straight Stylus (mm): 45, 100, 154
Curved Stylus (mm): 45, 100, 154
Swivel Point Stylus (mm): 52.5
Stylus Diameter (mm): 3
Mount (mm): 10
