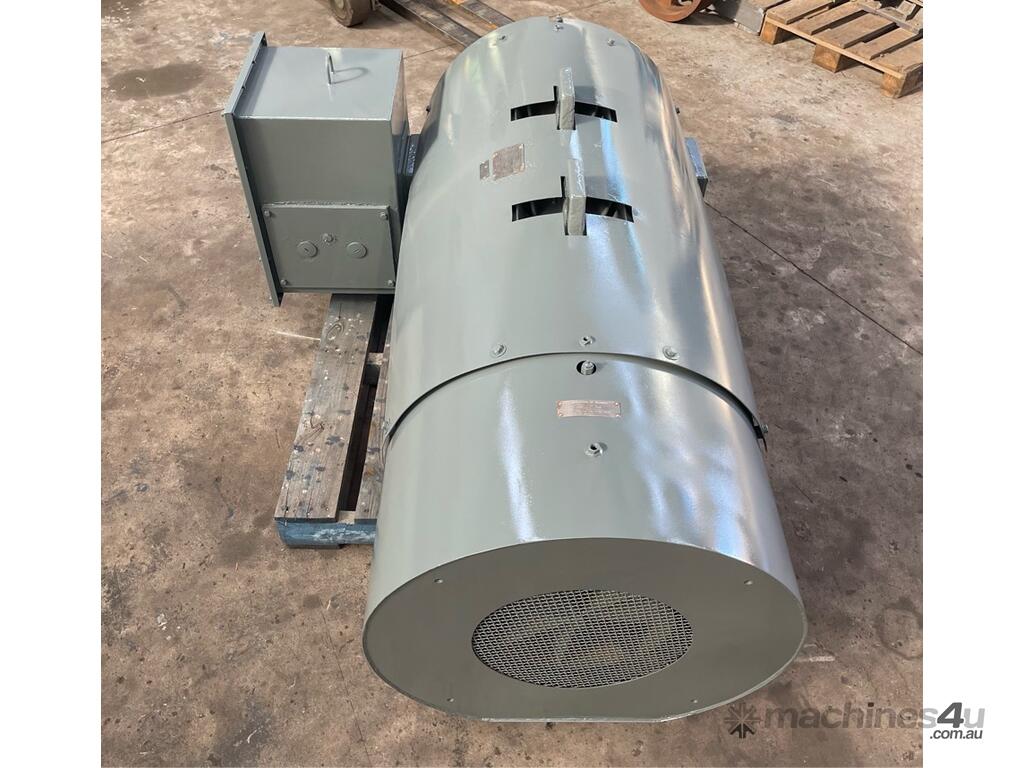

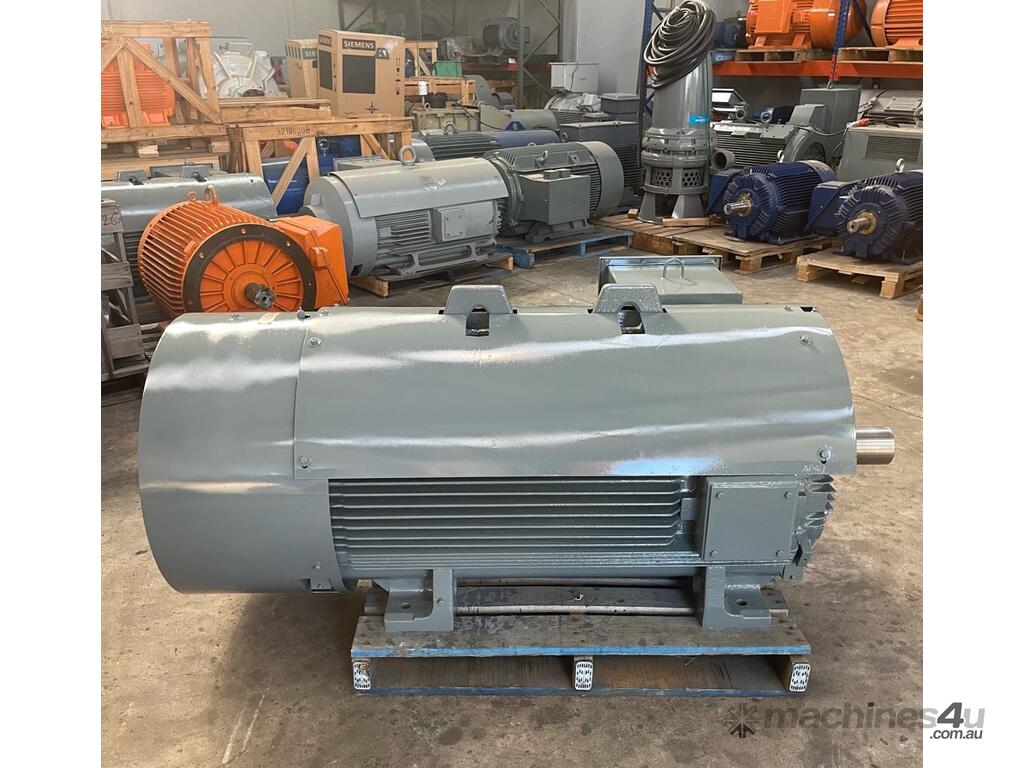

355 kw 475 hp 4-pole 1485 rpm 415v Foot Mount D355LL frame Mining Spec AC squirrel cage Electric Motor Toshiba Type TKEH Form FBKW4 Spec AS-1359
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Toshiba

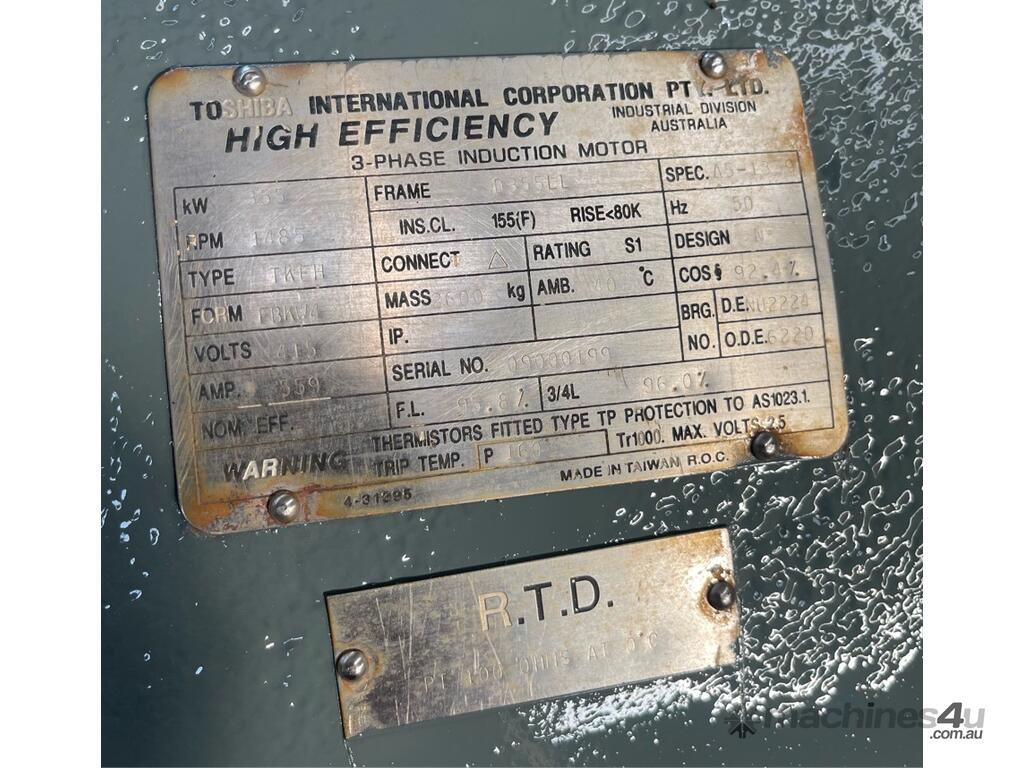

Type: TKEH Form: FBKW4 Spec: AS-1359
Power: 355 kw (475 hp)
Rated Frequency: 50 hz
Rated voltage: 415v
Full Load Amperage: 559 A
Mount: B3 Foot
Frame: D355LL
Centre Shaft Height: 355 mm
Shaft DIA: 110 mm
Protection: IP56 Mining Spec
Notes: includes Drive-end roller bearing (for belt-driven application) plus mining cover
Available Qty: 1
Condition: Decommissioned & Fully Reconditioned critical spare. Warehouse storage. N/L Test run & painted June 2023
exStock Seaford VIC 3198
Freight services available Australia-wide
