35T - 55T SK350LC-10 HIGH AND WIDE

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Standard factory fitted quick hitch piping and tilt circuit piping.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

This machine is specially equipped for forestry and hilly terrain work.
It has generous ground clearance of 785mm. The extra crawler width ensures excellent stability and improved lifting capacity.

Crawlers are designed for unbeatable durability taking in the harshest terrain.
The highly efficient hydraulic system minimises fuel consumption while maximising power.

SPECIFICATIONS

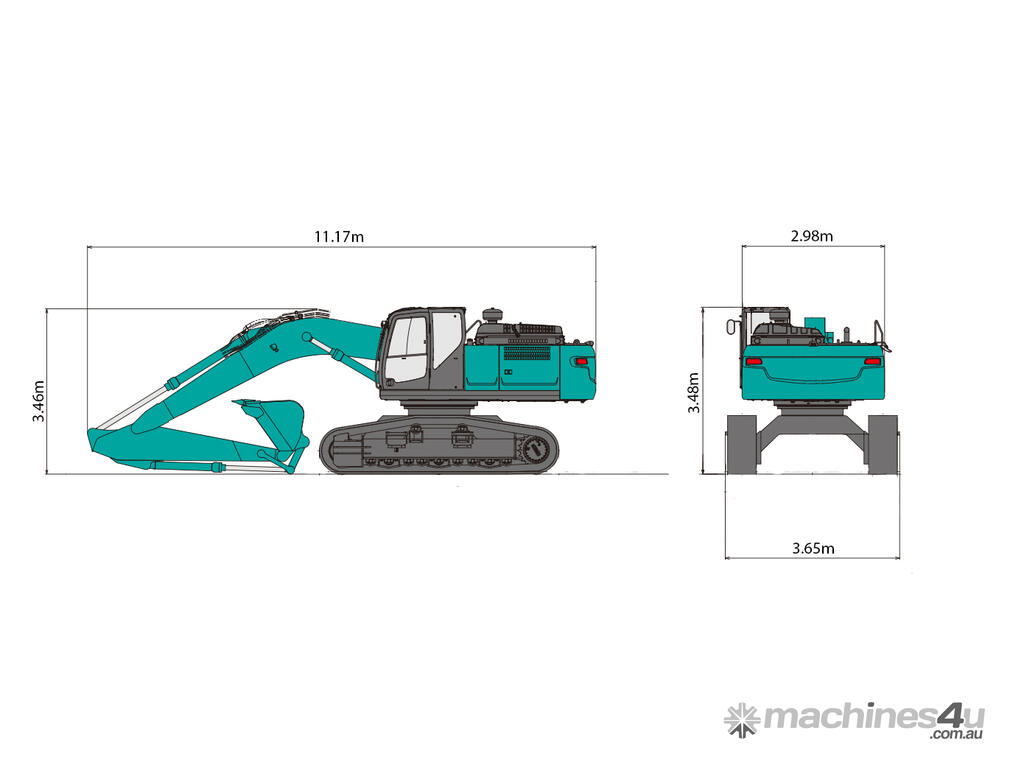

Transport Dimensions
Length, Width & Height

11.17 x 3.65 x 3.48 m

Operating Weight

38,600 kg

Refilling Capacities
Fuel Tank

503 L

Hydraulic Oil Tank

245 (410) L

Working Range
Max. Digging Depth

7.24 m

Max. Digging Reach

11.26 m

Engine
Rated Power Output

209 kW

Rated Torque

998 Nm

Breakout Force
Bucket Digging Force

244 kN

Arm Crowding Force

180 kN

Hydraulic System
Max. Pump Flow

2 x 294 + 21 L/min

Standard Auxiliary

N&B + Tilt Piping
