35T - 55T SK350LC-10

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Available in Tier 3 or Stage V emissions.
Standard factory fitted quick hitch piping and tilt circuit piping.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The Generation 10 SK350-10 has superior digging force and travelling force.
Takes 38% less effort to work the operation lever, which reduces fatigue over long hours of operation.
The arm interflow system efficiently controls hydraulic fluid flow, and significant reduction of in-line resistance and pressure loss boosts fuel efficiency in H-mode by about 24% compared to previous models.

ROPS cab ensures greater safety for the operator.
Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s exclusive iNDr Cooling System for ultimate low noise and dust reduction.

SPECIFICATIONS

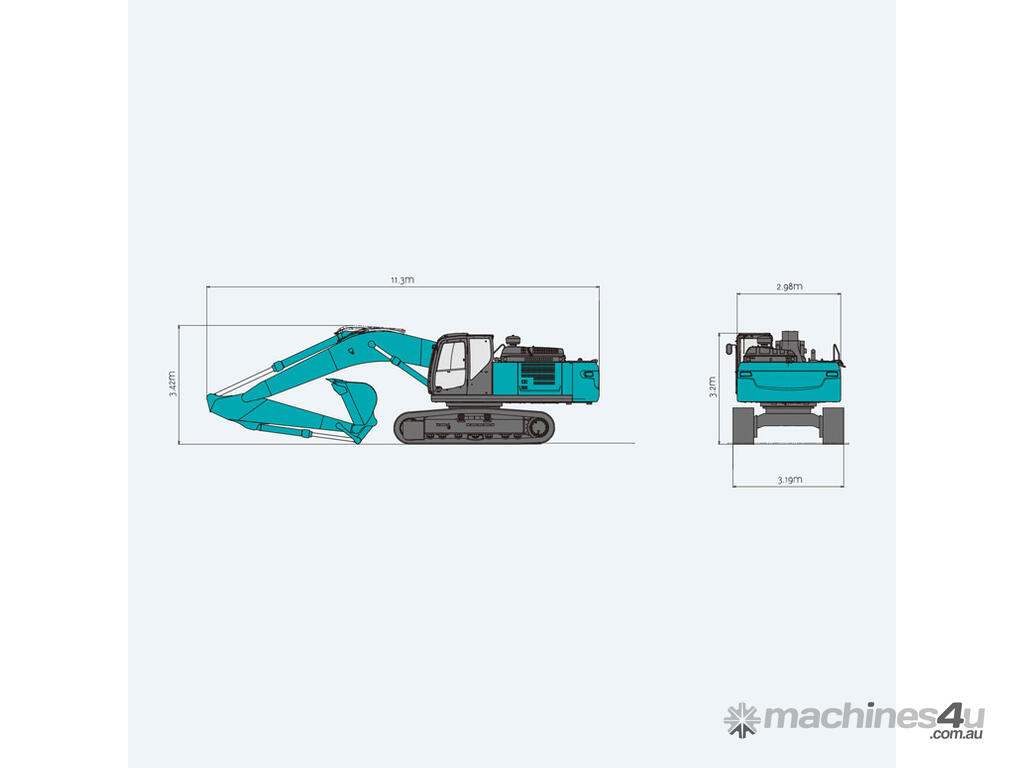

Transport Dimensions
Length, Width & Height

11.3 x 3.19 x 3.2 m

Operating Weight

35,900 kg

Refilling Capacities
Fuel Tank

503 L

Hydraulic Oil Tank

245 (410) L

Working Range
Max. Digging Depth

7.56 m

Max. Digging Reach

11.26 m

Engine
Rated Power Output

209 kW

Rated Power Output - Stage V

213 kW

Breakout Force
Bucket Digging Force

244 kN

Arm Crowding Force

180 kN

Hydraulic System
Max. Pump Flow

2 x 294 + 21 L/min

Standard Auxiliary

N&B + Tilt Piping
