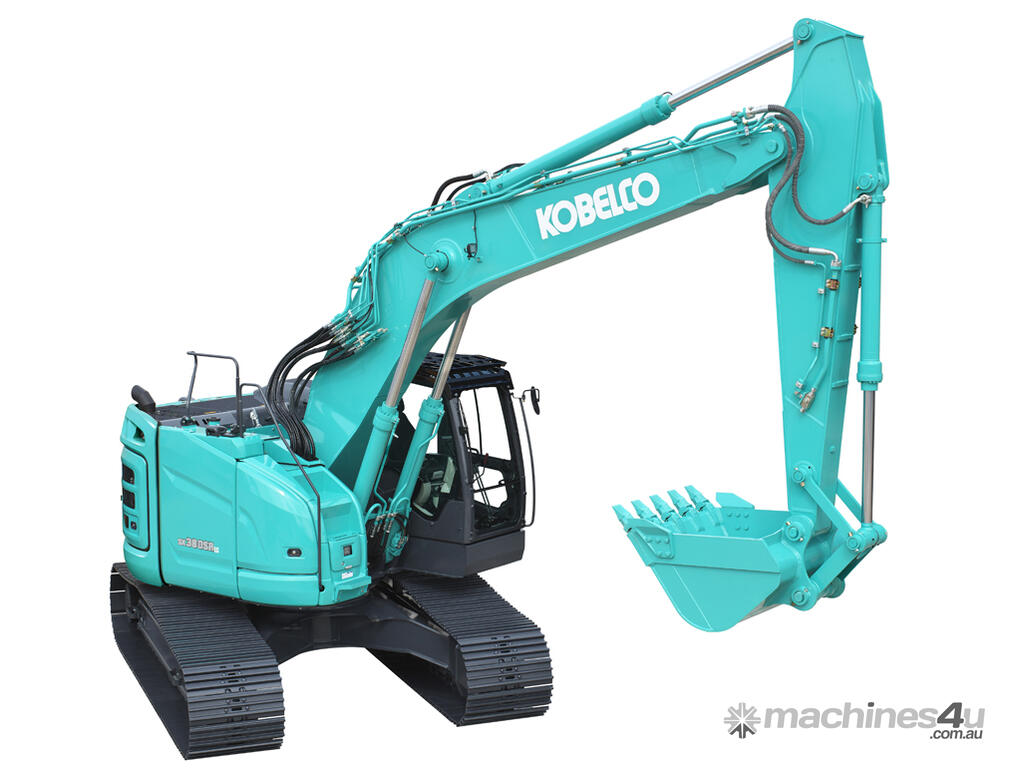

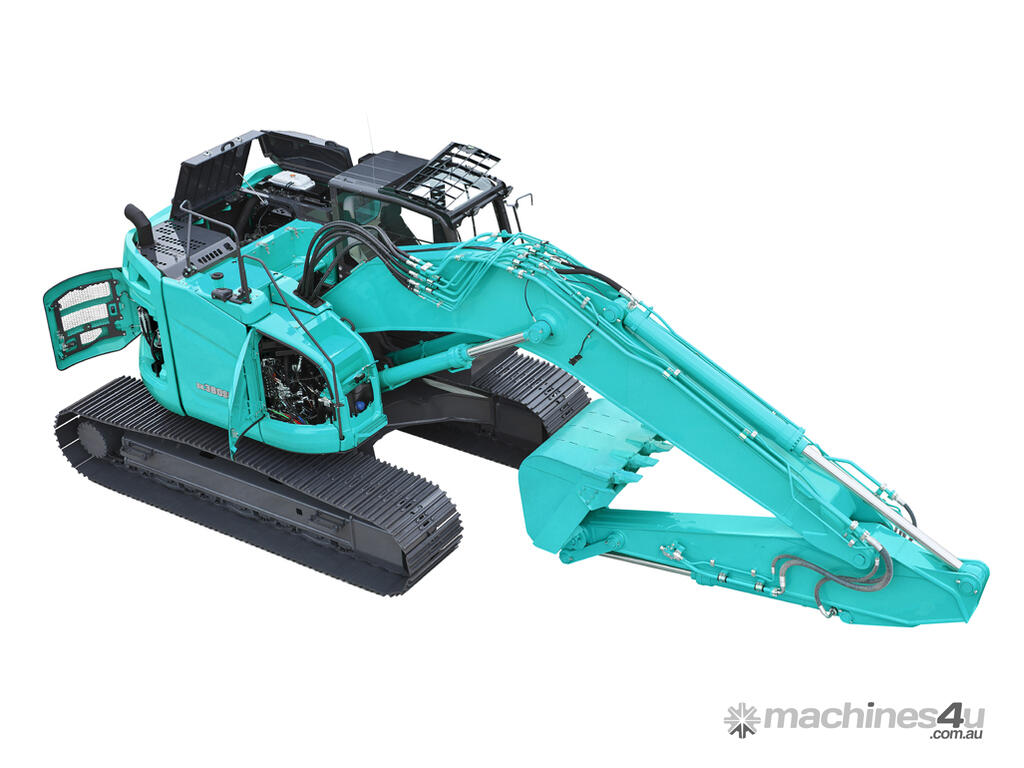

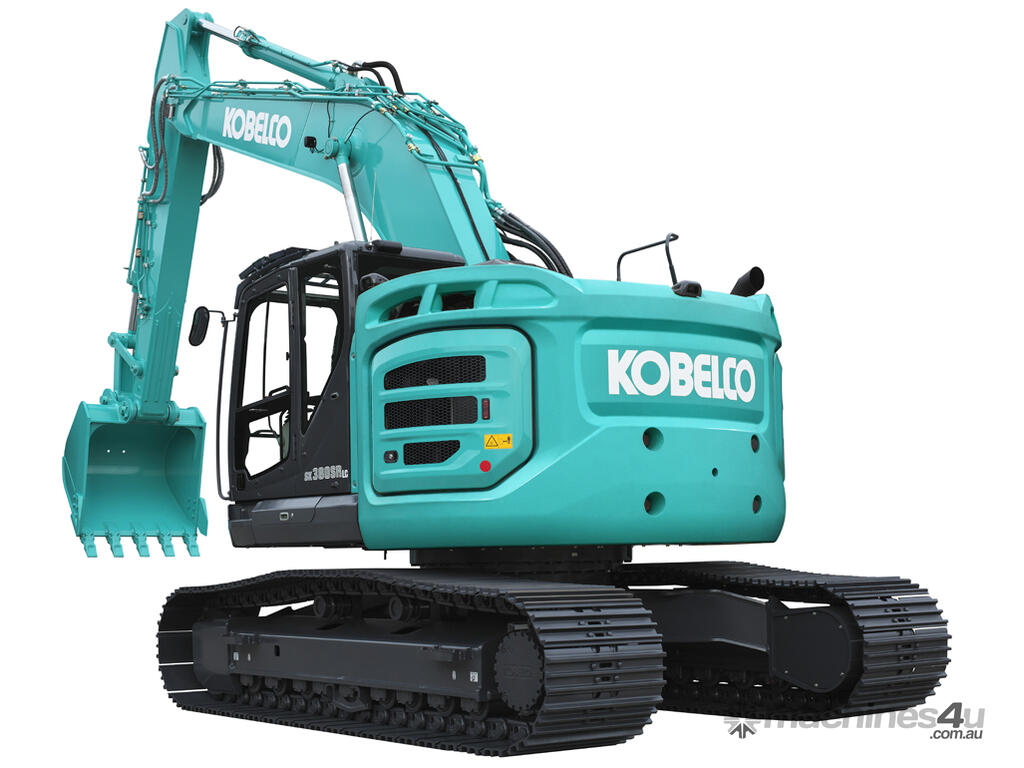

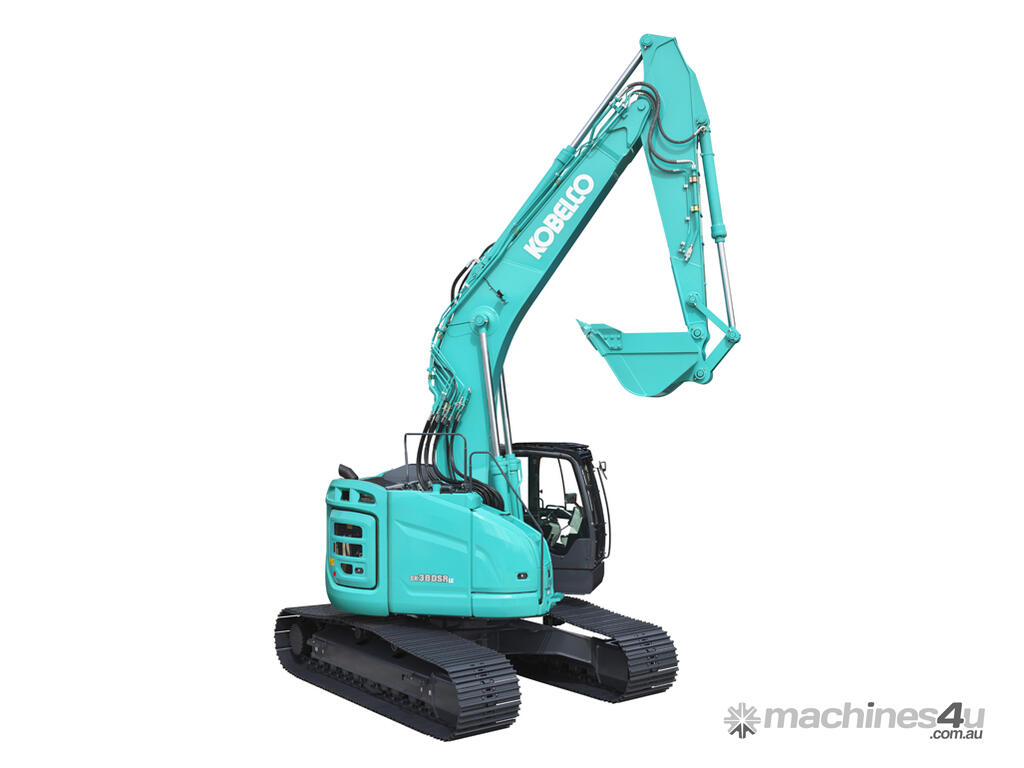

35T - 55T SK380SRLC

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Kobelco's legendary reliability with unmatched low fuel consumption.
Includes Kobelco Geoscan Excavator Remote Monitoring System.
Comes with 2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The SK380SRLC is the heaviest limited tailswing excavator in the market to enter the 35 tonne class, bringing excellent lifting and digging performance to tight access worksites, while helping to meet the growing needs of large urban infrastructure projects around the world.

Based on extensive market research and considering the needs of customers, the SK380SRLC delivers superior efficiency and productivity with increased power and digging performance, alongside uncompromising operator comfort and machine operability.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

9.98 x 3.19 x 3.35 m** (**600 mm shoe)

Operating Weight

36,800 kg

Refilling Capacities
Fuel Tank

350 L

Hydraulic Oil Tank

245 (440) L

Working Range
Max. Digging Depth

6.99 m

Max. Digging Reach

10.93 m

Engine
Rated Power Output

200 kW

Rated Torque

1,017 Nm

Breakout Force
Bucket Digging Force

208 kN

Arm Crowding Force

139 kN

Hydraulic System
Max. Pump Flow

2 x 246 L/min + 21, 43 L/min

Standard Auxiliary

N&B + Tilt Piping
