35T - 55T SK380XDLC

'Proudly representing Kobelco in North East Victoria and Southern NSW'

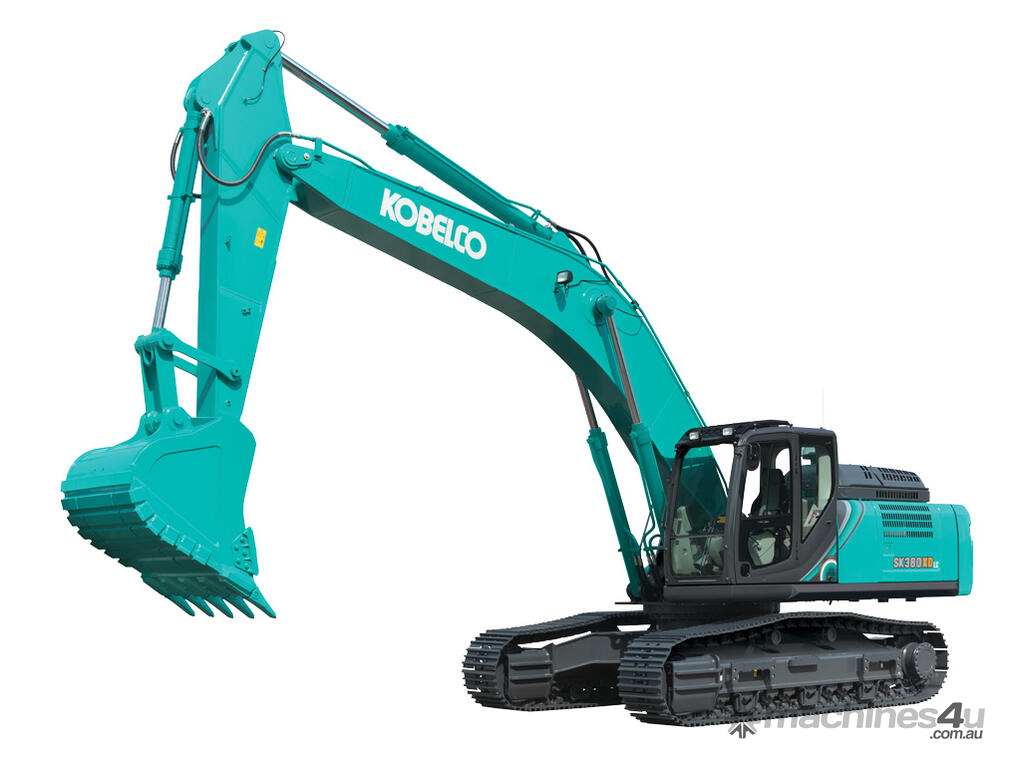

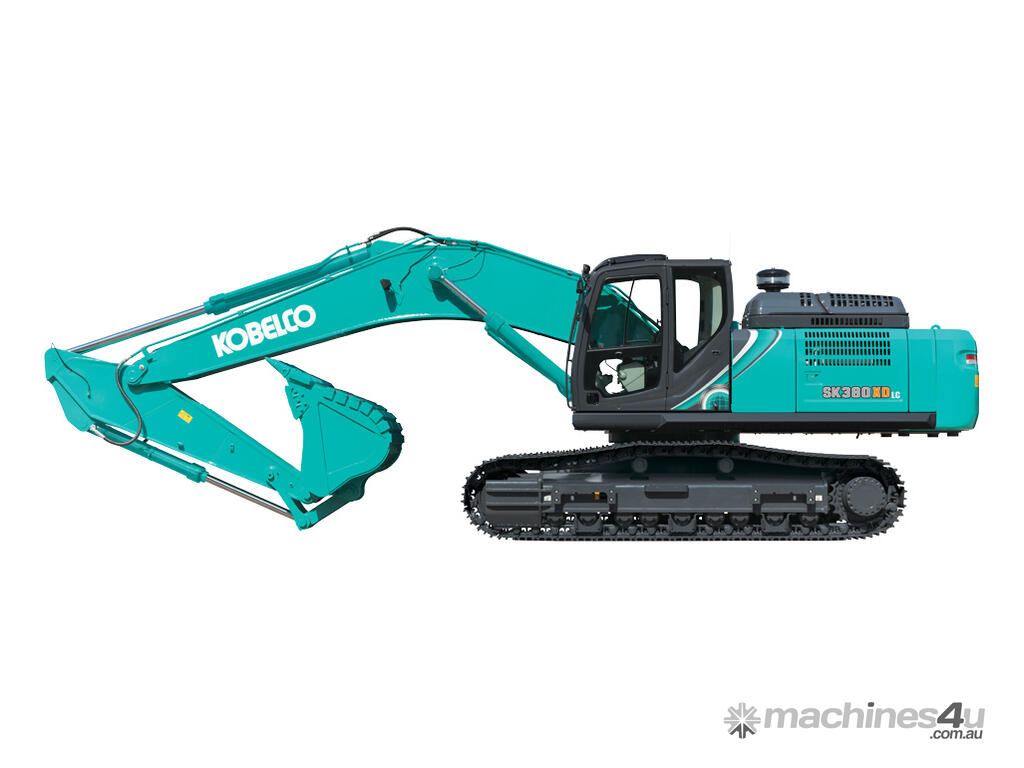

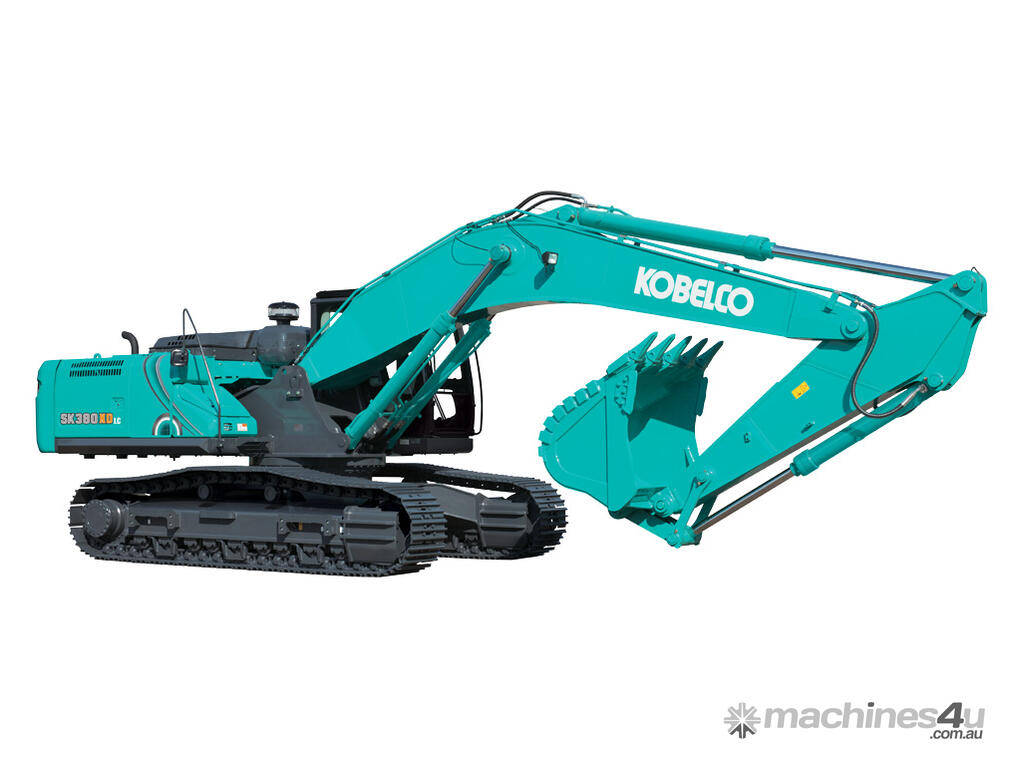

The SK380XD clocks up 37,700 kg on the scales, making it the heaviest excavator in its class.
Delivers Kobelco’s innovative technology and legendary Japanese quality and reliability, bringing industry leading performance to the most demanding worksites.
Includes Kobelco’s Extended Major Component Warranty of 4 years/6,000 hours!

Fast digging cycle times are guaranteed with the impressive bucket breakout force of 244 kN, and powerful slew torque of 120 kN, ensuring that machine productivity is kept at an all-time high. Best-in-class tractive force of 331 kN sets the benchmark for this class.

Kobelco’s GEOSCAN telematics system is also provided free of charge for 5 years, allowing remote access to a comprehensive set of machine operational and maintenance data from any web enabled device.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

11.3 x 3.26 x 3.43 m** (**600 mm shoe)

Operating Weight

37,700 kg

Refilling Capacities
Fuel Tank

503 L

Hydraulic Oil Tank

245 (410) L

Working Range
Max. Digging Depth

7.56 m

Max. Digging Reach

11.26 m

Engine
Rated Power Output

209 kW

Rated Torque

998 Nm

Breakout Force
Bucket Digging Force

244 kN

Arm Crowding Force

180 kN

Hydraulic System
Max. Pump Flow

2 x 294 L/min + 21, 43 L/min

Standard Auxiliary

N&B + Tilt Piping
