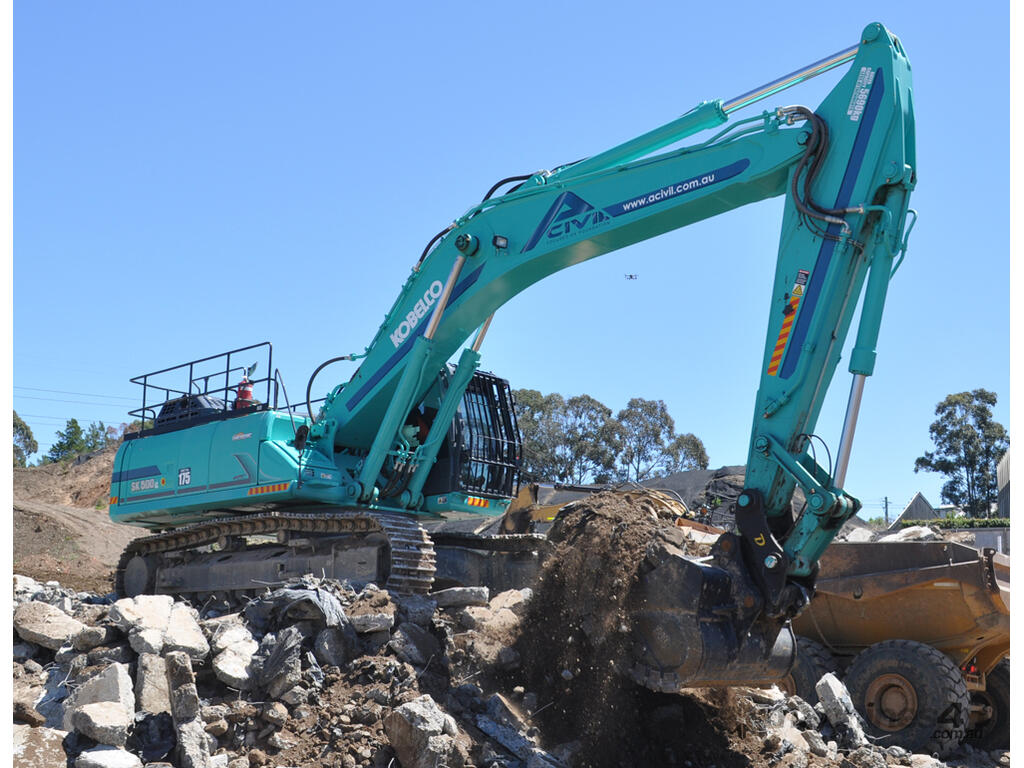

35T - 55T SK500LC-10

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Available in Tier 3 or Tier IV Final emissions.
Comes with 2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The SK500LC-10 has a highly efficient hydraulic system which minimises fuel consumption while maximising power incorporating the Kobelco Boom to Arm hydraulic regeneration system.

It has a powerful, class leading and smooth travel torque allowing operators to work on slopes and uneven terrain at ease.

The powerful swing torque also ensures smooth swing acceleration and deceleration for efficient performance.

Includes ROPS low vibration cab with rear view camera installed and other great cab features.

Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s legendary reliability with unmatched low fuel consumption.

SPECIFICATIONS

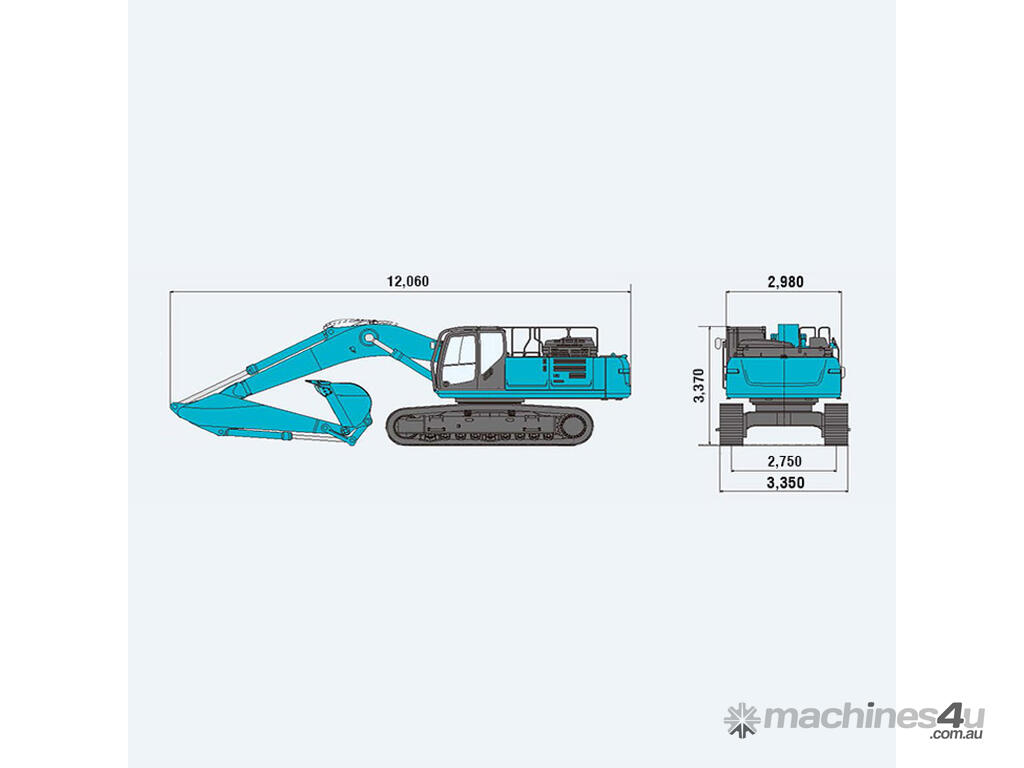

Transport Dimensions
Length, Width & Height

12.14 x 3.35 x 3.38 m

Operating Weight

51,600 kg

Refilling Capacities
Fuel Tank

638 L

Hydraulic Oil Tank

371 (631) L

Working Range
Max. Digging Depth

7.81 m

Max. Digging Reach

12.07 m

Engine
Rated Power Output

257 kW

Rated Power Output - Stage V

271 kW

Breakout Force
Bucket Digging Force

292 kN

Arm Crowding Force

222 kN

Hydraulic System
Max. Pump Flow

2 x 370 + 63.5L/min

Standard Auxiliary

N&B + Tilt Piping
