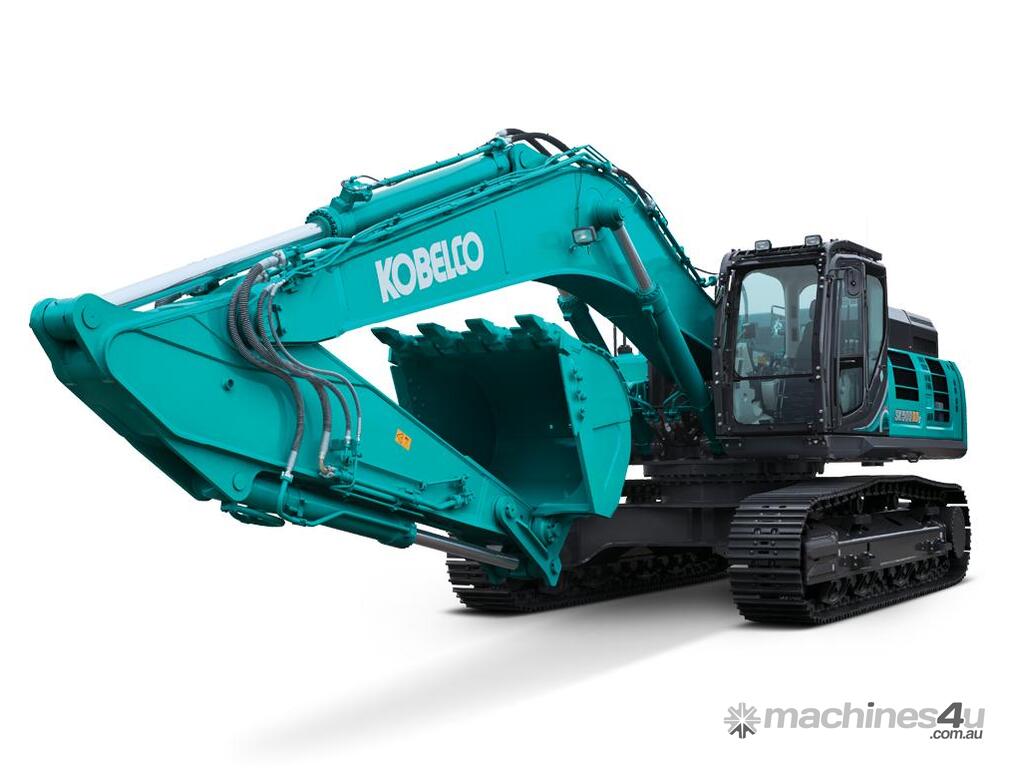

35T - 55T SK500XDLC

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Includes Kobelco’s Extended Major Component Warranty of 4 years/6,000 hours!
Kobelco’s GEOSCAN telematics system is also provided free of charge for 5 years, allowing remote access to a comprehensive set of machine operational and maintenance data from any web enabled device.

Designed for the most extreme work environments, the SK500XD is purpose-built with a robust machine body and substantial additional reinforcements to all key areas of stress and wear across the boom, arm, underbody and undercarriage.

Experience next-level lifting capabilities with the standard extreme duty 7.0m boom and 3.45m arm, reaching a 7.81m dig depth with a rated safe working load over 6,000 kg (measured at full reach over the side). For even greater capacity, the XD Series is also available in a mass excavation (ME) configuration, known as the SK520XDLC. Equipped with additional counterweight and a shorter 6.5m boom and 2.6m arm, the SK520XDLC delivers even higher breakout forces and additional bucket capacity, with a rated safe working load exceeding 8,000 kg.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

12.23 x 3.58 x 3.38 m

Operating Weight

52,200 kg

Refilling Capacities
Fuel Tank

638 L

Hydraulic Oil Tank

371 (631) L

Working Range
Max. Digging Depth

7.81 m

Max. Digging Reach

12.04 m

Engine
Rated Power Output

257 kW

Rated Torque

1,400 Nm

Breakout Force
Bucket Digging Force

293 kN (ISO 6015)

Arm Crowding Force

222 kN (ISO 6015)

Hydraulic System
Max. Pump Flow

2 x 370 L/min + 60 L/min

Standard Auxiliary

N&B + Tilt Piping
