35ft Vertical Mast Personnel Lift

UG35AC – 35ft Push around Vertical lift – 240V AC – 12V DC available as an option.

Up-lift Personnel Lift model; UG35AC

KEY MACHINE SPECIFICATIONS:
Maximum Platform height 10.3m and Reach 12.3m.
Safe Working Load – 159kg.
Dimensions – Stored – 1.40m Long x 0.80m Wide x 1.98m High.
Footprint Outriggers – 2.06m x 2.26m.
Weight of UG35AC – 415kg.

The UG Range of machines have been designed with advanced technical input and with a special focus on quality and operator safety requirements. The UG series personnel lifts are compact, with superior outer finishes, light and easy to handle and have many safety features.

Employing the traditional sliding rail mast design, UG personnel lifts use high-quality parts, with critical components being sourced from world-leading suppliers. The special attention given to practical features and safety standards has created a range of machines with greater stability and safety by comparison with other similar portable man lifts models.

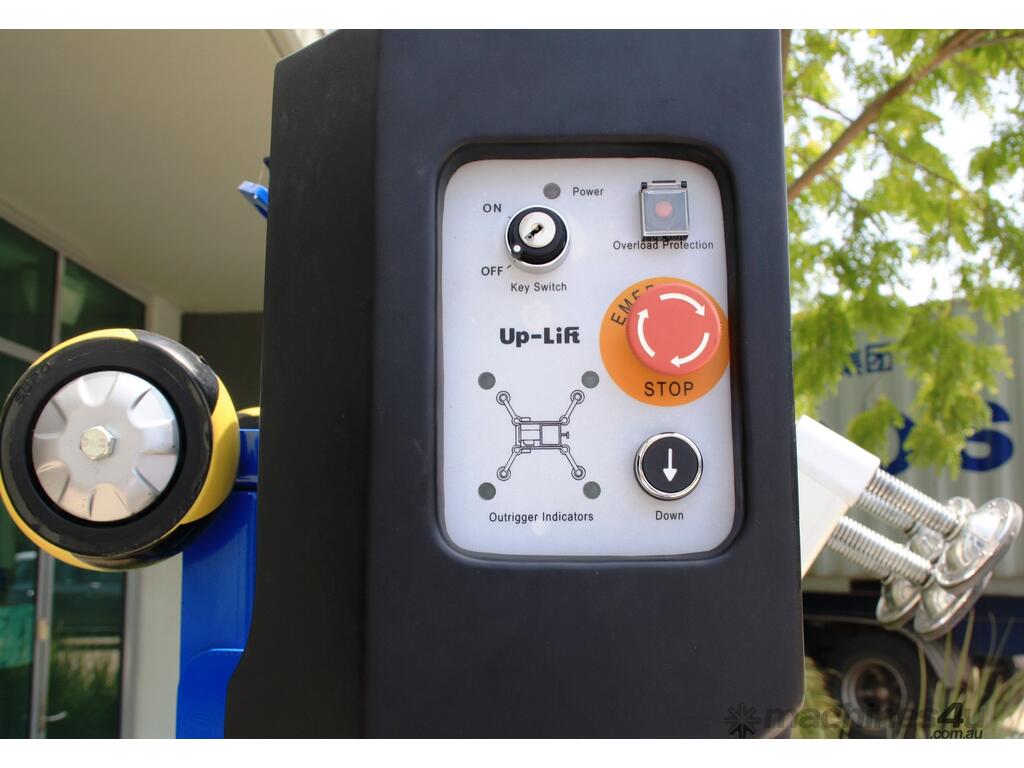

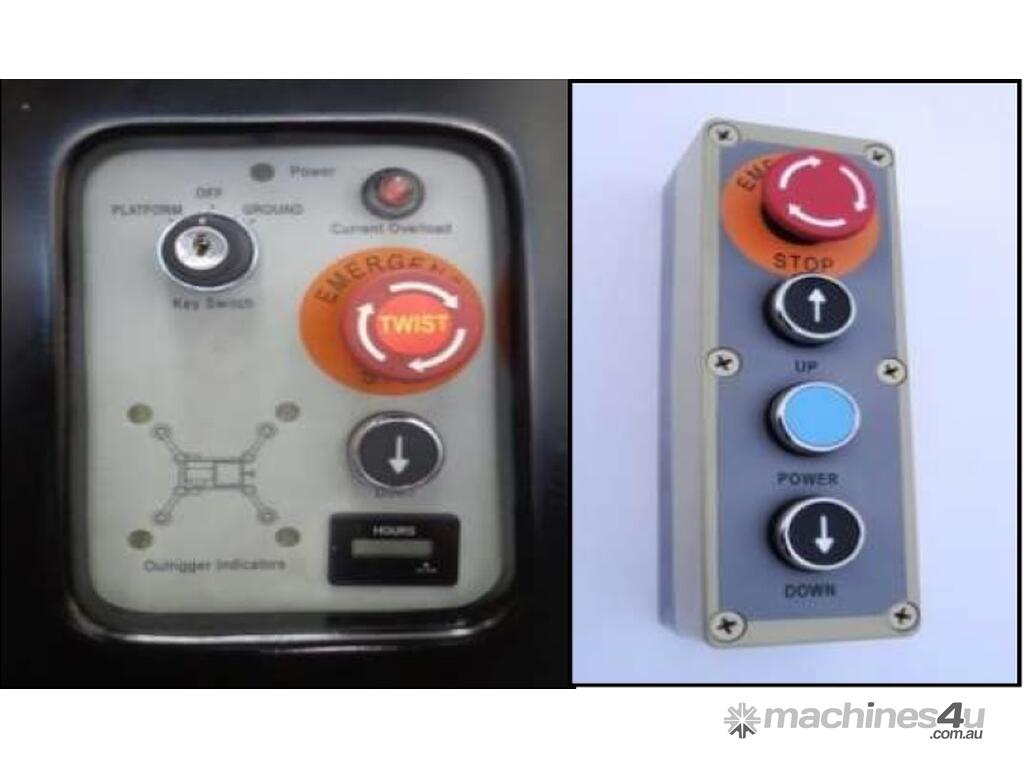

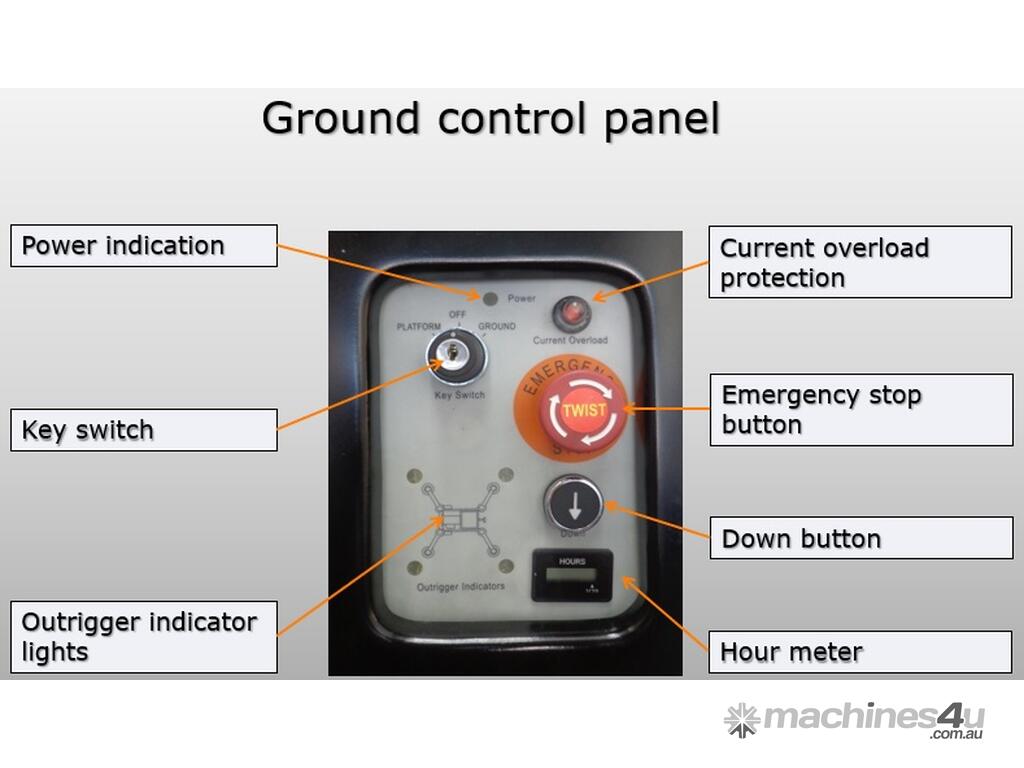

MULTI-FUNCTION CONTROL PANEL - Power supply indication, outrigger indication lights and backup power for AC modes in the form of a 24-watt battery included in the control box.
STAINLESS STEEL CAGES - Ergonomically designed cage results in easy operation and also enhances ease of access.

OUTRIGGER STORAGE - Extruded aluminium outriggers are stored on the side below the top of the machine, keeping the stored height to a minimum and facilitating the movement of the machine through standard doorways with outriggers in its stored position.

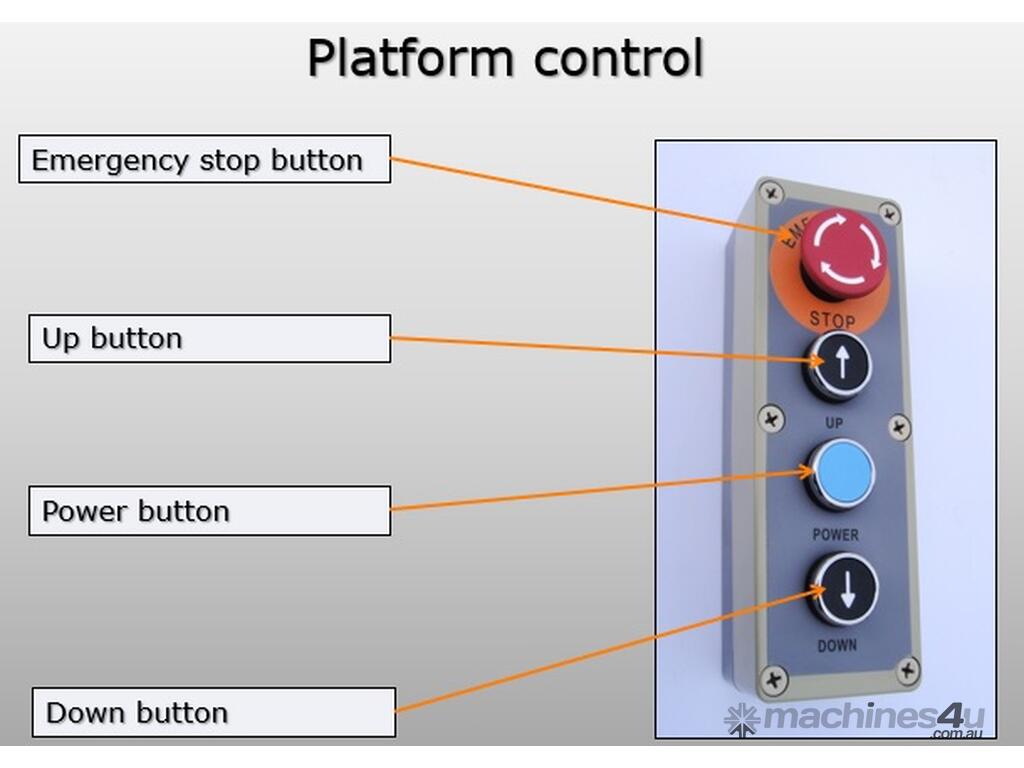

PLATFORM CONTROLS - Critical push-button controls (i.e. ascending, descending, and emergency stop buttons) are all accessible from the platform.

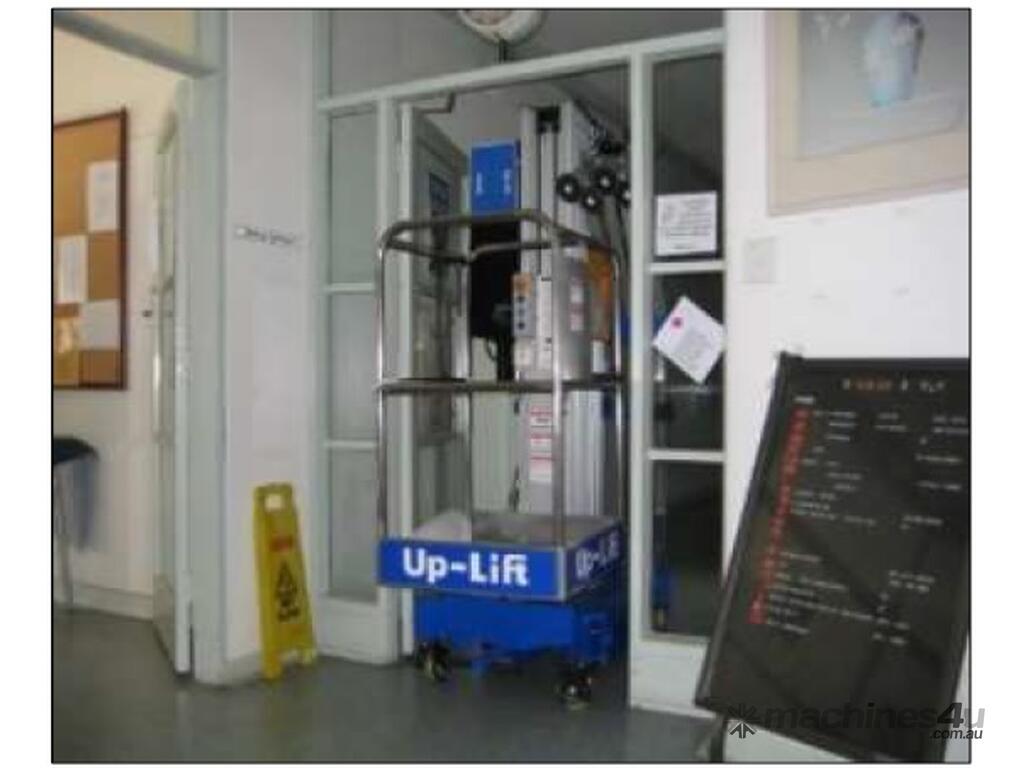

MOBILITY - Designed to allow passage through standard doorways, lifts and elevators. Mobility for higher models are enhanced with a tilt-back support system

STABILITY AND WEIGHT ADVANTAGE - High strength and high durability aluminium aircraft materials greatly reduce weight and enhances the stability of the machine. Unique central mast design ensures high stability and minimises machine vibration.
