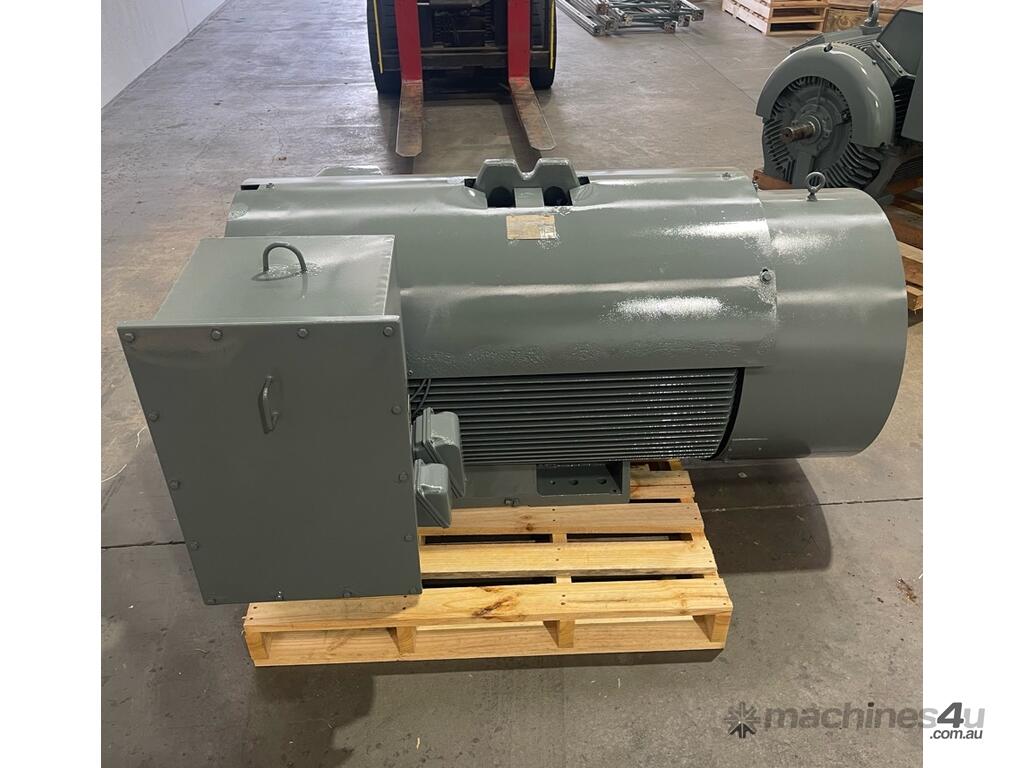

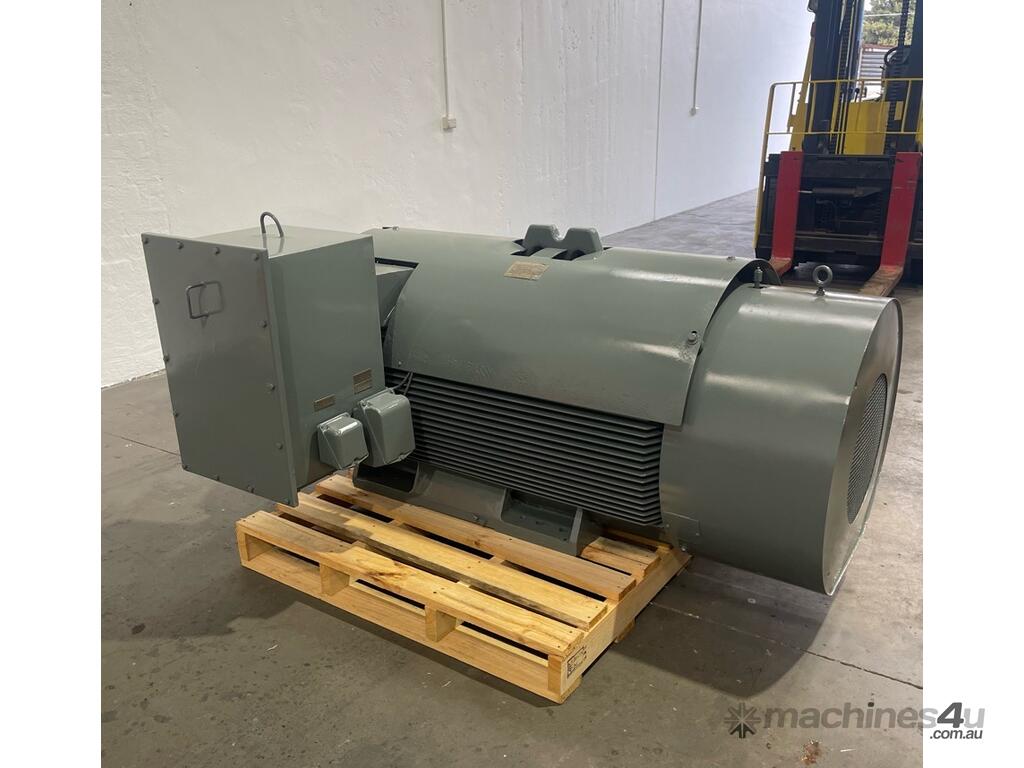

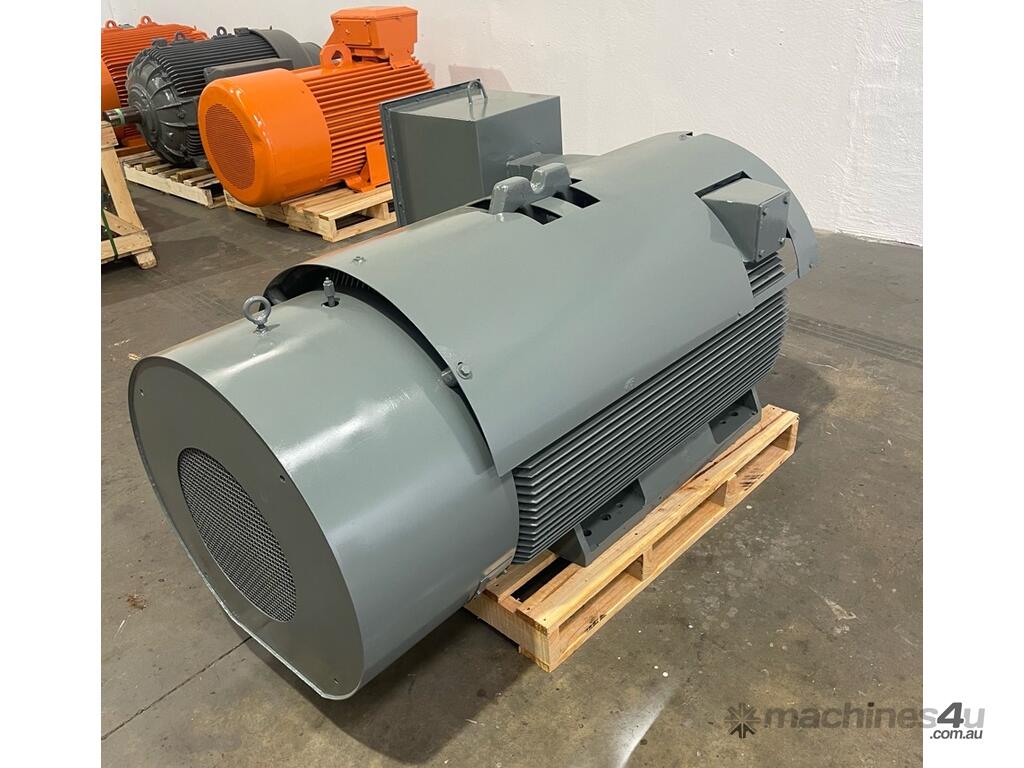

375 kw 500 hp 4-pole 1480 rpm 415v 355L Mining AC Electric Motor Toshiba Type TIK FBKNW Frame D355LS

375 kw 500 hp 4-pole 1480 rpm 415v Foot Mount 355L frame Mining AC Squirrel cage Electric Motor Toshiba Type TIK Form FBKNW Frame D355LS

Category: AC Squirrel Cage Electric Motor
3-phase induction motor

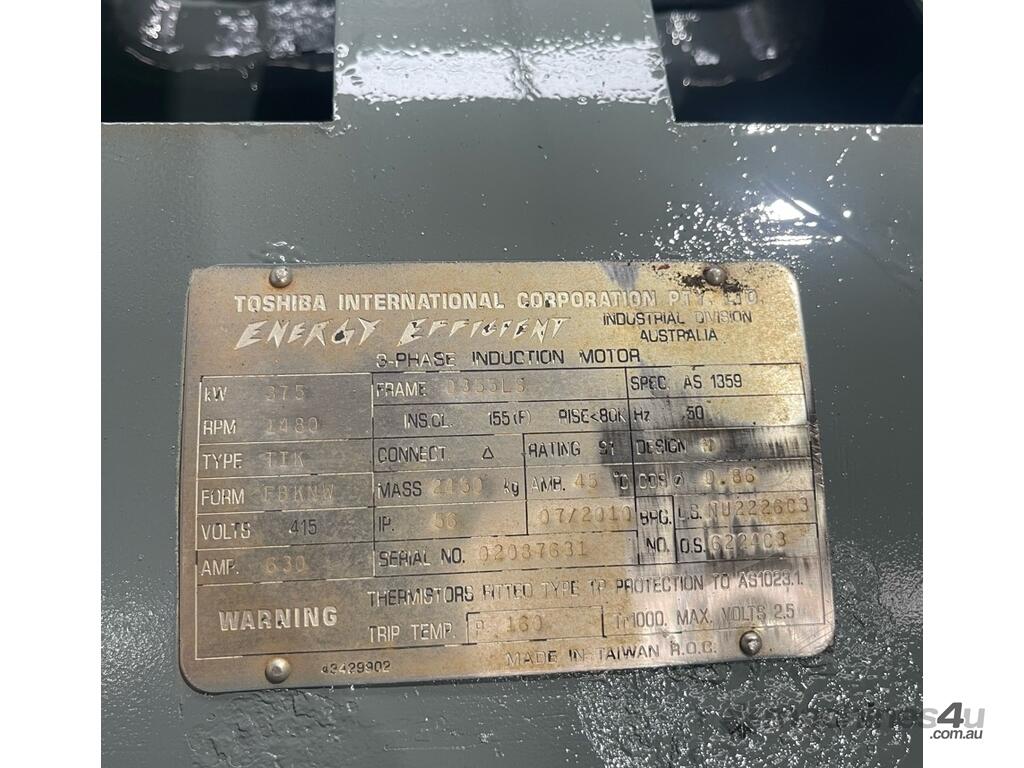

Make: Toshiba
Type: TIK FBKNW
Power: 375 kw (500 hp)
Speed: 4-pole (1480 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415v
Full Load Amperage: 630 A
Mount: B3 Foot
Frame: 355L
Centre shaft height: 355 mm

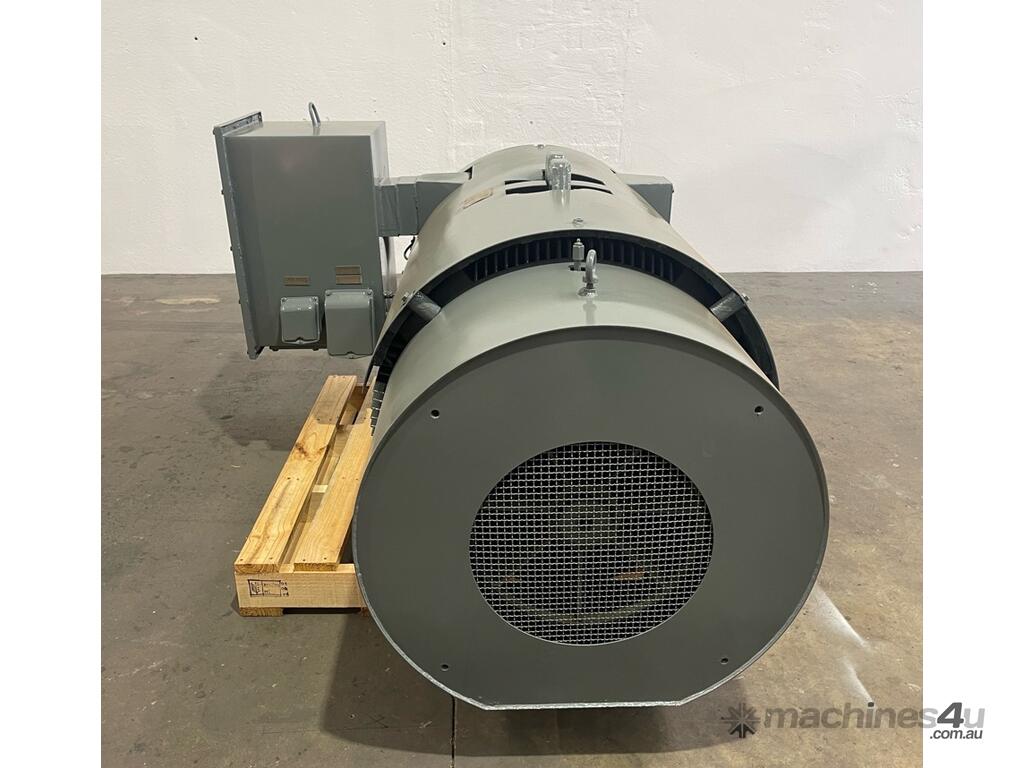

Protection rating: IP56 Mining (includes mining cover)
Weight: 2450 kg
Notes: Includes Drive-end roller bearing (for belt-driven application), heaters / thermistors / RTDs, Mining Cover

Critical Measurements:
Centre Shaft Height: 355 mm

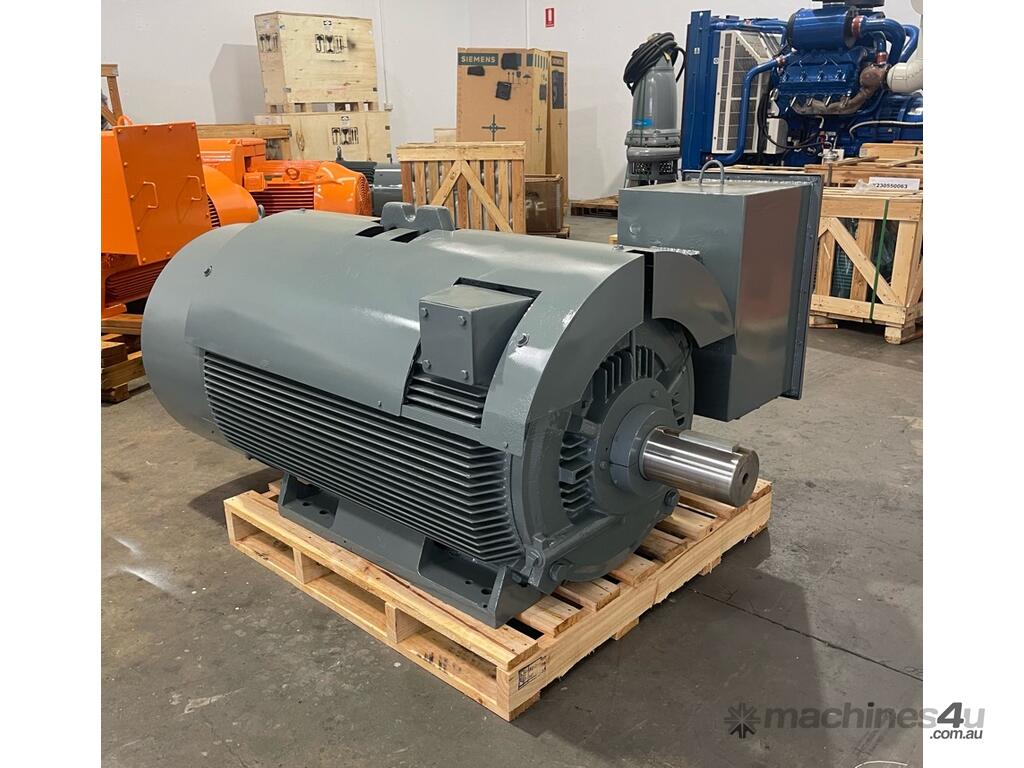

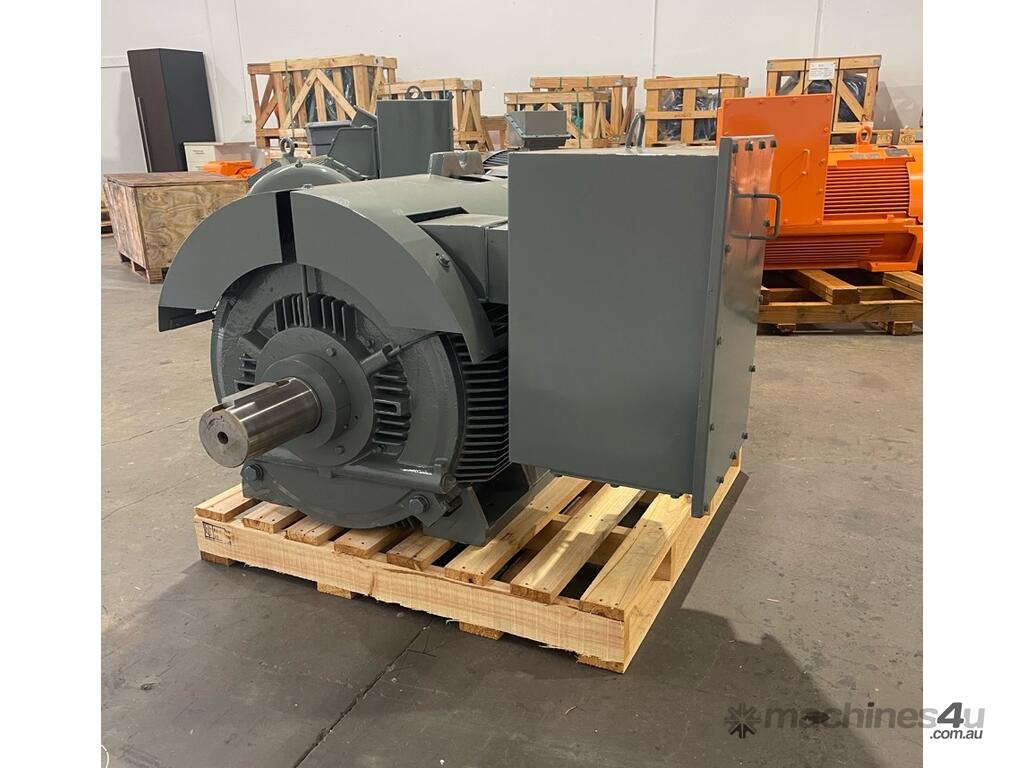

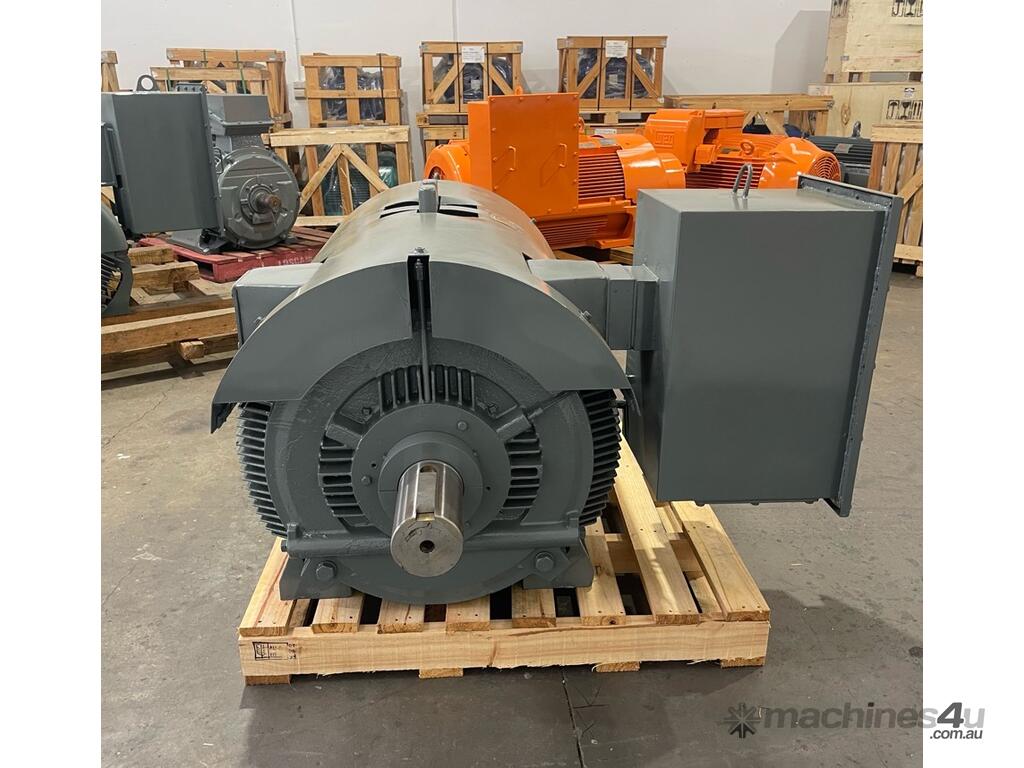

Shaft DIA: 125 mm (by 210 mm long)
Total Length: 1890 mm (incl. shaft)
Total Width: 1300 mm (incl. standard RHS to D.E. terminal box)
Total Height: 900 mm
Feet Measurements: Front to Back 630 mm & 720 mm, Across 630 mm
Front hole to shaft: approx. 254 mm

Available QTY: 1
Condition: Fully Reconditioned Critical Mining Spare. Includes New bearings, N/L test run, paint Sept '23. Warehouse storage
exStock Seaford VIC 3198 Australia
Freight services available Australia Wide - Immediate despatch
