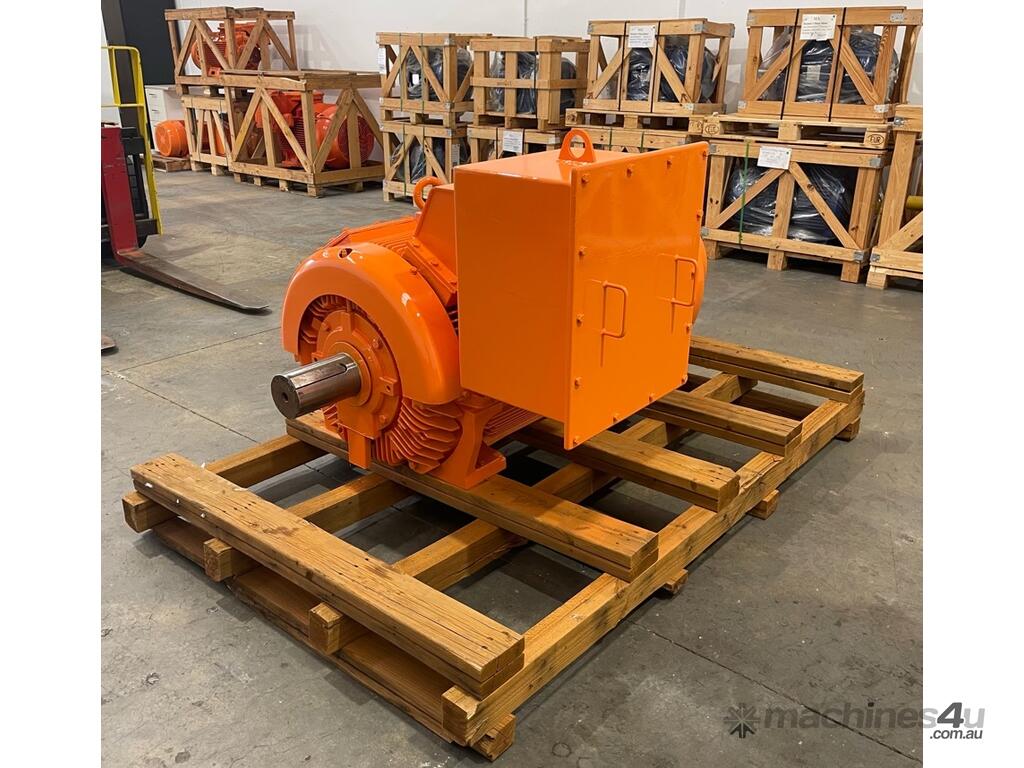

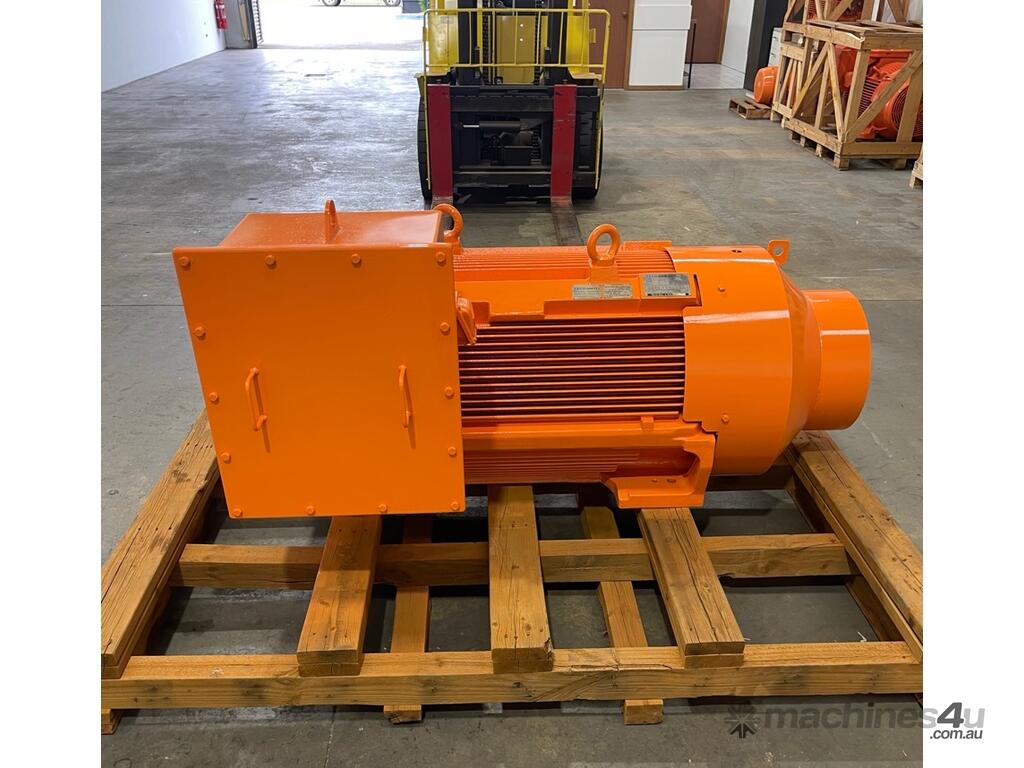

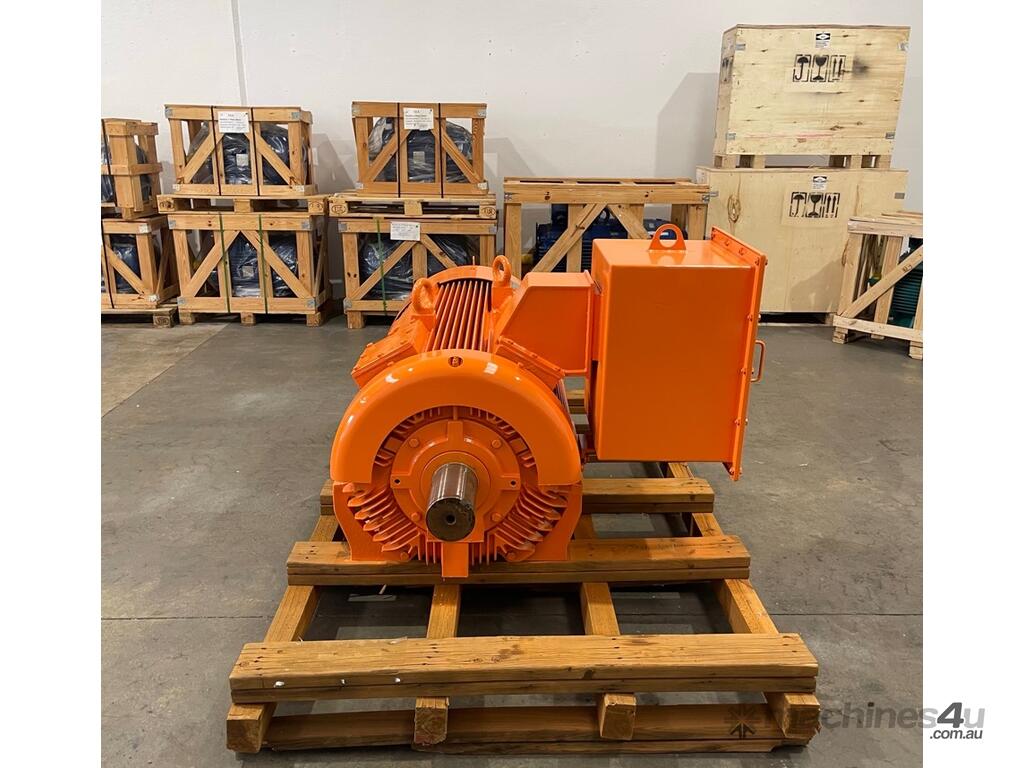

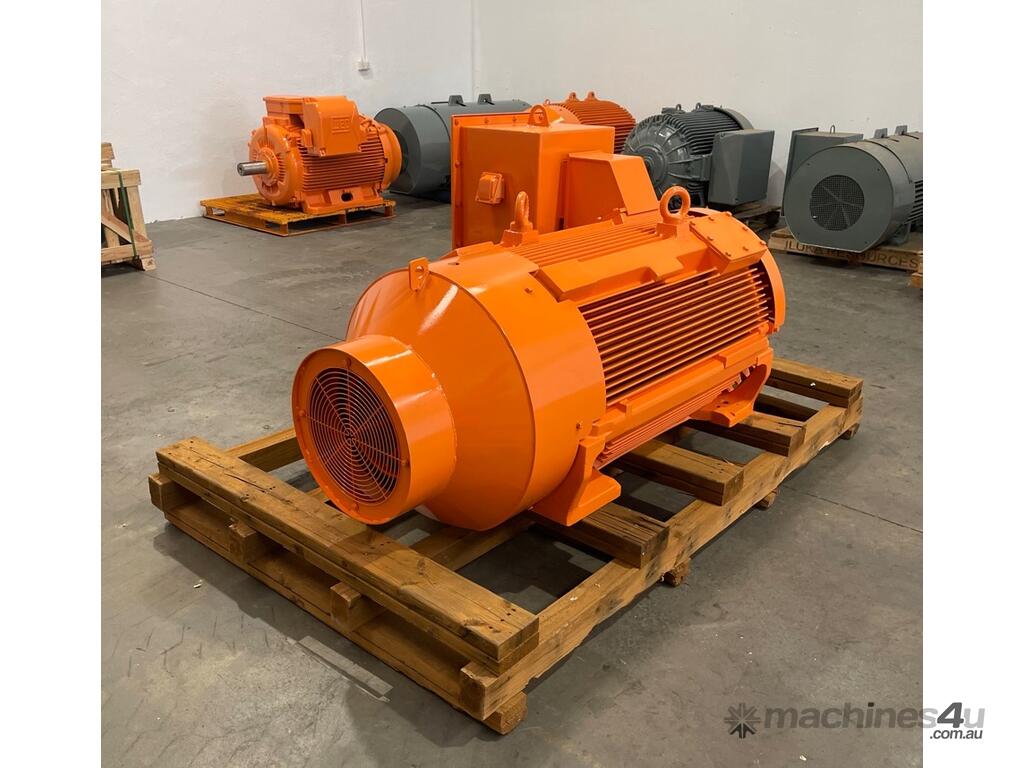

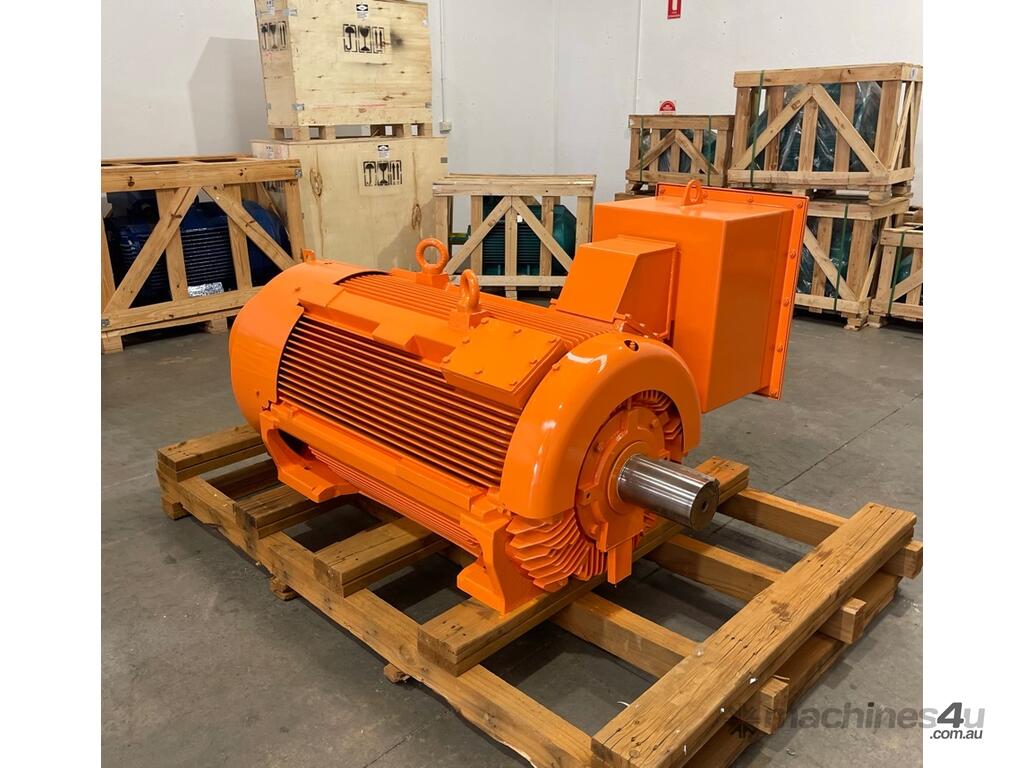

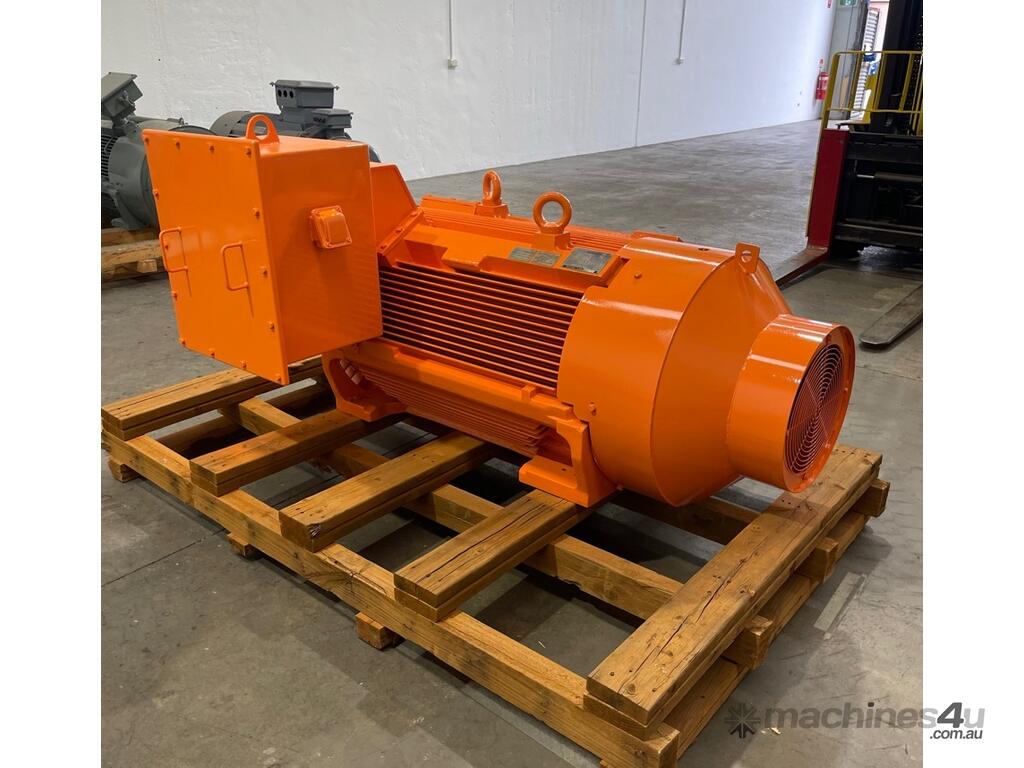

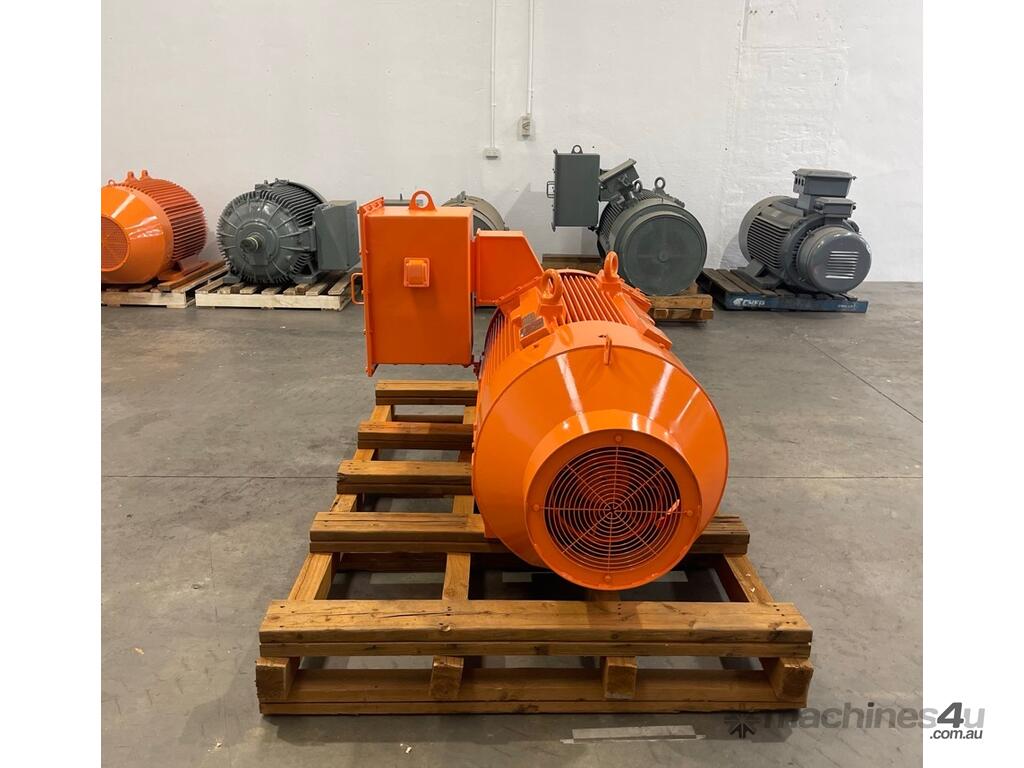

375 kw 500 hp 4-pole 1492 rpm 415v D315DC frame IP66 Mining TEFC AC Electric Motor Teco Type AFJE-MC

375 kw 500 hp 4-pole 1492 rpm 415v Foot Mount D315DC frame IP66 Mining TEFC AC Electric Motor Teco Type AFJE-MC unused

Category: AC Squirrel Cage Electric Motor
3-phase induction motor

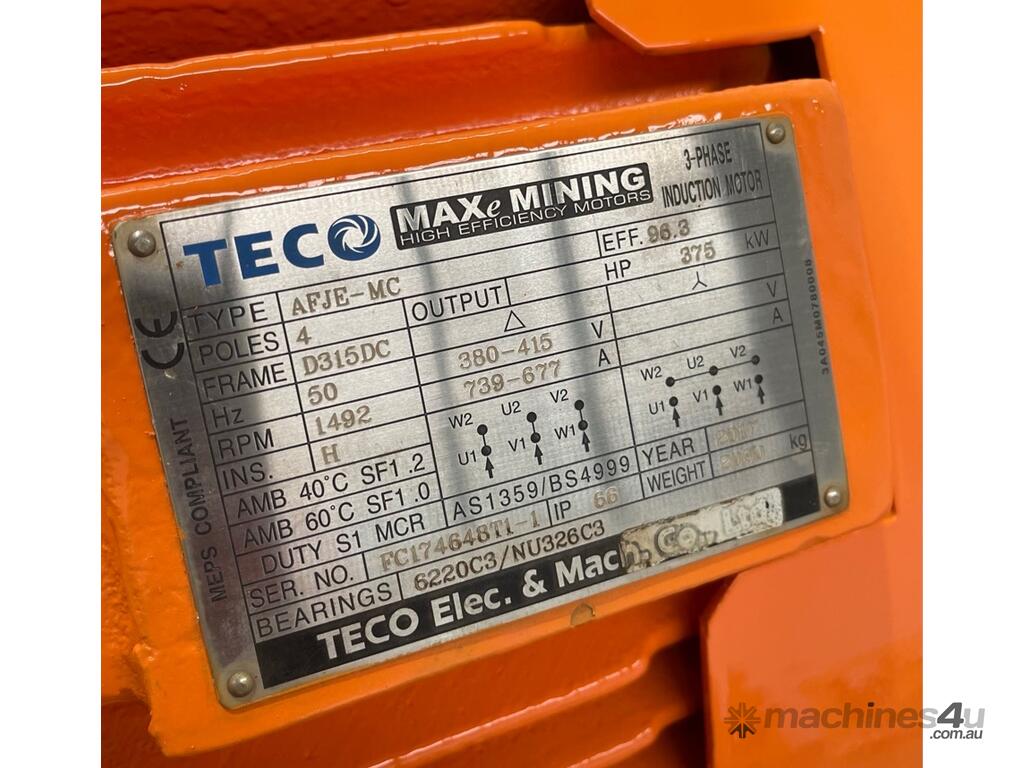

Make: Teco
Type: AFJE-MC
YOM: 2017
Power: 375 kw (500 hp)
Speed: 4-pole (1492 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 677 A
Mount: B3 Foot
Frame: D315DC
Protection Rating: IP66 Mining
Insulation Class: H
Duty: S1
Weight: 2090 kg
Inclusions: Drive end roller bearing (for belt-driven applications), Heaters & Thermistors

Critical Measurements:
Shaft DIA: 125 mm (by 210 mm long)
Centre shaft height: 315 mm
Total Length: 1881 mm (incl. shaft)
Total Width: 1171 mm (incl. standard RHS to D.E. Terminal Box)
Total Height: 1042 mm
Feet Measurements: Across 'A' - 508 mm, Front to Back 'B' - 910 mm
Front hole to shaft 'C': 216 mm

Available QTY: 1
Condition: Unused, decommissioned critical spare. New bearings, N/L test run, and painted, in motor workshop July 2023
exStock Seaford VIC 3198 Australia
Freight services Australia Wide available on request - Immediate despatch
