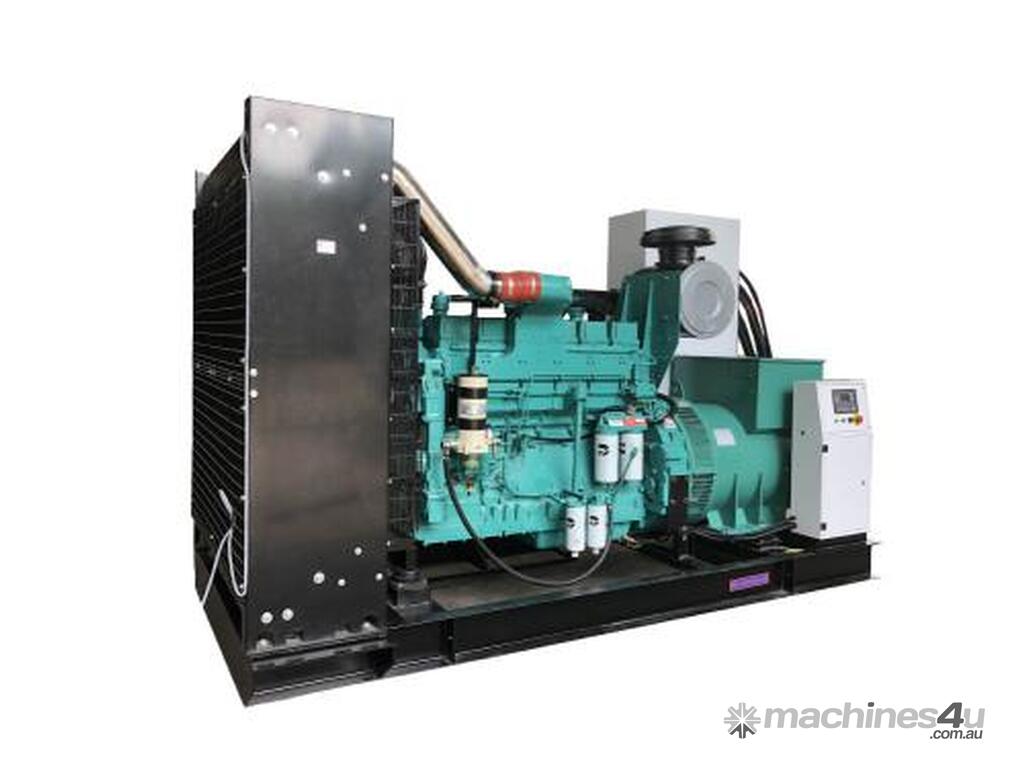

375KVA YTO Silenced Diesel Generator 415V

Pre-order with 10-12 weeks turn around time.

RATING DEFINITION:

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications, in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption. No overload, utility parallel or negotiated outage operation capacity is available at this rating.

TECHANICAL DATA - Available Options:
Generator set Genset Model K30000 DK33000 SK33000 WCK33000
Engine Brand YTO Deutz SDEC Weichai
Engine Model YM6S9LF-D BF6M1015C-LA G SC15G500D2 WP13D385E200
Controller Kusing 6132, Comap, Deep sea, Smartgen
Switch CHNT 630A
Internal protection IP22
Rate current(A) 540 Amps per phase
NO. of Cylinder 6
Cylinder Type L
RPM 1500
Speed Governor Electronic
Start system(VDC) 24V
Lub Oil Specification CF/ 15W40
Air aspiration Turbocharged
Alternator Phase 3
Brand Kusing
Model S314G300E7
3 Phase Voltage 415V
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Silent(KG) 3590
Silent(L*W*H)mm 4500*1500*2200
Noise level 7m 80dba
Fuel Tank Capacity EST: 800-1000L TBC

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your
electrician for advice).
• Compatible for stationary and transportable use.

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)


Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Why you should buy from Wellku Power

Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 15 years. Our factory currently produces industrial diesel water-cooled machines from as small as 8KVA up to 3000KVA or more.

Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.

If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.

Wellku Power offer attractive wholesale pricing discounts for bulk orders & and discounted prices for repeat customers.

Shipping

For a shipping price to deliver to your location, please contact us on or sales1wellku
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
