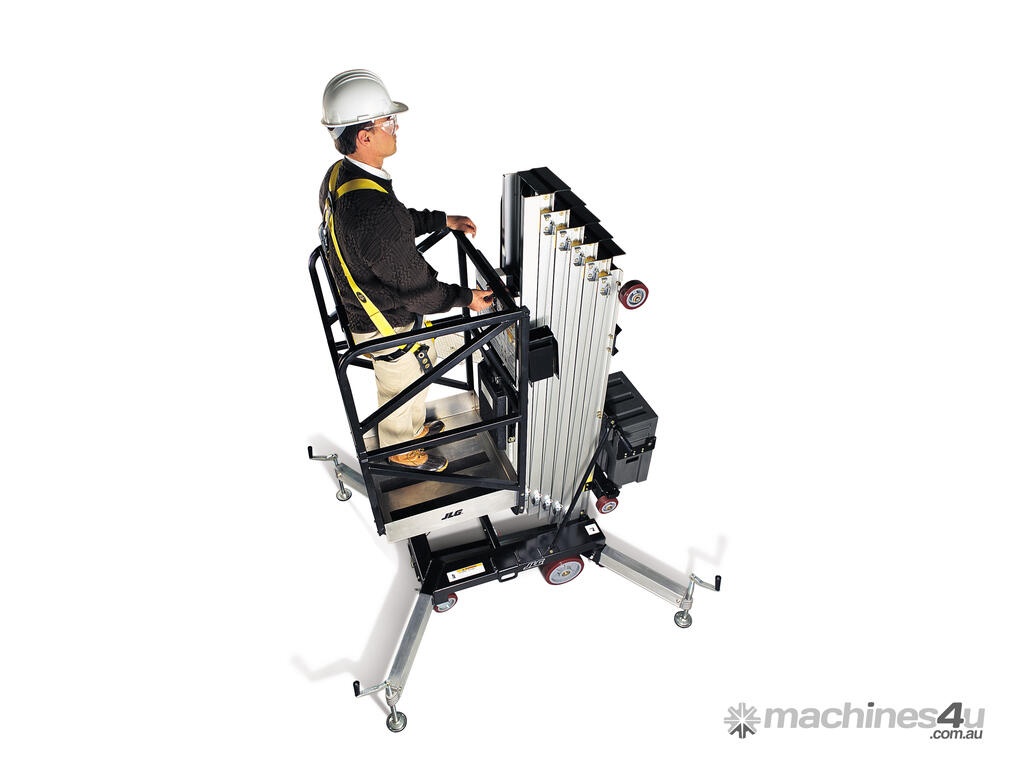

38AM Vertical Mast Lift - 38 ft Platform Height, Most Rigid Mast for Operator Comfort and Stability

JLG - 38AM Vertical Mast Lifts
Push Around Vertical Mast Lifts

Features:
Most rigid mast in the industry for operator comfort and stability
Six-wheel design for improved maneuverability
Long battery duty cycles and an automatic charger for increased productivity

Quick Specs:
Platform Height (Elevated): 38 ft (11.58 m)
Overall Width: 29 in (74 cm)
Platform Capacity: 300 lb (136 kg)

General Specifications:
Working Height: 14 m
Platform Height: 38' (11.58 m)
Platform Capacity: 300 lb (136 kg)
Standard Platform Size: 26 x 25.5 in (66 x 65 cm)
Overall Height (Stowed): 104 in (2.64 m)
Overall Base Width: 29 in (74 cm)
Overall Base Length: 54.5 in (1.38 m)
Overall Length (Without Platform): 53 in (1.35 m)
Overall Height (Tilted Back): 76.5 in (1.94 m)
Overall Length (Tilted Back): 108 in (2.74 m)
Ground Entry Height: 19 in (48 cm)
Outrigger Footprint Length: 79 in (2.01 m)
Outrigger Footprint Width: 79 in (2.01 m)
Distance to Wall (Front): 14 in (36 cm)
Distance to Wall (Side): 26 in (67 cm)

Weight:
AC Model: 1,060 lb (481 kg)
DC Model: 1,160 lb (526 kg)

Wheels:
Rear Wheels: 10 x 2 in (25 x 5 cm)
Front Caster Wheels: 6 x 2 in (15 x 5 cm)
