3HP KNEE MILLING MACHINE - MANFORD AVEMAX, MADE IN TAIWAN

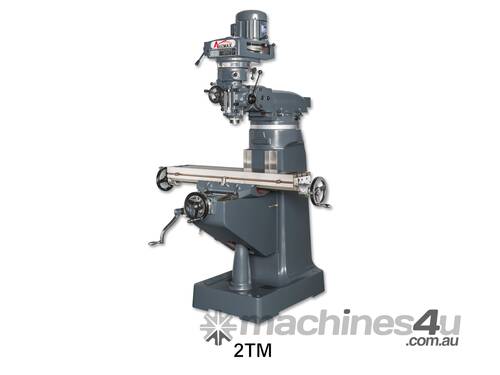

2TM

Spindle material made from SCM440 Cr-Mo steel alloy with tempering treatment.
Centralized one shot lubrication system for ways, nuts and leadscrews of axes.
Precise angular contact spindle bearing.
8 speeds step-pulley drive (16 speeds is optional).
Unique design on Hi-Low gear speed commutation, bearings support on both sides of spindle pulley.
Adjustable brake handle increases the life of break shoe.

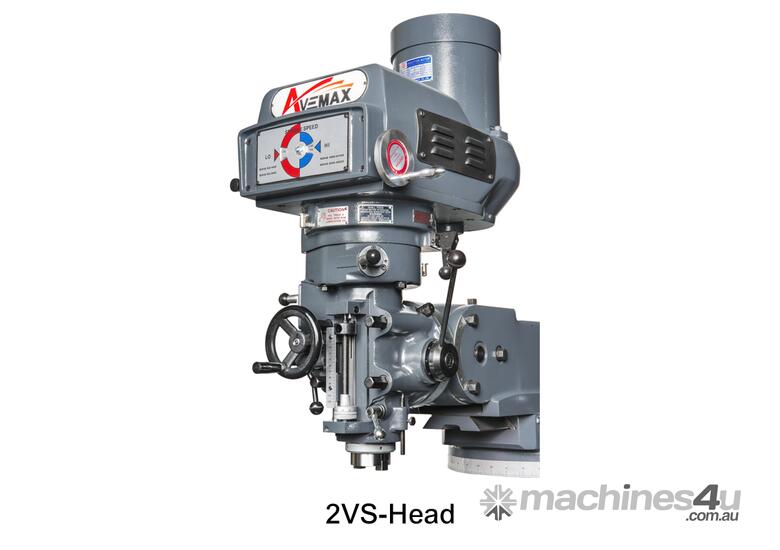

2VS

Spindle material made from SCM440 Cr-Mo steel alloy with tempering treatment.
Centralized one shot lubrication system for ways, nuts and leadscrews of axes.
Precise angular contact spindle bearing.
Variable speed drive up to 4500 rpm/60Hz, 3750 rpm/50Hz.
Patented special copper alloy SAM214 for vari-disc keys with precise ground grease and lubrication system.
Bearing support at the end of motor shaft.
Double sided vari-disc belt provides lower noise level.
Motor shaft material made from steel alloy, diameter 28mm.

PRICING INFORMATION:-
2TM, R8/NST#30, Head- 8 STEPS, 3HP/3PH/220V, (50or60HZ) $ 17,513
2VS, R8/NST#30, Head- Variable Speed, 3HP/3PH/220V, (50or60HZ) $ 18,906

Specification 2TM / 2VS
Table size 230x1245mm (9”x49”)
T-slot of table (Q’ty x size) 3x16mm (3 x 0.63”)
Longitudinal travel (X axis) Manual 900mm (35.43”)/ Auto 830mm (32.7”)
Cross travel (Y axis) 305mm (12”)
Vertical travel of knee (Z axis) 406mm (16”)
Ram travel 390mm (15.354”)
Quill travel 127mm (5”)
Spindle taper NST#30/R8 (Opt. NST #40)
Spindle to table nose 34~440mm (1-3/8” ~ 17-3/8”)
Spindle center to column 154~544mm (6” ~ 21.4”)
Over swivel on turret 360?

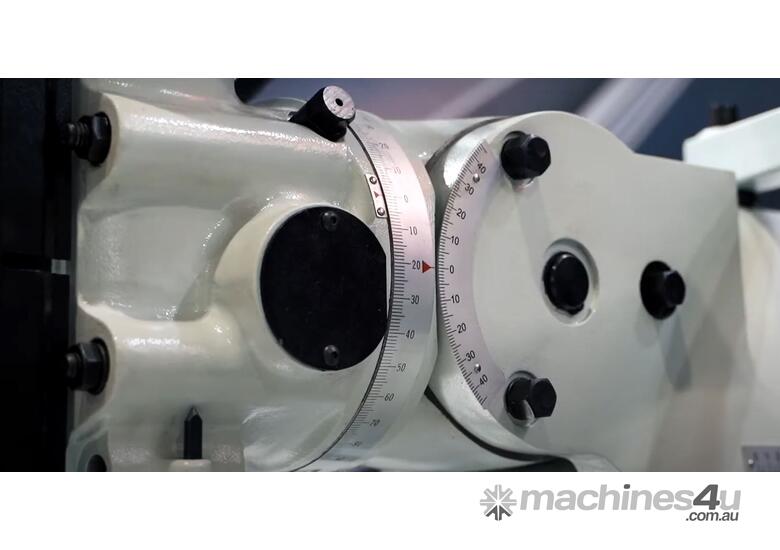

Head swivel (R&L) +/-45 degrees
Head tilt (up&down) +/-45 degrees
Spindle motor 3HP
Quill feed 0.04~0.08~0.14 mm/rpm (0.0016” ~ 0.003” ~ 0.006”)
Spindle speed Step head 50Hz: 66~2270rpm
60Hz: 80~2720rpm
Variable speed head 50Hz: 50~3750rpm
60Hz: 60~4500rpm
Net weight 950Kgs (2200lbs)

Standard Accessories applicable to mentioned prices. Please check additional accessories pricing mentioned in the photos, applicable to all models. For any understanding and clarification, please contact sales.

In the attachment some photos are for reference purpose only. Please contact for more information.

All our machines come with strict quality control checks, and certificates issued to the machines come along with the machine despatch.
A one-year standard warranty is applicable to all our machines and models. We offer additional warranty and services upon request, so please contact us for further information.
All our sales, prices, and information strictly adhere to our terms and conditions. Please contact us and demand the terms and conditions information document. Customers can also visit our for more information.
Our skilled service engineers and technicians are available to come to your site for machine installation and training. We have the capability to keep your machine operational at all times with on-time spare parts delivery, whether they are general consumables or critical.
We continuously enhance our capabilities and provide support to our customers, fostering strong relationships with them.
