3MT Live Centre Set - Interchangeable Centring Tips Taiwanese Precision Quality

TOOLMASTER 3MT Live Centre Set - Interchangeable Centring Tips Taiwanese Precision Quality
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C0635

Toolmaster live centre sets are fitted with needle thrust and ball bearings suitable for medium to high speed lathes with heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.

Features:
Maximum Speed: 3500rpm 80kg
Maximum Load: 400kg 100rpm
Hardened to HRC 60°
Made from alloy steel
Assembled with thrust needle & ball bearings

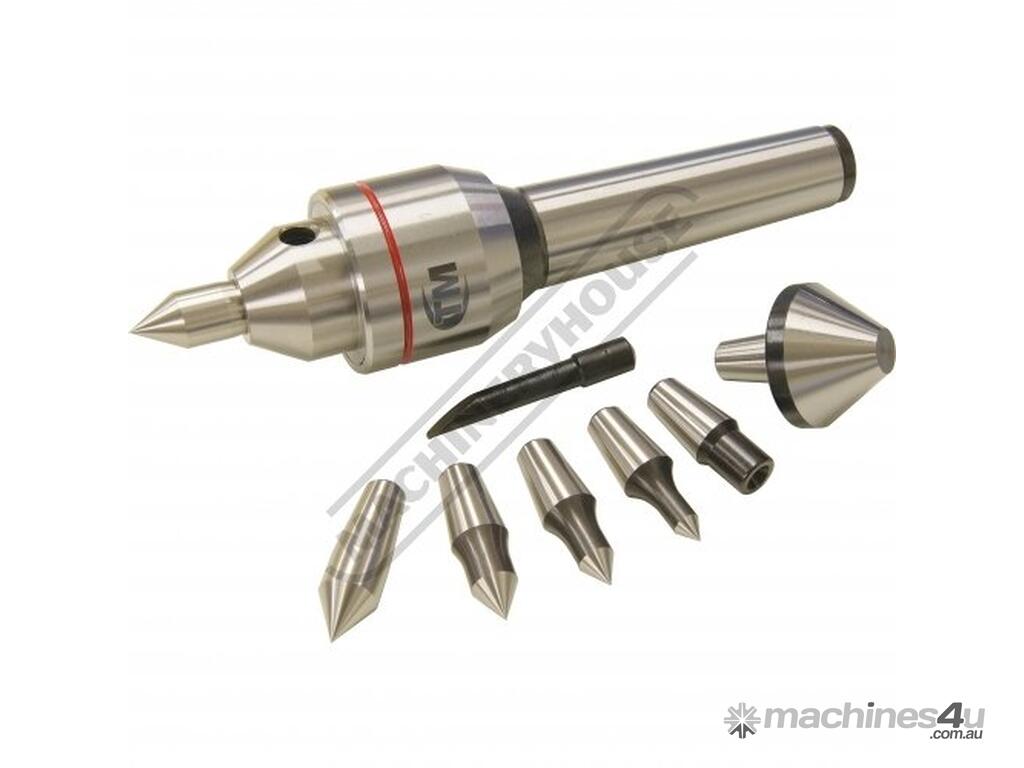

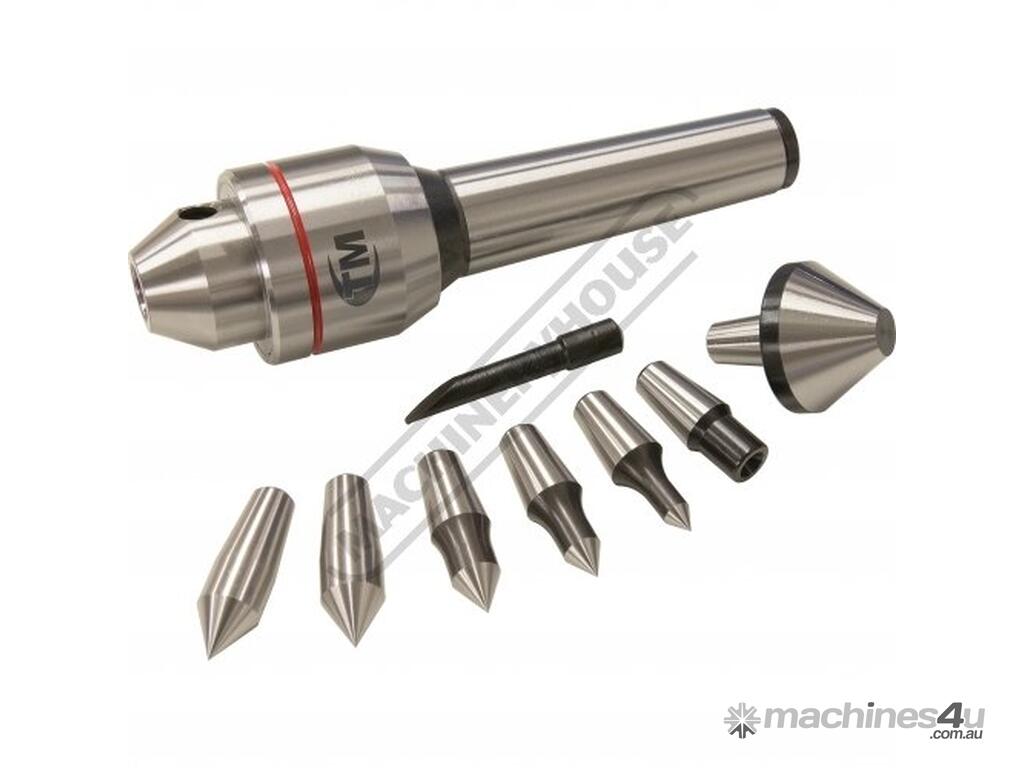

7 x interchangeable centre tips

Includes:

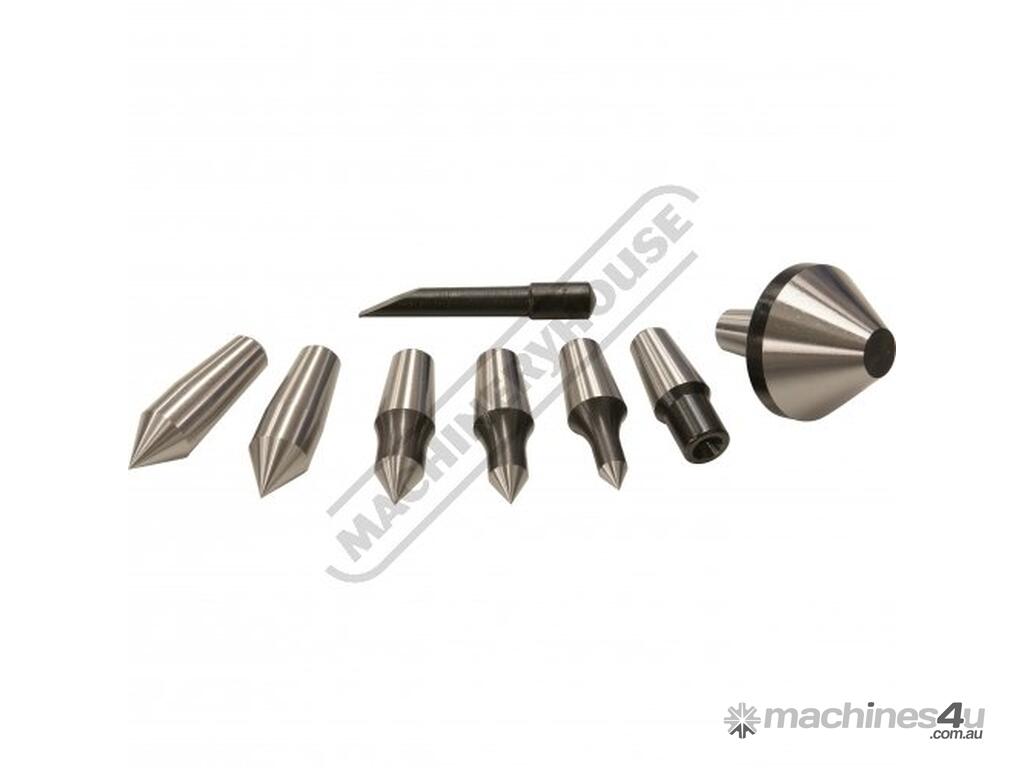

- Interchangeable centre tips:
- 2 x Standard - Ø12.6mm
- 1 x Extended point - Ø6mm
- 1 x Extended point - Ø8mm
- 1 x Extended point - Ø10mm
- 1 x Female cone - Ø6mm
- 1 x Pipe - Ø11 ~ Ø32mm



Specifications:
ORDER CODE: C0635
Taper (MT): 3MT
Maximum Speed (rpm): 3500
Maximum Load Capacity (kg): 400
? Angle: 60
A: 23
B: 44
C: 86
D: 41
D1: 30
L: 153
Nett Weight (kg): 1.2
