Commercial Construction and residential jobs, car parks, highways etc
Outstanding overall roller performance , low noise levels, high vibration frequency allows smoother and faster compaction whist boasting a smoother even finish.

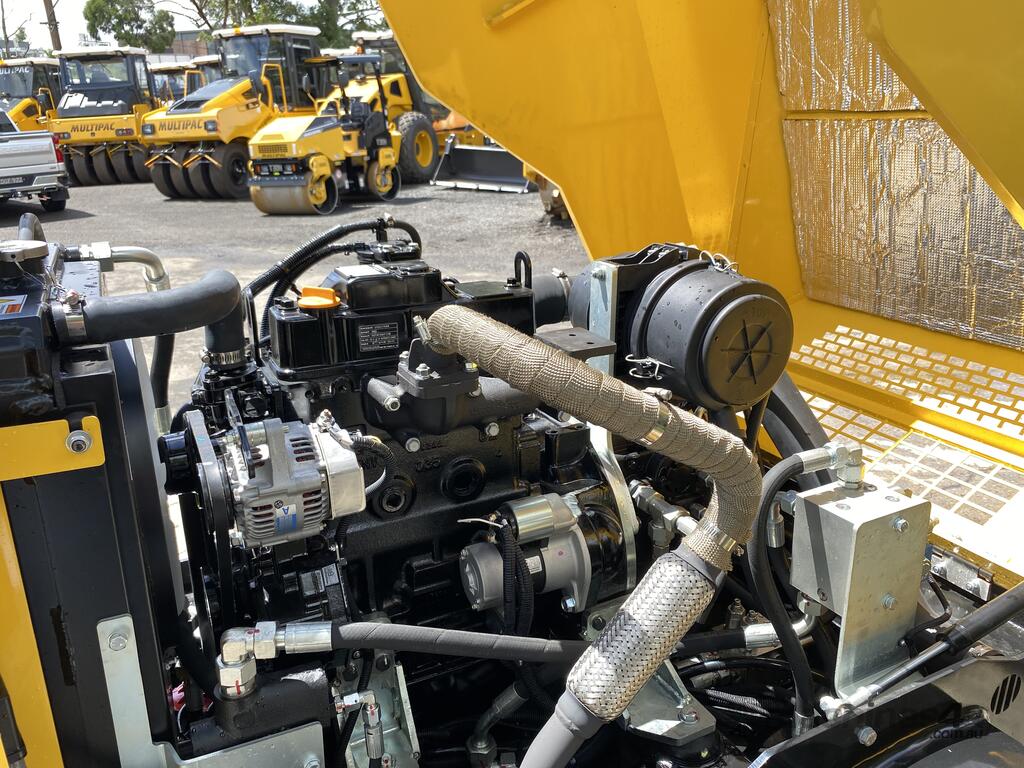

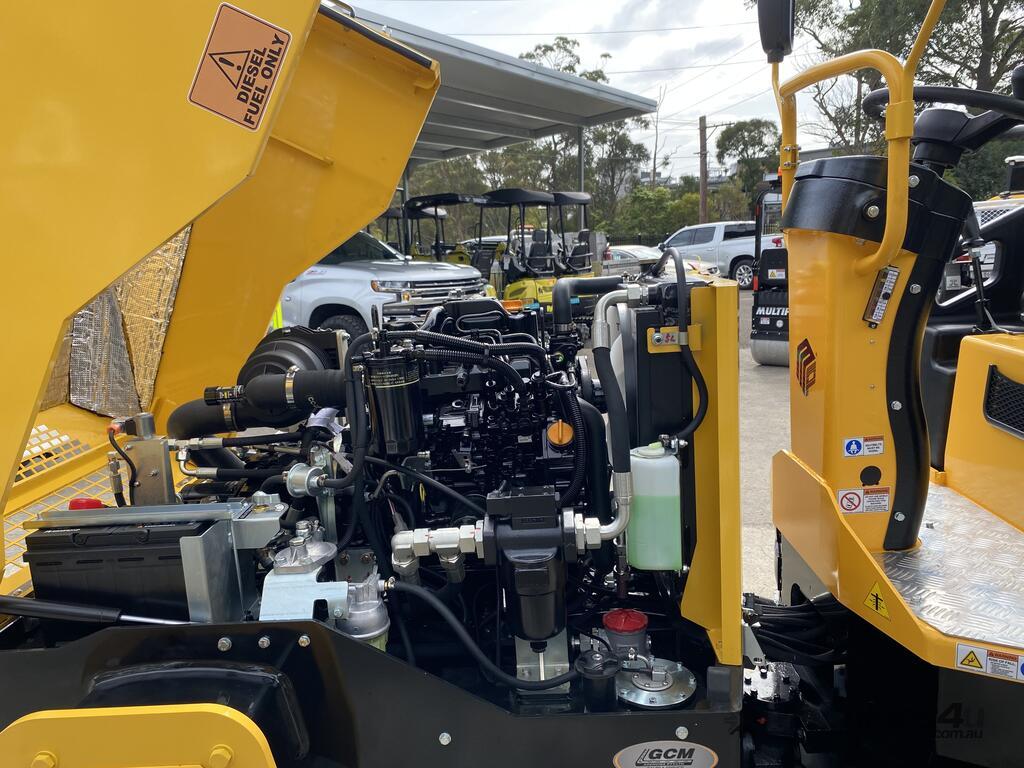

- Yanmar 3TNV88 35HP Euro 5 engine
- 5 Year Warranty
- Drum Vibration
- 4 x Rear pneumatic tyres
- Foldable ROPS ISO certified
- Articulated steering
- Pressurised sprinkler system with dual modes
- Spring applied adjustable scrapers and brushes

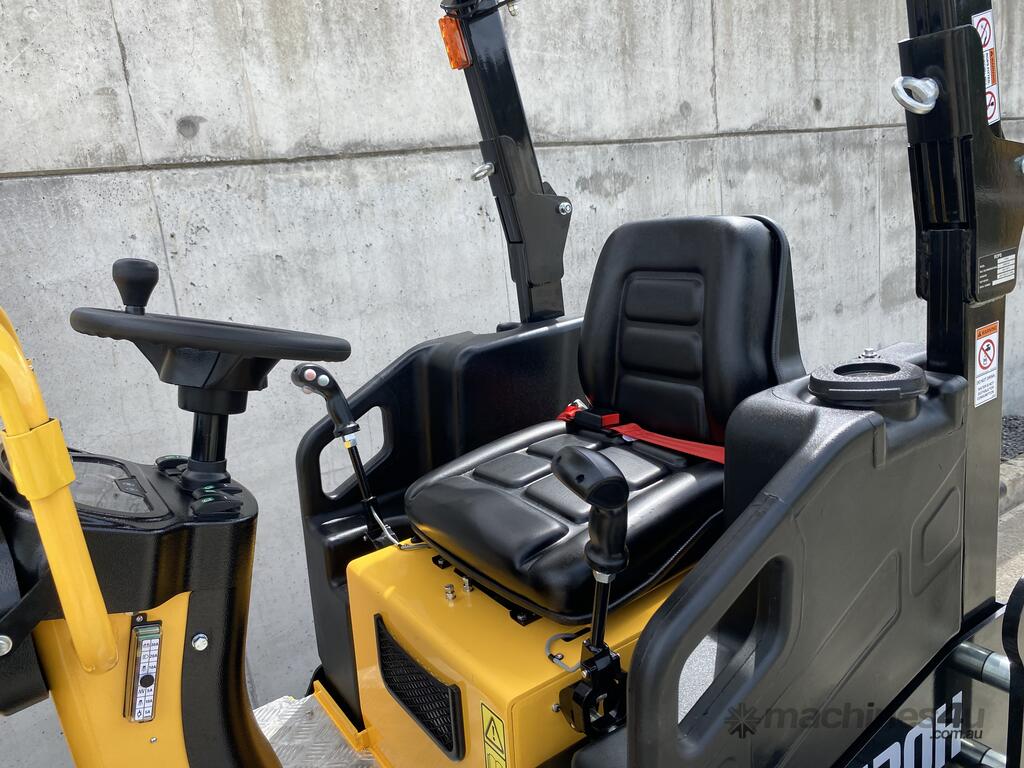

- Ergonomic controls
- Danfoss high flow Hydraulic system
- Poclain drive motors
- Operating weight 2900 - 3200 kg
- L 2495 x W 1310 x H 2440 mm
- Drum width 1200 mm
- Drum diameter 560 mm
- Centrifugal force (Front Drum) 30 kN
- Frequency 65 Hz
- Amplitude (Front) 0.5/ mm
- Static Linear Load (front) 125 N/cm
- Travel speed Forward 12 km/h
- Travel speed Reverse 12 km/h
- Gradeability Vibration 32 %
- Gradeability Maximum 42 %
- Turning radius Inside 1850 mm
Please contact GCM for all your sales enquiries for Multipac Compaction equipment We supply, deliver and Service Australia Wide.
