4-10 ton (50mm pin) 650mm GP Digging & Trenching Bucket Excavator

Name: 4-10 ton 50mm pin 650mm GP Digging Trenching Bucket Excavator
SKU: 919AL22072727
Price: 709 AUD
Availability: InStock

PULLENVALE, QLD

$709 AUD($780 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

Used

Category:

Excavator Bucket

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 177

Bucket Type:

GP Digging Bucket

Bucket Width (mm):

650 Wide Bucket

Hitch/3PL Pin size(mm):

Sellers stock ID:

919AL22072727

Description

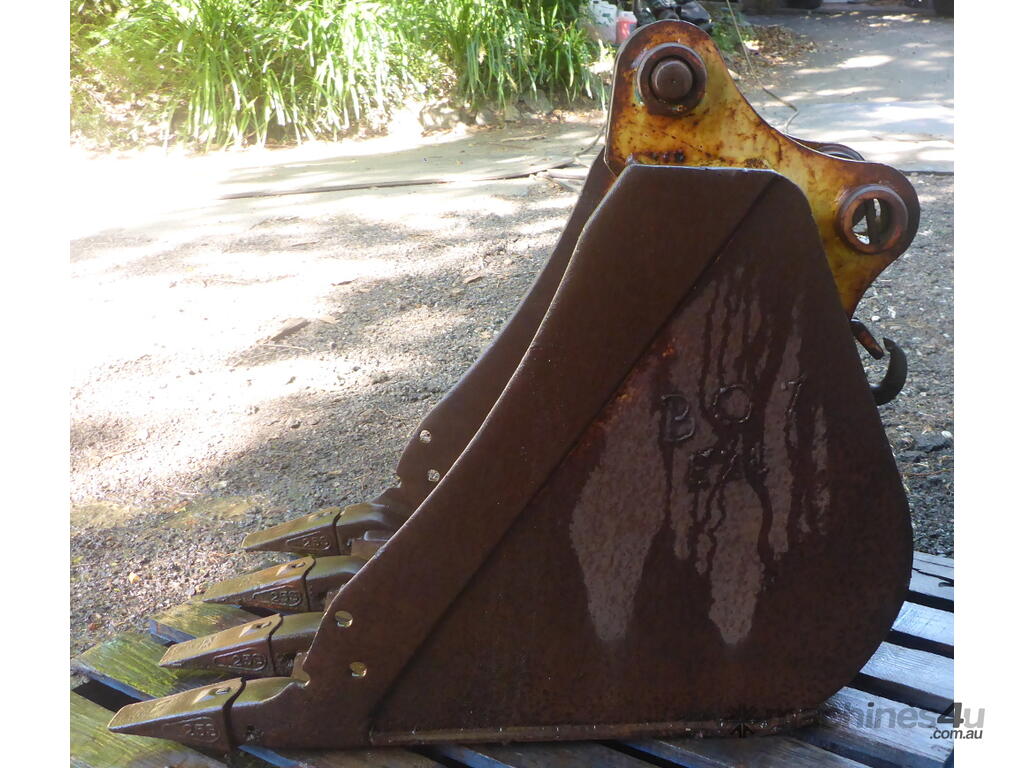

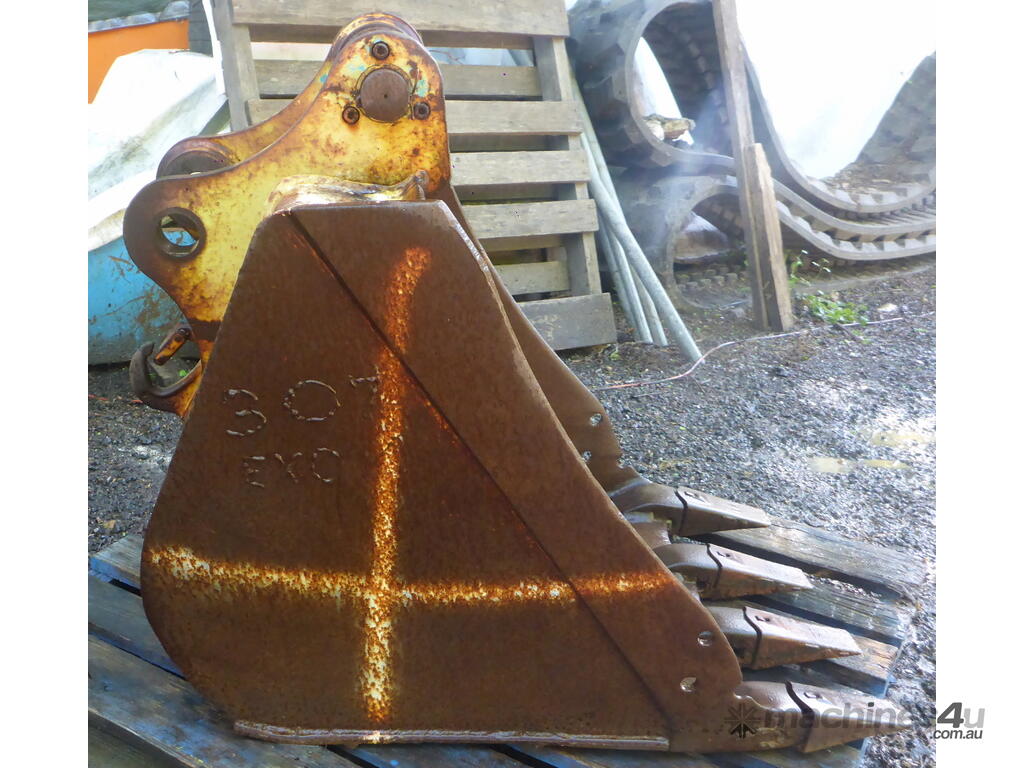

Used 650mm Excavator GP Digging & Trenching Bucket suit 4-10 Ton machine.

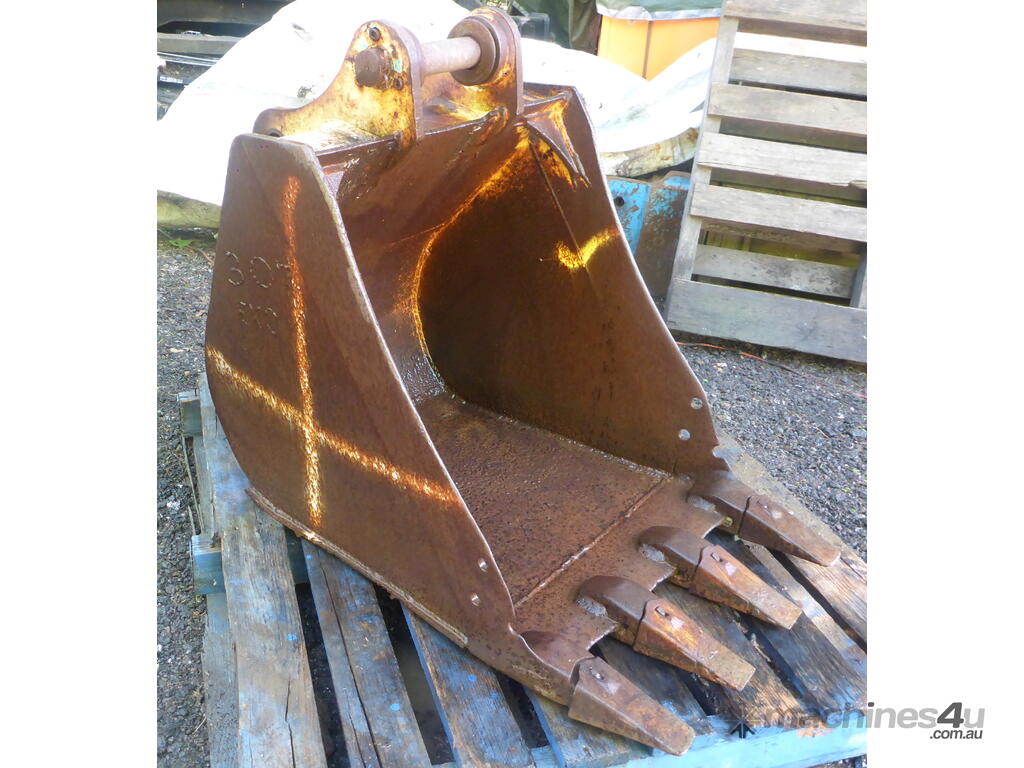

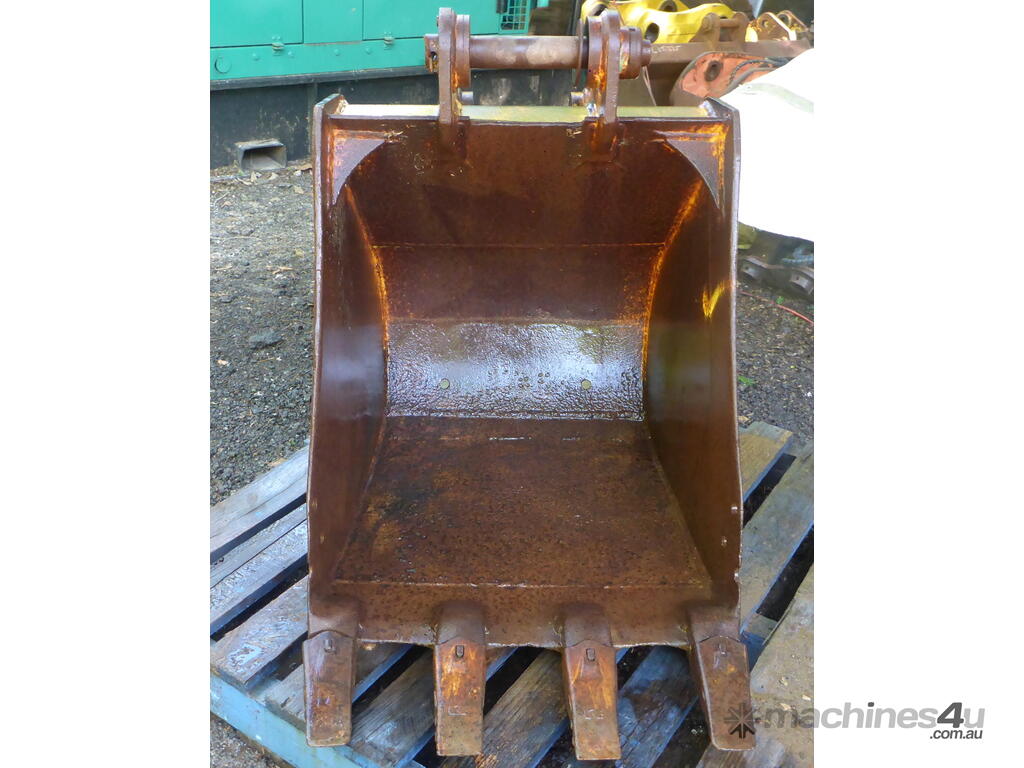

Condition is used but there is still plenty of life left. This is a good solid bucket with 4 almost new Teeth fitted.

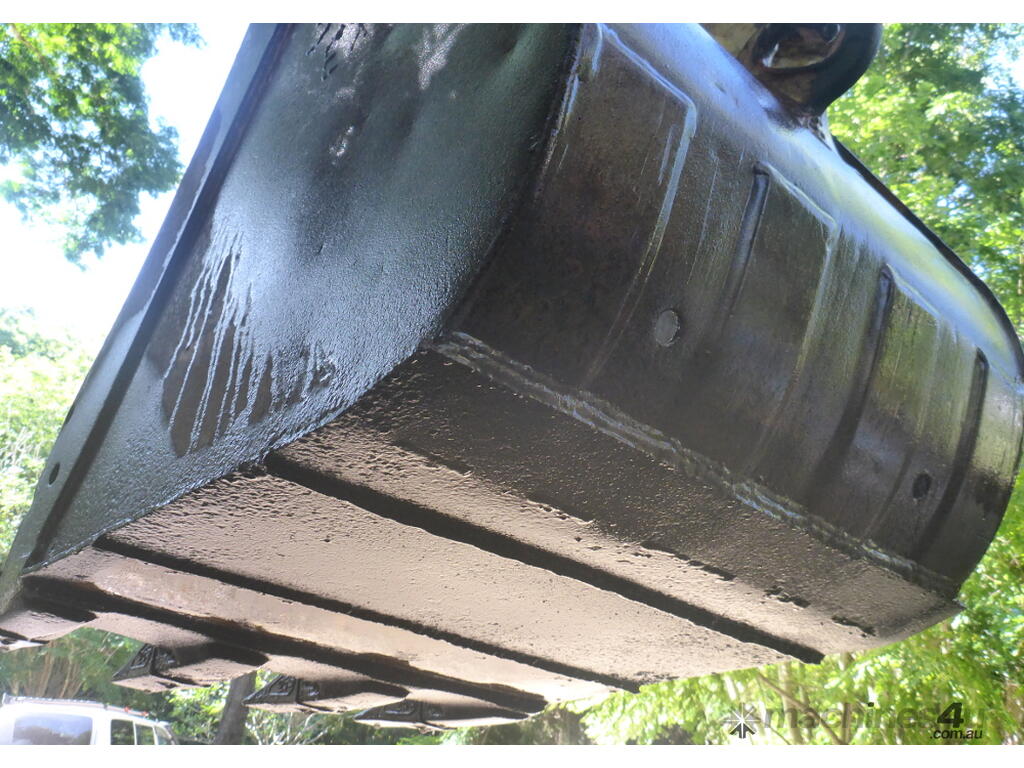

Has tapered sides so mud slides out easy and minimises ground resistance. There is also extra wear strips welded underneath for durability (see pic# 10).

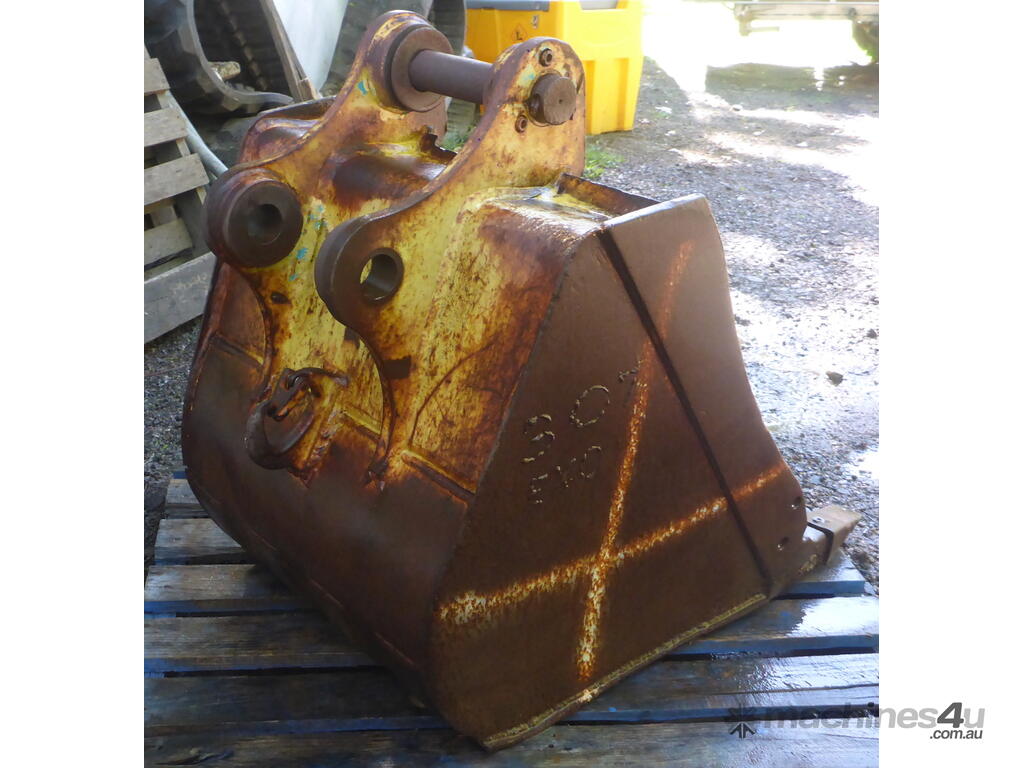

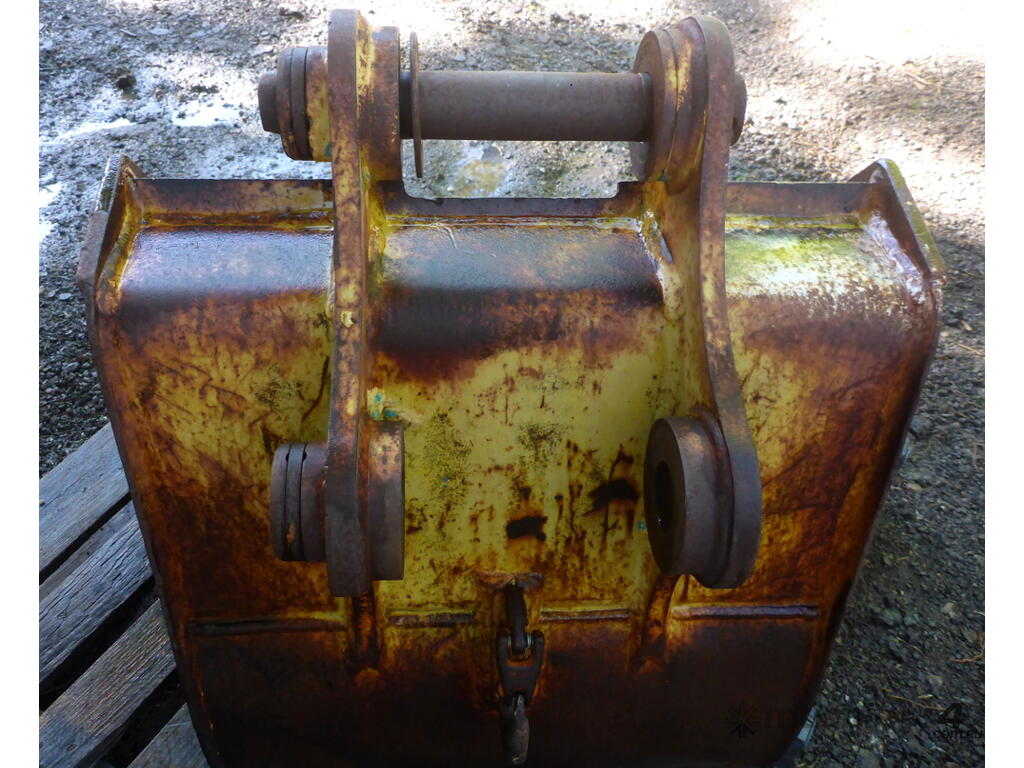

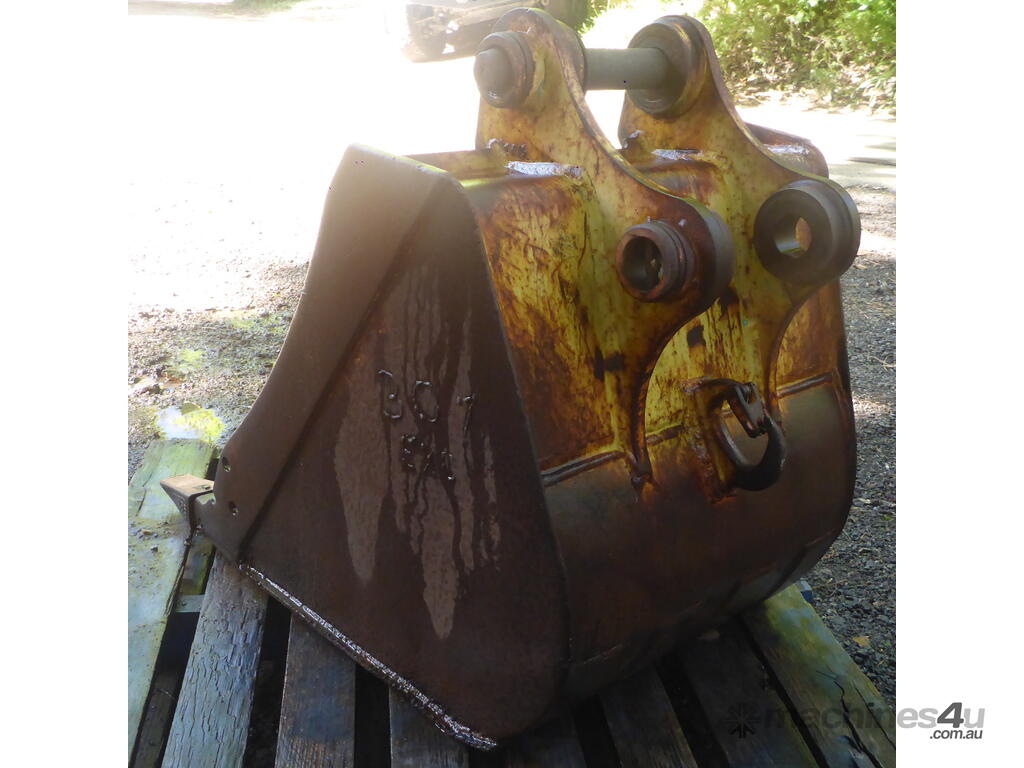

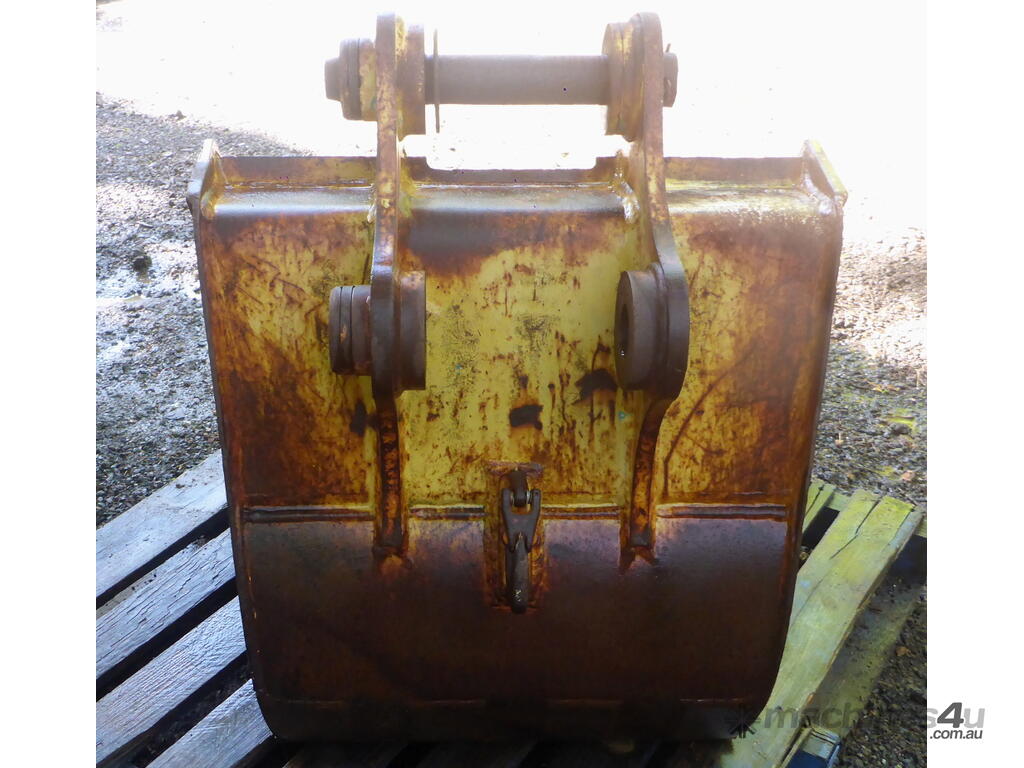

There is also a lifting hook with safety latch fitted on the rear (see pics# 4-9).

Current Headstock configuration:
50mm Pin Diameter, 290mm Center to Center, 182mm Between the inside Ear Bosses (which can be shaved back up to 236mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
The inside Ear Bosses that the 50mm pins go into are also very thick (110mm diameter) so they could easily be bored out to take pins up to 70mm.

Should fit: Bobcat zx125, Ingersoll-Rand ZX125, Kobelco 70SR, Kobelco SK 60, Kobelco SK 70SR, Kobelco SK 70SR-1E, Kobelco SK 75UR, Kobelco SK 80MSR, Komatsu WB146-5, Komatsu PS-5, Takeuchi TB 70, Takeuchi TB 70FR, Takeuchi TB 80FR, Takeuchi TB 175.

Maybe fit: Ackerman H3, Bobcat 442, Bobcat X442, Case 9007, Case 9007B, Case CX 75SR, Case CX 80SR, Caterpillar 308D, Caterpillar 308e2cr, Hitachi EX 60-5, Hitachi EX 60-5 Import, Hitachi EX 75-5, Hitachi EX 80 Import, Hitachi Zaxis 75US, Hitachi Zaxis 80, JCB JS 70, JCB JZ 70, John Deere 75C, John Deere 80C, Kato 140, Kato 180G, Kobelco 80CS, Komatsu PC 60, Komatsu PC 60-5, Komatsu PC 60-6, Komatsu PC 60-7, Komatsu PC 70FR, Komatsu PC 75UU, Komatsu PC 75UU-1, Komatsu PC 75UU-2, Komatsu PC 75UU-3, Komatsu PC 78MR-6, Komatsu PC 80-1, Komatsu PC 80-2, Komatsu PC 80-3, Komatsu PC 90-1, Komatsu PC 95R-2, Komatsu SV100, Link-Belt 75SA (Mono & Offset), Link-Belt 80SA, Link-Belt 1600 QUANTUM, New Holland EH 70, New Holland EH 80 CS, Sany SY 75C, Schaeff HR31, Schaeff HR32, Sumitomo LS 1600F2U, Sumitomo SH 60, Sumitomo SH 60-2, Sumitomo SH 60DX-2, Sumitomo SH 60SP, Sumitomo SH 60SR, Sumitomo SH 60X-2, Sumitomo SH 75U, Sumitomo SH 75U-2, Sumitomo SH 75UU, Sumitomo SH 75X-2, Sumitomo SH 75X-3, Sunward SWE 75, Terex HR32, Yanmar B 7, Yanmar B 7 SIGMA, Yanmar VIO70, Yanmar VIO75 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Shipping dimensions: 660mm Wide, 1030mm Deep, 860mm High.
Weight: 172kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
