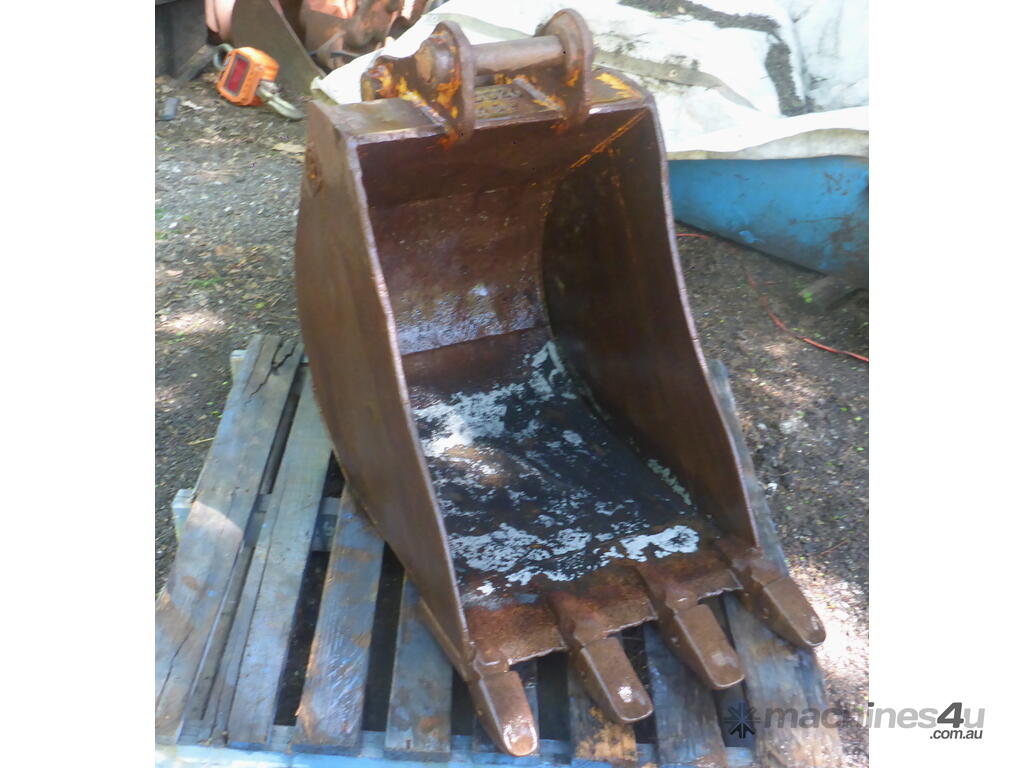

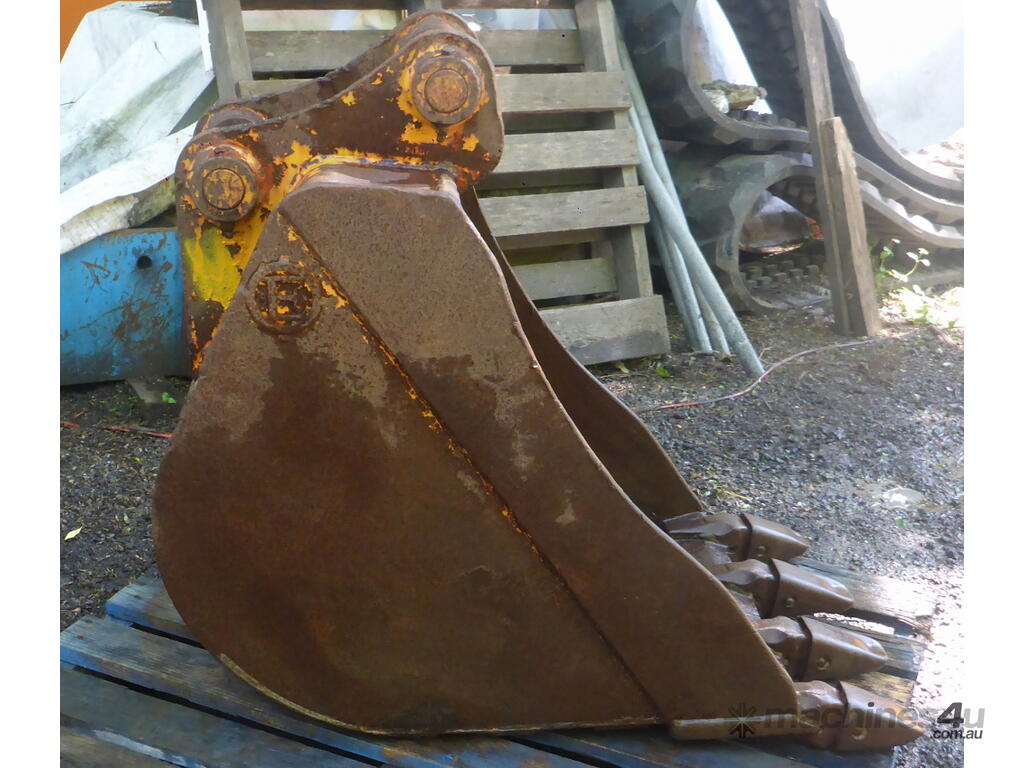

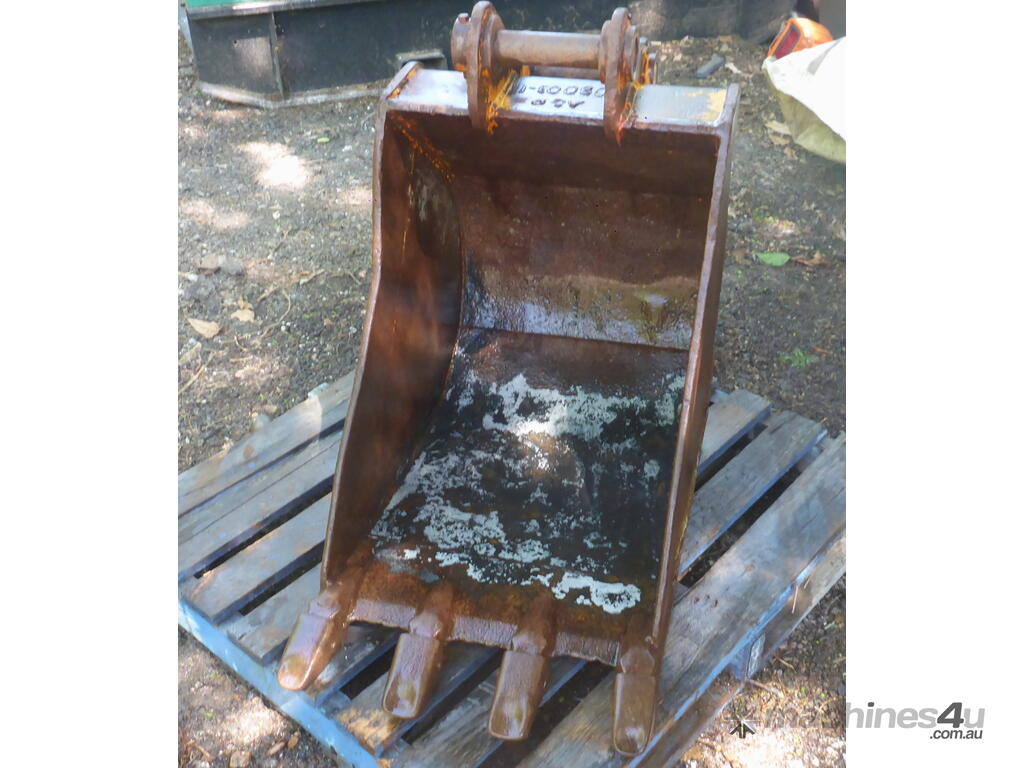

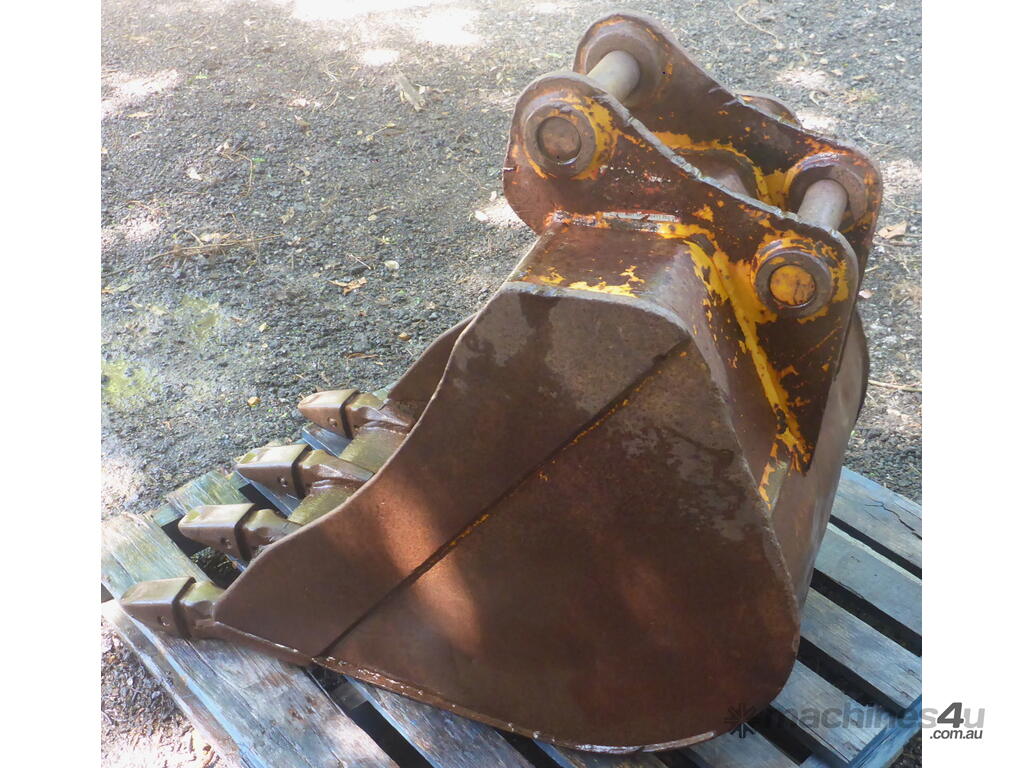

Used 600mm Excavator GP Digging & Trenching Bucket suit 4-9 Ton machines.

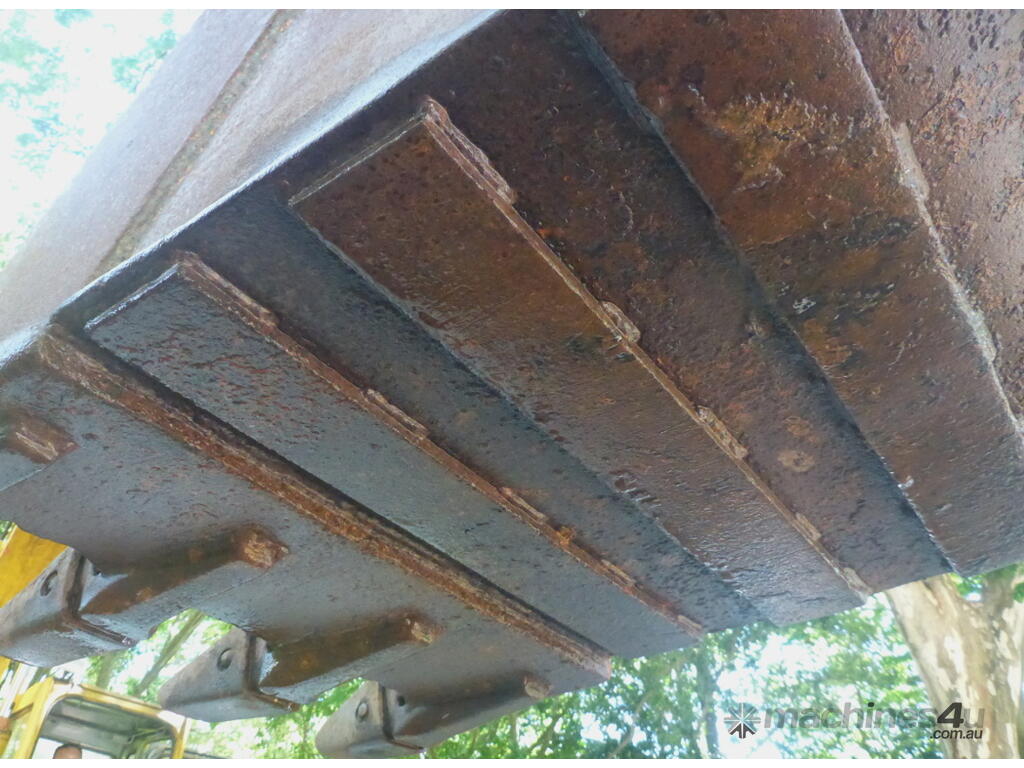

Condition is used but there is still plenty of life left. Fitted with 4 Teeth. There is also extra wear strips welded underneath for durability (see pic# 10).

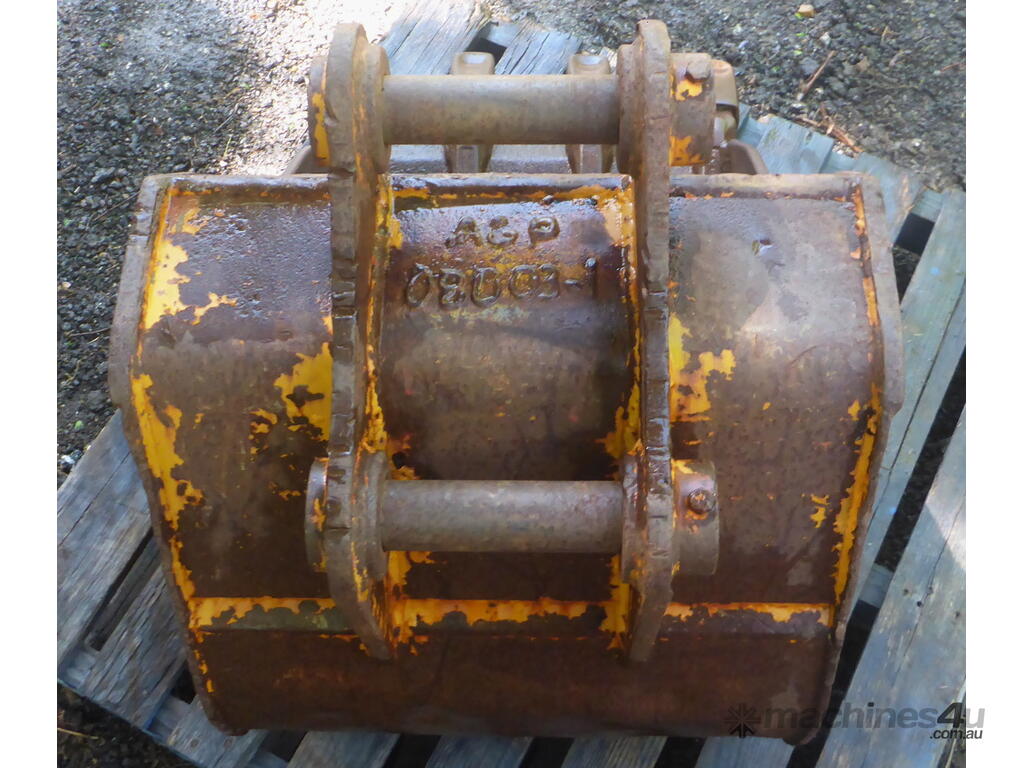

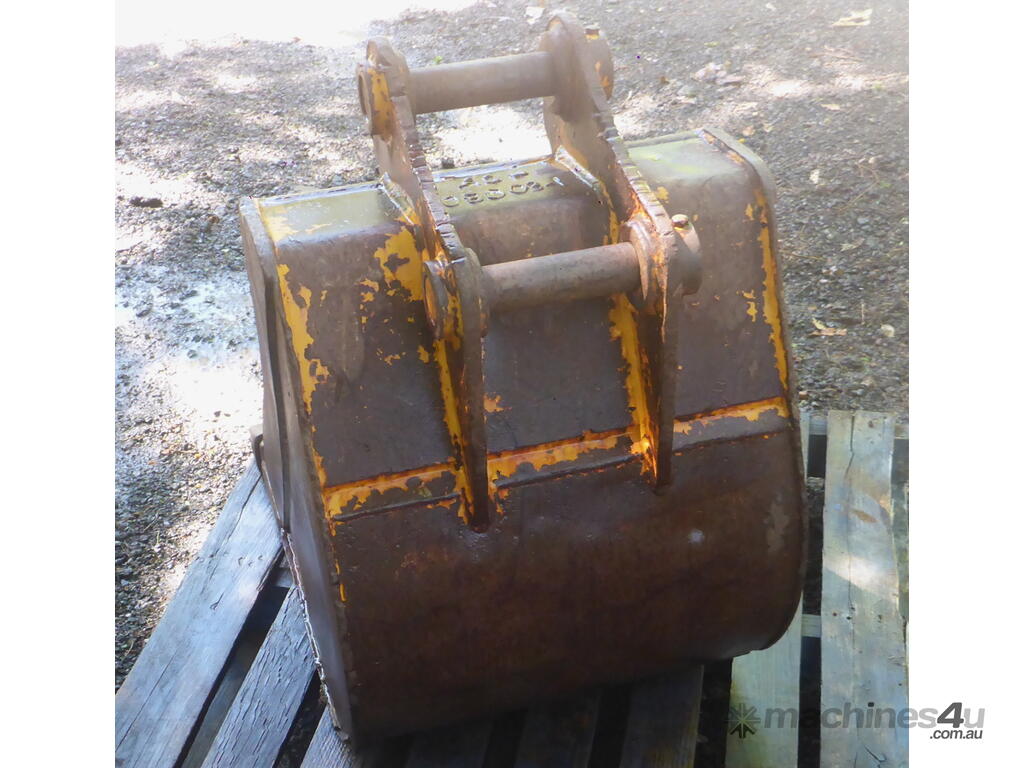

Current Headstock configuration:
50mm Pin Diameter, 290mm Center to Center, 198mm Between the Ear Plates (167mm Between the Ear Bosses which can be shaved back up to 198mm if you need more inside width for your hitch or dipper arm to fit in).
Should fit: Kobelco 70SR, Kobelco 80CS, Kobelco SK 60, Kobelco SK 70SR, Kobelco SK 70SR-1E, Kobelco SK 75UR, Kobelco SK 80MSR, Komatsu WB146-5 / PS-5, Takeuchi TB 70, Takeuchi TB 70FR, Takeuchi TB 80FR, Takeuchi TB 175.
Maybe fit: Bobcat 442, Bobcat X442, Case 9007, Case 9007B, Case CX 75SR, Case CX 80SR, JCB JS 70, JCB JZ 70, Kato 140, Kato 180G, Link-Belt 75SA (Mono & Offset), Link-Belt 80SA, Link-Belt 1600 QUANTUM, New Holland EH 70, New Holland EH 80 CS, Schaeff HR31, Schaeff HR32, Sumitomo LS 1600F2U, Sumitomo SH 60, Sumitomo SH 60, Sumitomo SH 60-2, Sumitomo SH 60DX-2, Sumitomo SH 60SP, Sumitomo SH 60SR, Sumitomo SH 60X-2, Sumitomo SH 75U, Sumitomo SH75U, Sumitomo SH 75U-2, Sumitomo SH 75UU, Sumitomo SH 75X-2, Sumitomo SH 75X-3, Sunward SWE 75, Terex HR32 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
Shipping dimensions: 600mm Wide, 1030mm Deep, 890mm High.
Weight: 196kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
