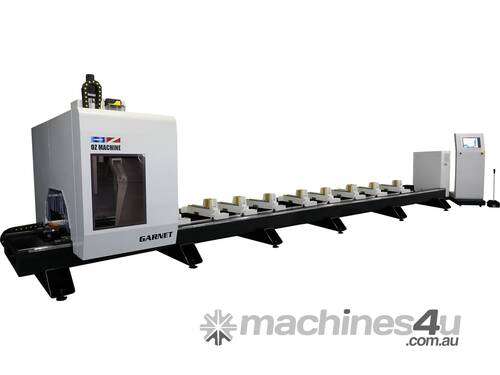

4 Axis machining centre , 8000mm work length. All in one high processing vcapacity

Full 4 axis capabilities with 8000mm in X , 580mm in Y and 330mm in Z capacities.
A xis processing angles -90 to + 90 degrees.
Positioning speed in x 84m/min/ 75m/min in Y 40m/min in Z
See attached brochure for technical details.

Used for performing milling, drain channel opening, drilling, marking and milling processes

on aluminium and PVC profiles.

Non-standard specific operations on different profiles

CNC based control system

Precise process at any angle between -90° and +90°

Automatic tool replacement

Ability to perform processing in two separate zones

Automatic magazine for 10 tools

Automatic clamping positioning

Touchscreen

Remote access

High processing capacity to increase efficiency

Automatic lubrication in processing area

Ability to process light steel profiles
