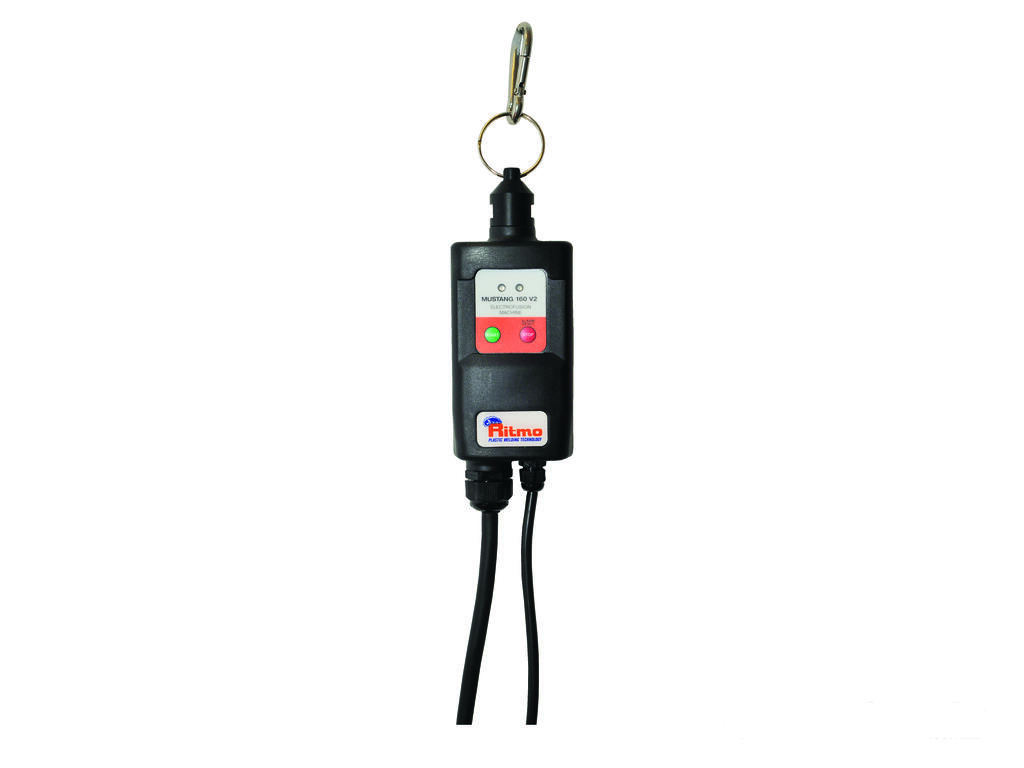

The all new Italian-Made Ritmo Mustang 160 V2 Drainage welding machine is suitable for welding Electrofusion fittings in HDPE from Ø 32 to Ø 160 mm, for low-pressure conduits.
The Mustang 160 V2 automatically detects connection to the fitting to be welded and compensates current supplied according to ambient temperature. It is also capable of detecting any malfunction that could occur before or during welding procedures.
The Mustang 160 V2 is made in compliance with the current safety standards and directives, and the structure is light weight which makes it easy to transport.
Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!
Standard Composition:

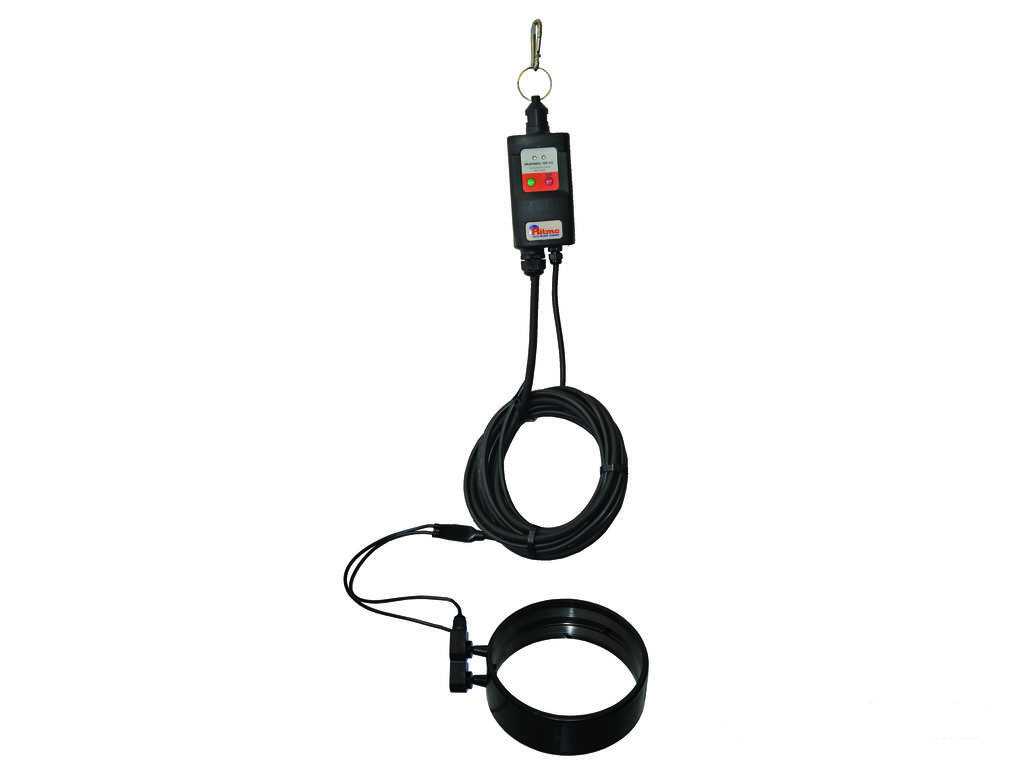

Mustang 160 V2 Welding Machine complete with welding cable with 90° connectors, fixing carabiner, plastic carrying case and manual scraper.
Technical features:
Materials: HDPE - low pressure
Working range: Ø 32 ÷ 160 mm
Power supply: 230 V single phase 50/60 Hz
110 V single phase: 50/60 Hz
Total absorbed power: 1000 W
Output: 5 A
Ambient temperature probe: Electronic
Protection degree: IP 54
Machine Dimensions: 65 x 185 x 46 mm
Carrying Case Dimensions: 400 x 330 x 160 mm
Machine Weight (without accessories): 1 Kg
Machine & Carrying Case Weight: 3.45 Kg
