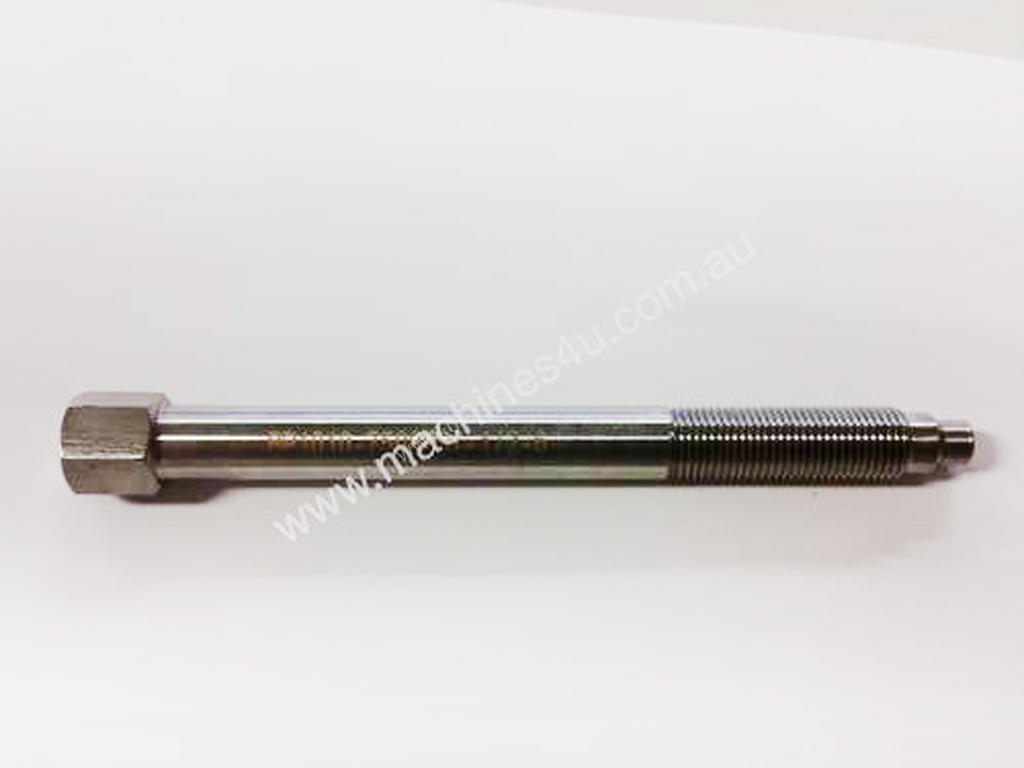

Rupture Plugs for Extrusion Applications
Rupture plugs are designed for reliable emergency relief of excess pressure since they instantaneously rupture at a specific predetermined pressure range. Our model BP rupture plugs are designed specifically for use in plastic extruders. Each assembly consists of a stainless steel body and rupture disk. A rupture plug may be specified for primary relief in applications where pressure buildup can occur so rapidly that the response time of a relief valve is inadequate, such as in a polymerization reaction vessel.
Features:
Burst pressure of 4,000 psig
Length 6`` Stem
Thread 1/2`` UNF 20TPI Standard Rupture Plug
Hex Head for easy installation and removal
Simple, intrinsically safe design
Leak - tight seal
Low installation and maintenance cost
Up to 750 deg F melt temperatures
Accuracy of +/- 5%
