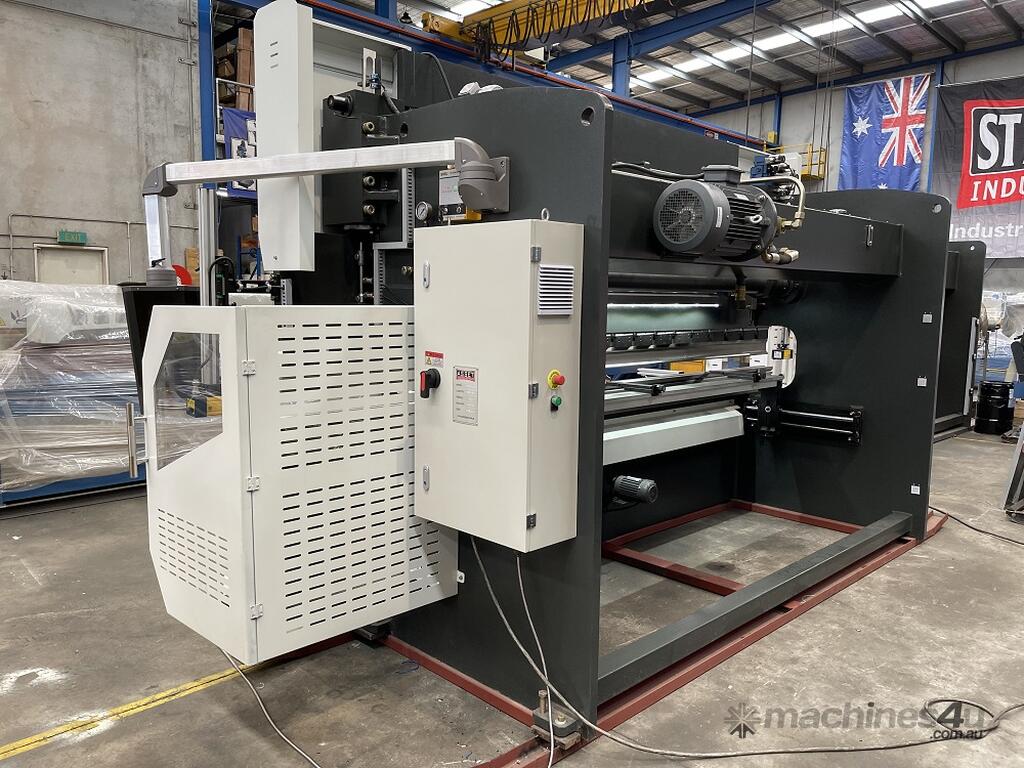

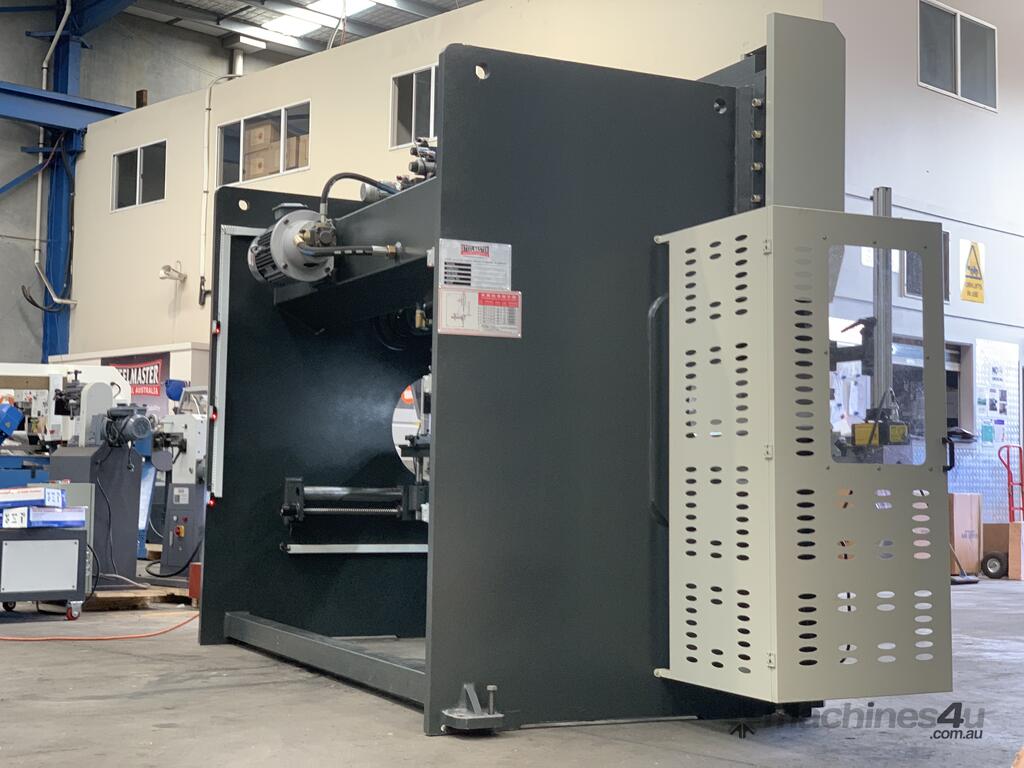

4000mm x 220Ton 2 x Axis NC Hydraulic Pressbrake With Laser Guards & Table Crowning

ASSET INDUSTRIAL 220-4000MB7-NC2. Pressbrake. 4000mm x 220Ton. 2 Axis NC Controller, Table Crowning & Rear Laser Guards Included, Top & Bottom Tooling, 400mm Side Throat, 3100mm Between Frames. V

Our new ASSET Industrial Pressbrake now offers purchases a new machine, with all modern
day features at a price that you would expect to pay for a used machine.
Etsun 2 x axis E21 NC programmable controller is standard. Deep side throats, large frame widths,
this list goes on!
Offering all the features, new machine warranty, at the right price in this challenging market!

Features
?hydraulic synchronized positive stop design, electronically controlled by Estun NC programmable controller assuring accurate repeatability and ease of use.
?deep side throats and wider distances between the vertical frames offering you more application scope.

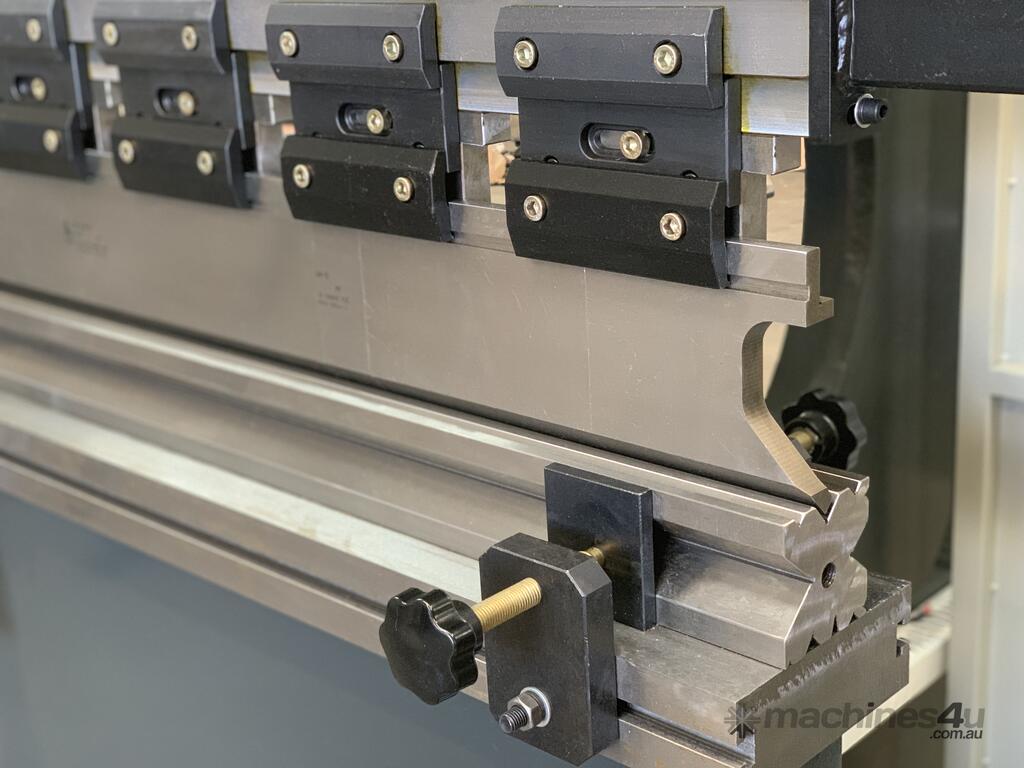

?segmented heavy duty 86° offset top tool, segmented for return bend clearance.

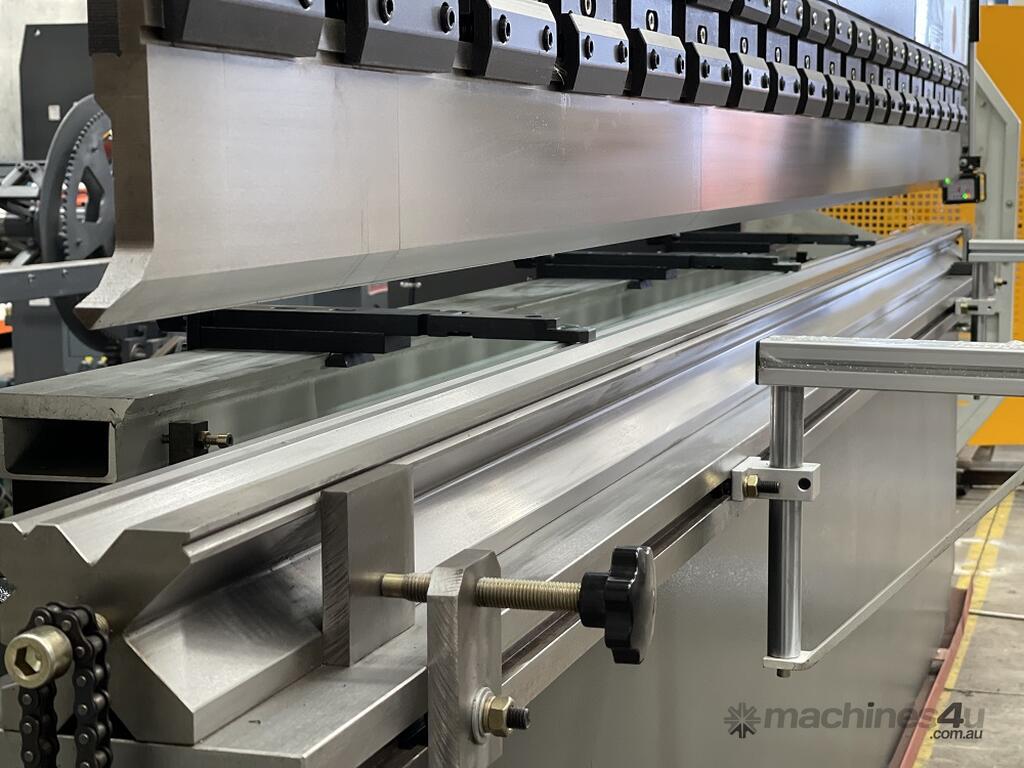

?full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.

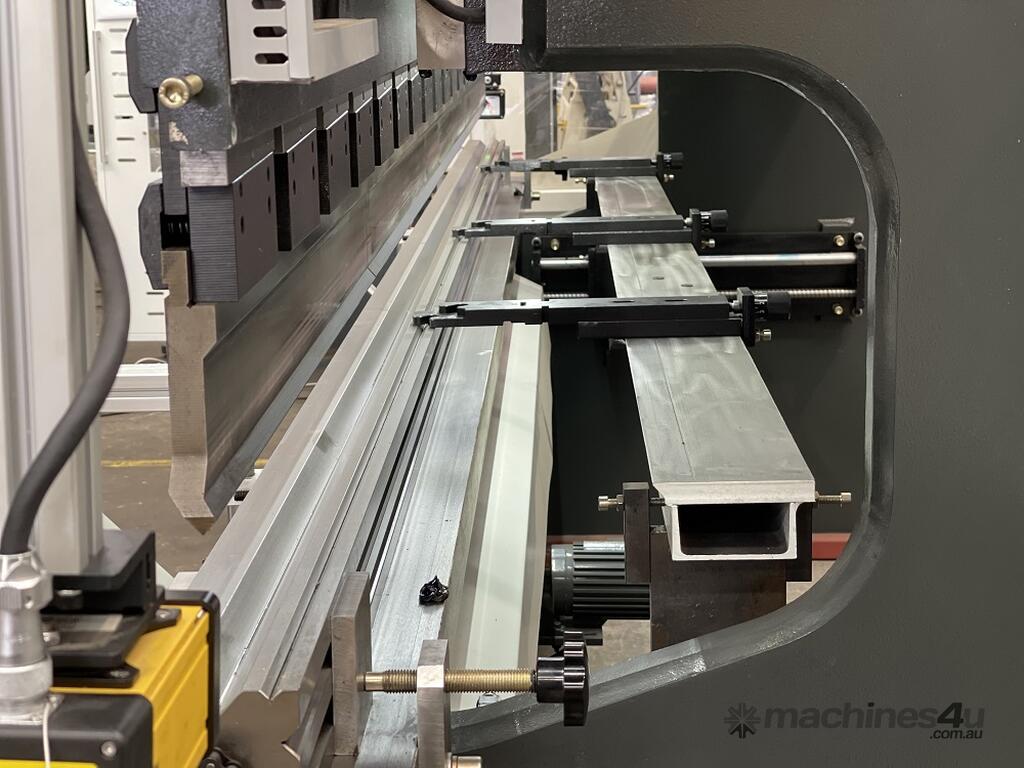

?power operated back gauge with quality support fingers also with vertical adjustment
?front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.

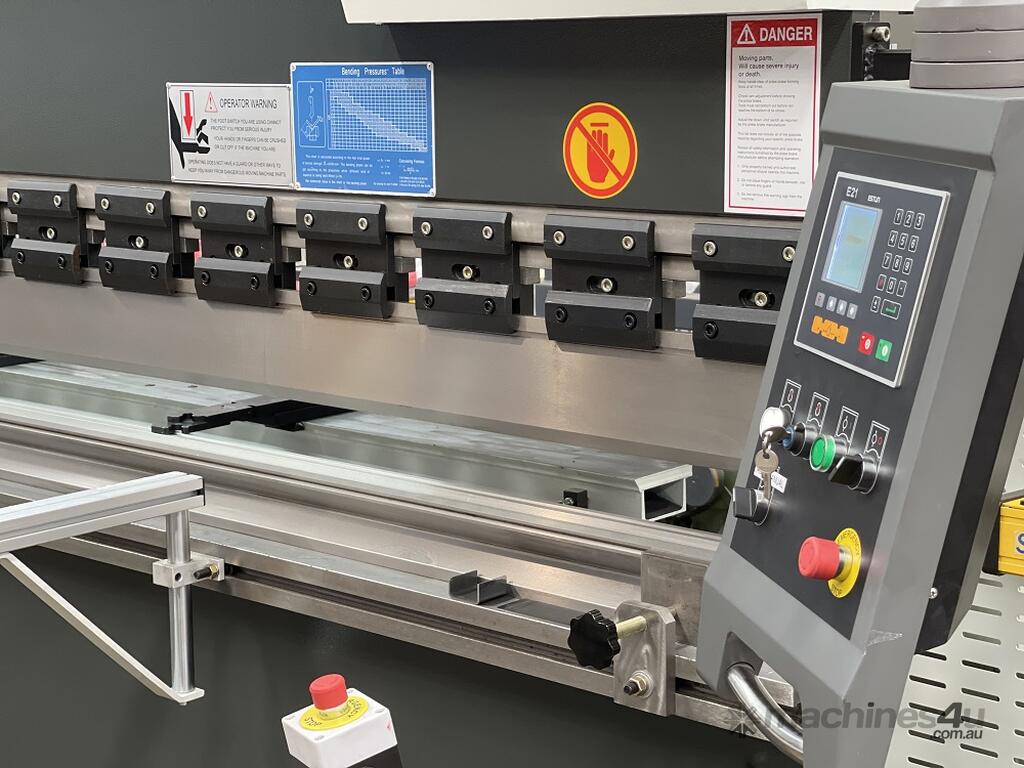

?conveniently mounted control box on pendant for quick swivel and adjustments.
?integrated hydraulic system allowing rapid approach switching automatically to slow bend.
?modern designed pendant foot pedal operation with stainless braided cable.
?variable hydraulic pressure control valving fitted standard
?safety and material selection bending charts mounted on front beam for easy access.
?supplied pre commissioned prior to delivery
?pre commissioned prior to delivery
?CE compliant

Technical Data Snap-Shot
?4000mm bending length
?220 Ton Bending Capacity
?2 x Axis Etsun E21 NC Controller for Depth & Back Gauge

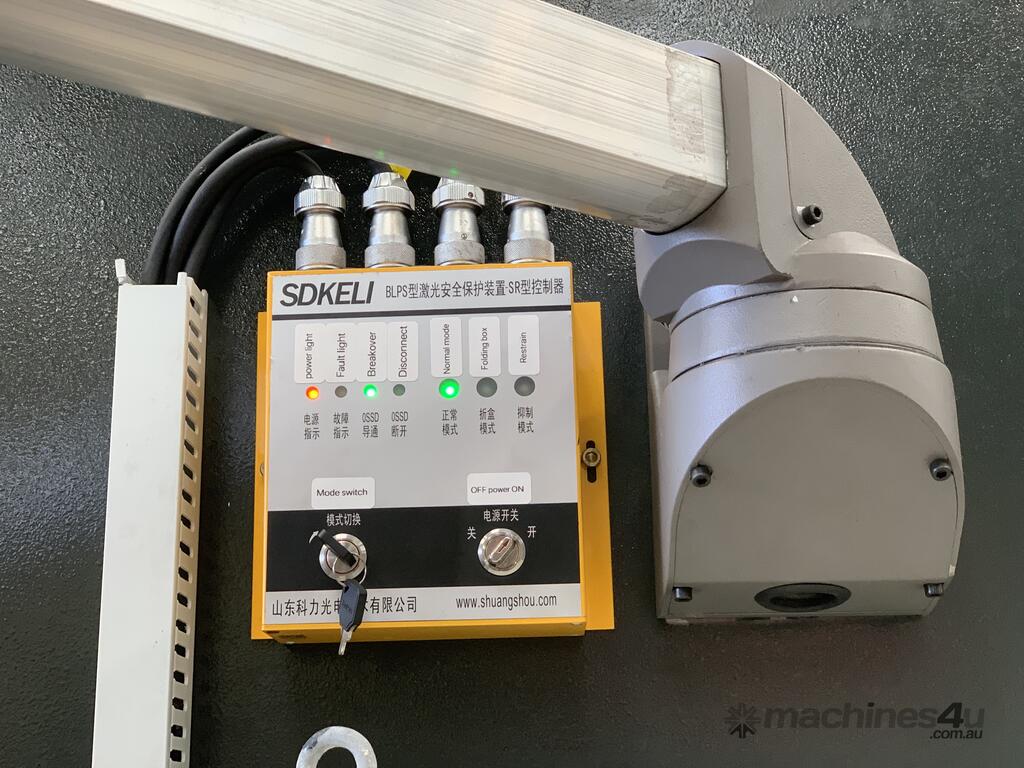

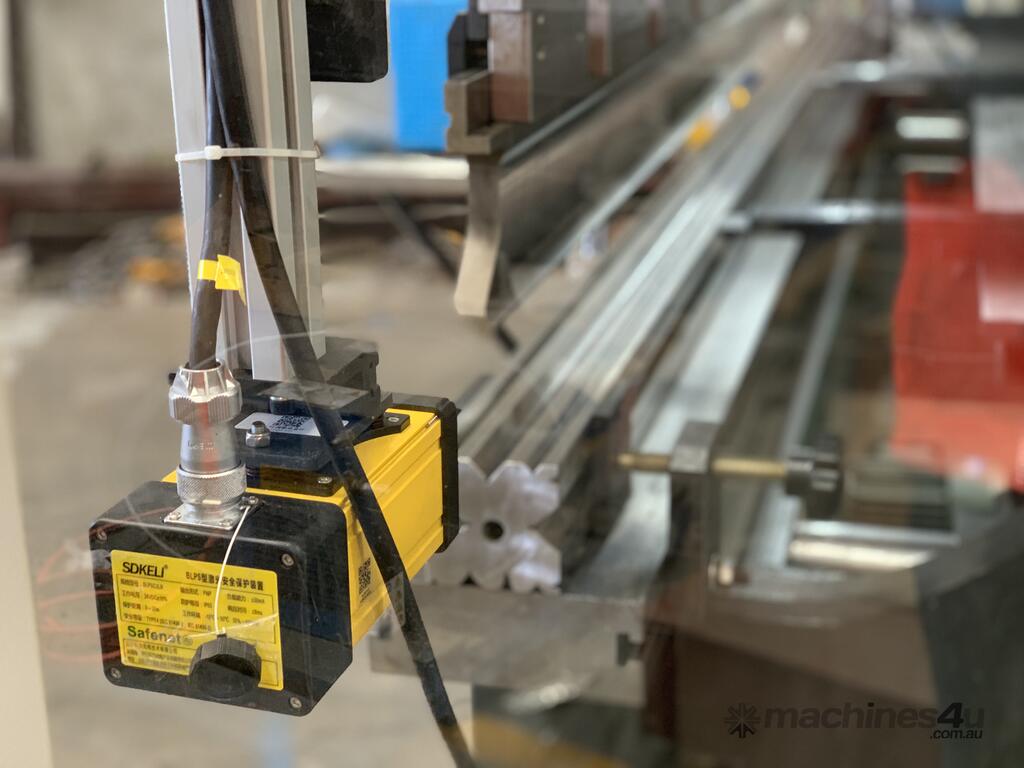

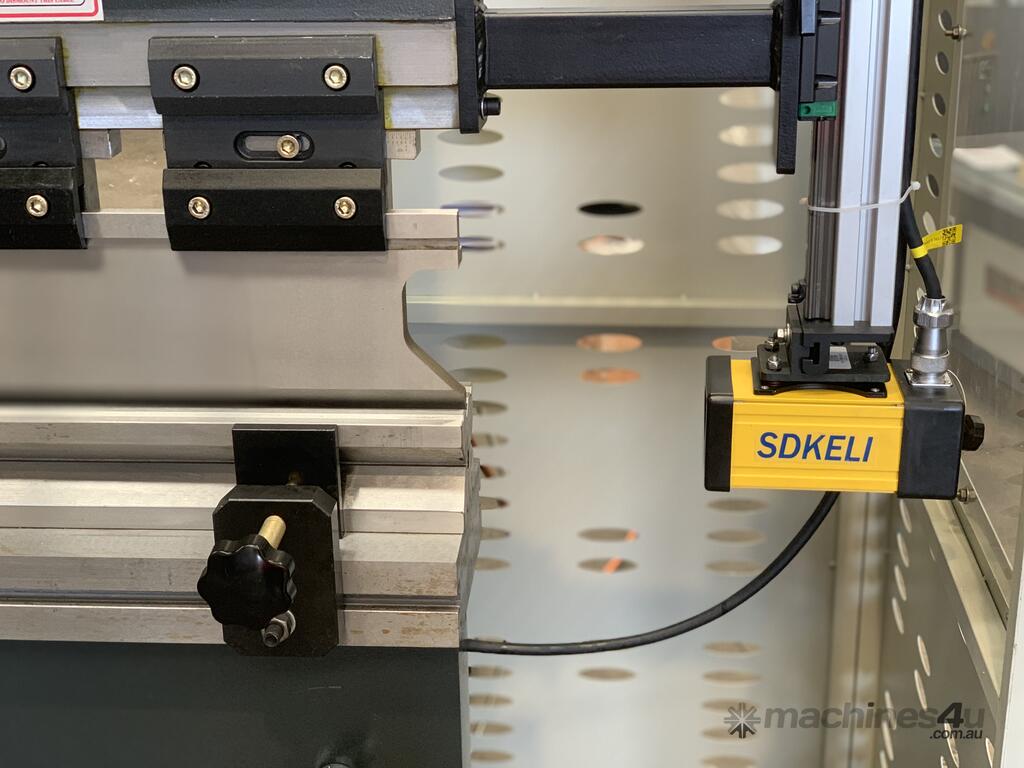

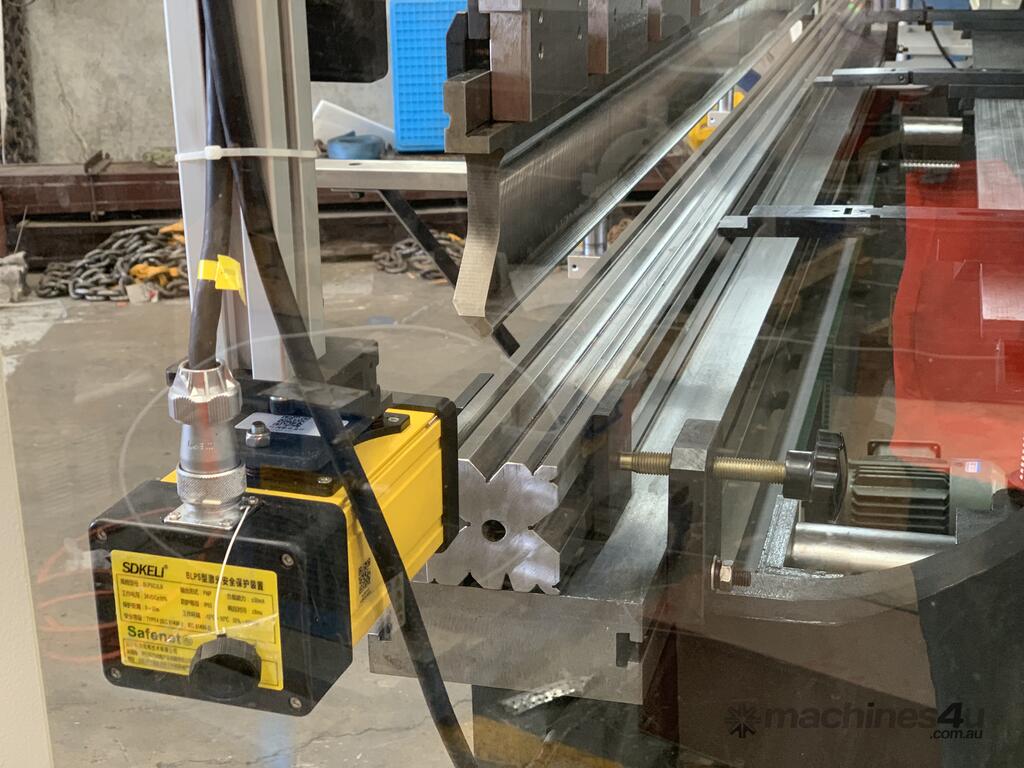

?Front OH&S Laser Guards Included in Offer

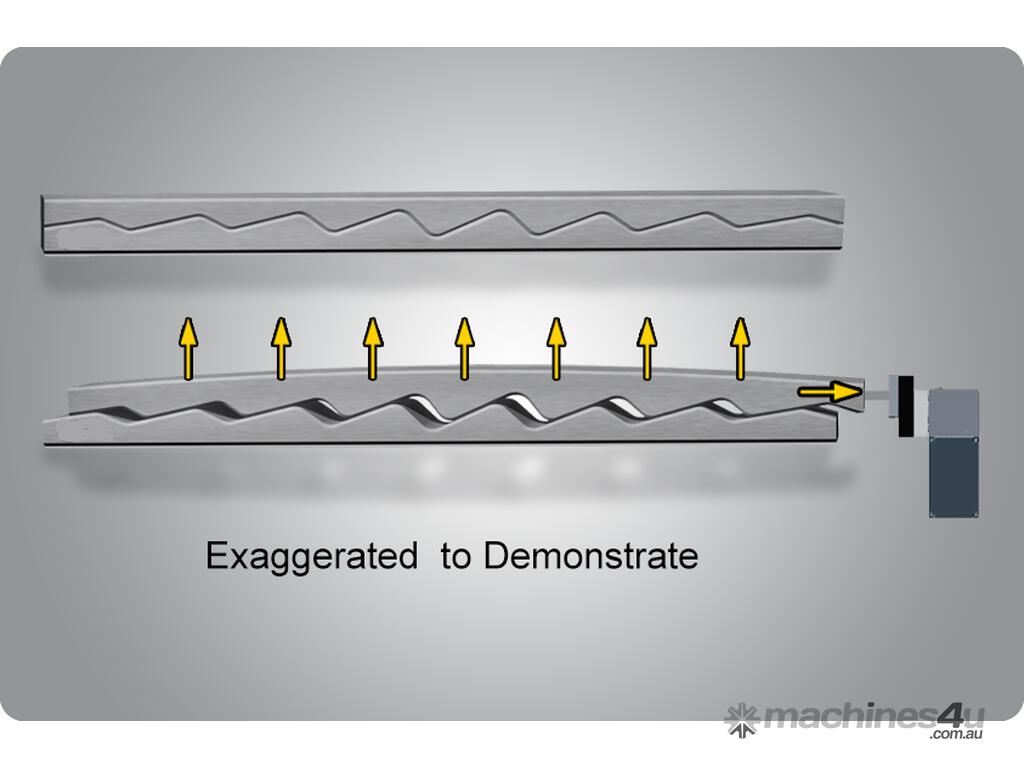

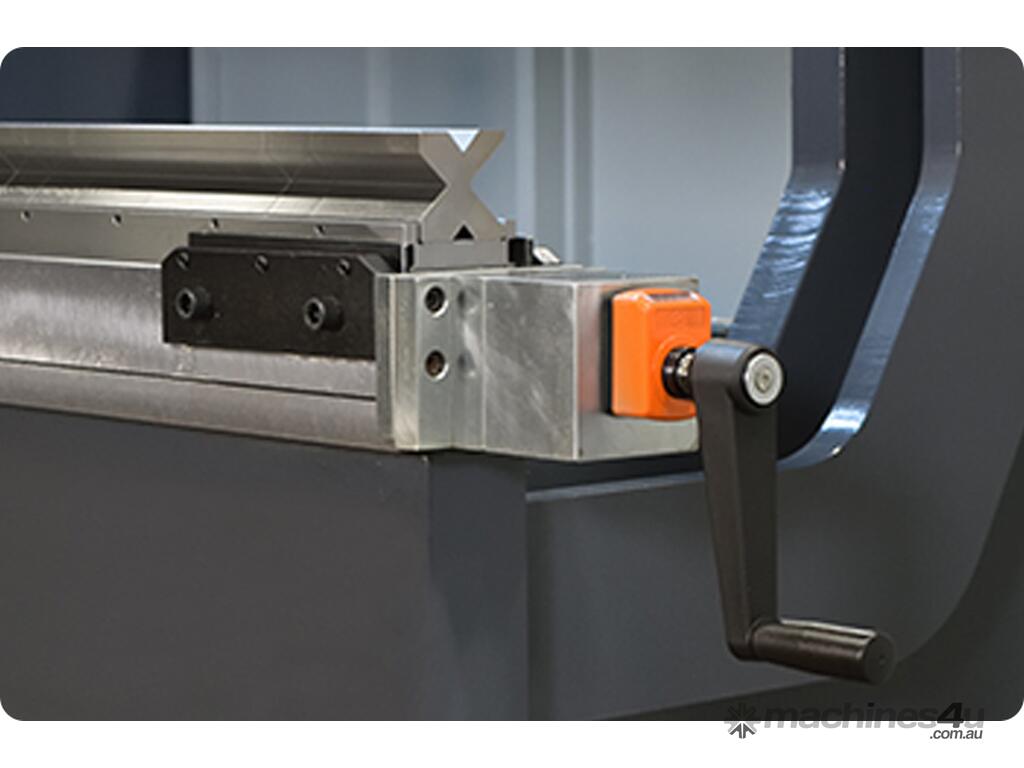

?Hand operated table crowning included

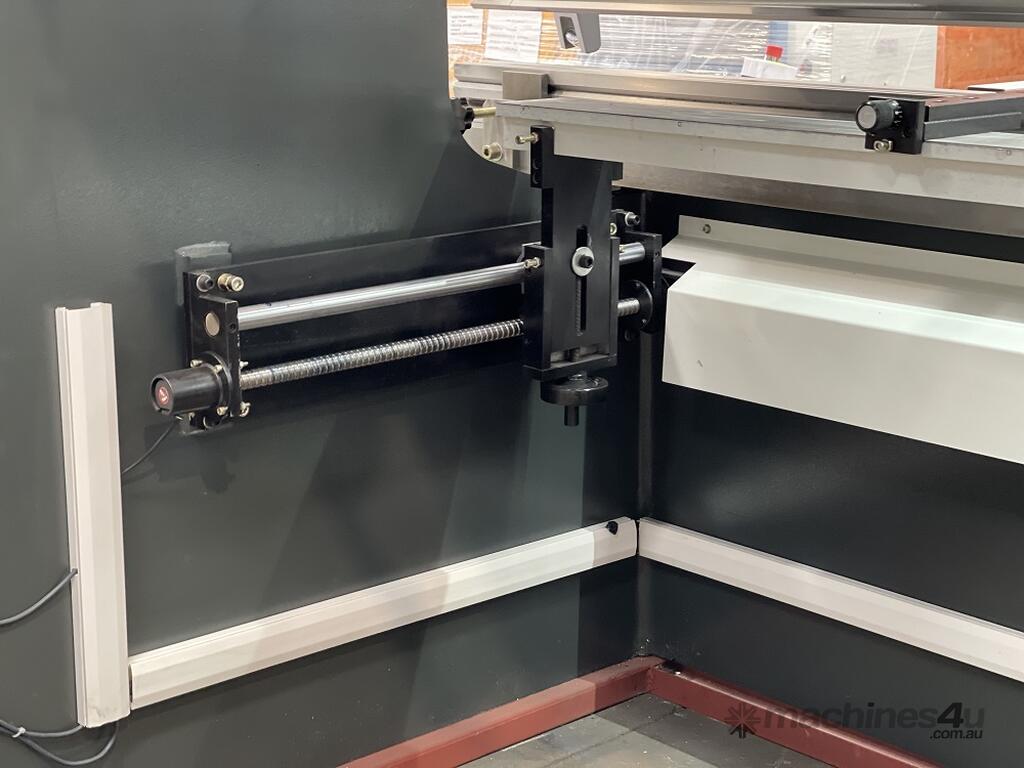

?precision ball screw Back gauge
?tee slotted front beam
?4000mm Bending Length
?3100mm Distance Between Frames
?400mm Side Throat Depth
?200mm Ram Stroke
?470mm Open Height
?600mm Back Gauge Travel

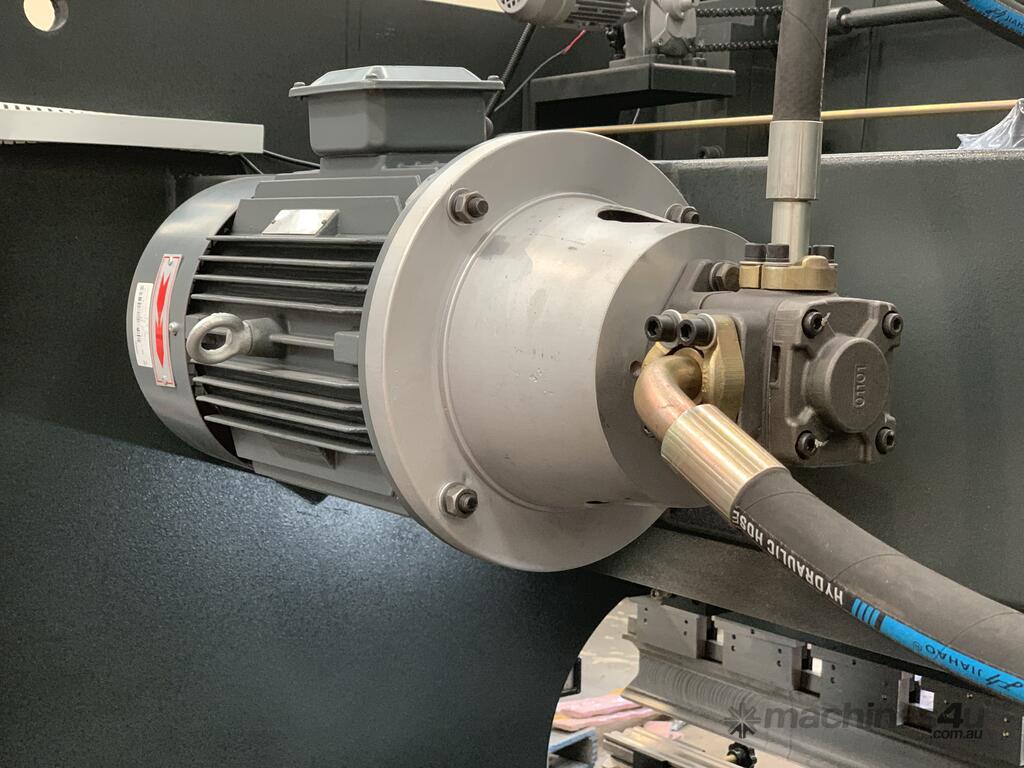

?15Kw / V Motor Power
?4500mm x 2200mm x 2950mm Footprint
?15000Kg Weight

Standard Tooling Supplied
?110mm x 110mm x 4000mm Multi Vee Bottom Vee Block

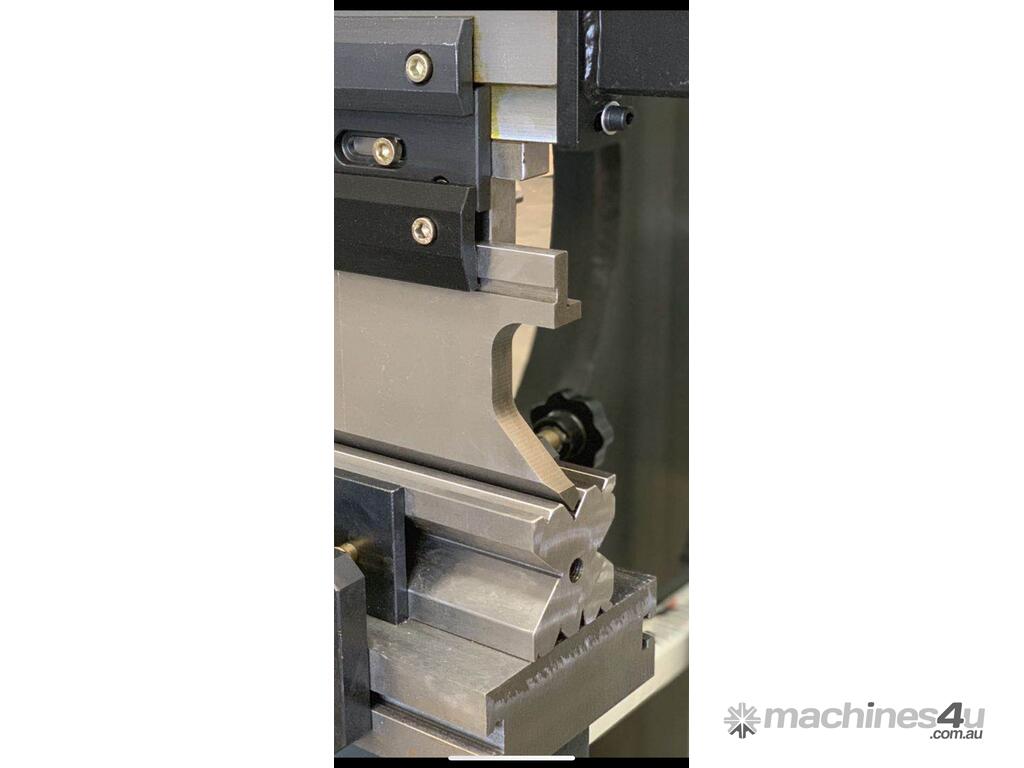

?Segmented Gooseneck Tooling

Optional Items To Be Added
?Front OH&S Laser Guards Included in Offer (Included on This Offer)
?Manual Table Crowning (Included on This Offer)
?Quick Release Tool Clamps

Recommended Add On Accessories
?19#0660 - STEELMASTER Plastic Die Cover Protective Folding Film – Sold Per Meter – Improves Bend Quality Finish
?19+0127 – Pressbrake Bottom Dieblock, Catering Profile 4000mm - Excluding Holder
?19+0240 – STEELMASTER Bottom Single 16mm Vee Tooling - US 20.416/35° V=16 R2,0 L.MM.835
?19+0268 - STEELMASTER Fold & Crush Dutch Tooling - US 300/26° V=12 R2,0 L.MM.500
?19+0114 – Single Edge Knife Top Punch - Pressbrake Tooling – 4000mm Long x 15º Profile – Type 2
?19+0139 – Double Edge Knife Top Punch - Pressbrake Tooling – 4000mm Long x 35º Profile – Type 2
?19+0238 - STEELMASTER US 152/88 Degree, Radius 0.8mm Press Brake Tooling – 835mm Long
?50+0200 - Digital Thickness Gauge - 0mm ~ 15mm
?50+0156 - Dial Protractor With Beveled Blade - Metric Calibrations.
?50+0112 - Digital LCD Vernier Caliper - 150mm Length.
?50+0159 - Digital Micrometers - 0-25mm Range, Dual Reading, Metric & Imperial.


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
