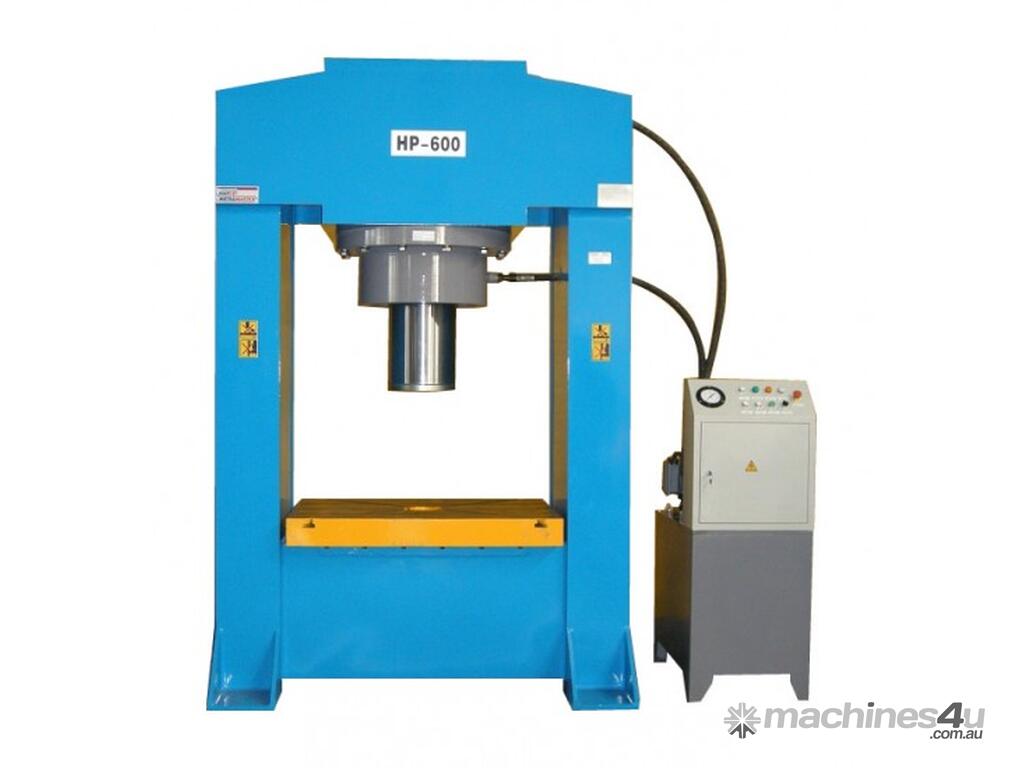

400Ton Heavy Duty Industrial Workshop Press

Description

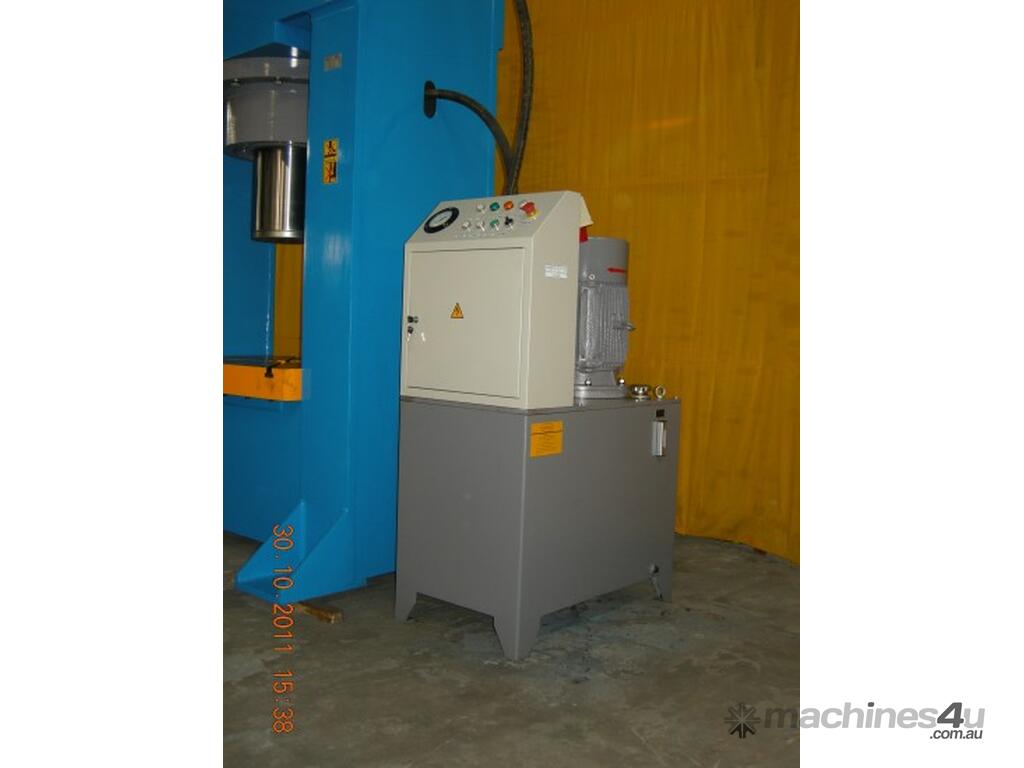

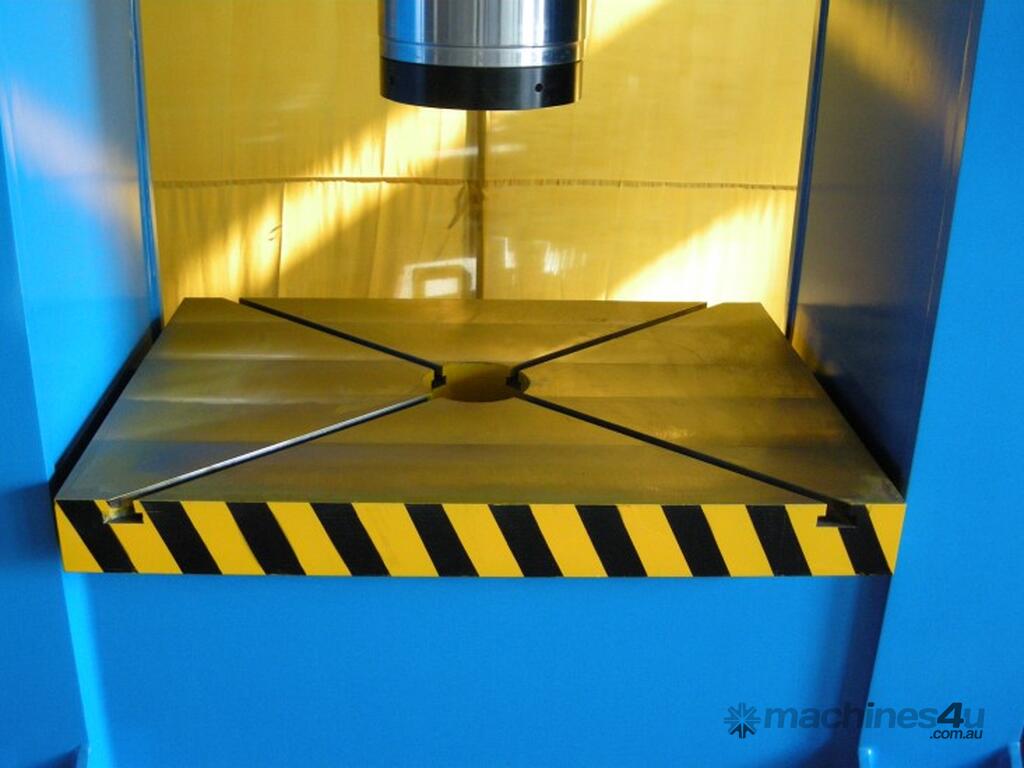

For your toughest shop pressing needs, these Motorized Hydraulic Presses do it all. Simple Pendant control up & down control, built-in pressure gauge provides exact pressure readings. Quick lock power assist table raise and lowering of the bed, which can be adjusted multiple locations along its massive steel frame.

Features
400 ton force
strong hydraulic cylinder ensures uniform and precise pressing during operation
ideal for repair and assembly work
for the repairs of axles, shafts, supports and more
for the removal and press-fit of bearings and bushings
extremely torsion proof steel welded frame

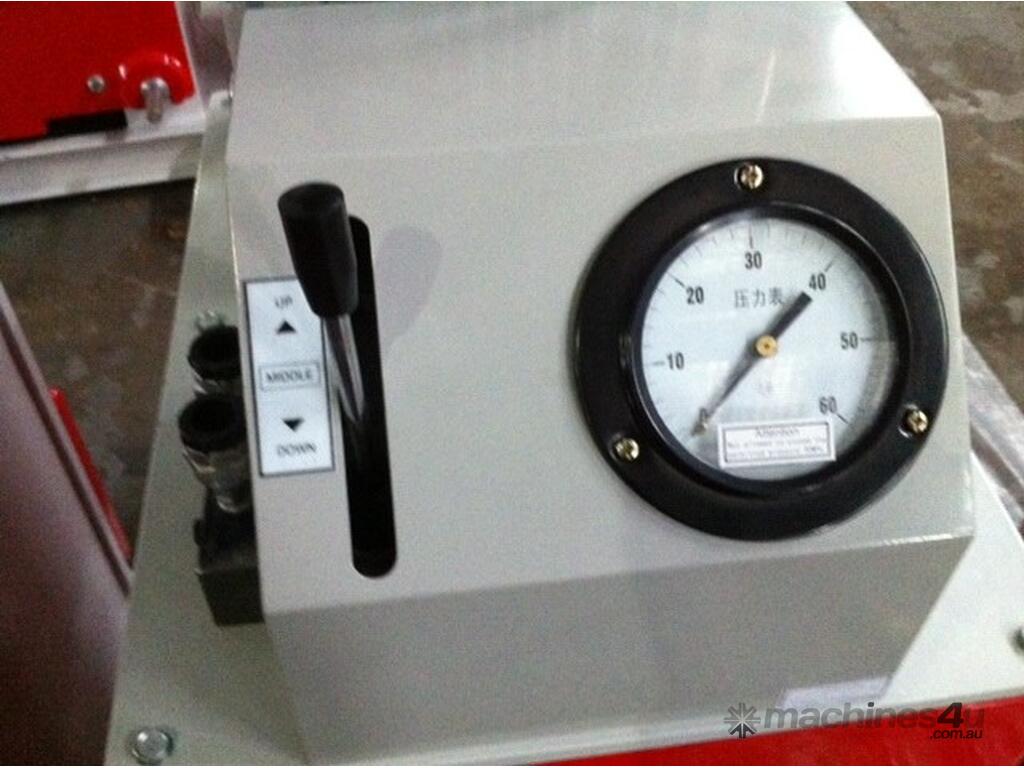

hydraulic pressure gauge fitted
one set vee blocks supplied

TECHNICAL DATA
capacity (ton) 400
working pressure(mpa) 35
stroke of ram (mm) 350
cylinder diameter (mm) 360
working speed (mm/sec) 3.5
distance between frame (mm) 1250
motor power (kw/V) 22.0 /
dimensions (l x w x h) (mm) 2180 x 1500 x 2530
weight (nt) (kg) 4750
Model Number SM-MDY400

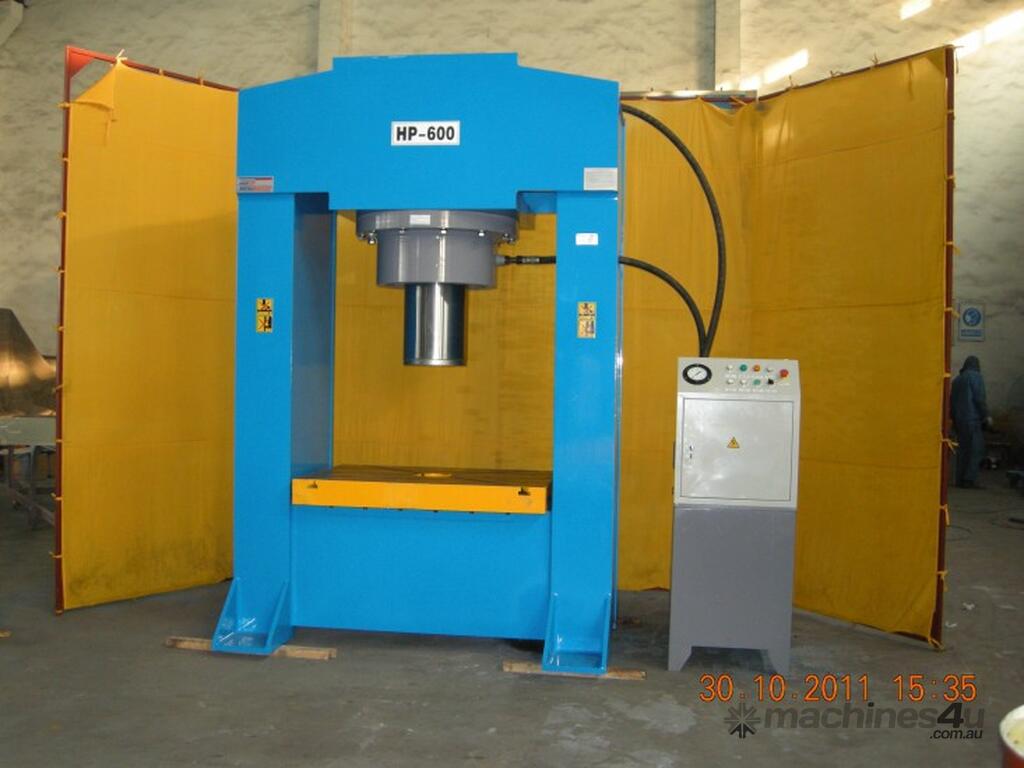

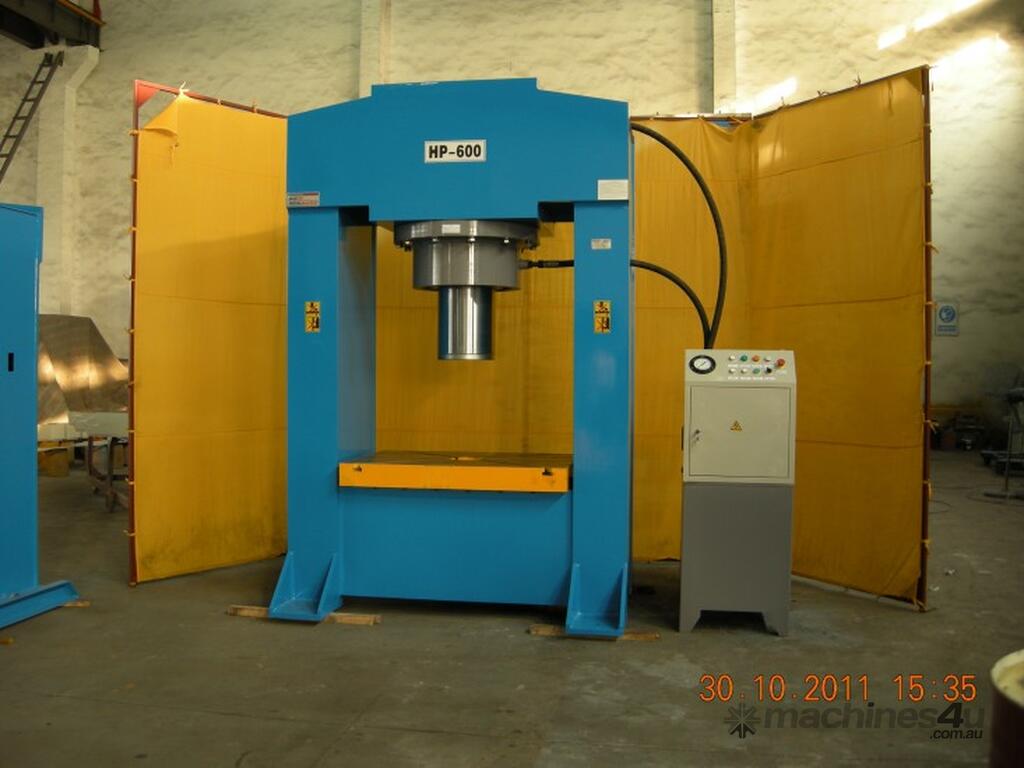

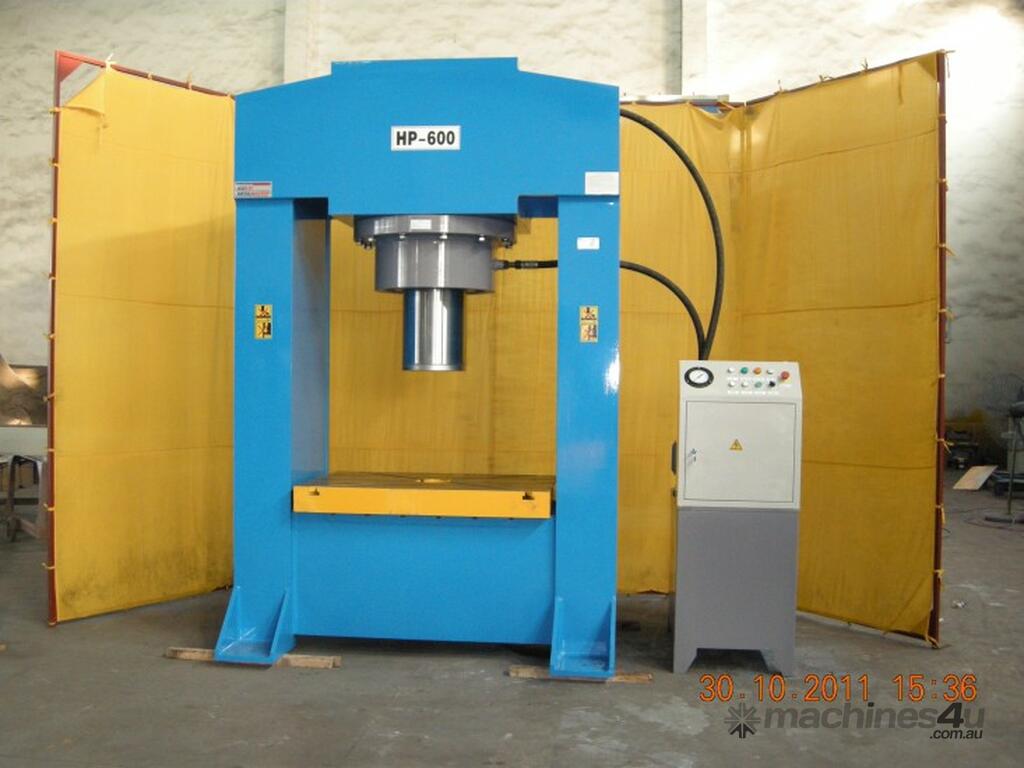

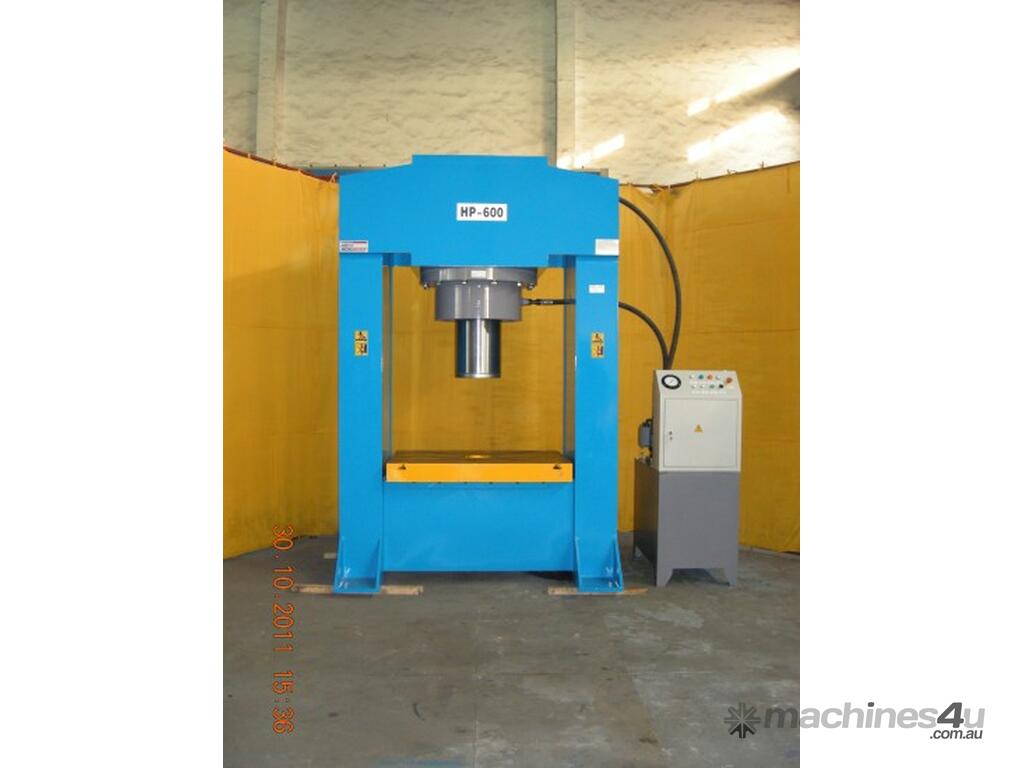

Images Are Sample Only.

Options

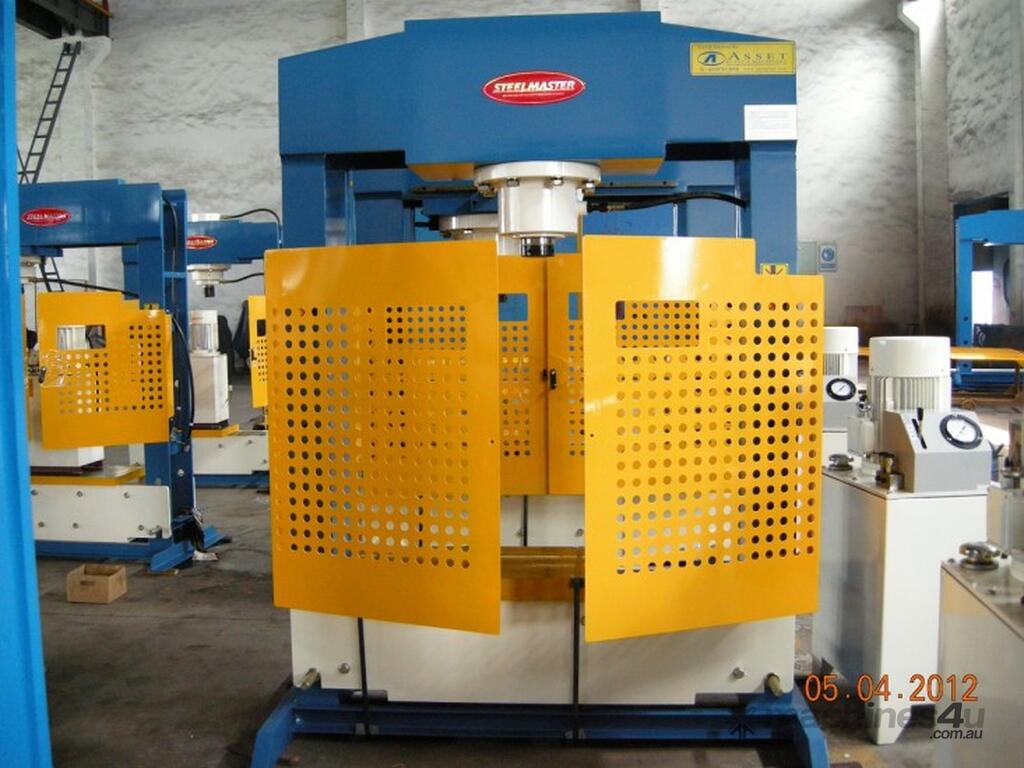

?We also offer OH&S Front Saftey Guards as Pictured To Ensure Safe WorkplacePlease Quote Product Code: 27+0134

#######################################
Machines Can Be Demonstrated Under Power at 118 Logis Blvd Dandenong South, Vic.
Otherwise call Us On And We Can Discuss Your Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
#######################################

STEELMASTER HEAVY DUTY HYDRAULIC WORKSHOP PRESS

We Offer These Steelmaster MDY Series From 30Ton ~ 600Ton.

SLIDING HEAD MODELS NOW ALSO AVAILABLE.

Simple and safe to use. Volt Operation.

Eight Models to choose from:

Steelmaster Hydraulic Workshop Press Machine .
When looking for a quality Hydraulic Workshop Press , look no further than Steelmaster Industrial. Steelmaster Industrial’s Hydraulic Workshop Press offers the Engineer a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 12 models of Hydraulic Workshop Presses in stock at all times for quick shipments. Steelmaster Industrial’s ever growing line of Hydraulic Workshop Presses consists of manual & motorized. Depending on your needs we have the model for you, starting with our cost effective manual machine to our large motorized models. We can also offer customer built models to suit. Call us with your application.

Manually Operated Hydraulic Workshop Press
Our Manually Operated SM-HPG50 Hydraulic Workshop Press gives the best “bang for the buck” of any of the Steelmaster Hydraulic Presses. This model comes standard in a 50Ton capacity with a 2 stage hydraulic pump for fast and slow operation – Strong steel fabricated frame will offer you years of pressing!

Motorized Fixed Head Hydraulic Workshop Press
Steelmaster Industrial offers one of the best selections of Motorized Fixed Head Hydraulic Workshop Presses around. From our SM-MDY50 – 50Ton up to SM-MDY600 – 600Ton Capacity. Our Motorized Fixed Head Hydraulic Workshop Presses have been fitted up to offer you the best selection of features including vee blocks, adjustable hydraulic pressure gauge, adjustable tables and come standard with safety e stops to ensure all round safe operation.

Motorized Sliding Head Hydraulic Workshop Press
Our new Motorized Sliding Head Hydraulic Workshop Press offers the operator full flexibility in your pressing application. Simply unlock the clamps and position the hydraulic cylinder left or right of the centre. From our SM-MDY50SH – 50Ton up to SM-MDY600SH – 600Ton Capacity. The 110Ton and above models are fitted with a rack and pinion sliding system and a hand wheel, where the 90Ton and below have a simple unlock and slide system. Our Motorized Sliding Head Hydraulic Workshop Presses have been fitted up to offer you the best selection of features including vee blocks, adjustable hydraulic pressure gauge, adjustable tables and come standard with safety e stops to ensure all round safe operation.


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
