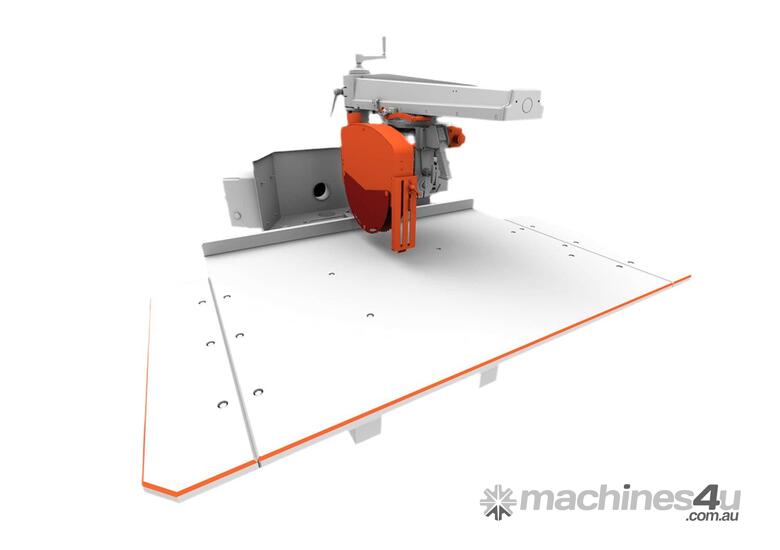

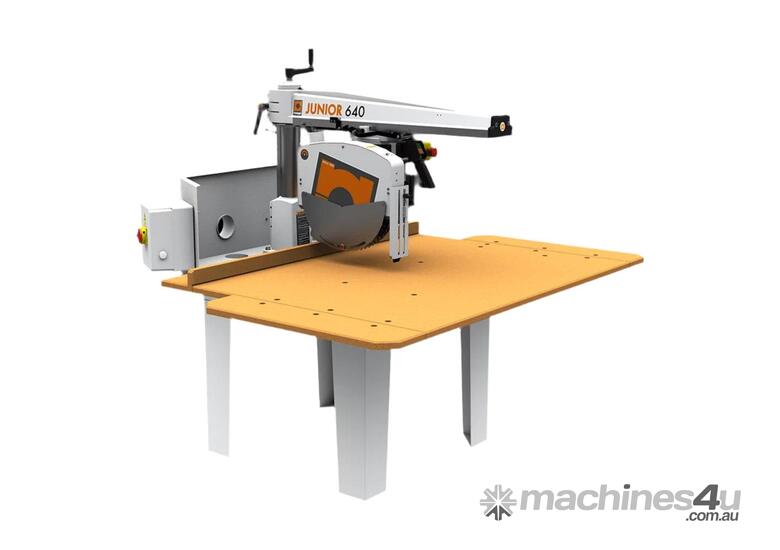

400mm Radial Arm Saw JUNIOR 640 by Maggi

A radial arm saw is a cutting machine consisting of a circular saw mounted on a sliding horizontal arm. Invented by Raymond DeWalt in 1922, the radial arm saw was the primary tool used for cutting long pieces of stock to length until the introduction of the power mitre saw in the 1970's. Whilst a radial arm saw can be overlooked as it is bulkier and usually lives in a larger workshop it is fantastic for crosscutting, ripping, and beveling / mitreing dado's rabbets and form mouldings.

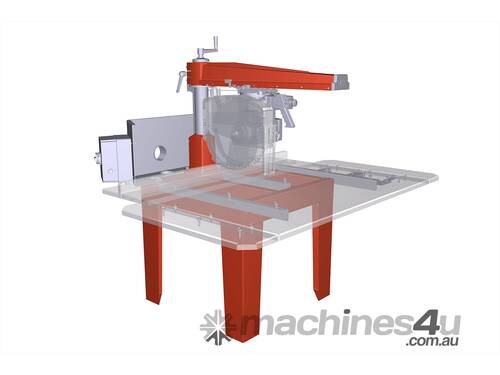

Radial-arm saw for straight (90°) cross cutting, ripping and bevel cutting at 45° left and right. The movement of the cutting unit along the arm, on guides and ball bearings, is manual, aided by a return spring, so is the blade tilting with mechanical locking system at 45° left. The pillar group is made of cast-iron and fixed on a solid frame and legs made of steel. Working bench in MDF. Manufactured according to CE standards.


Features

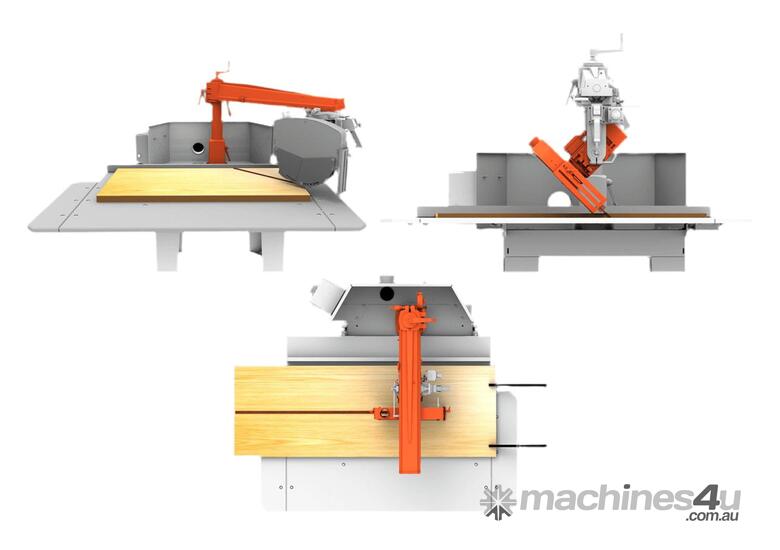

Swivelling arm up to 45° left and right and left tilting cutting-head (stop and lock at 45°) allow many different cutting operations for the greatest versatility. The cutting-head can also turn by 90° for accurate ripping.


Sound-insulated, full-cover blade guard with safety microswitch, anti-kickback, well-dimensioned working bench, emergency button and push-sticks definitively contribute to the operator safety during the cutting process.


Rugged steel construction, arm and base made of cast iron. Interchangeable, tempered-steel made guides. Cutting head sliding on 8 ball bearings for a smooth, precise and effortless carriage movement.


Cutting width up to 545 mm. All-around performance. Well-suited also for the hobbyist.




Maggi are Well-finished, ergonomic machines. Eco-friendly, rust-resistant powder coating.





Specification



Motor Speed: 2800RPM


Blade Diameter: 350mm


Bore Blade Diameter: 30mm


Shaft Dimension: 25 x 80mm


Dust Chute Diameter on Blade Guard: 60mm


Rear Dust Chute Diameter: 100mm


Table Dimensions: 975 x 1580mm


Maximum Cut Width at 350mm Diameter: 20 x 550mm


Maximum Cut Width at 400mm Diameter: 100 x 545mm


Length of Cut Height at 350mm: 100 x 480mm


Length of Cut Height at 400mm: 125 x 450mm


Maximum Cut Depth at 350mm: 100mm


Maximum Cut Depth at 400mm: 125mm


Max. Height of Blade From Table at 350mm: 70mm


Max. Height of Blade From Table at 400mm: 45mm


Max. Cutting Height at 45 °(350mm): 60mm


Max. Cutting Height at 45 °(400mm): 80mm


Max. Cutting Height Arm 45 ° on Right Side: 20 x 380 100 x 330mm


Max. Cutting Height Arm 45 ° on Left Side: 20 x 190 100 x 140mm




Options



JUNIOR 640 1PH


JUNIOR 640 3PH
