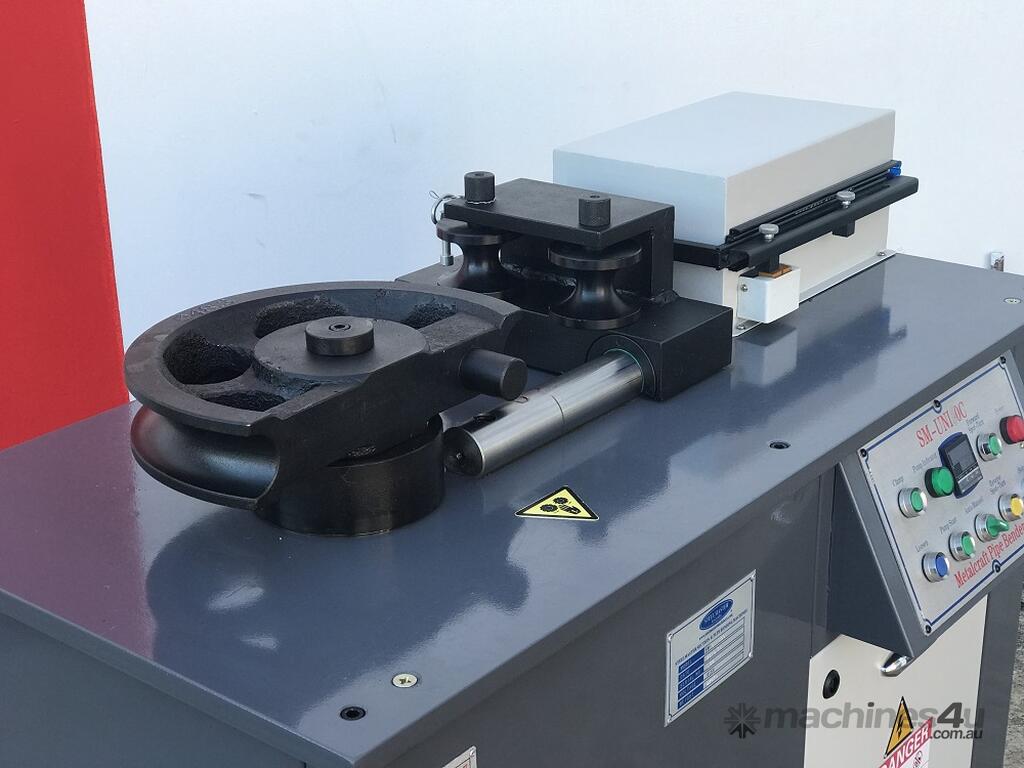

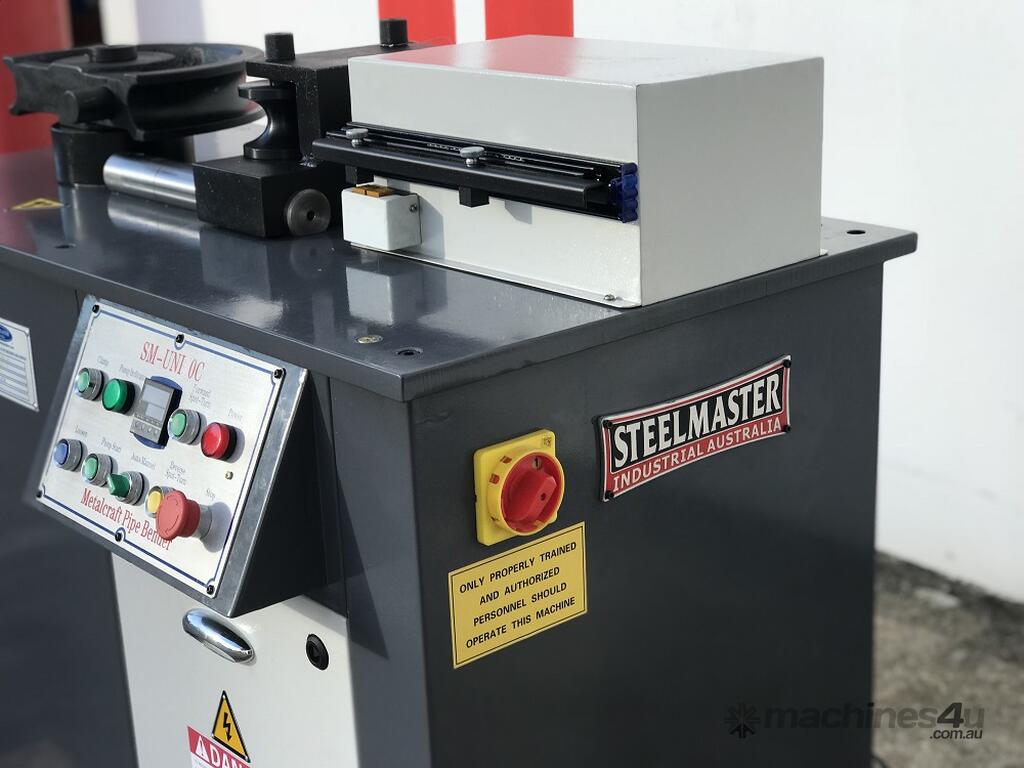

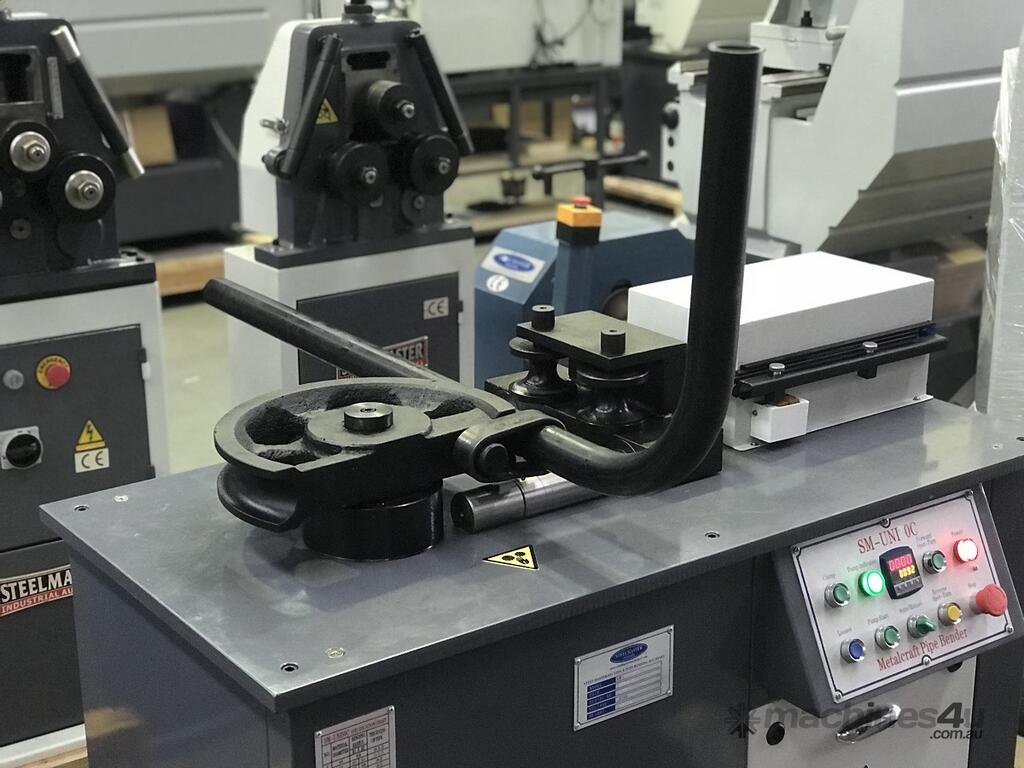

Tube & Pipe Bender. SM-UNI40C: - 40mm Capacity complete with 4 Sets of Tooling, Hydraulic Clamp & Release,
Digital Angle Setting, 21.3mm (15NB), 26.9mm (20NB), 33.7mm (25NB) & 32mm Square Included, 3Kw V
Description
At last! A Heavy Duty Motorized Tube & Pipe Bender with Tooling at a Great Price.
With a Simple Digital Angle Setting Feature Or Manually Set.
After Years of Frustration, We Have Developed Our New Full Hydraulic Tube & Pipe Bender with Tooling That Won’t Break The Bank.
With 3 Sets of NB Pipe & 1 Sets of Square - This is a Winner – Heaps of other tooling available off the shelf in Tube & Pipe sizes.
Please note that there is a O.D x wall thickness x bending radius guideline to be adhered to.
Features:
• 40mm Mild Steel Capacity.

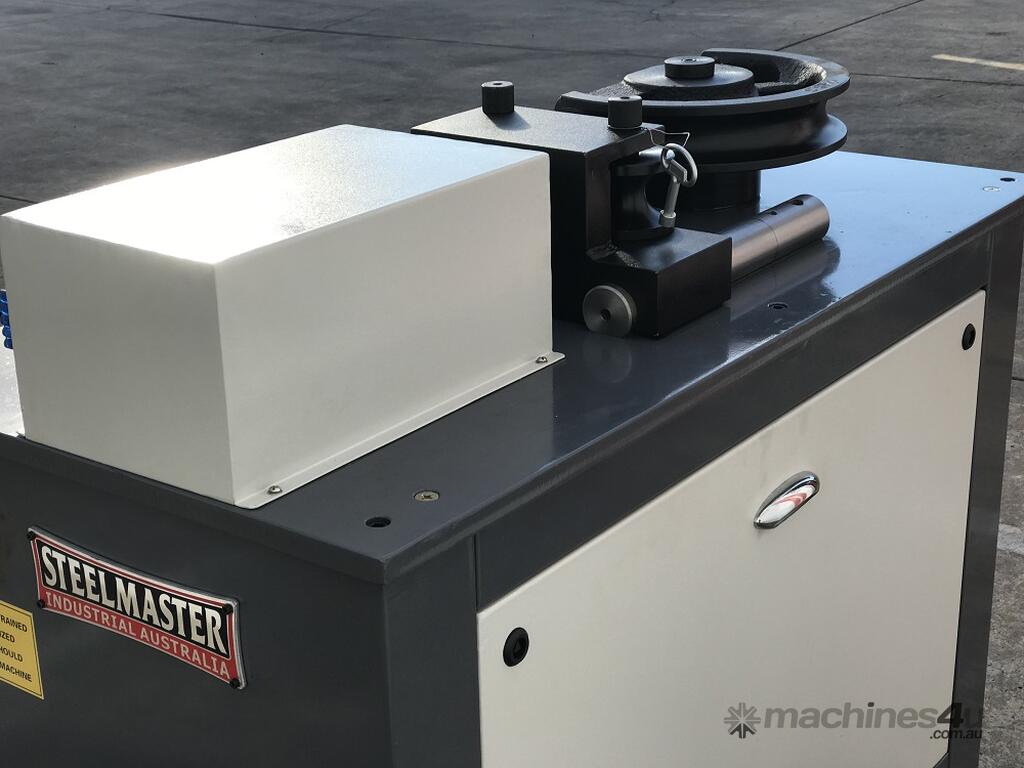

• Heavy Duty Steel Plate Construction.

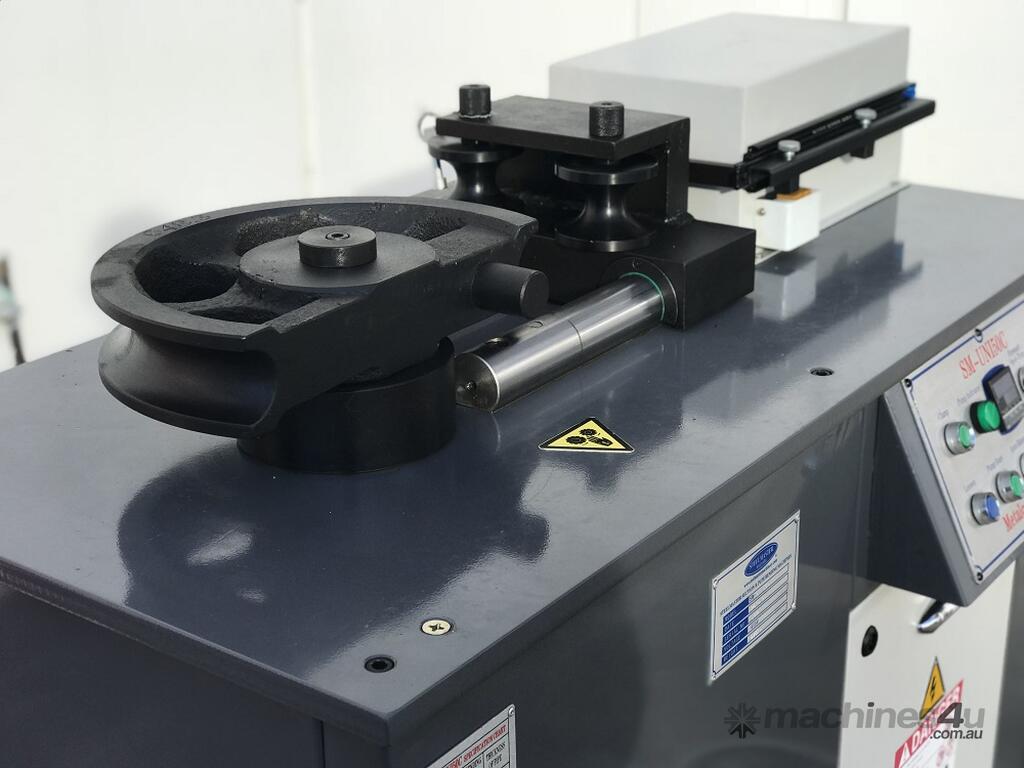

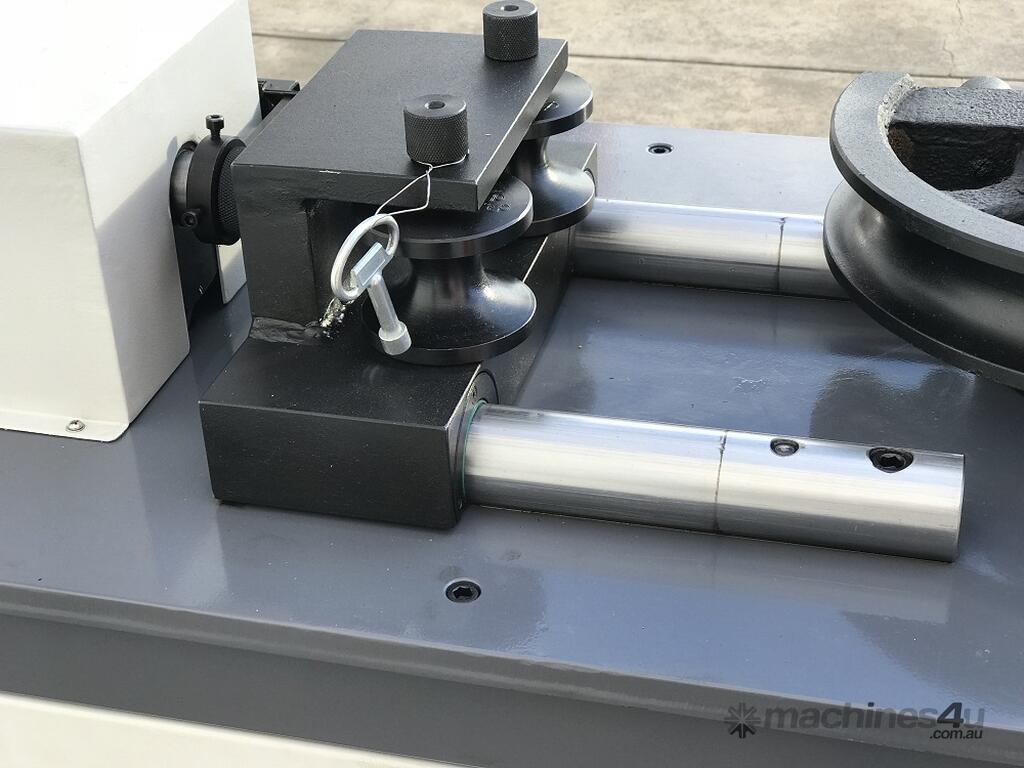

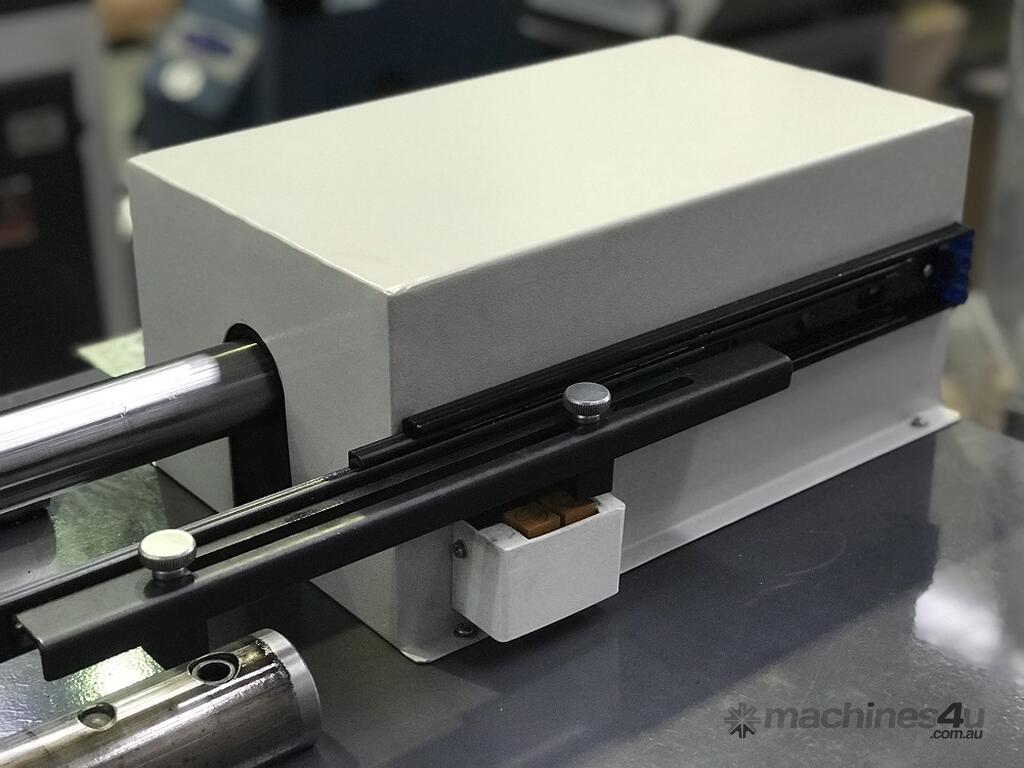

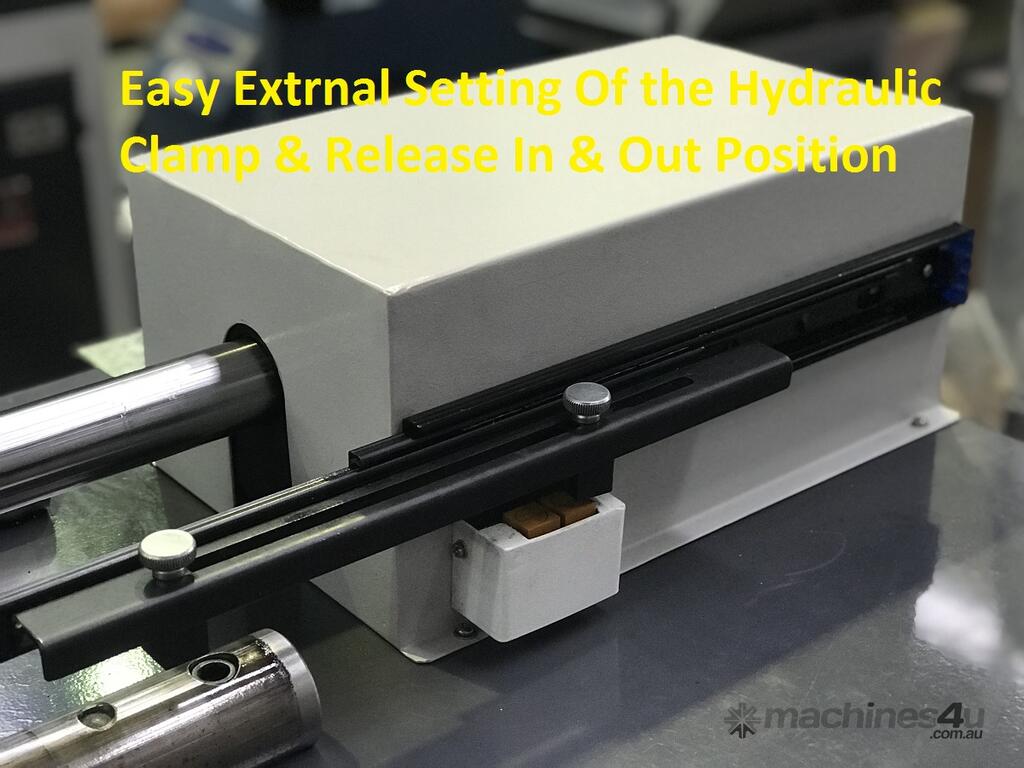

• 40C Model Fitted With Hydraulic Clamping.

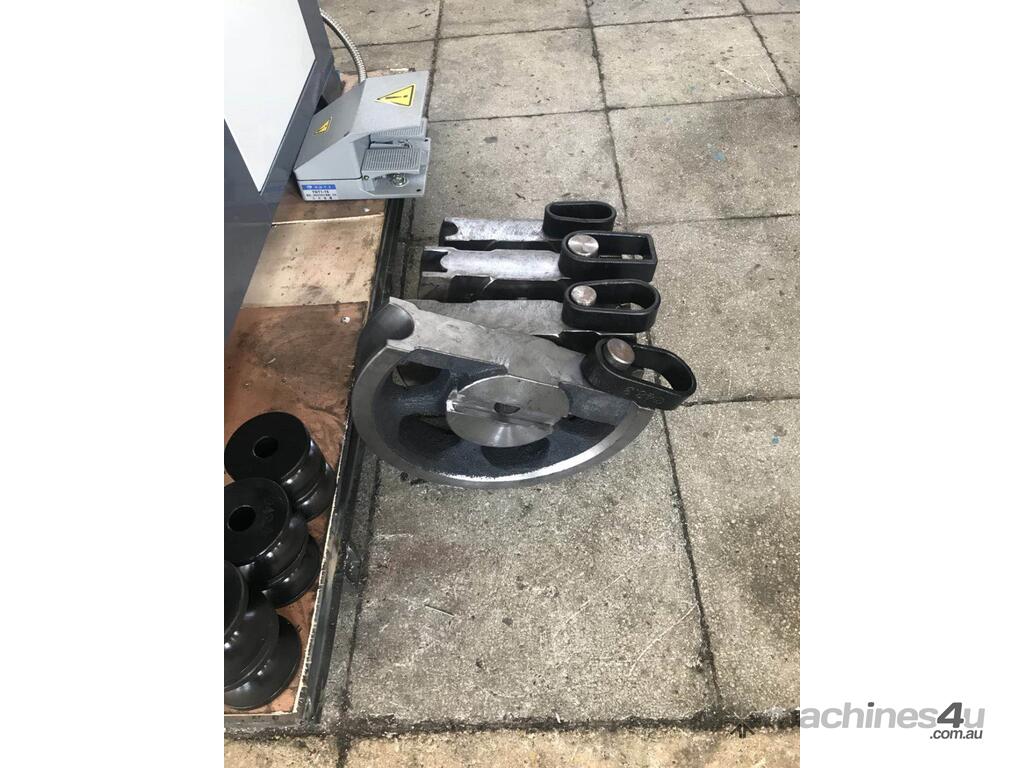

• 10 Sets Tooling Included comprising.

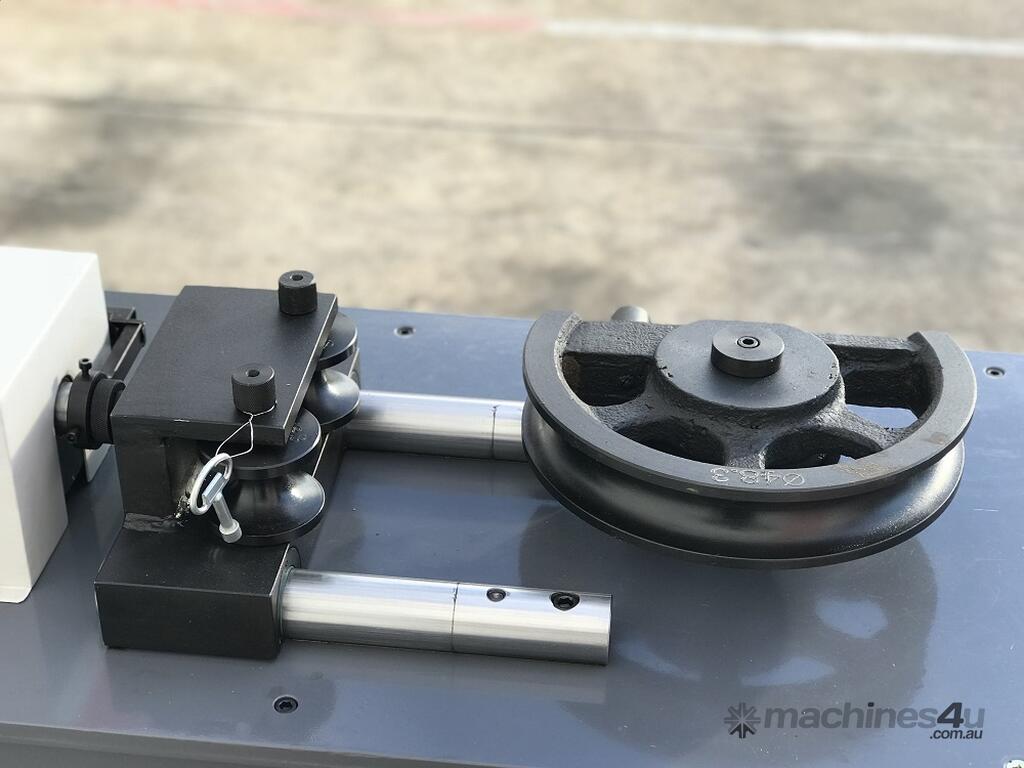

• Round Formers: 21.3mm (15NB), 26.9mm (20NB), 33.7mm (25NB)
• Square Formers: 32mm
• Many Other Tooling Selections In Stock

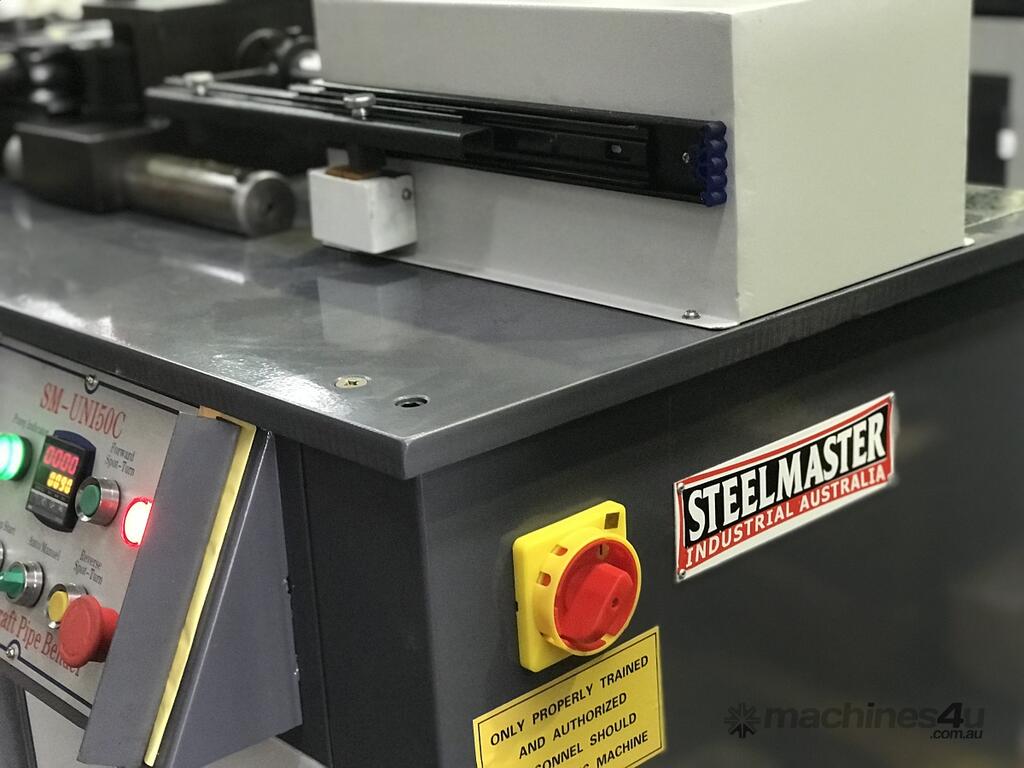

• Easy Set Digital Angle Controller in Auto or Jobbing.

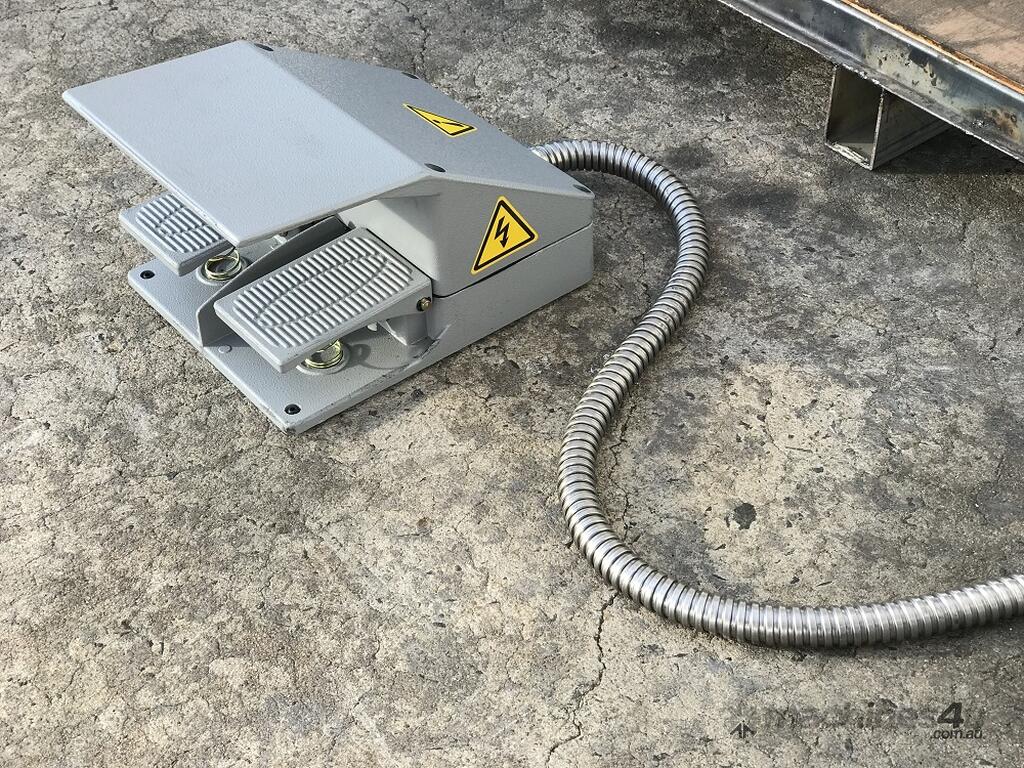

• Twin Foot Pedal Operation.

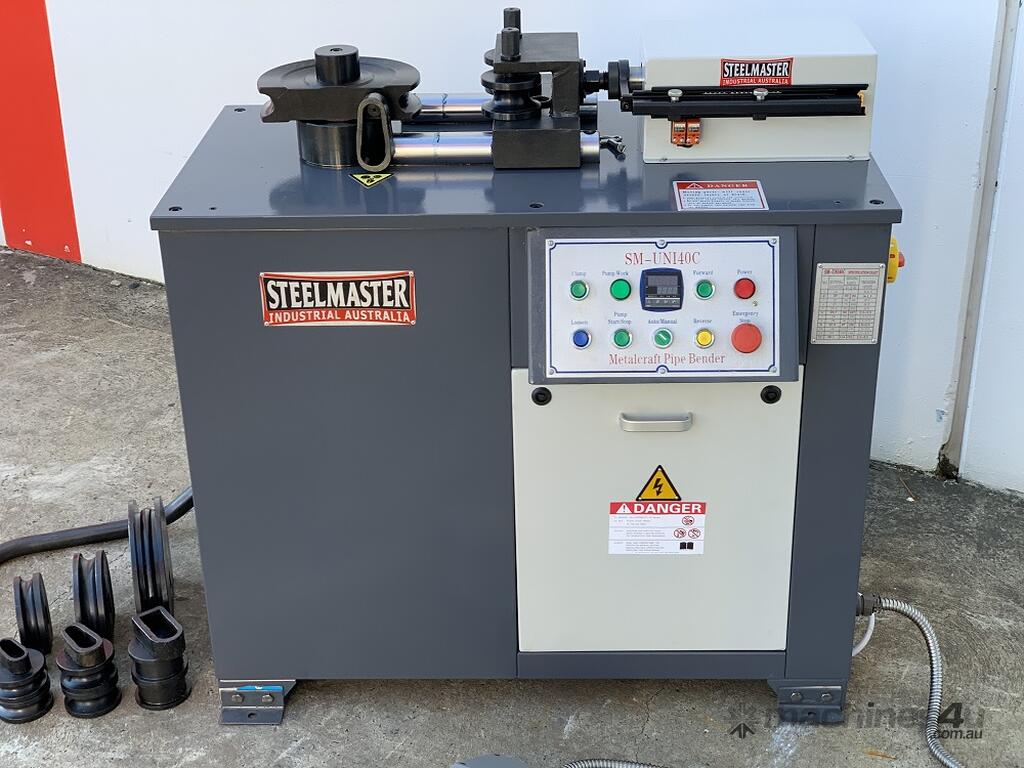

• Includes Sturdy Cabinet with Storage Area.
Technical Features:
?Mild Steel Tube - Pipe – 16mm x 2mm
?Minimum Centre Line Radius – 48mm
?Mild Steel Tube - Pipe – 18mm x 2.5mm
?Minimum Centre Line Radius – 54mm
?Mild Steel Tube - Pipe – 20mm x 2.5mm
?Minimum Centre Line Radius – 60mm
?Mild Steel Tube - Pipe – 25 x 2.5mm
?Minimum Centre Line Radius – 75mm
?Mild Steel Tube - Pipe – 26mm x 2.5-3.5mm
?Minimum Centre Line Radius – 78mm
?Mild Steel Tube - Pipe – 30mm x 2.5-3.5mm
?Minimum Centre Line Radius – 90mm
?Mild Steel Tube - Pipe – 32mm x 2.5-3.5mm
?Minimum Centre Line Radius – 96mm
?Mild Steel Tube - Pipe – 34mm x 2.5-3.5mm
?Minimum Centre Line Radius – 102mm
?Mild Steel Tube - Pipe – 35mm x 2.5-3.5mm
?Minimum Centre Line Radius – 105mm
?Mild Steel Tube - Pipe – 38mm x 2.5-3.5mm
?Minimum Centre Line Radius – 114mm
?Mild Steel Tube - Pipe – 40mm x 2.5-3.5mm
?Minimum Centre Line Radius – 120mm
Technical Data Snap-Shot
?40mm x 2.5mm bending capacity

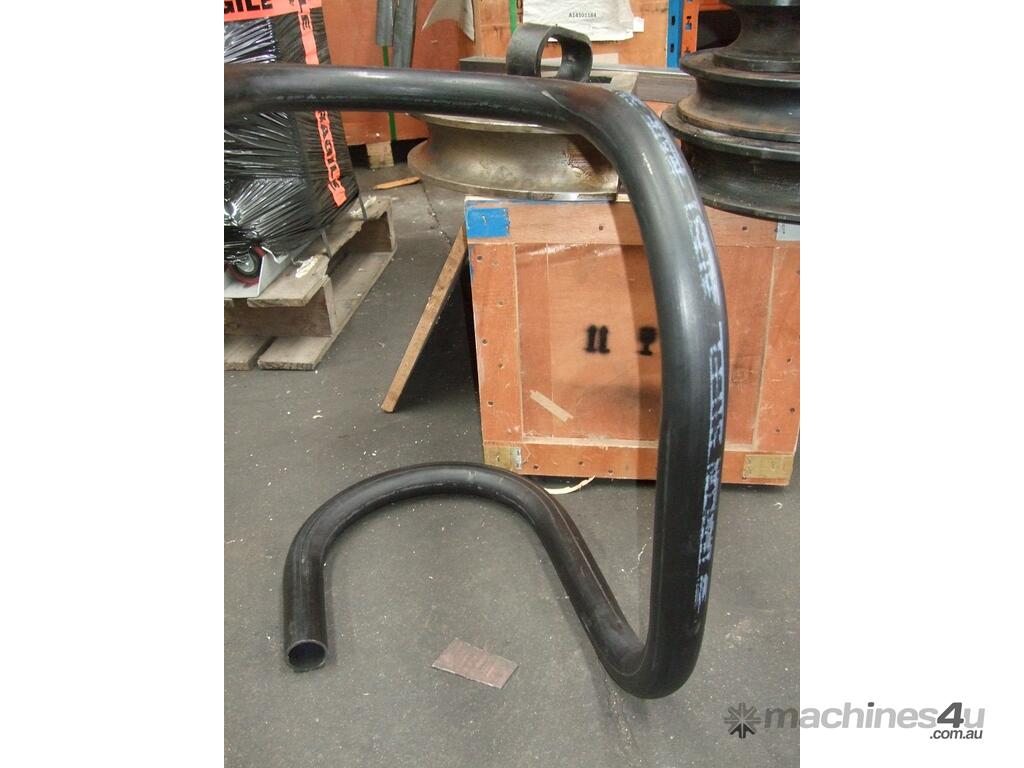

?0 ~ 180 bending range – One Shot!
?shipping dimensions - 1200mm x 750mm x 1300mm
?power - V 3Kw
?approx weight: 350kg
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
