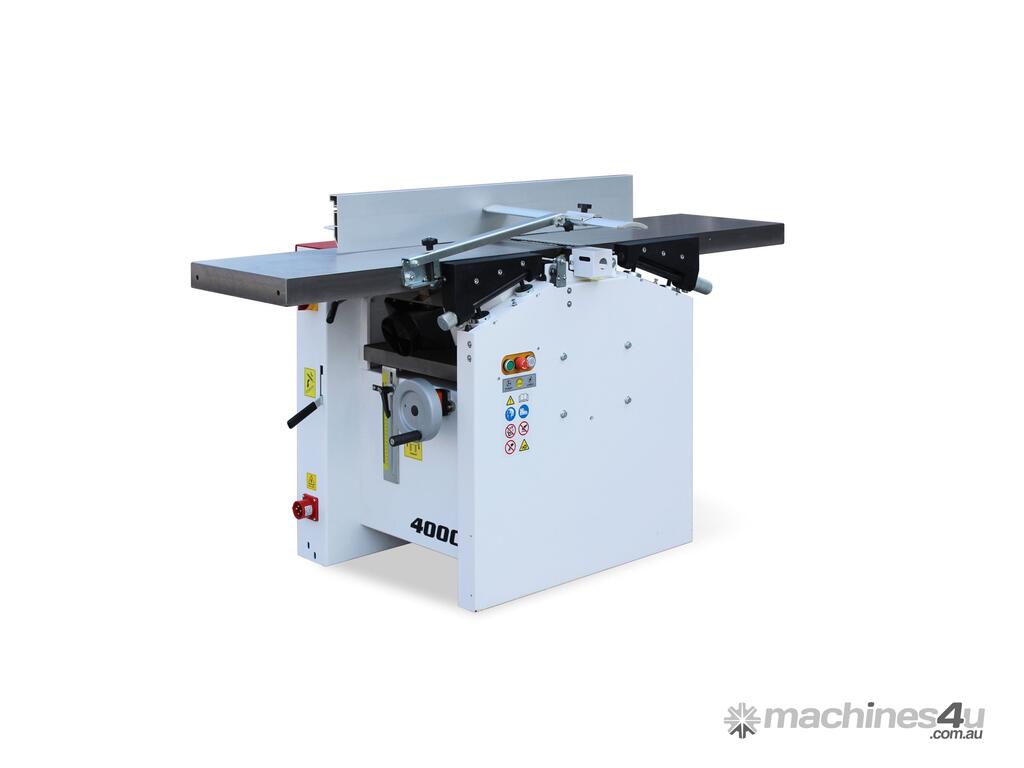

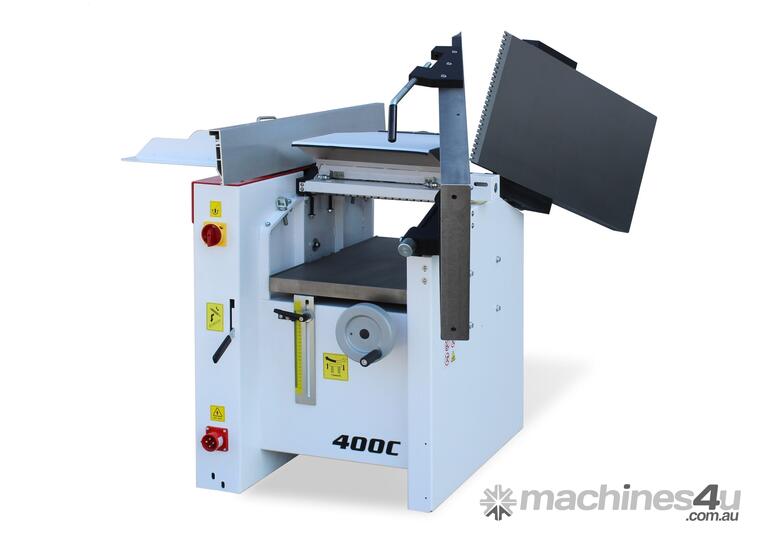

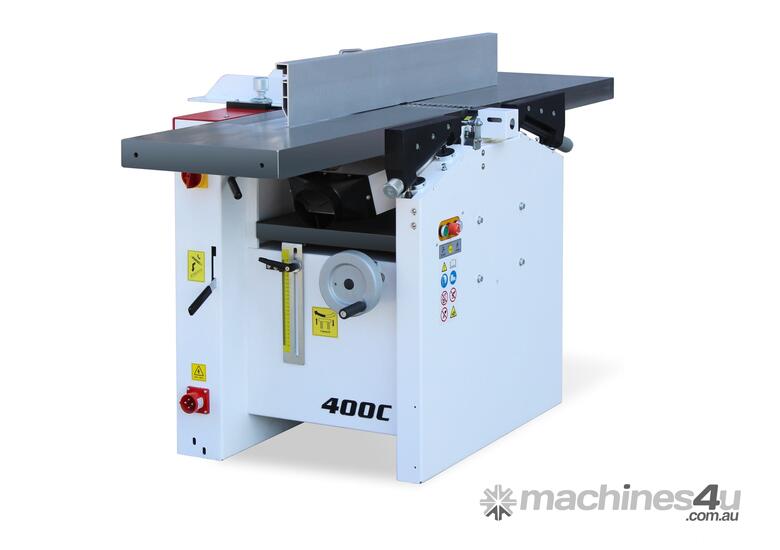

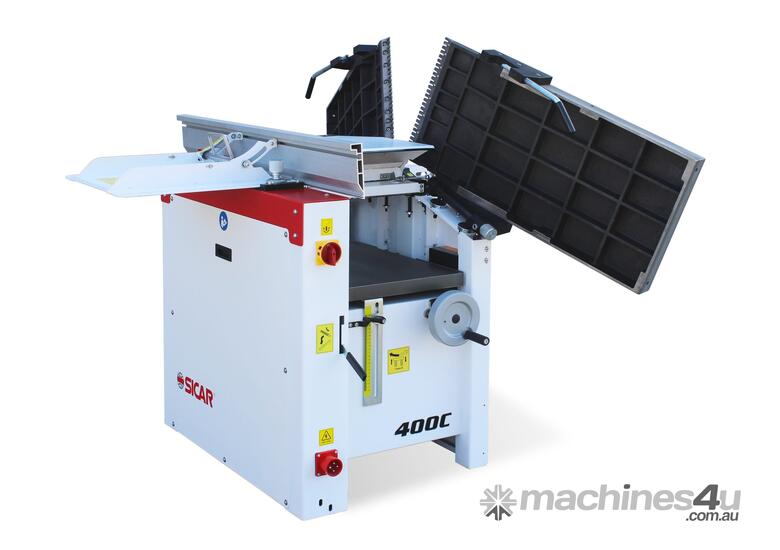

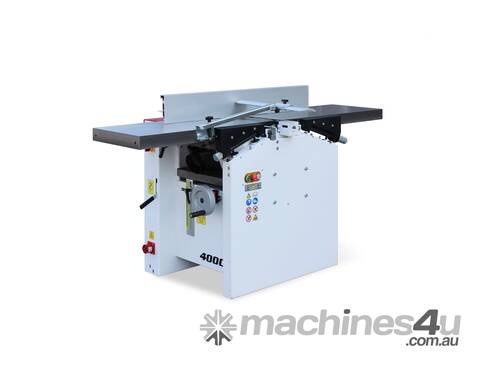

410mm (16") Italian Designed Professional Combination Planer & Thicknesser with Spiral Head Cutter B

The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own. The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently. Several further options are also available, each machine can therefore be tailored to the users specific needs.


Specifications : Planer Working table: 400x1800mm Cutter block diameter: 70mm Cutterblock rotation speed: 5700rpm Max table adjustement: 4mm Thicknesser Working table: 400x760mm Feeding speed: 7m/sec Working height: 4-220mm True Sprial Cutterhead Carbide insert (15x15x2.5mm 30 °ï¼‰ Power 1 Phase 240V 50Hz 3KW 4HP Motor Packaging Diamension: 1590x766x1065mm Weight: 398kg Mortiser (Optional) Working table: 250x500mm Longitudinof/Trosversof/Verticol stroke: 205/95/90mm Chuck (M18*1.5-S): 0-16mm Churck rotation speed: 5700rpm
