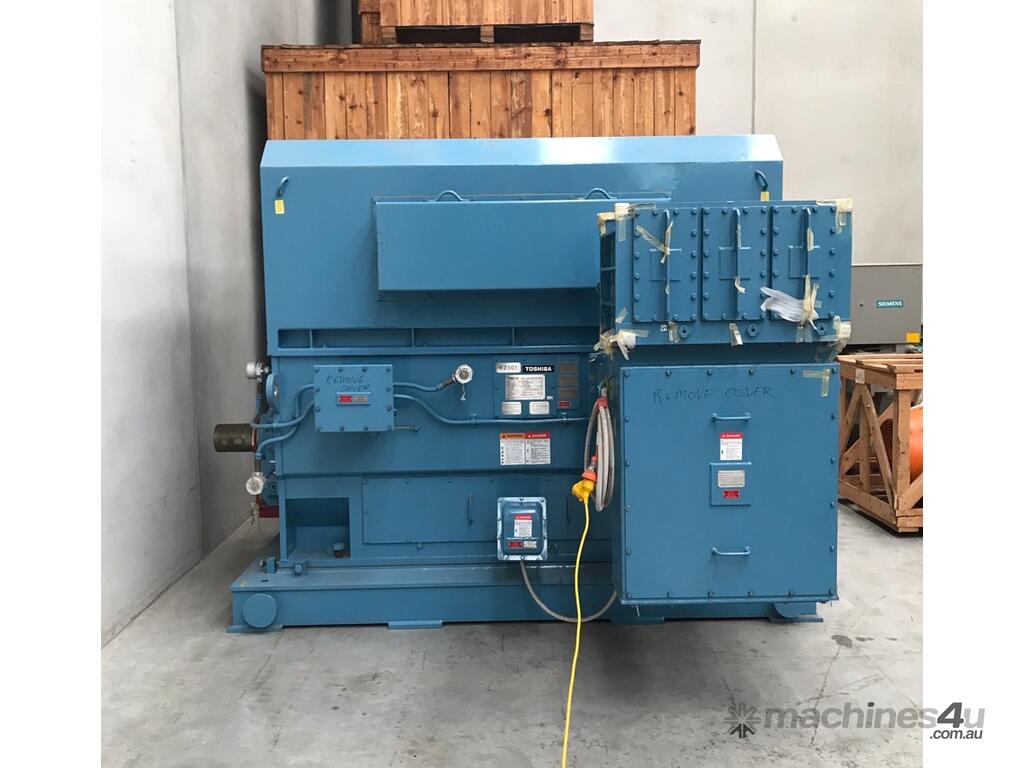

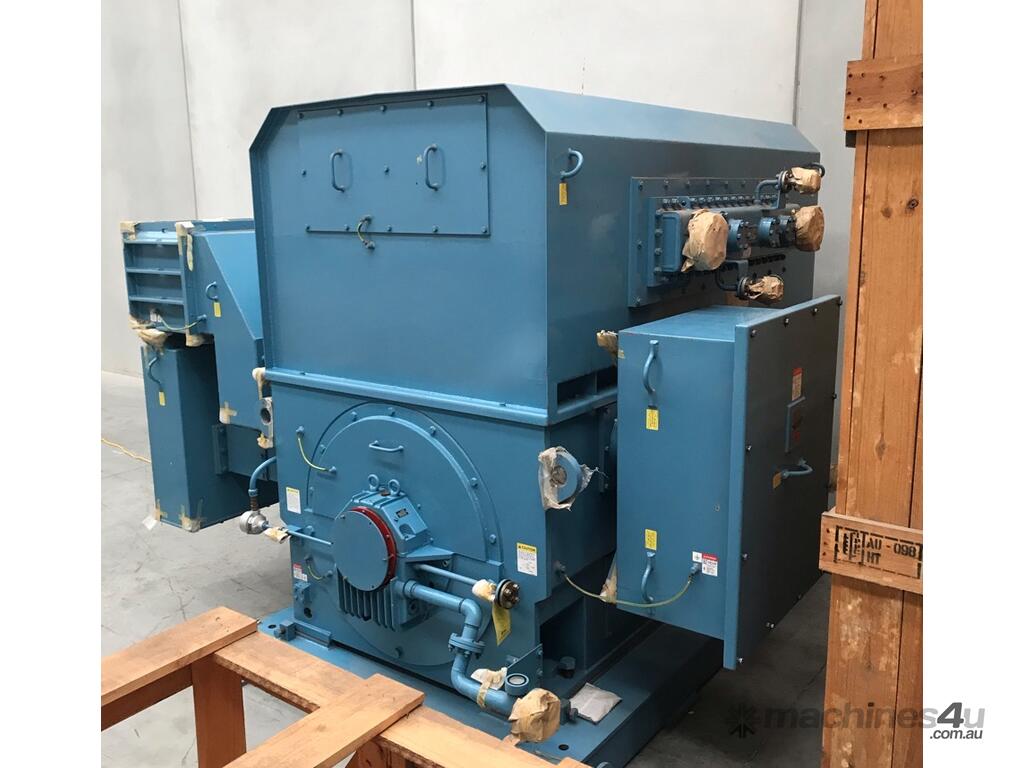

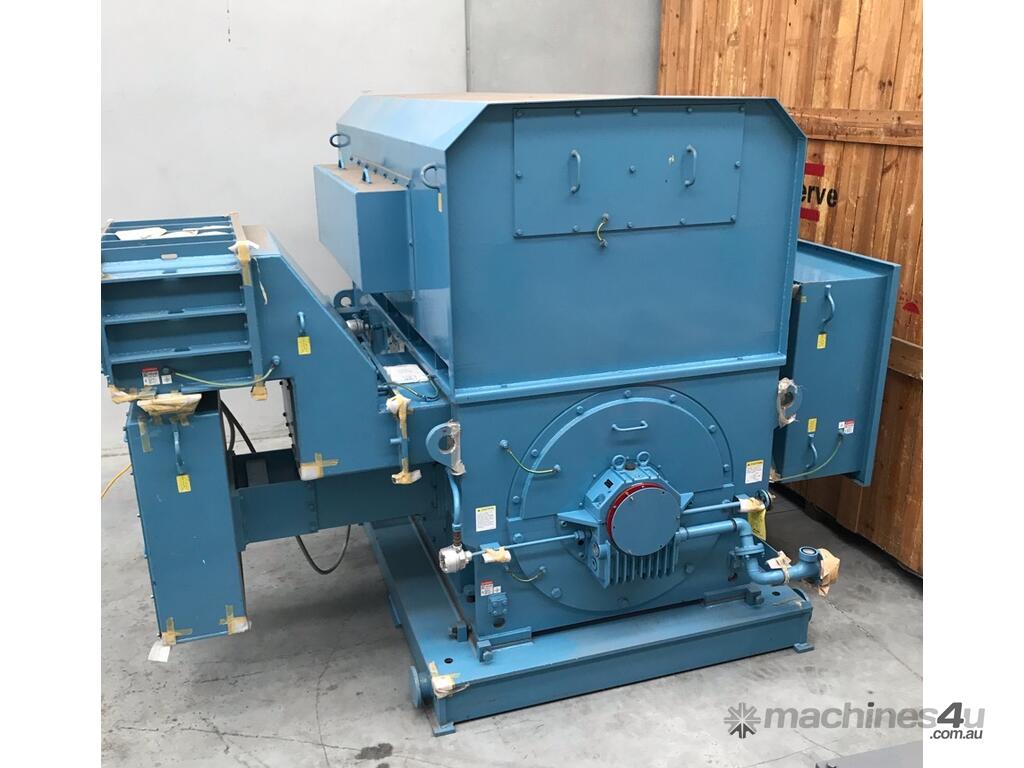

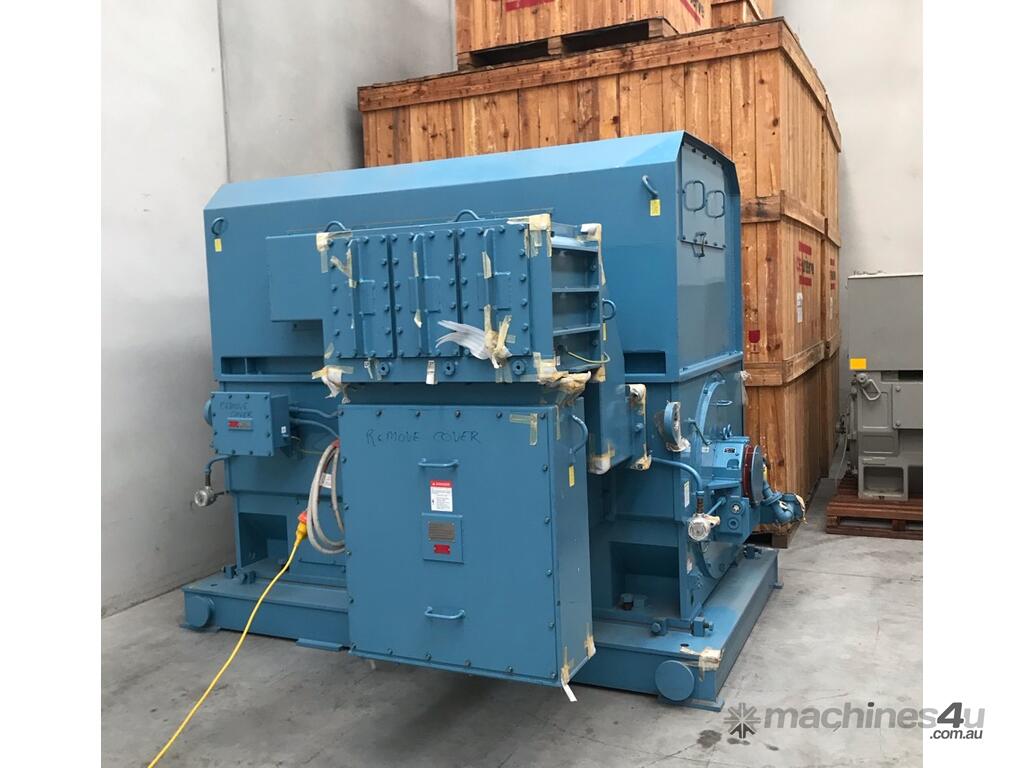

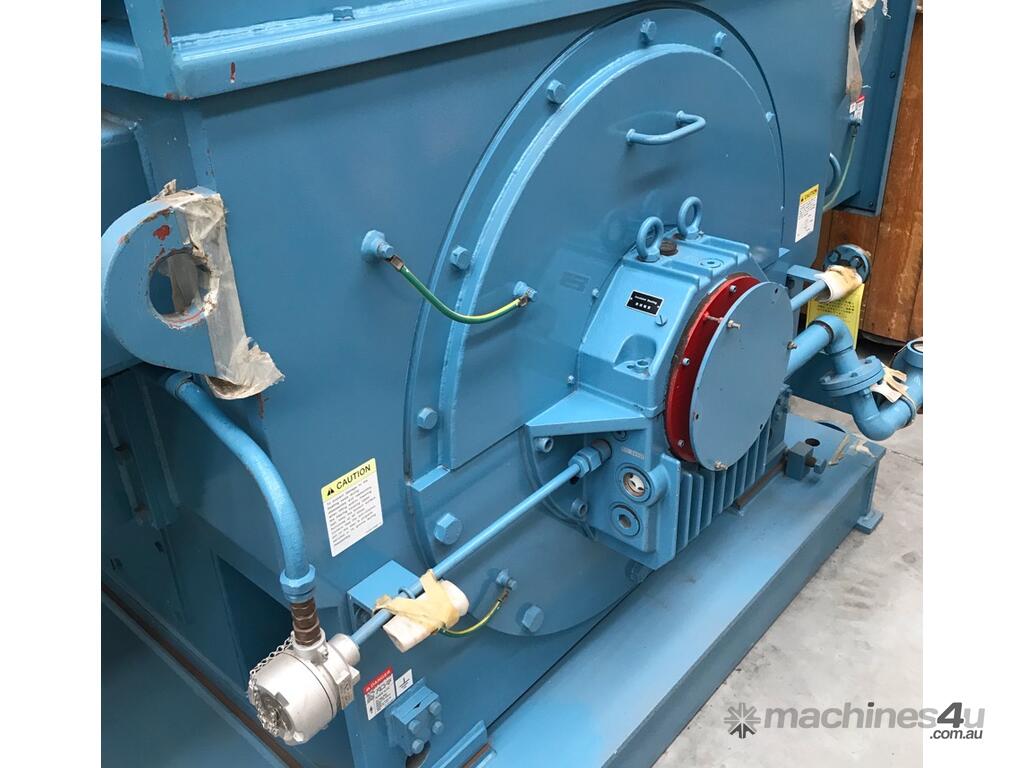

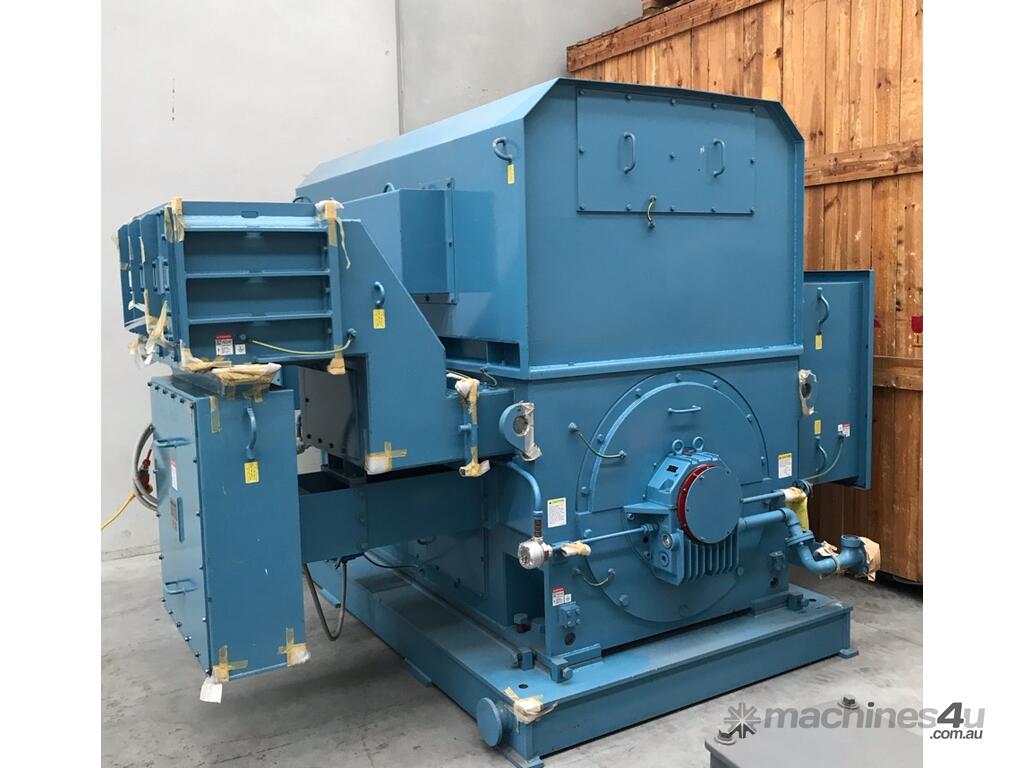

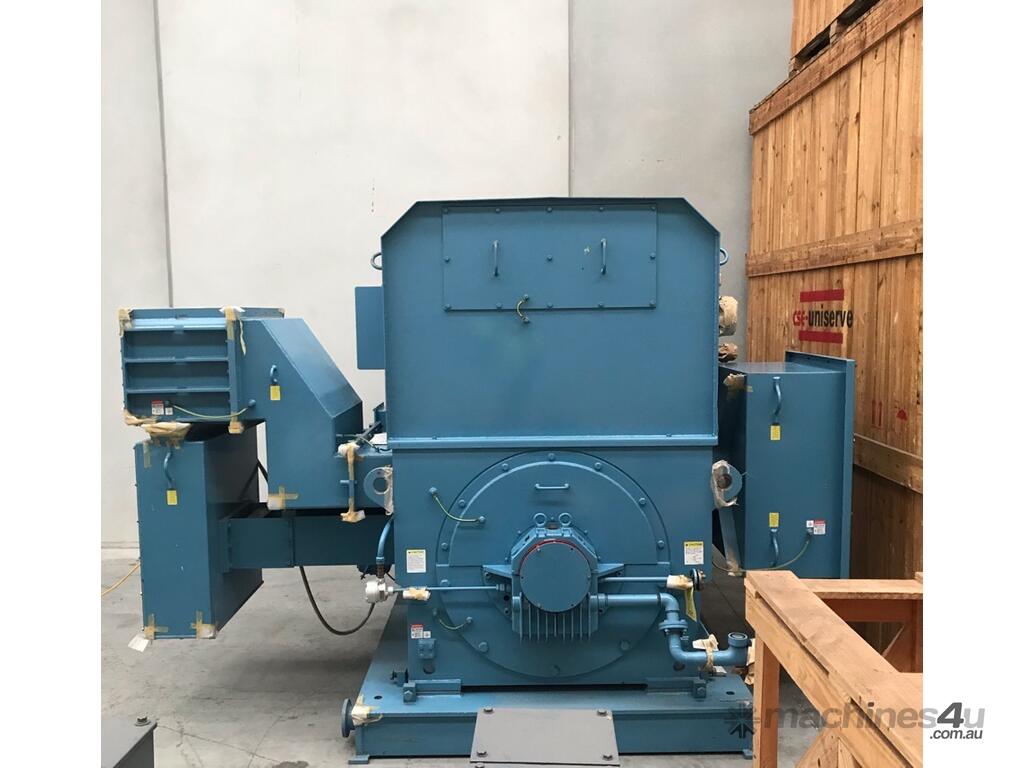

4150 KW 5500 HP 4 Pole 1480 rpm 6600 volt Foot Mount 450 frame Toshiba Type TIKE-RCCNW Unused Electric Motor

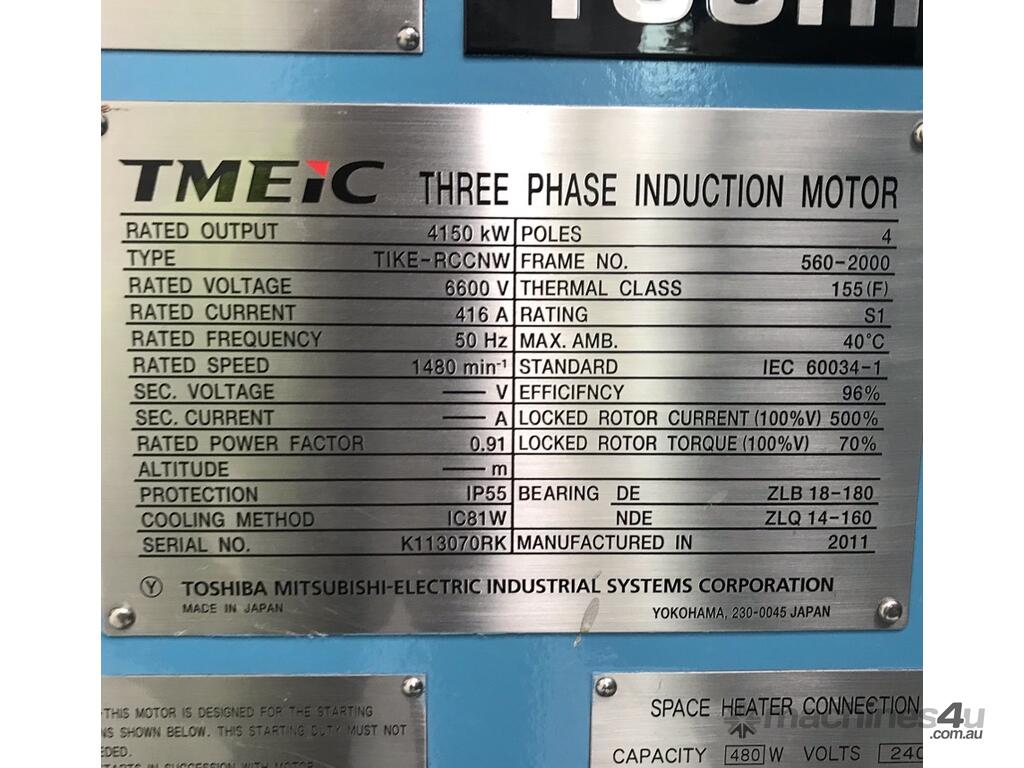

Type: AC Squirrel Cage Electric Motor
3-phase induction motor

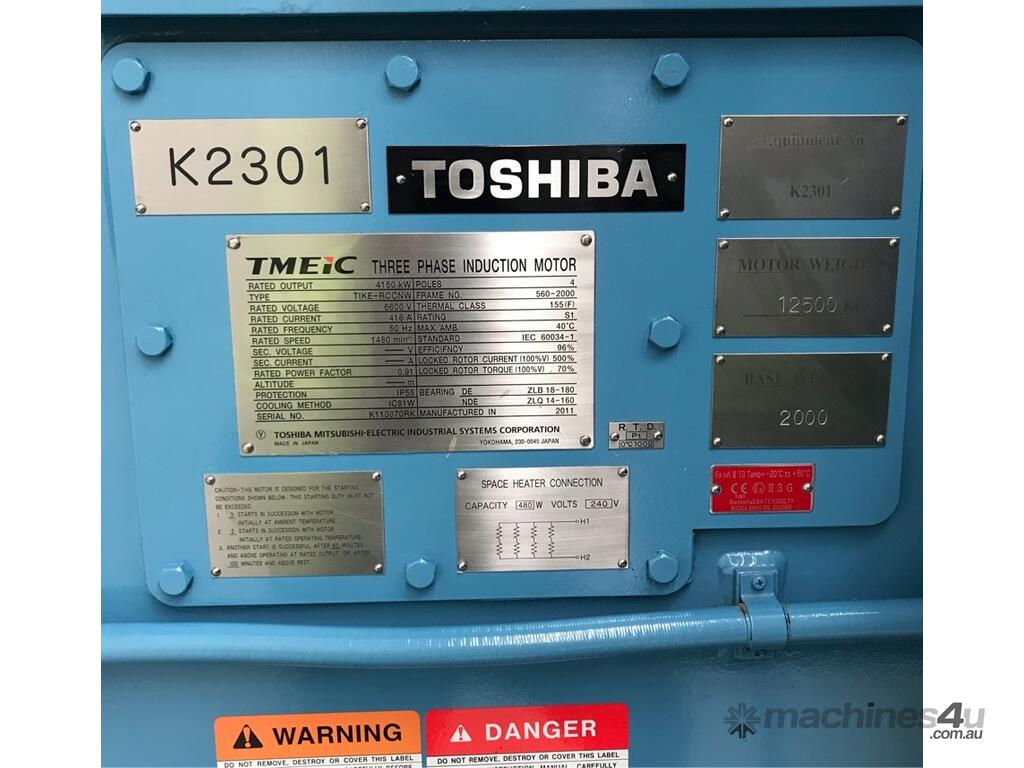

Make: Toshiba
Model: TIKE-RCCNW
Power: 4150 KW (5500 HP)
Speed: 4-pole (1480 rpm)
Rated frequency: 50 hZ
Rated Voltage: 6600 v
Full Load Amperage: 416A
Mount: Foot Mount
Frame: 560-2000

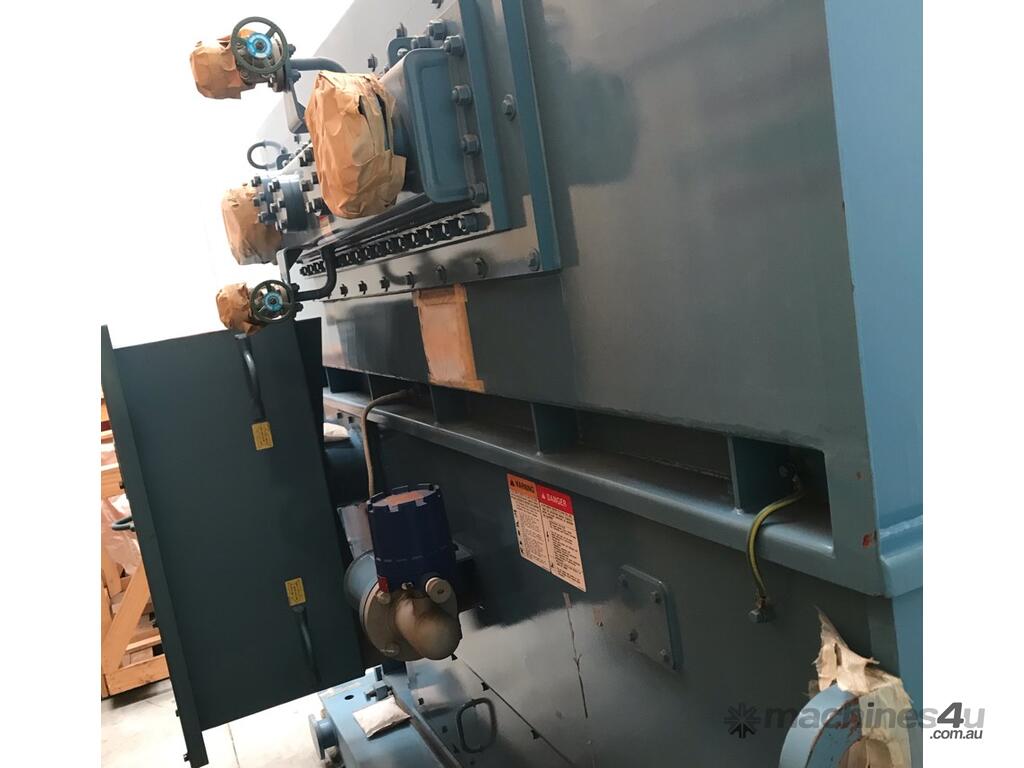

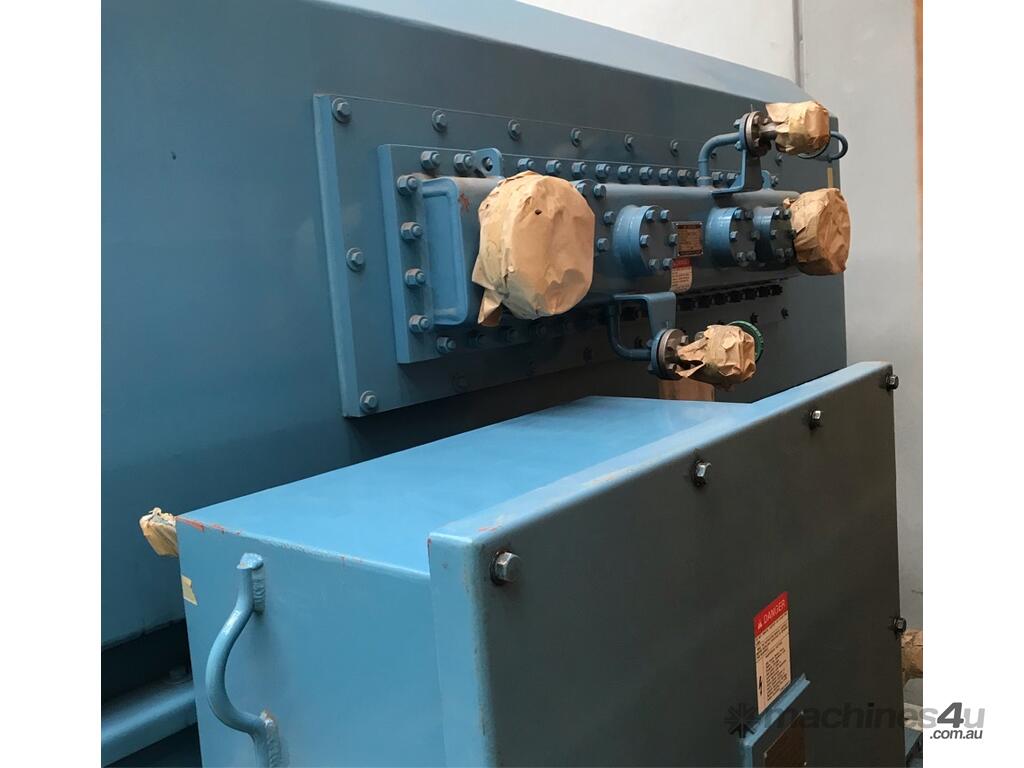

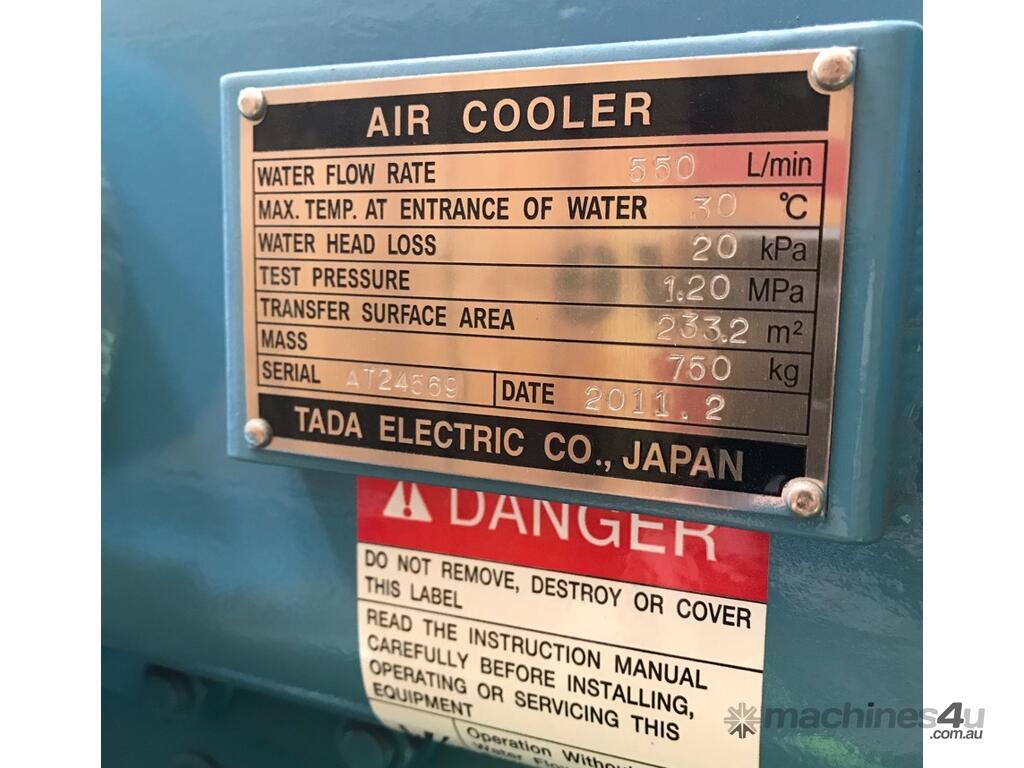

Cooling: Water-Cooled

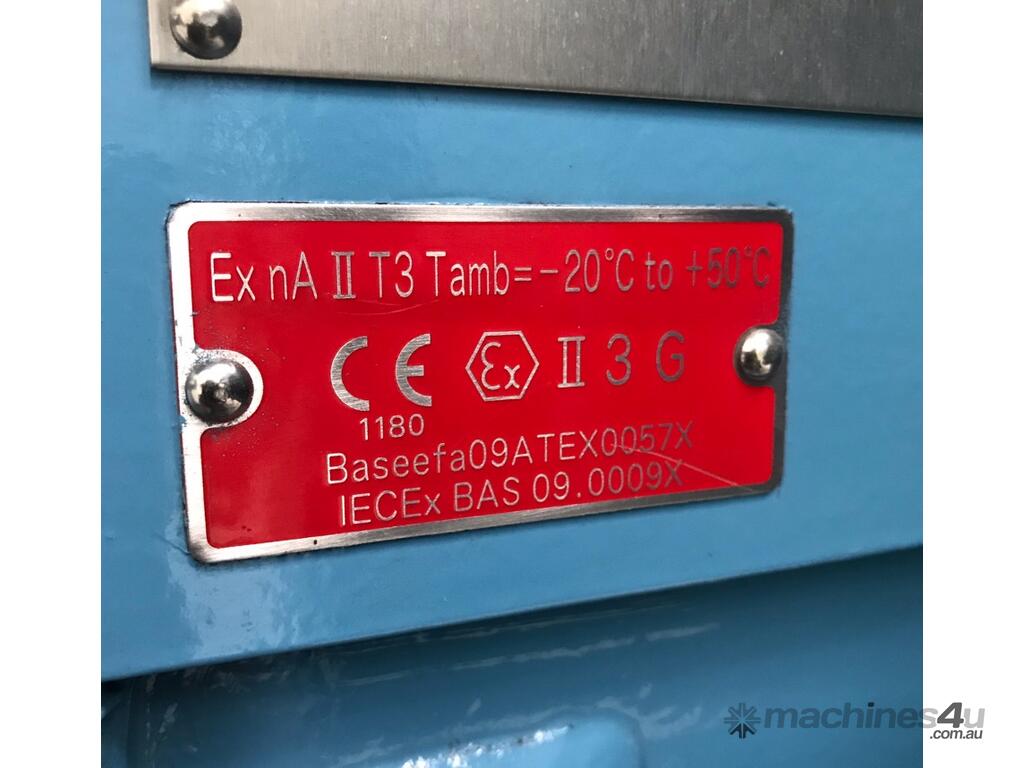

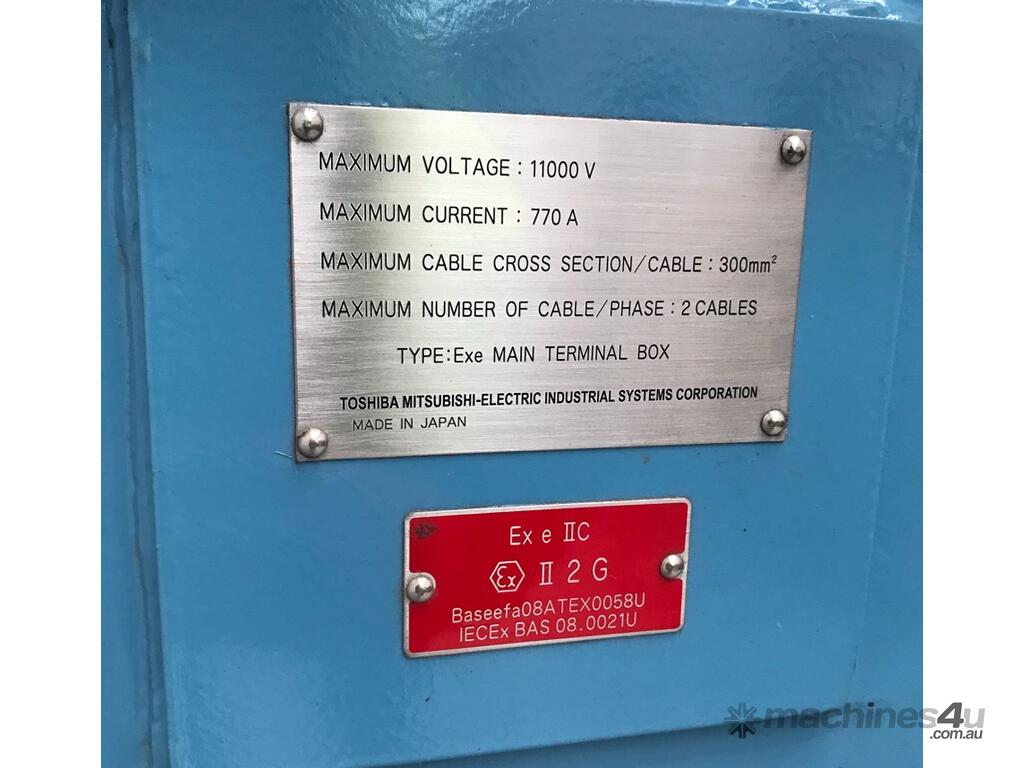

Protection Rating: IP55 Hazardous Area Ex e IIC
Critical Measurements:
Centre shaft height: 560 mm

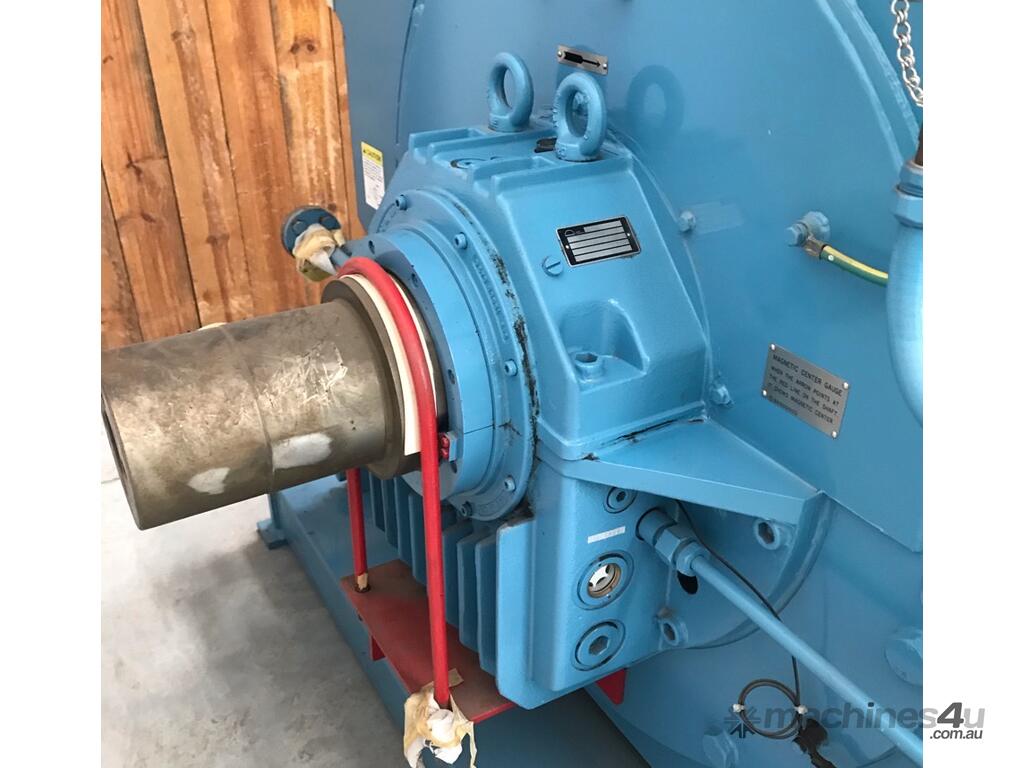

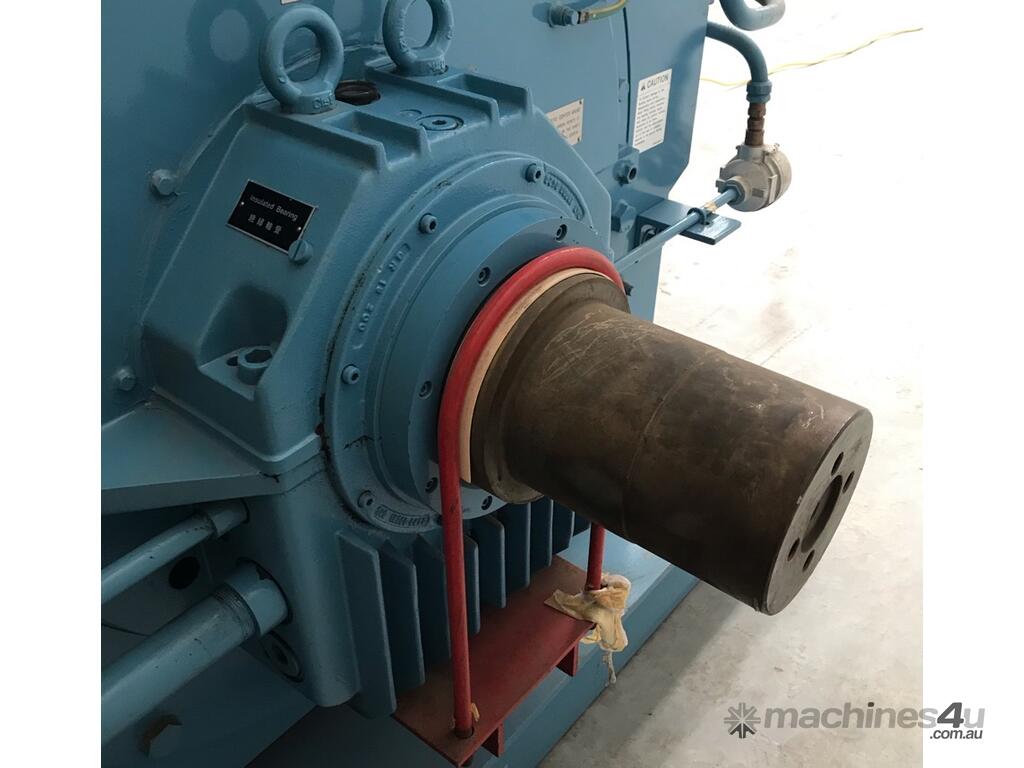

Shaft DIA: 200 mm (220 mm long)
Total Length: 3325 mm (including shaft)
Total Width: 3215 mm (Including Terminal Boxes)
Total Height: 2370 mm
Weight: 14,500 kg (including 2-tonne add-on baseplate)
QTY: 1

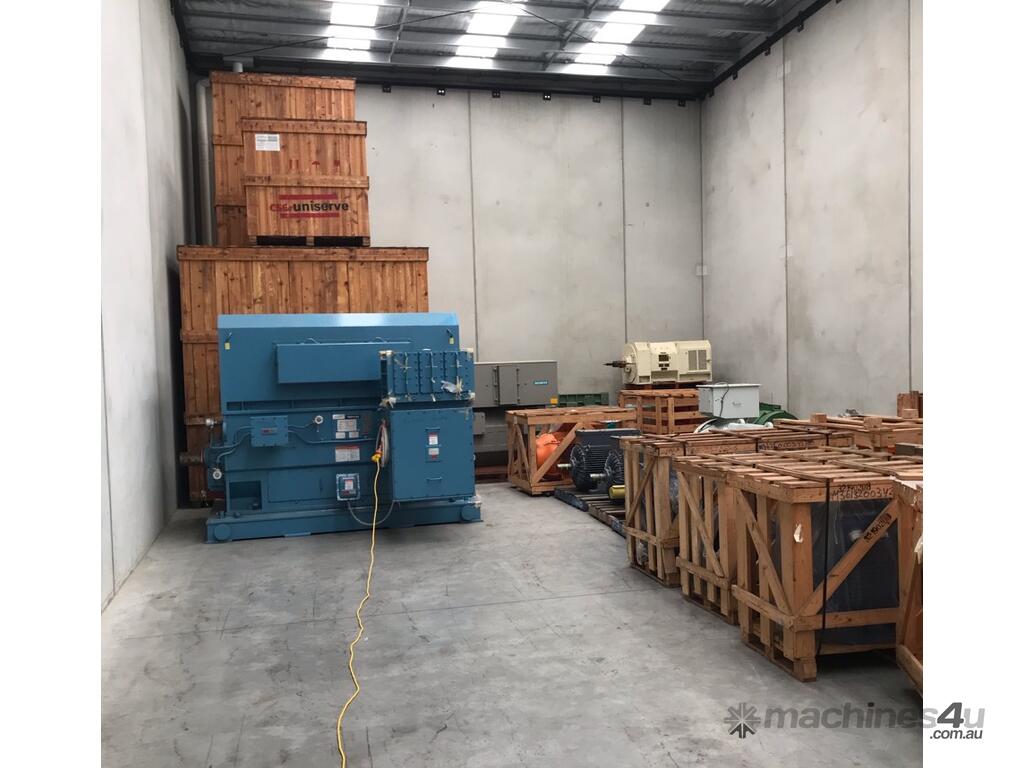

Condition: New/Unused (Factory Storage - Heaters plugged in)
Delivery Point: exStock Pakenham VIC 3810 Australia
Drawings & Datasheet available on request
