45,000 / 56,250 kVA Outdoor Transformer Primary 11kv Secondary 132 kv Daihen Electric Co

NEW 45,000/56,250kVA Outdoor Electrical Transformer

Manufacturer: Daihen Electric Co Ltd
Type: 3-phase, Oil immersed, Outdoor
Standard: IEC 60076
Installation: Outdoor
Type of cooling: ONAN / ONAF
Capacity: 45,000 / 56,250 kVA
Frequency: 50 Hz
Voltage: Primary (Low tension) side: 11kV
Voltage: Secondary (High tension) side: 132kV
Connection: Primary side: Delta
Connection: Secondary side: Star and neutral solidly grounded
Insulation class: A

Insulation level: 11kv, 132kv
A) Lightening impulse withstand voltage: 75kV, 650/-kv
B Power frequency withstand voltage: 28kV, 275/38kV

Site Operating conditions:
1) Altitude: Not exceed 1,000m above sea level
2) Ambient temperature: Maximum 41 Degree Celcius
3) Installation: Outdoor, Non-hazardous area
Type of termination: 11kV Cable Box, 132kV Outdoor
Tap changing device: On load tap changer

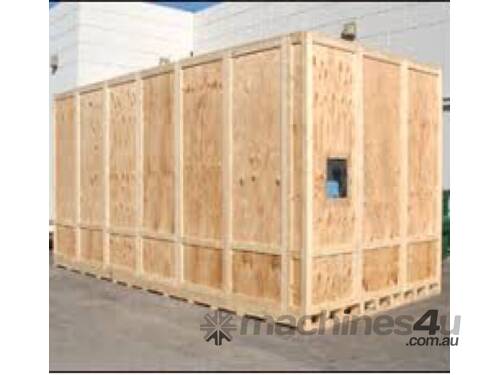

NEW Available Now Ex-Stock Australia
Sold separately, or as part of set including;

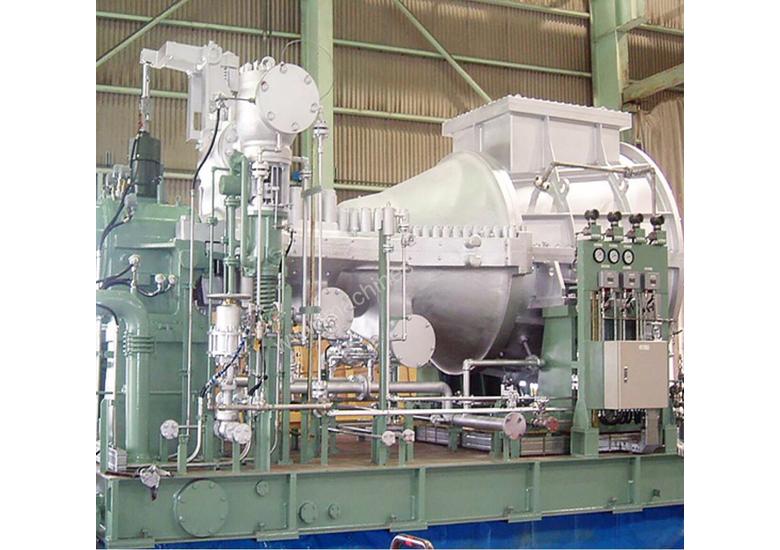

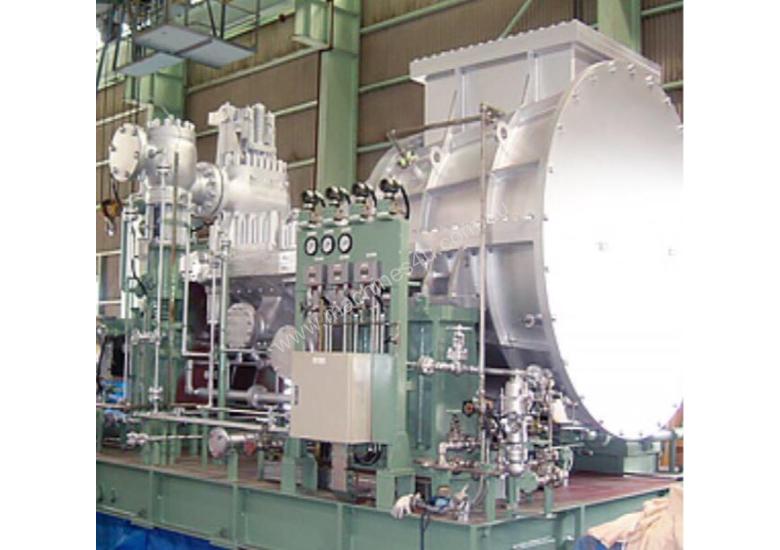

- NEW 44,500 Kw Steam Turbine (Shin Nippon Machinery Co)
- NEW 56,250kVA 2P 11kv Synchronous Generator (Meidensha Corp)
