45° bevel and straight edge combo - 2 in 1 machine

Wood Tech. Aus Owned and Operated. 5 Major Locations. Local Service Techs and Spare Parts. Download Spec Sheet.

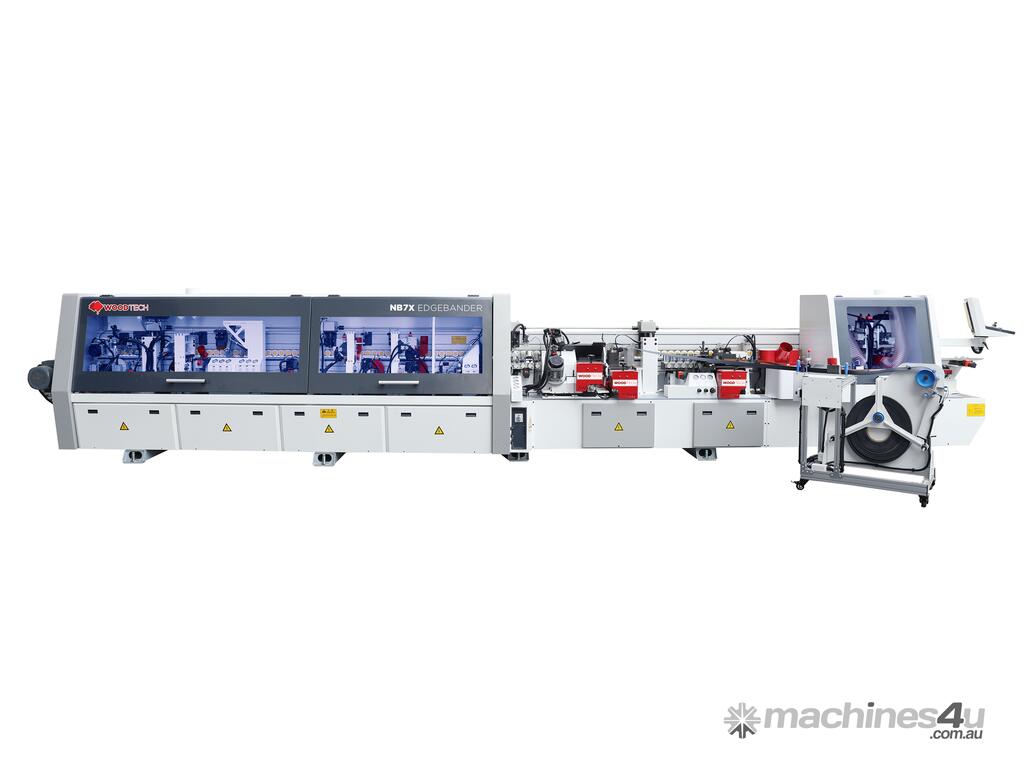

Maximise output and potential product lines on one machine with the NB7X Edgebander. Combining both straight and bevel pre-milling units with a magnitude of edging features, the NB7X offers flexibility and significant return on investment.

- Two-in-one machine for producing a variety of door and drawer finishes
- Dual tape coil magazine
- Single button switch between straight and bevel edging

Panel Width – min: 150 mm
Panel Size – min (W X L): 150 x 120 mm
Panel Thickness: 9 – 25 mm
Edge Tape Thickness – all inclined : 0.4 – 1.5 mm
Edge Tape Thickness – partial inclined: 0.4 – 3 mm
Feed Speed: 14 – 18 m/min

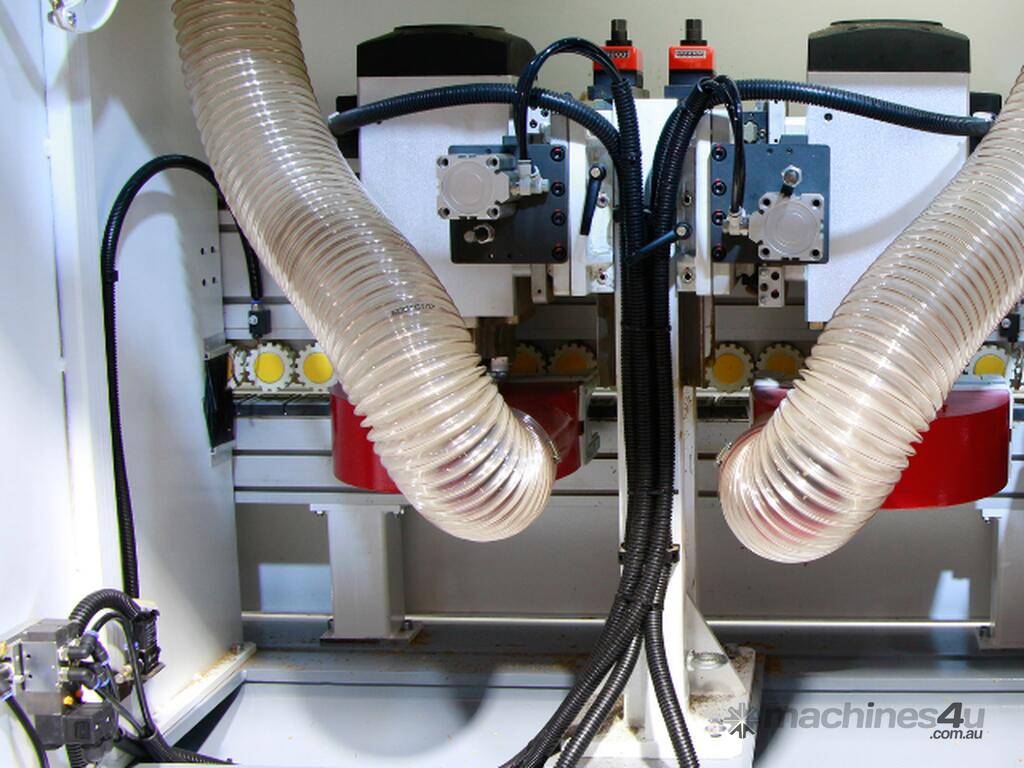

Dust Outlet: Ø 125 mm x 6

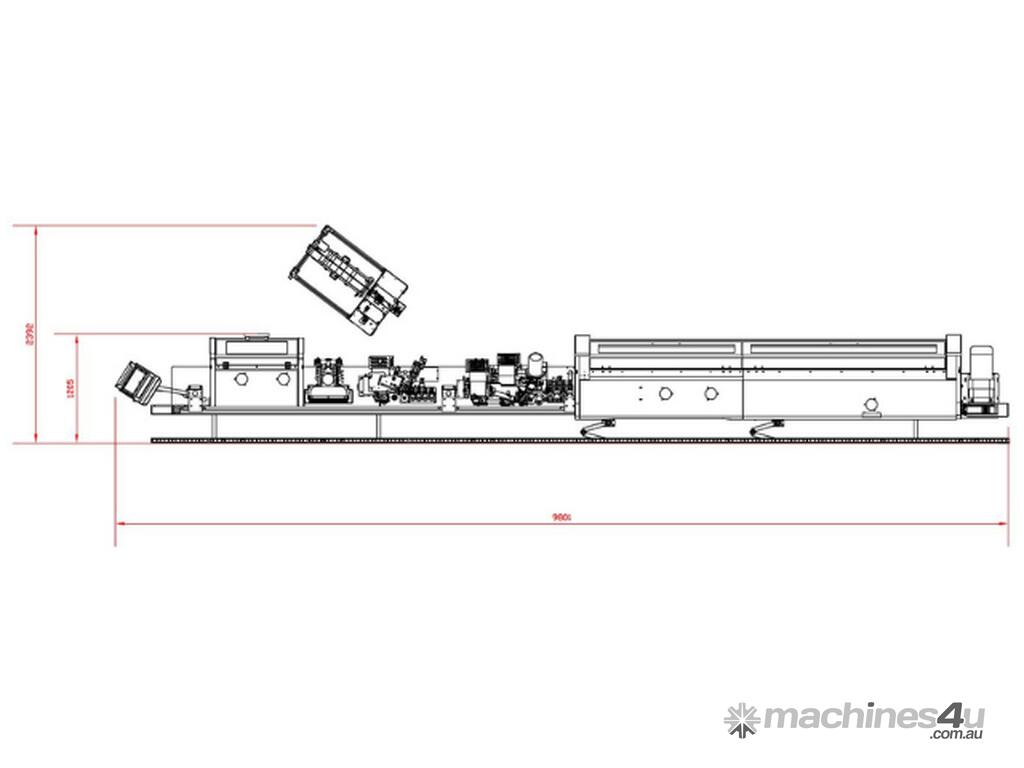

Dimensions (L x W x H): 9800 x 1205 x 1650 mm
Weight: 5000 kg
