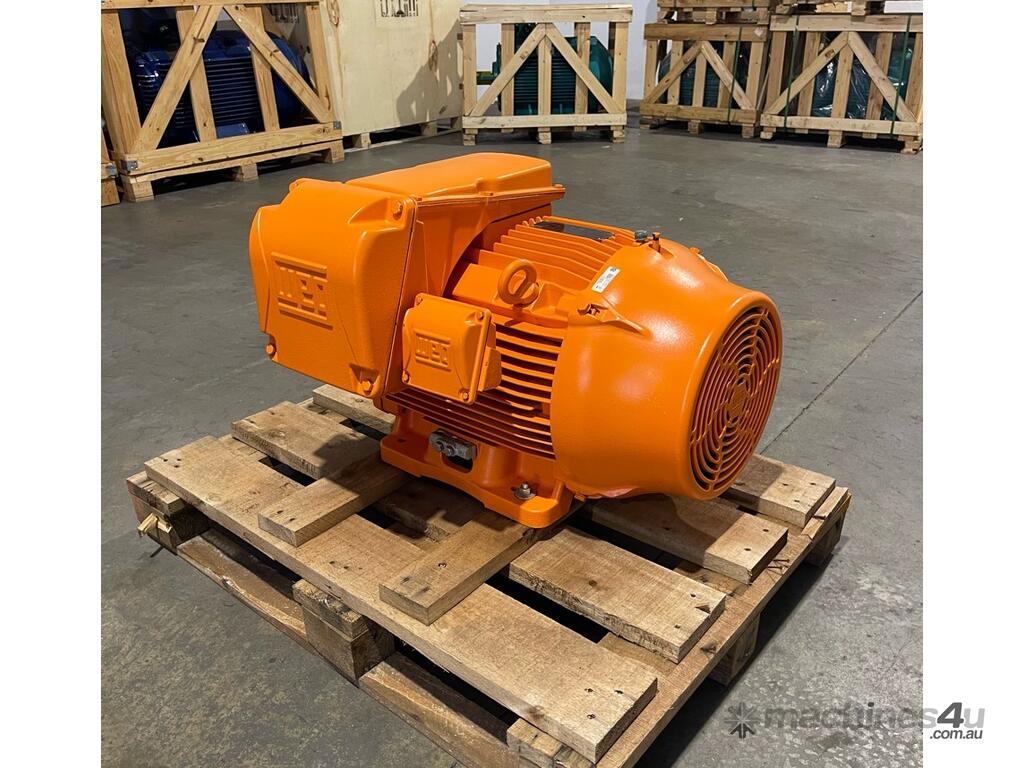

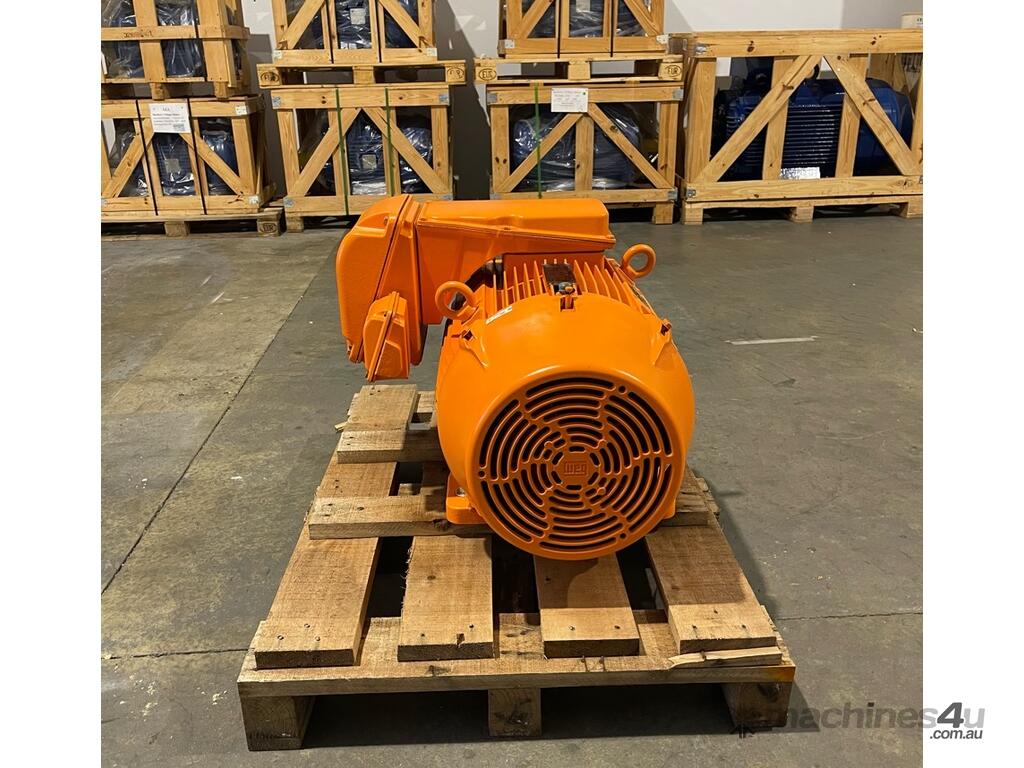

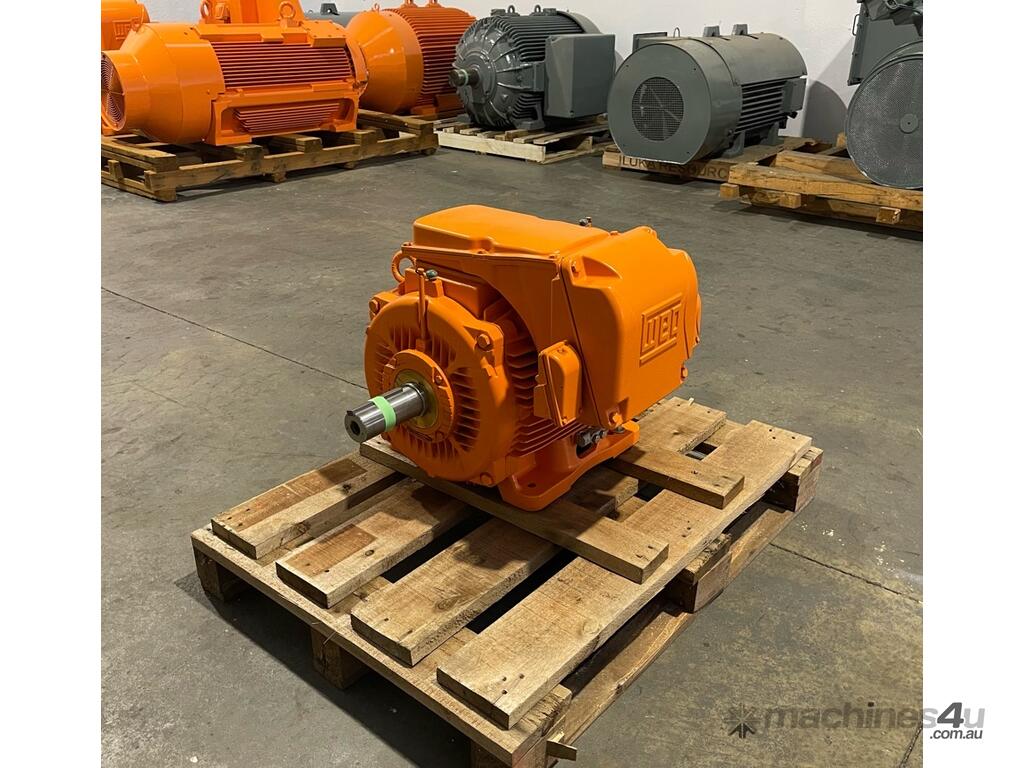

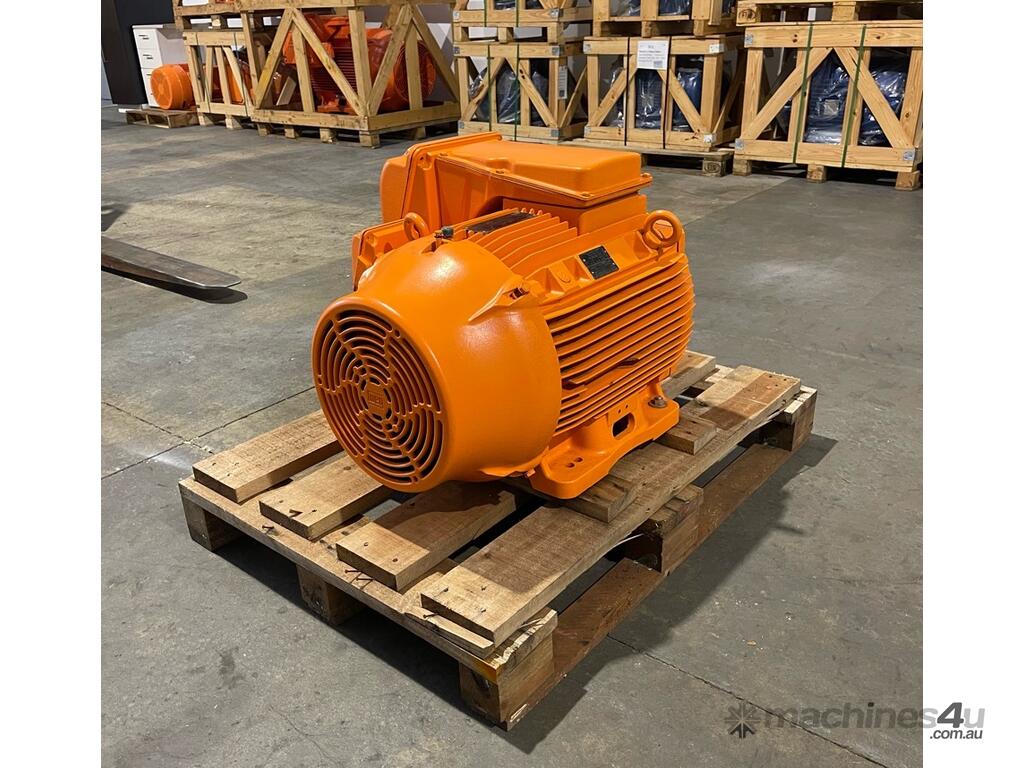

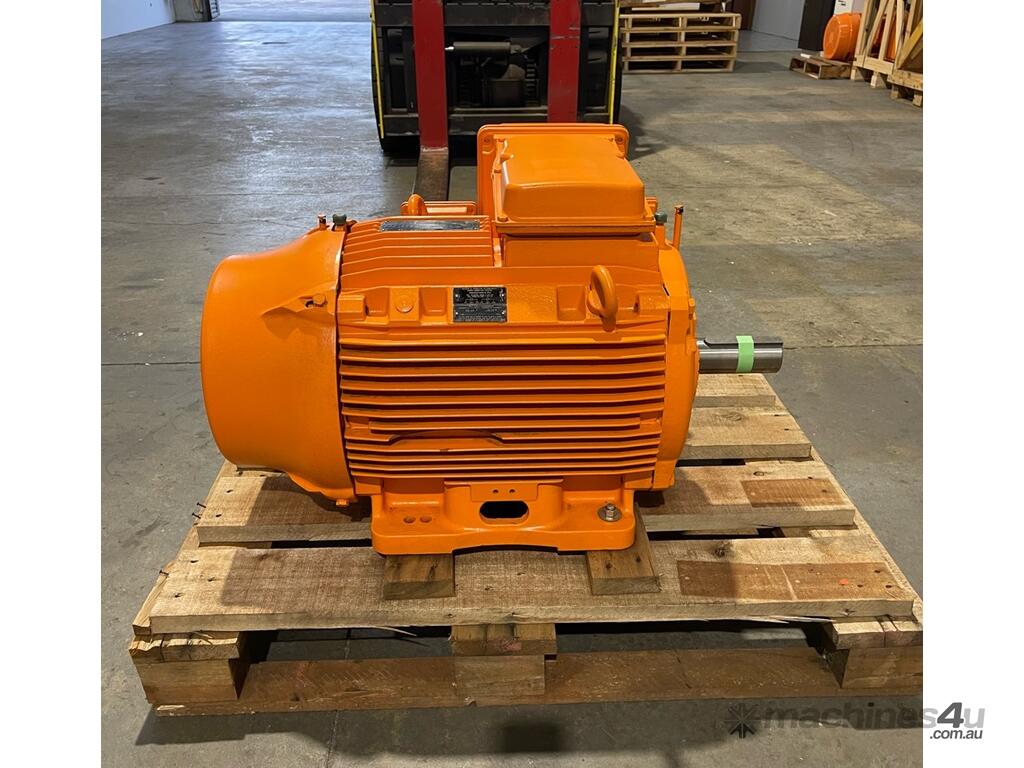

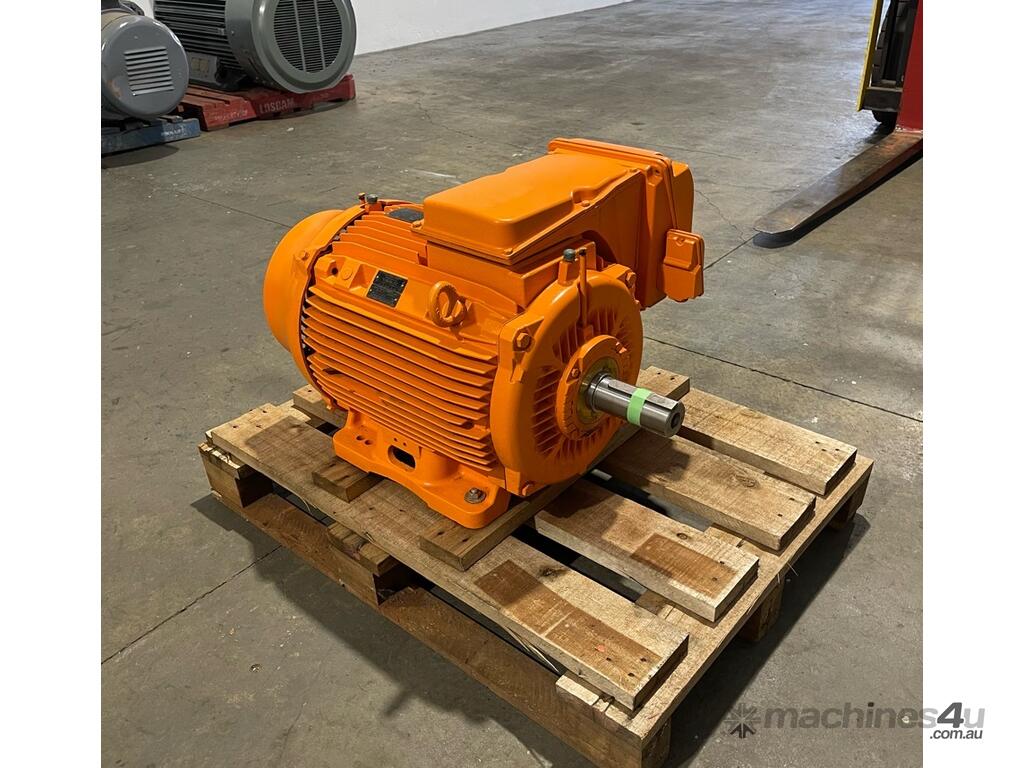

45 kw 60 hp 4-pole 1480 rpm 415v Foot Mount 225S/M frame IP66 Mining TEFC AC Electric Motor WEG Model KTE42 W22M YOM 2022 Unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: WEG
Model: KTE42 W22M
YOM: 2022
Origin: Brazil
Power: 45 kw (60 hp)
Speed: 4-pole (1480 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 83.1 A
Mount: B3 Foot
Frame: 225S/M
Protection Rating: IP66 Mining
Insulation Class: H
Duty: S1
Weight: 424 kg

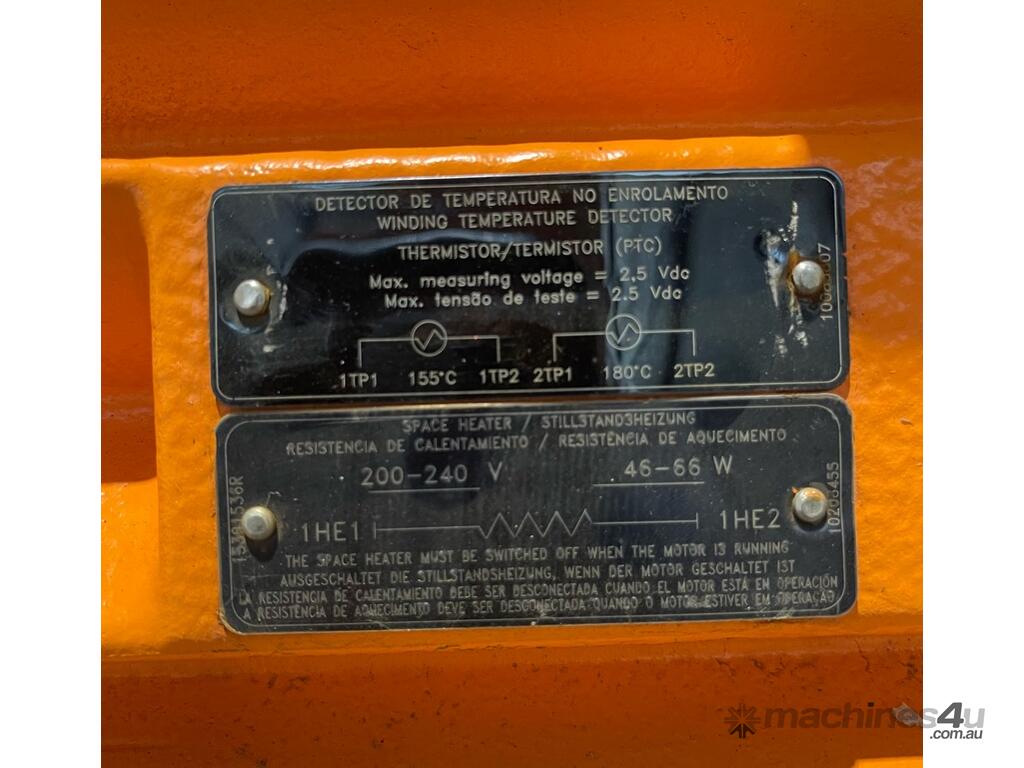

Inclusions: Drive-end roller bearing (for belt-driven application), Heaters & Thermistors
Critical Measurements:
Shaft DIA: 60 mm (by 140 mm long)
Centre shaft height: 225 mm
Total length: 885 mm (incl. shaft)
Total width: 627 mm (incl. standard RHS to D.E. terminal box)
Total height: 542 mm
Feet Measurements: Across 'A' - 356 mm, Front to Back 'B' - 286 mm & 311 mm
Front hole to shaft 'C' - 149 mm
Available QTY: 2 (identical pair)
Condition: Unused. N/L test run in motor workshop July 2023
exStock Seaford VIC 3198 Australia
Freight available Australia wide on request - immediate despatch
