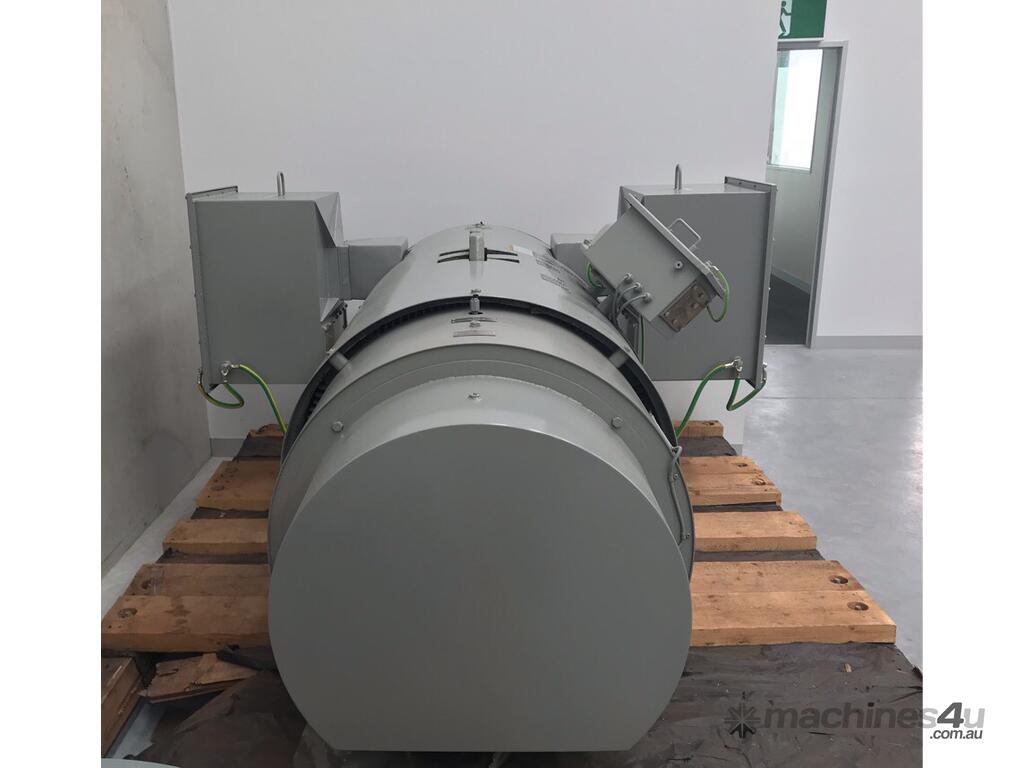

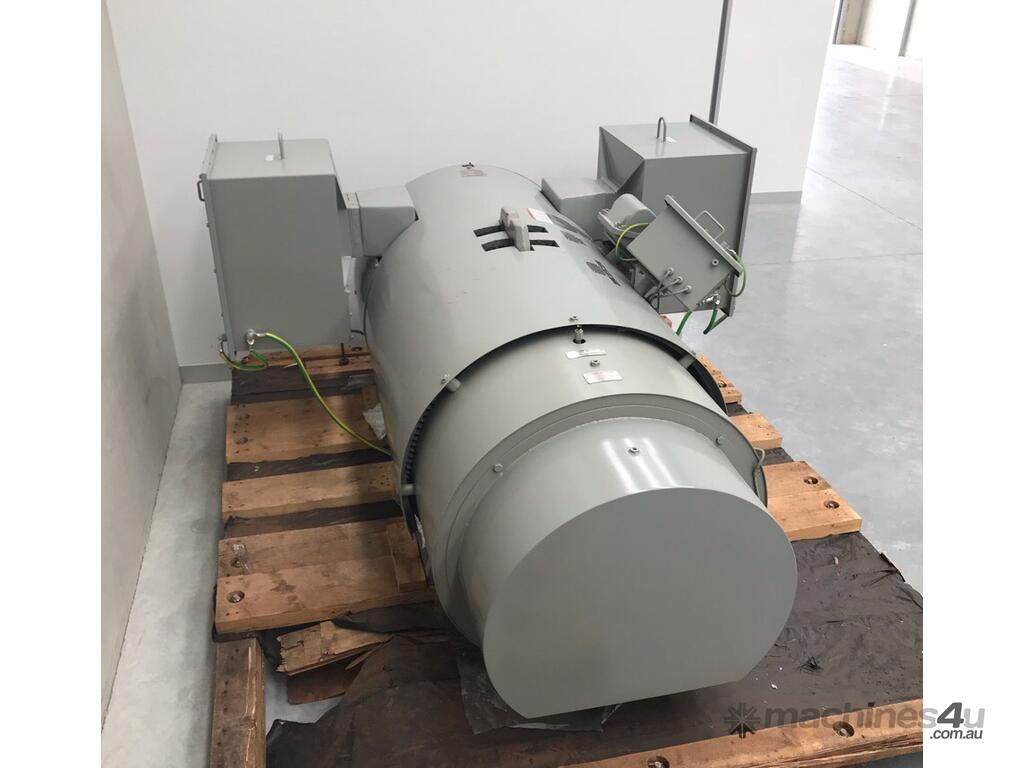

450 kw 600 hp 6 pole 980 rpm 6600 volt Foot Mount 450 frame AC Electric Motor Toshiba Type TIK FCKNW D450LL
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Toshiba
Type: TIK FCKNW D450LL
Power: 450 kw (600 hp)
Speed: 6 pole (980 rpm)
Voltage: 6600 v (6.6kv)
Full Load Amps: 49 A
Rated frequency: 50 Hz
Mount: B3 Foot
Frame: D450LL
Protection Rating: Mining IP56
Terminal Box: Either RHS or LHS to D.E
Weight: 4,700 kg

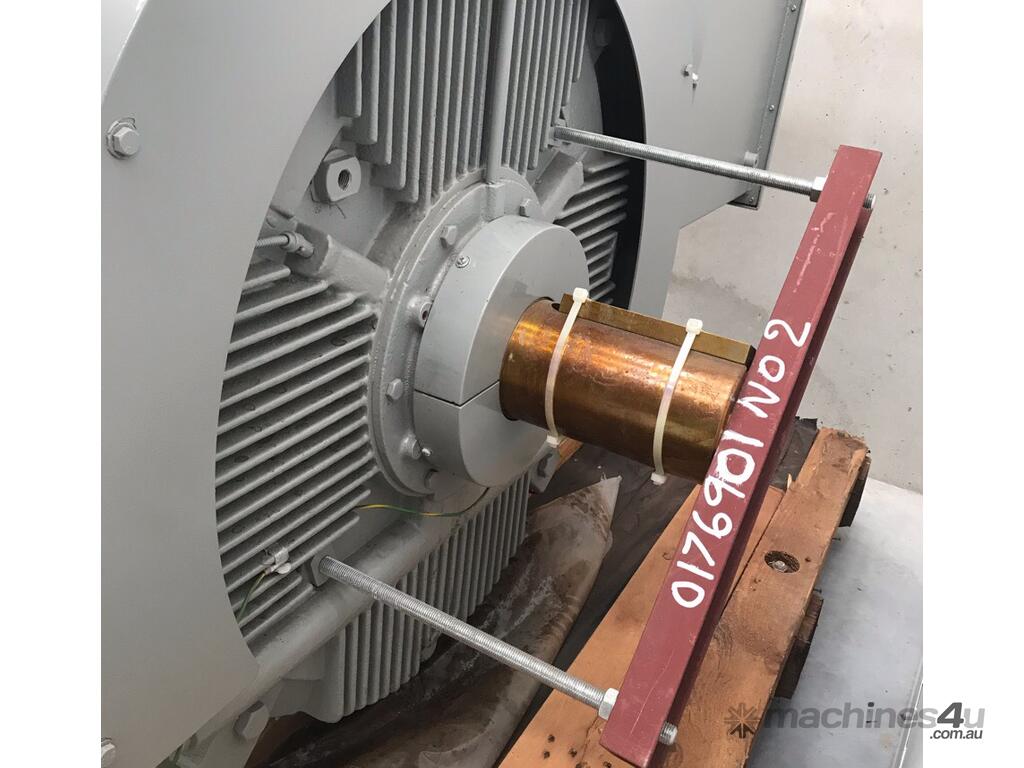

Shaft: 120 mm DIA x 210 mm Long
Centre Shaft Height: 450 mm
Total Length: 2495 mm (incl. shaft)
Total Width: 2050 (incl. terminal boxes)
Total Height: 1168 mm
Feet Measurements: 1120 mm front to back, 750 mm across
Front hole to shaft: 525 mm
Qty: 1
Condition: New/Unused
Delivery Point: exStock Pakenham VIC 3810
