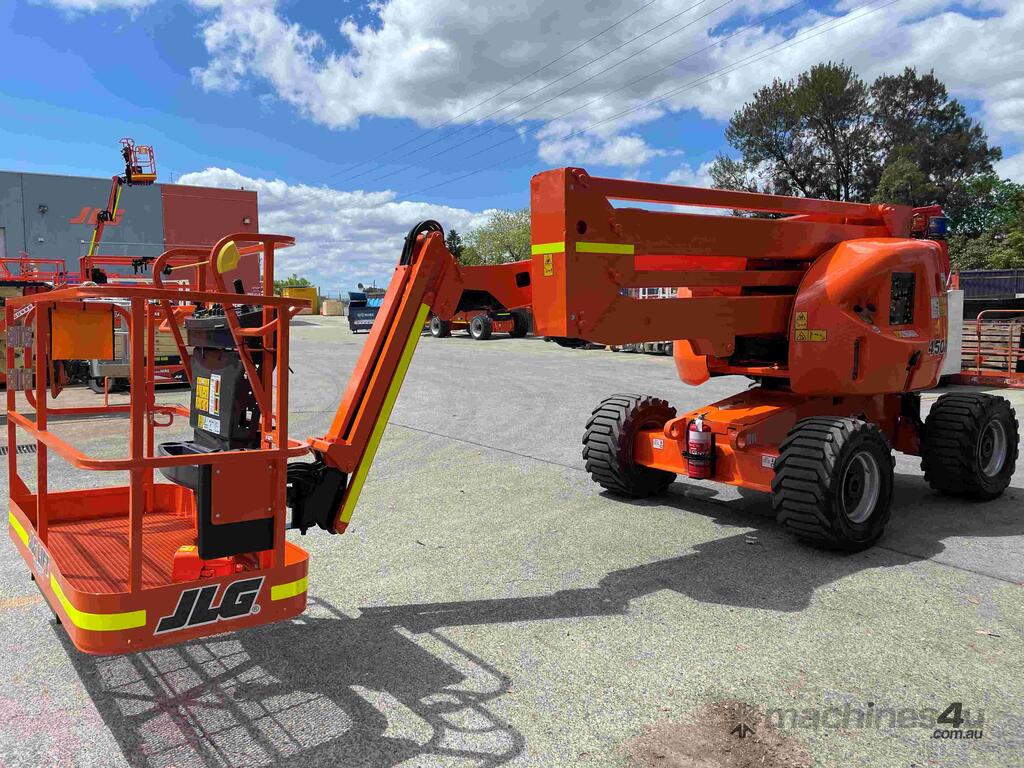

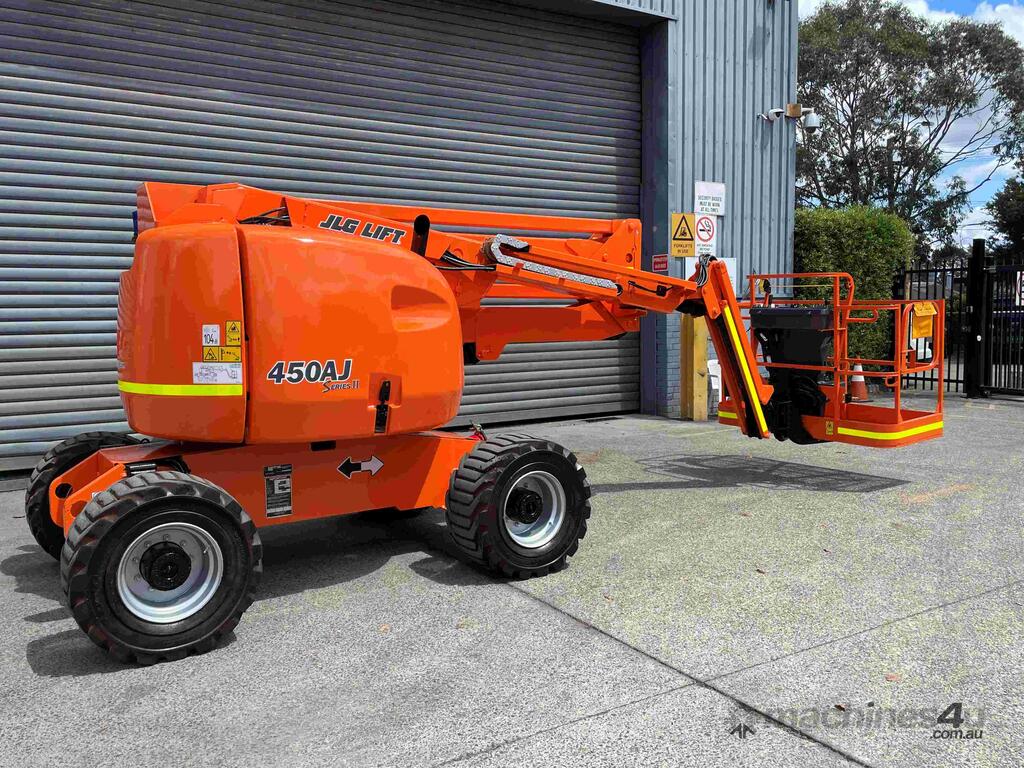

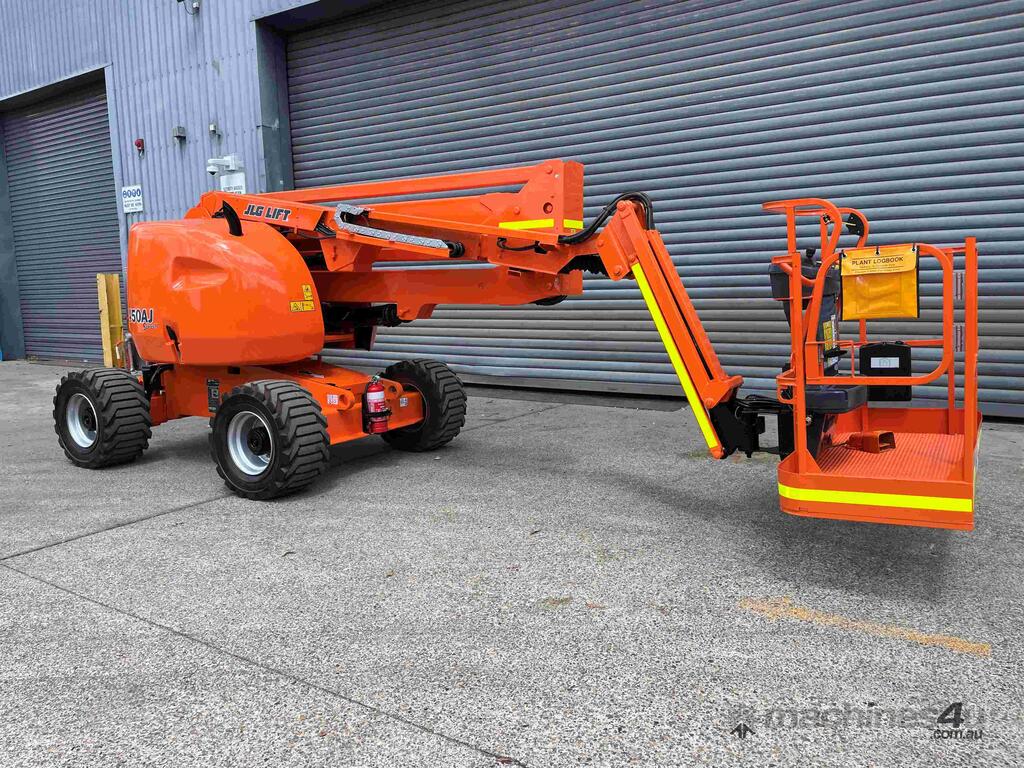

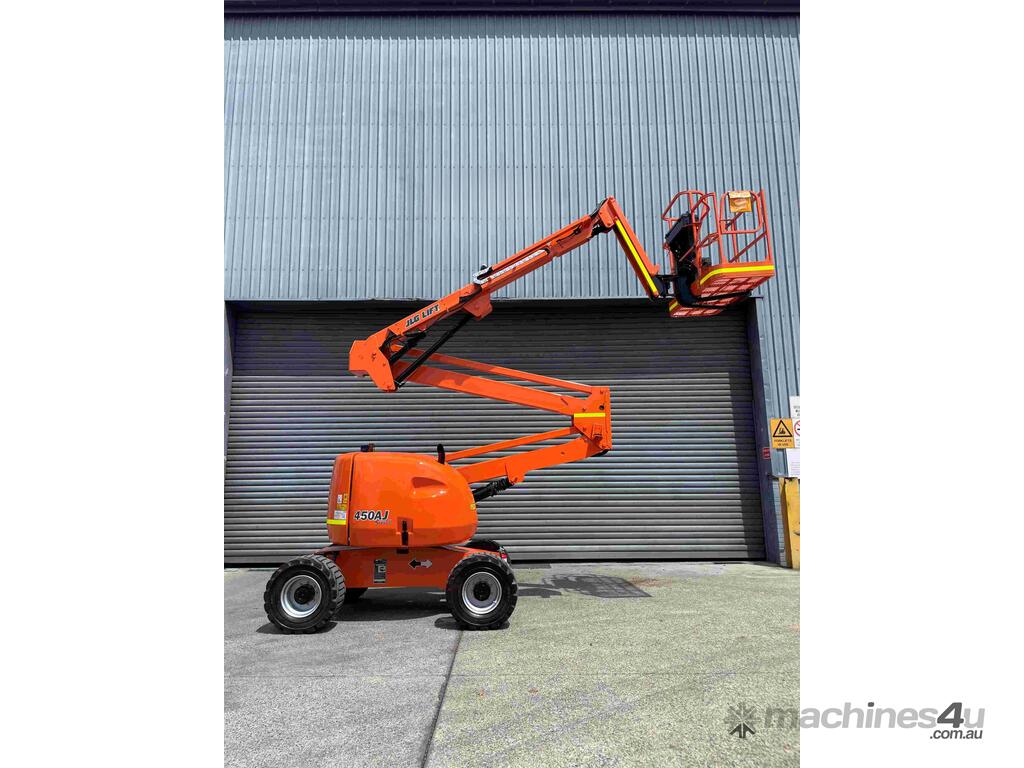

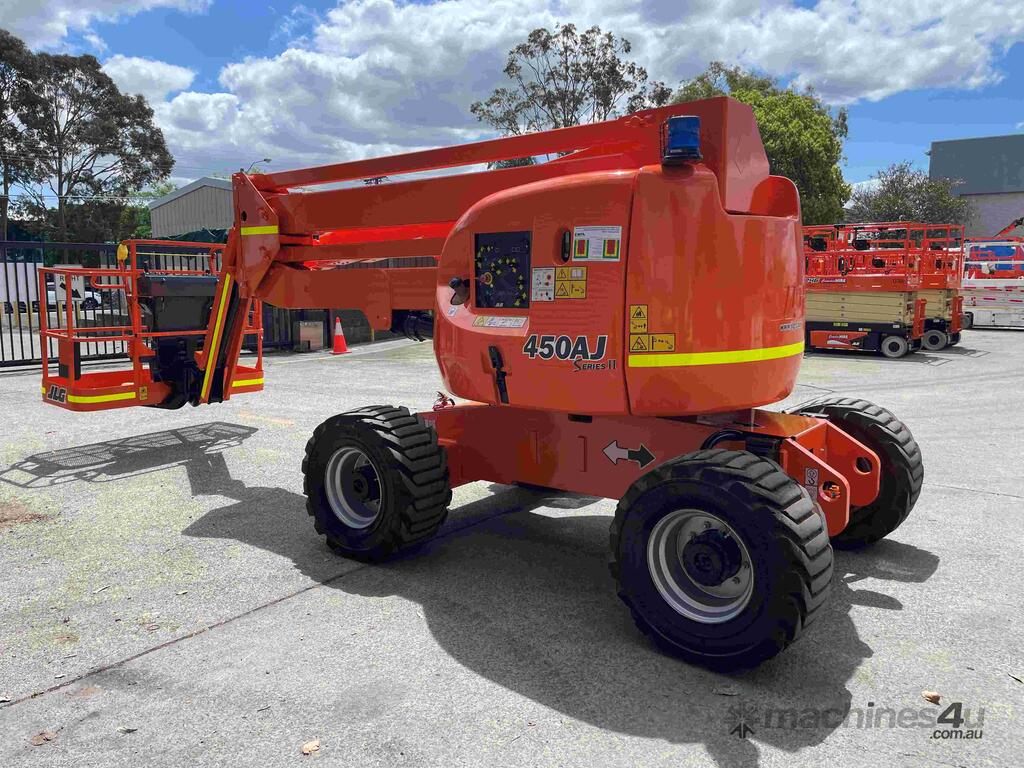

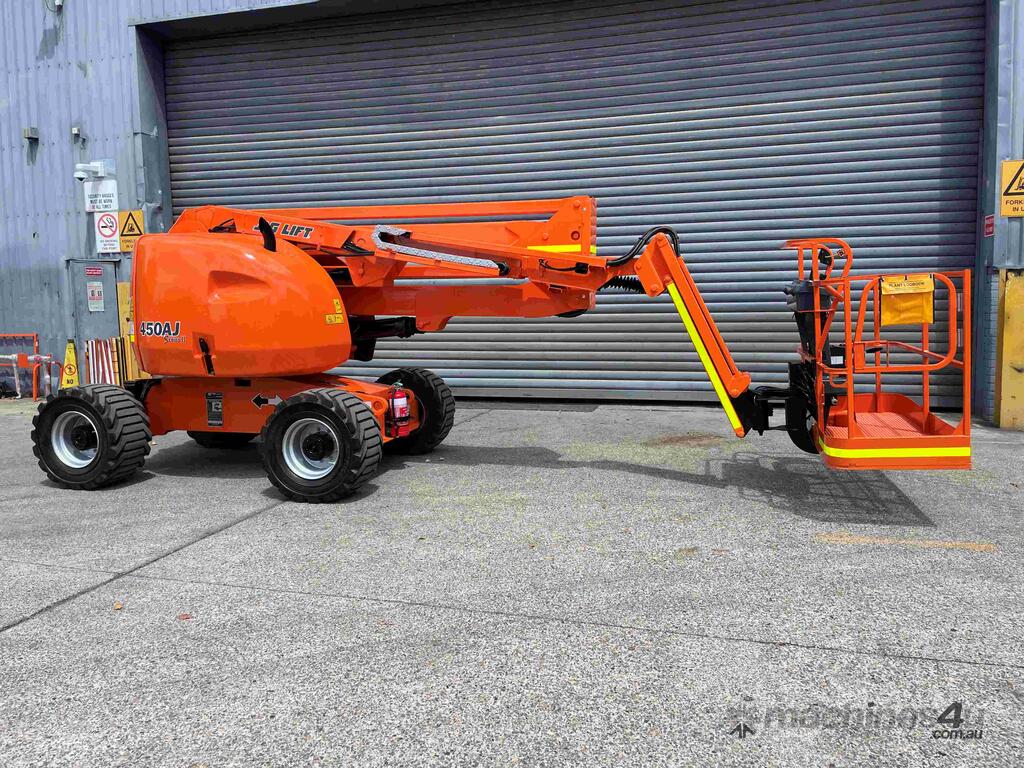

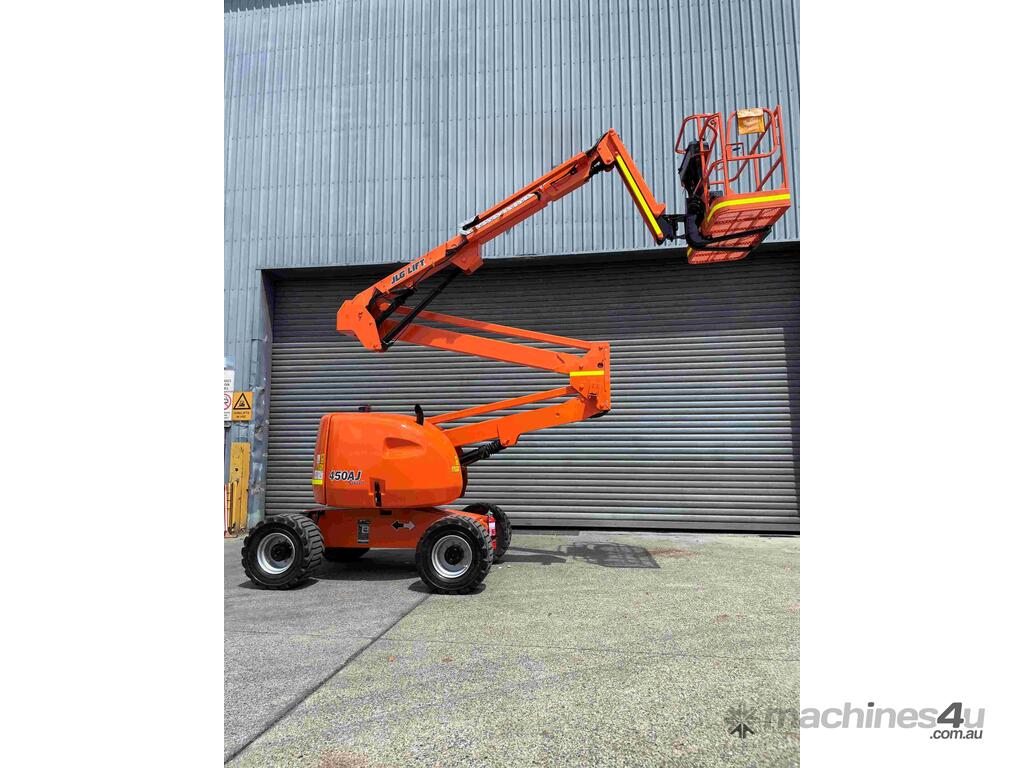

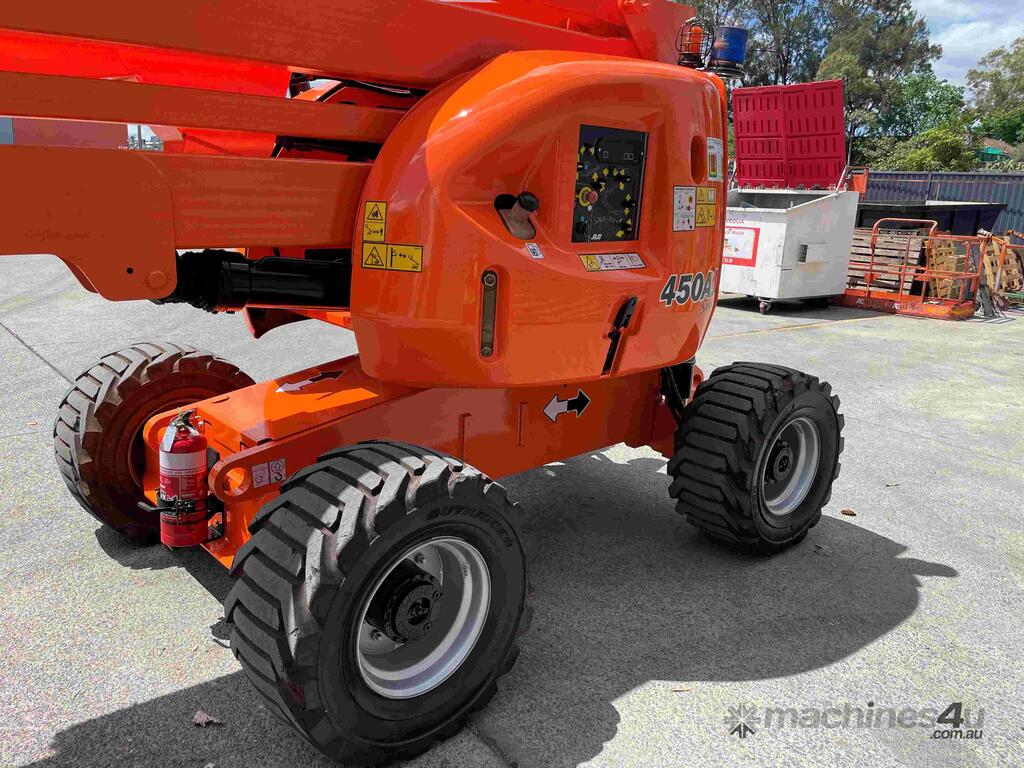

Recertified JLG - 450AJ Series II Articulating Boom Lift
First into service March 2008
10-year recertified and painted - September 2024

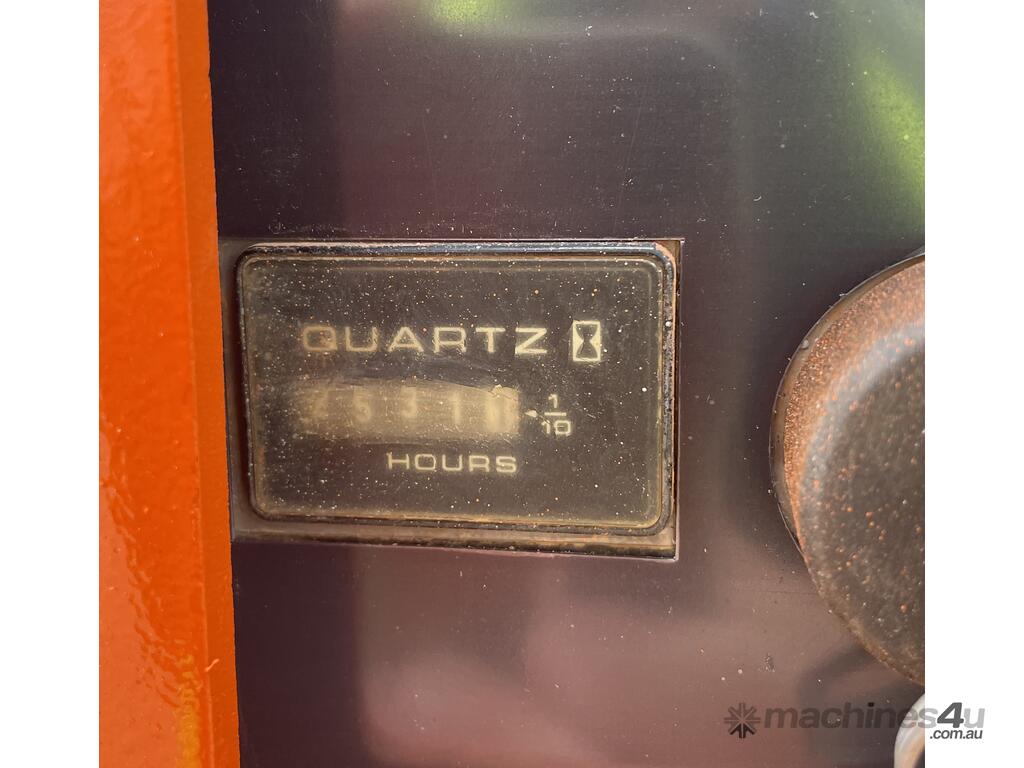

Hours - 2531
Includes Skyguard
Does not have sky power
JLG engine powered boom lifts get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.
Features:
-Reach those tight spaces that you can’t reach with other lifts
-Best-in-class lift speed increases productivity and efficiency

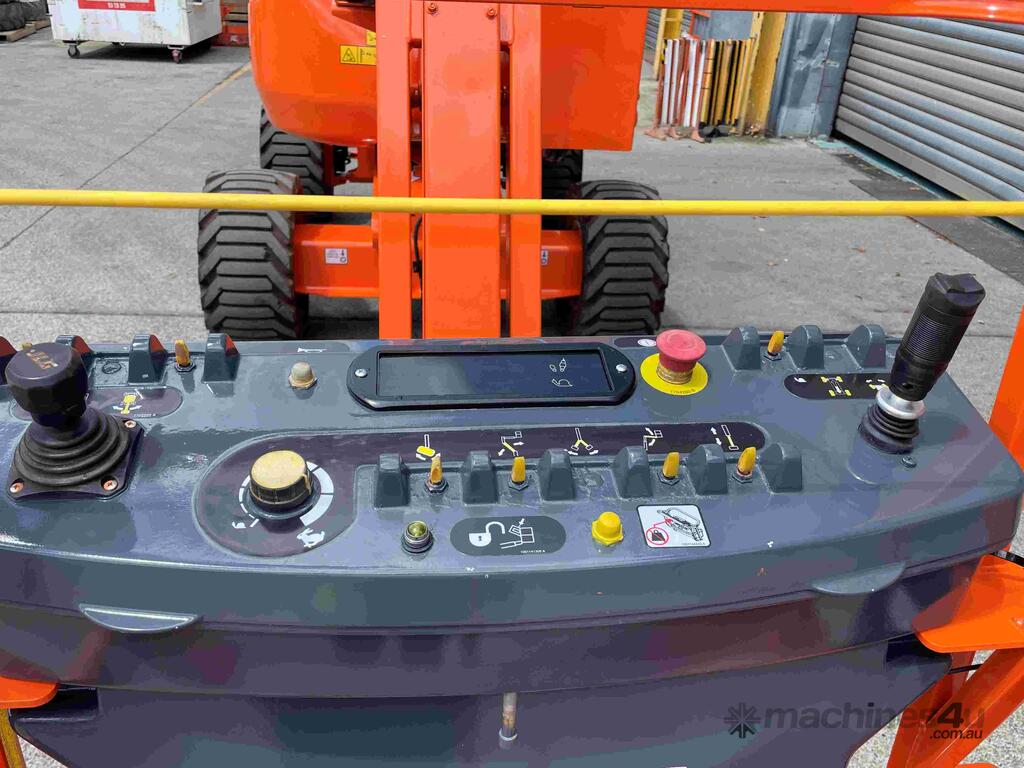

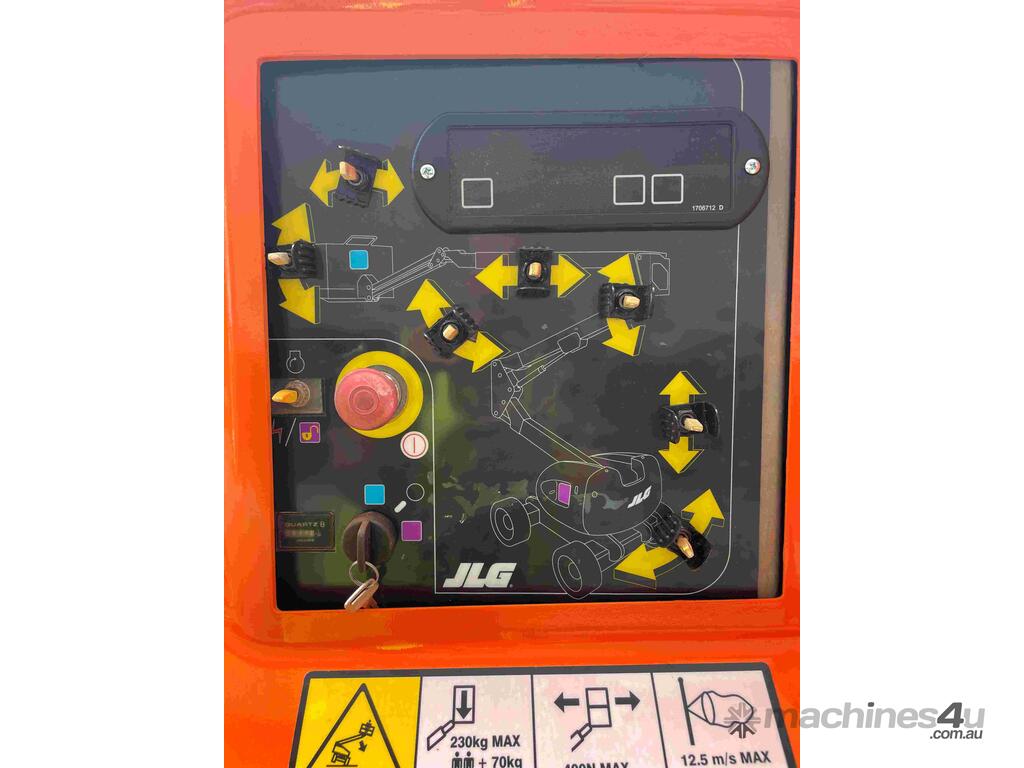

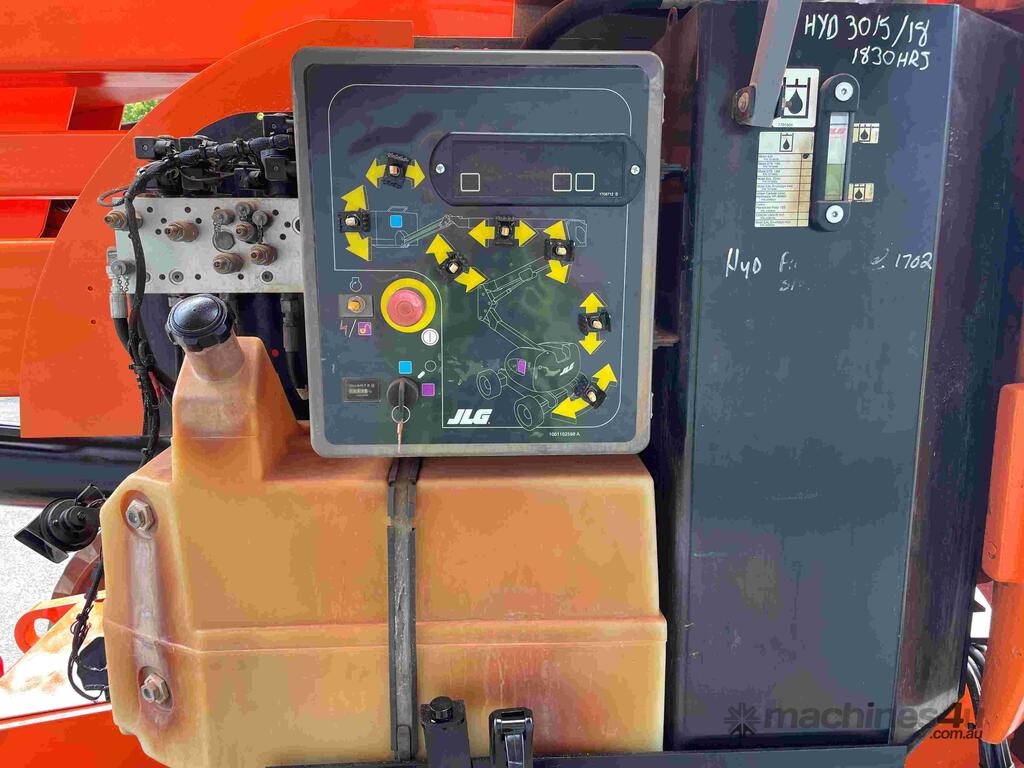

-Easy-to-use controls reduces training time and increases time on the job
Quick Specs:
Platform Height Elevated – 45 ft
Overall Width – 6 ft 10 in
Platform Capacity – 500 lb
Reach Specifications:
Platform Height 45' / 13.72 m
Horizontal Outreach 24' 6" / 7.47 m
Up and Over Height 25' 2" / 7.67 m
Swing 360º Non-Continuous
Platform Capacity 500 lb / 227 kg
Platform Rotator 180º Hydraulic
Jib (Range of Articulation) 145º (+78, -67)
Dimensions:

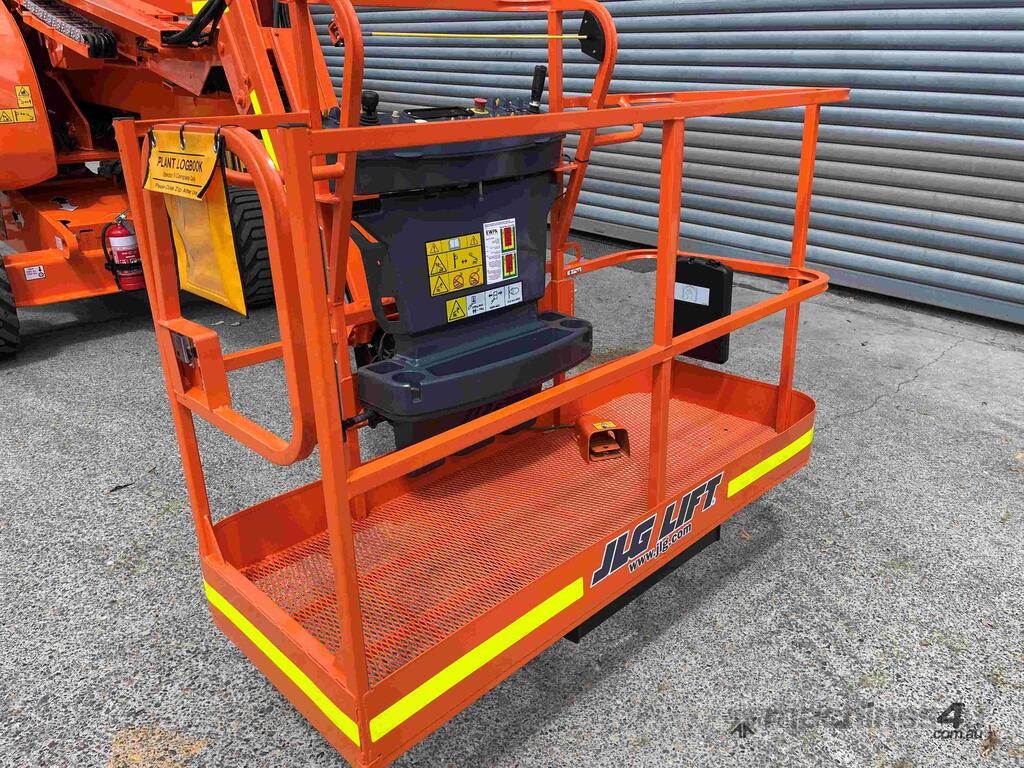

Platform Size 30 x 72" / 0.76 x 1.83 m
Overall Width 6' 10" / 2.08 m
Tailswing Zero
Stowed Height 7' 5" / 2.26 m
Stowed Length 21' 5" / 6.53 m
Wheelbase 6' 6" / 1.98 m
Ground Clearance 14" / 36 cm
Weight* 16,000 lb / 7,257 kg
Max. Ground Bearing Pressure*** 36 psi / 2.5 kg/cm²

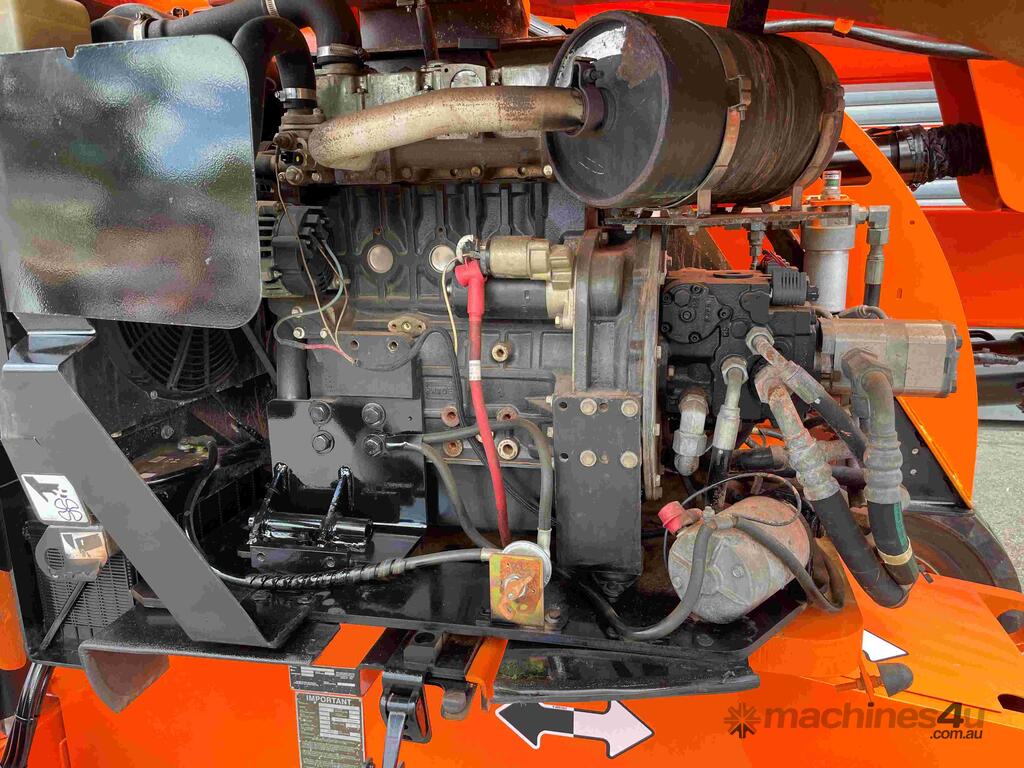

Power Source:
Dual Fuel Engine GM Vortec 3000 MPFI, 82 hp / 61 kW
Diesel Engine Perkins 404C-22 49 hpCaterpillar C2.2 50 hp / 36.5 kW37.2 kW
Fuel Tank Capacity 16.5 gal. / 62.46 L
Hydraulic Reservoir 30 gal. / 113.56 L
Auxiliary Power 12V DC
Noise Level 70 dBa 7 meters
Chassis:
Drive Speed 2WD 3.5 mph / 5.6 kmph
Drive Speed 4WD 4.5 mph / 7.2 kmph
Gradeability 2WD 30%
Gradeability 4WD 45%
Turning Radius (Inside) 5' 8" / 1.73 m
Turning Radius (Outside) 14' / 4.27 m
Axle Oscillation 8" / 20 cm

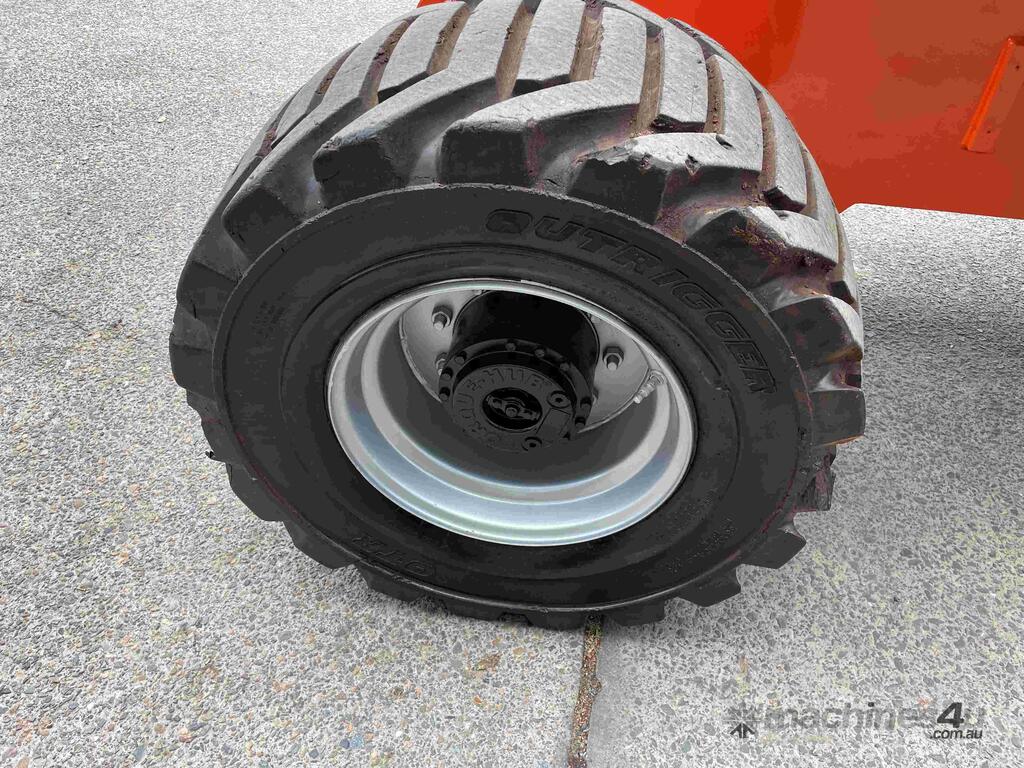

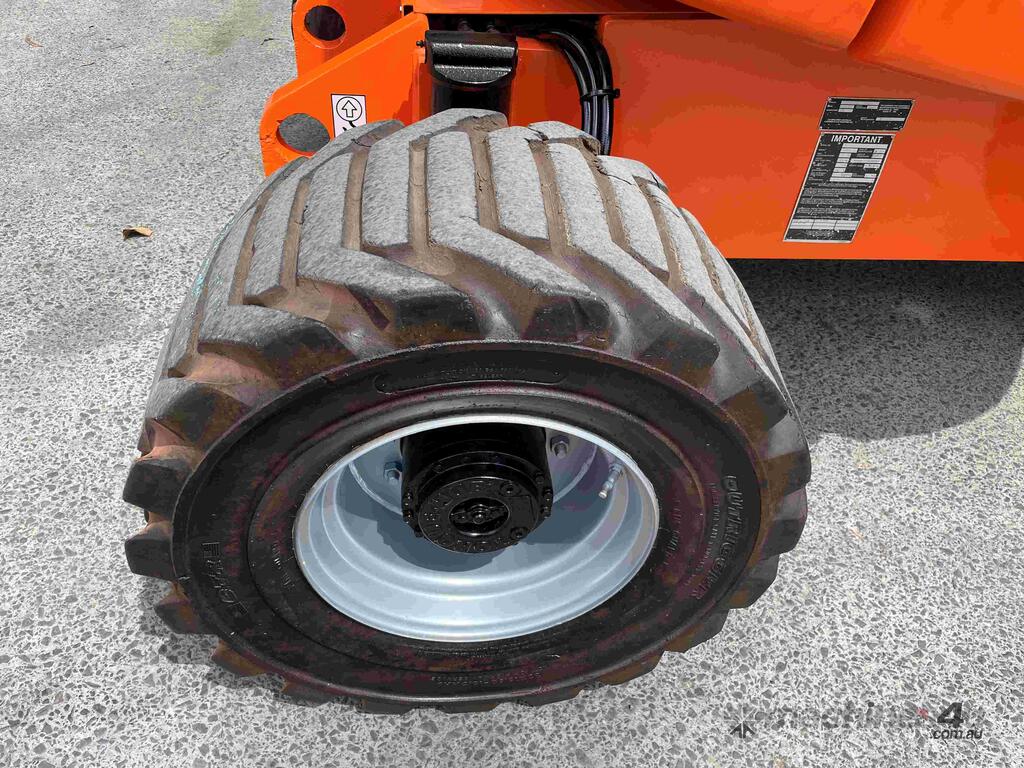

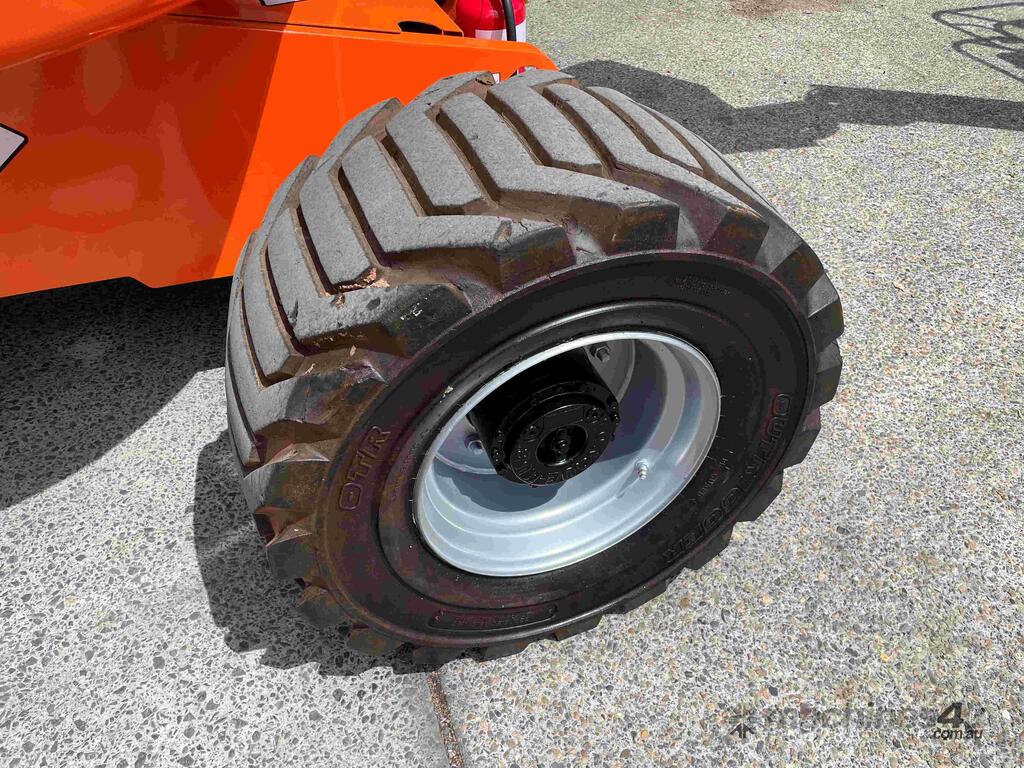

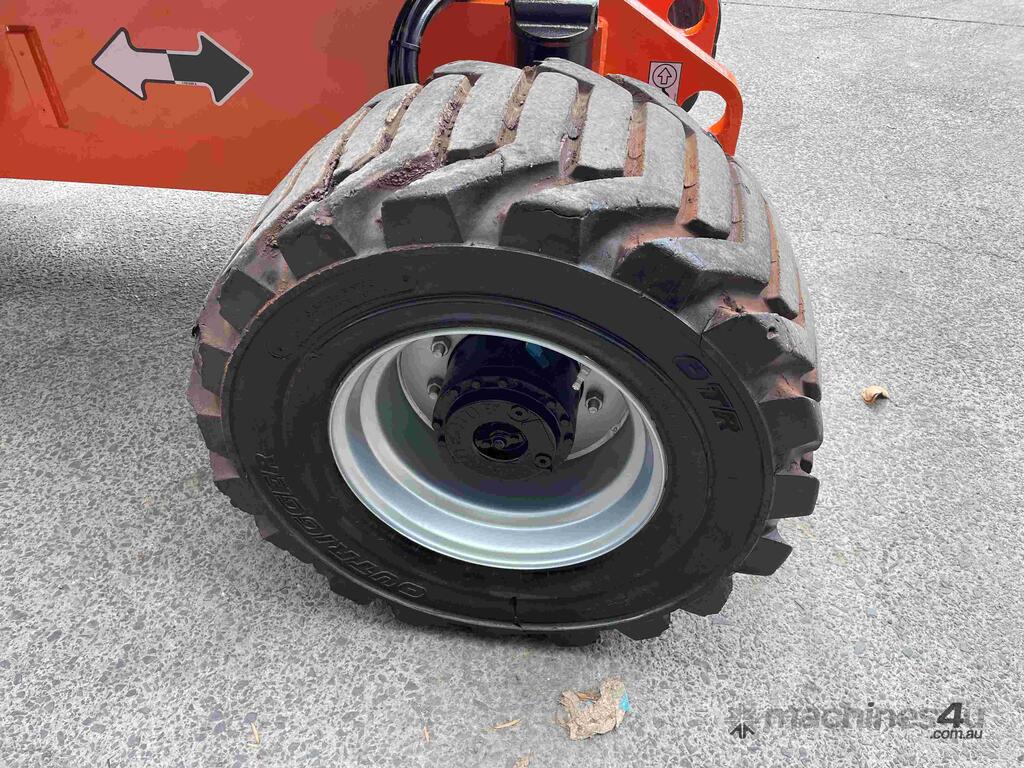

Tire Size 33/1550 x 16.5
Tyre Type Superwide
Type of Tracks** Open Bar Steel Track
Tracks Width** 12" / 30.5 cm
FEEL FREE TO CALL PRONTO ACCESS FOR ALL INFORMATION CONCERNING THIS MACHINE AND ANY OTHER PRODUCT WE SELL
