50-160mm Butt Welder HIRE - Ritmo Semi-Auto Easy Life V2

Looking for a reliable, efficient and semi-automated butt welder to hire?

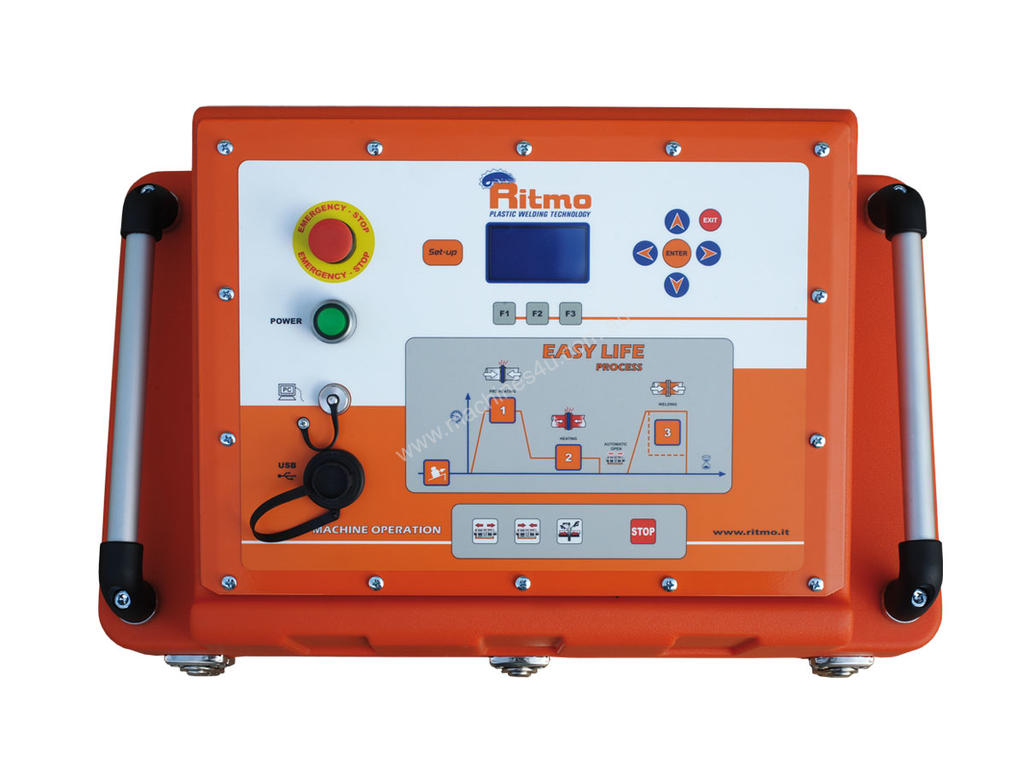

The Italian-Made Ritmo Basic 160 Easy Life Butt Welder manages the welding process in a semi-automatic way thanks to a special gear case. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows you to quickly set the desired parameters.

The Easy Life system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port. This machine has the capability to pre-set 50 customised welding phases. The Basic 160 Easy Life is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

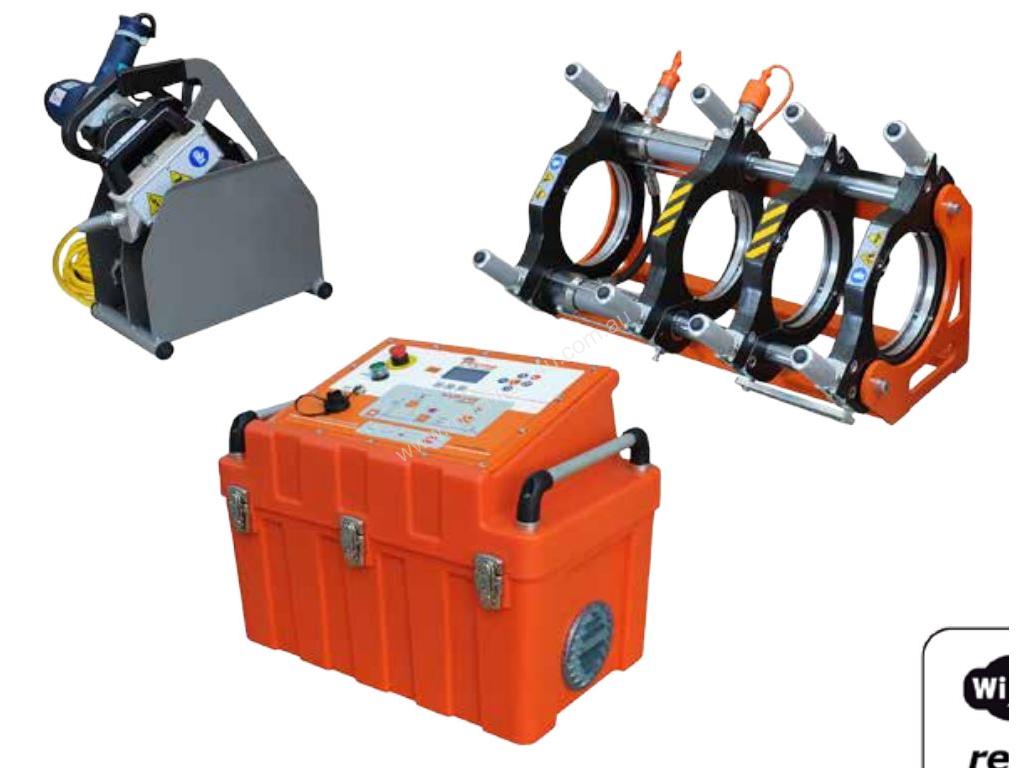

Machine Composition:

- A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
- An extractable heating plate - An extractable milling cutter, with safety micro-switch
- An electrohydraulic gearcase EASY LIFE - A hydraulic hoses with non – drip quick couplings
- Adapters from Ø 40 to 140 mm

Technical features:

Materials: HDPE - PP - PB - PVDF
Working range: Ø 40 ÷ 160 mm
Power supply: 230 VAC 50/60 Hz
Total absorbed power: 2250 W
Gearcase: 1100 W
Report: 4000 welding cycles
Working temperature: 180° ÷ 280° C
Pressure working range: 0 ÷ 150 bar
Weight only body machines: 21 Kg
Weight gearcase: 37 Kg
Dimension machine: 606 x 365 x 375 mm
Dimension gearcase: 585 x 384 x 463 mm
