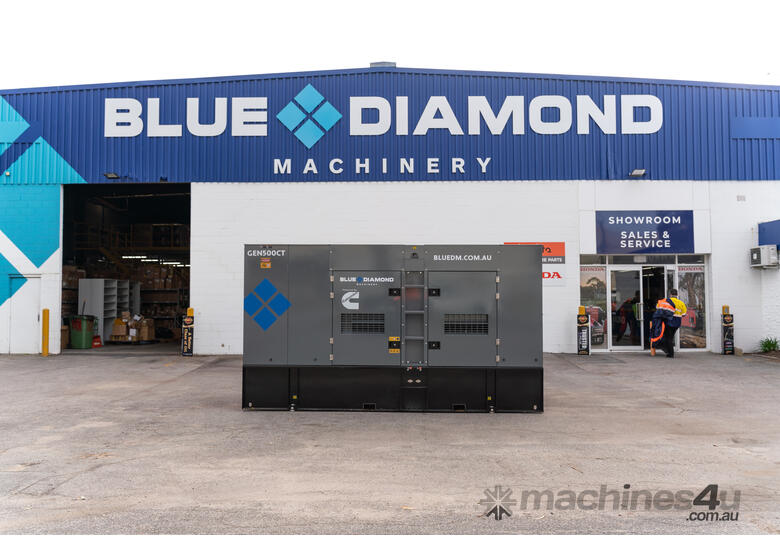

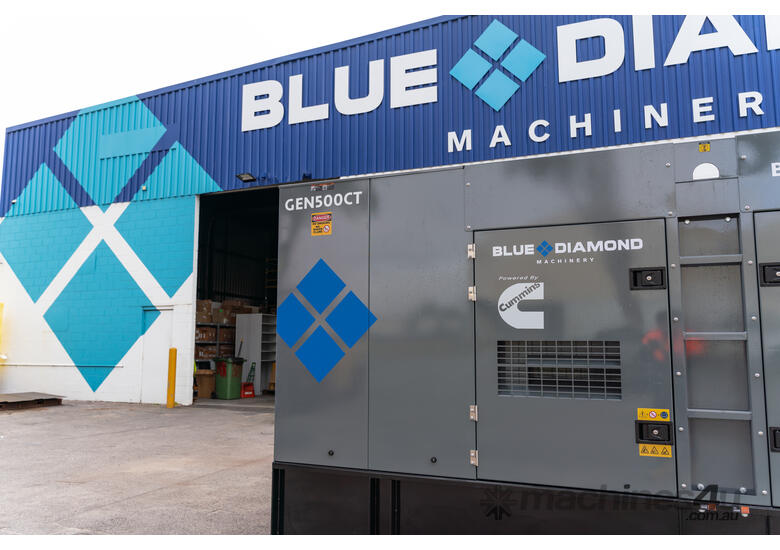

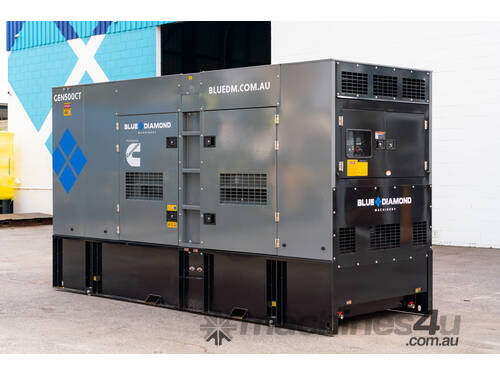

500 KVA Diesel Generator- 3 Phase- 415V- Cummins Engine
Blue Diamond 500 KVA diesel generator is cost-effective, efficient and robust unit you can buy for your power needs. Cummins engine is a 6 cylinder diesel turbo ensuring the highest quality and optimum performance for stationary standby and prime power duty operations. Fully enclosed sets with very compact design, water cooled- so will run in hot conditions, Super Quiet-fully enclosed sound proof canopy, remote start and an automatic transfer switch plug.
This 550 KVA generator provides the added benefit of featuring true three phase output and for a multitude of three phase appliances. This means you can connect single phase and three phase appliances to the one generator- perfect for both 240V and 415V appliances. Suited for larger loads found in job sites, industrial machinery, commercial or farming. Or as standby/backup generator for office and commercial buildings or entire job site.
Blue Diamond’s range of Cummins Powered Diesel Generators provide heavy duty and reliable power for a range of industrial applications and are backed by a generous 2 year – 1000 hour warranty for your piece of mind.
Diesel Generator Key Features
Model: GEN500CT
Stand By kVA: 500
Prime kVA: 455
Four stroke, water cooled
Direct injection fuel system
Engine: CUMMINS
Model: QSZ13-G3
Aspiration and cooling: TURBOCHARGED
Number of Cylinders and build: 6 - INLINE
Engine speed: 1500 RPM
12 HOURS RUN TIME
Fuel Consumption 75% load: 74.2 L/H
Genuine Stamford Alternator
Enclosed Silenced Canopy with Fork Points
ComAP MRS 16 Controller
ABB Breakers
1200L Fuel Tank
Double Bunded Fuel Tank
Remote Start ATS Plug
Design: BRUSHLESS SINGLE BEARING
Insulation system: CLASS H
Standard temp rise: 125 - 163 DEG C CONTINUOUS
Cooling: DIRECT DRIVE CENTRIFUGAL BLOWER FAN
Insulated canopy to reduce noise
Forkpoint in base
Thermally insulated engine exhaust system
Dimensions (LXWXH)MM: 4500 X 1500 X 2300
Dry weight: 5850 KG
Noise Level: 72 dB (A) 7M
Australian Compliant Wiring and M.E.N link
Pricing Includes Commisioning and Pre Delivery run in
Recommended oil; 15W40
Dimensions - 450cm x 165cm x 250cm
Weight - 6750Kg
Optional Extras
Automatic Transfer Switch ATS- can be attached to your diesel generator and allows for automatic switching from your mains power to your standby/backup generator supply.
Warranty
Gain peace of mind knowing your Cummins Powered Diesel Generator is backed by our Generous 2 year – 1000 hour warranty. We offer 24/7 Australia wide support on all our Cummins diesel generator models, with service agents throughout Perth, Melbourne, Brisbane, Adelaide, Sydney.
Delivery
We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne.
Blue Diamond Machinery is an Australian-owned and operated company specializing in the supply of high-quality power and construction equipment. With a wide range of products including generators, air compressors, lighting towers, and fuel storage solutions, the company caters to industries such as mining, construction, and agriculture. Known for exceptional customer service, Blue Diamond Machinery delivers tailored solutions to meet diverse project needs. With a strong commitment to reliability and performance, the company ensures that every product is backed by expert support, making it a trusted partner for clients across Australia seeking dependable equipment solutions.
Go to the Blue Diamond showroom on Machines4u to see our range, send Blue Diamond a message about the item you are interested in, or give Blue Diamond a call, we are happy to answer any of your questions.
* Click on the PDF spec sheet for more detailed information *
