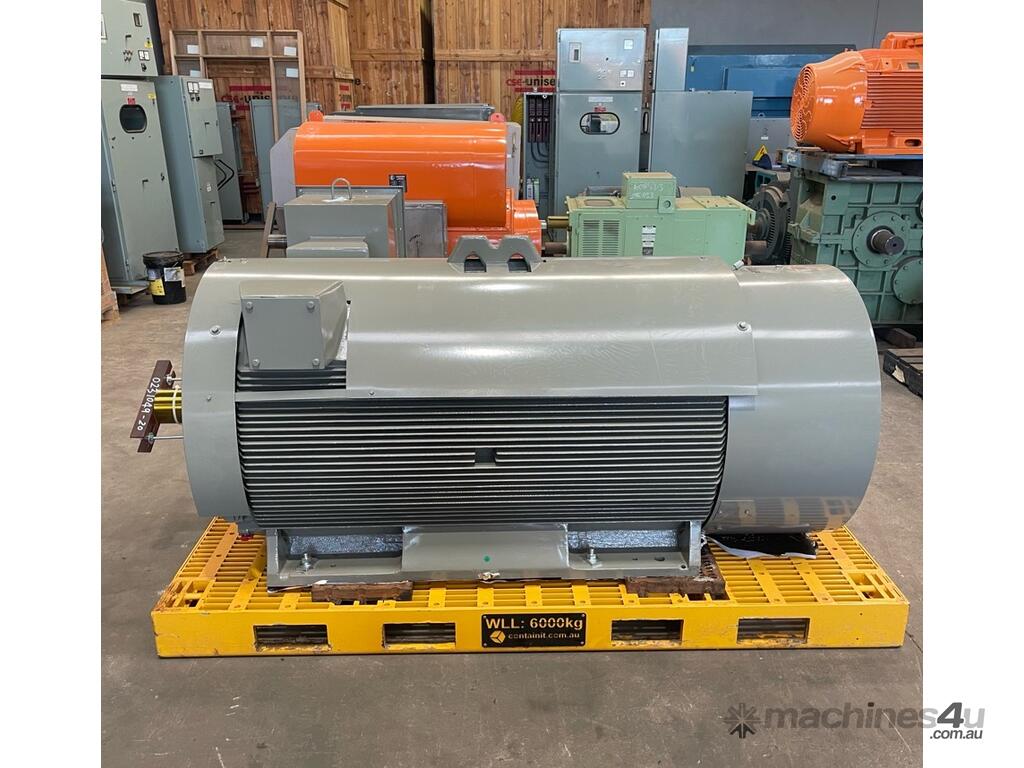

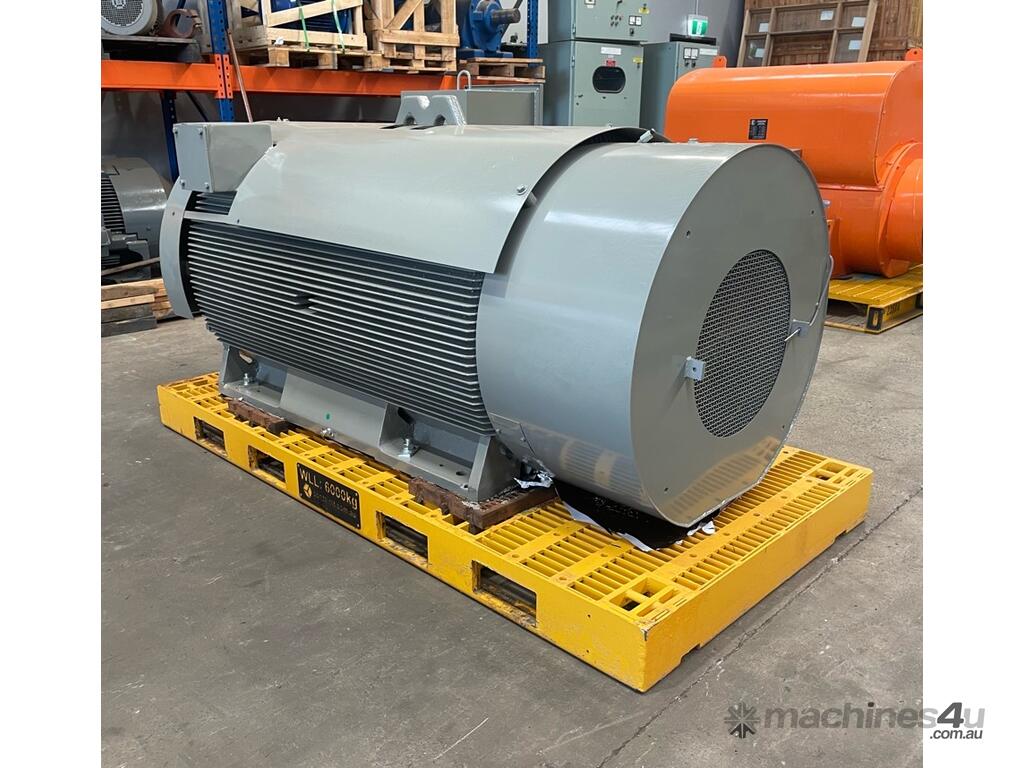

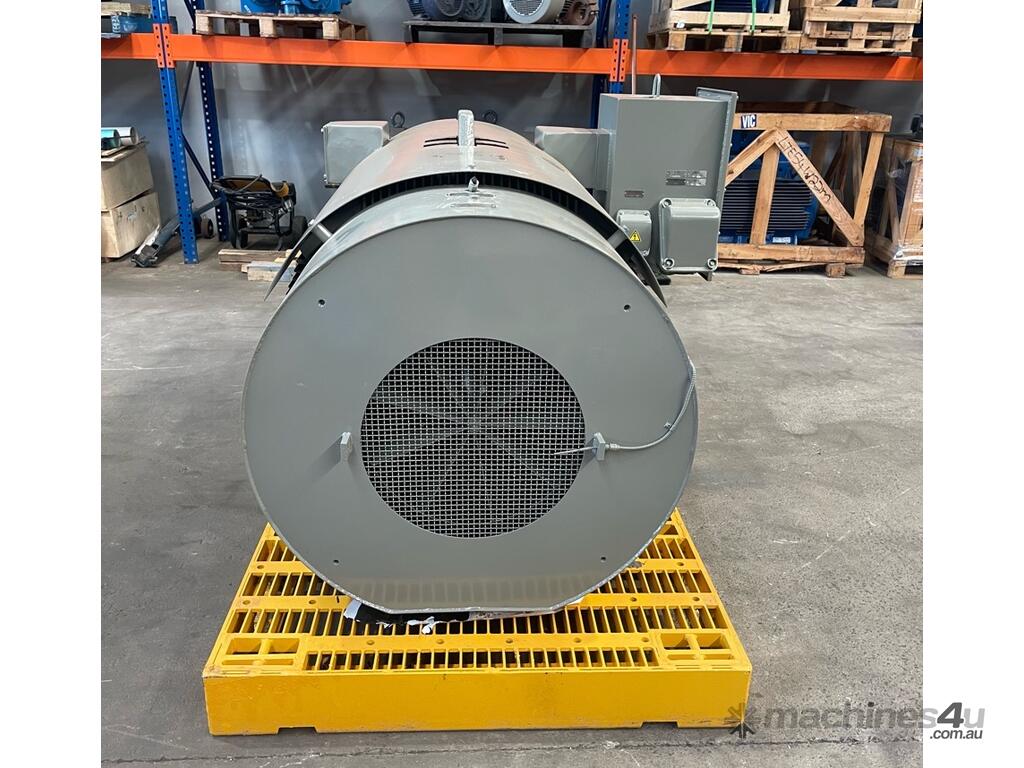

500 kw 670 hp 6-pole 980 rpm 415 volt Foot Mount D450LL frame Mining Spec AC Electric Motor TOSHIBA Type TIK FCKNW AS-1359 New Unused
Category: AC Squirrel Cage Electric Motor

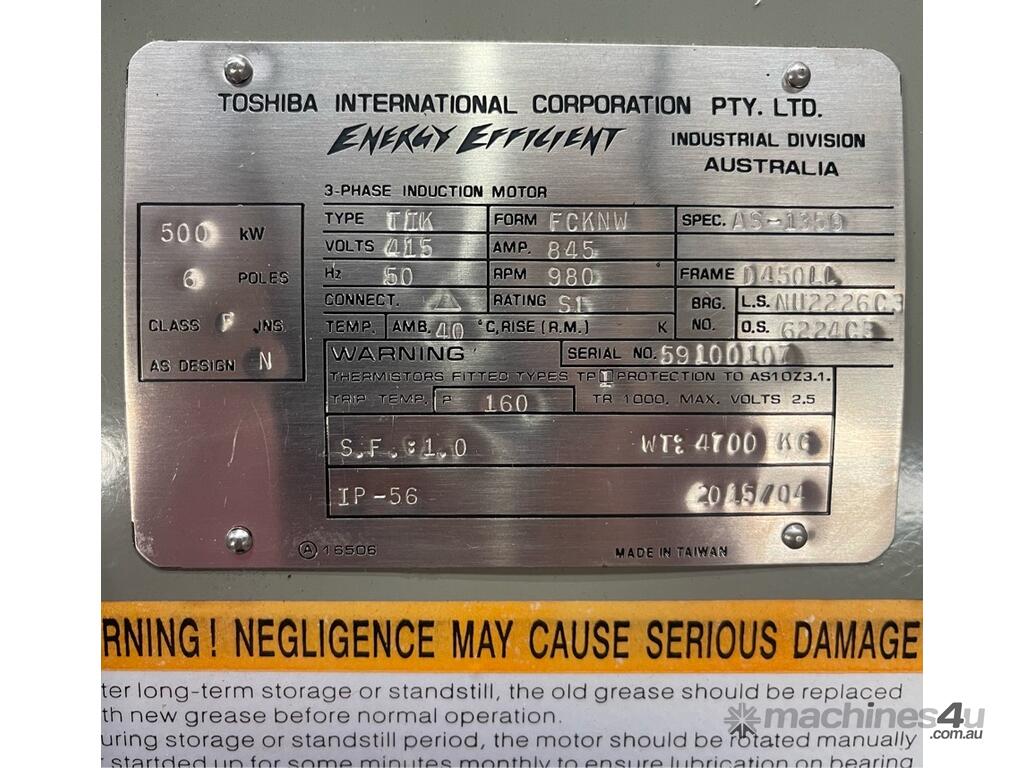

3-phase induction motor
Make: Toshiba
Type: TIK FCKNW AS-1359
YOM: 2015
Power: 500 kw (670 hp)
Speed: 6-pole (980 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415 v
Full Load Amperage: 845 A
Mount: B3 Foot
Frame: D450LL
Weight: 4700 kg
Inclusions:

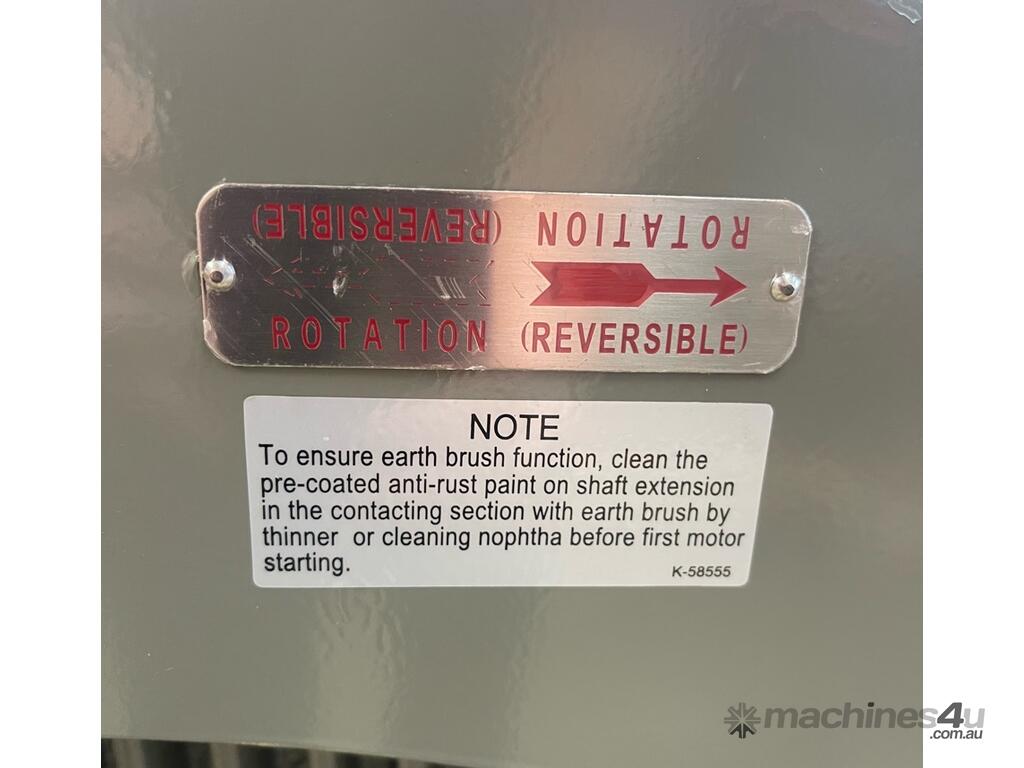

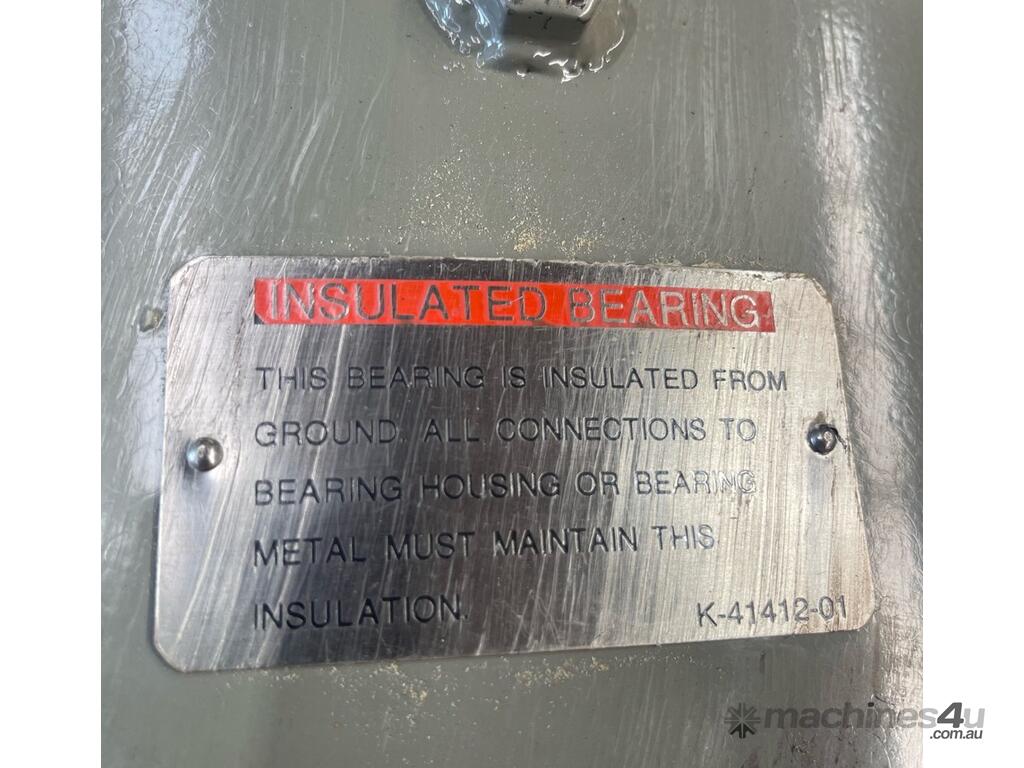

- Setup for VSD Application - includes N.D.E. insulated bearing, plus earth brush fitted to shaft

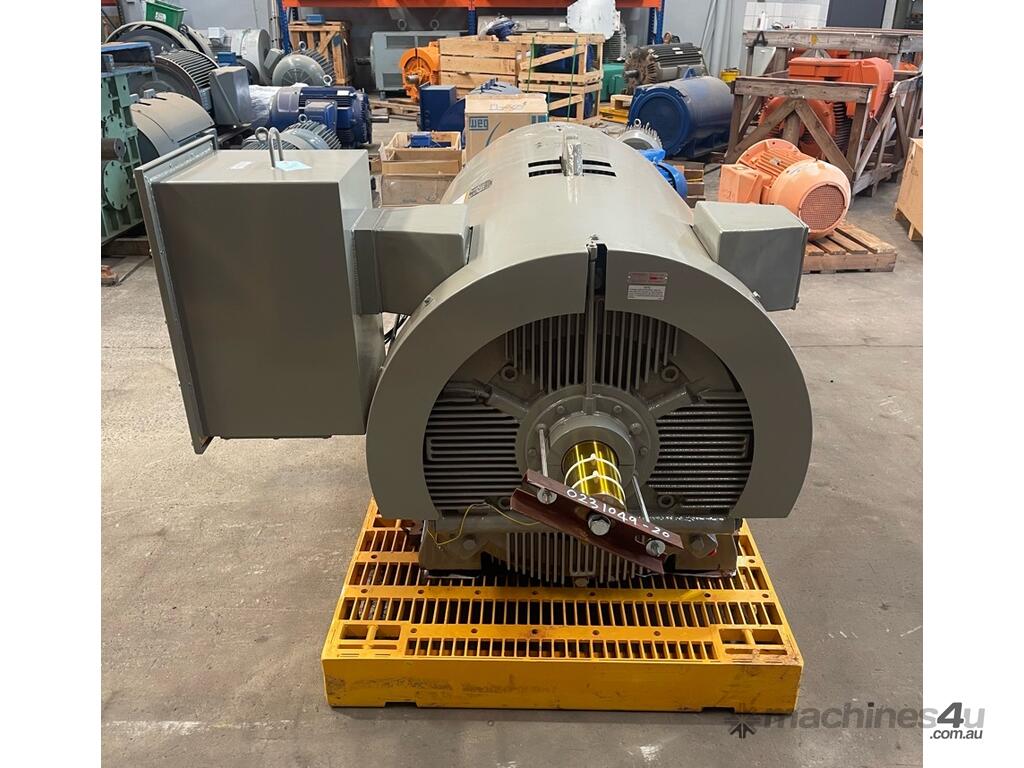

- D.E. Roller Bearing (for belt driven application)

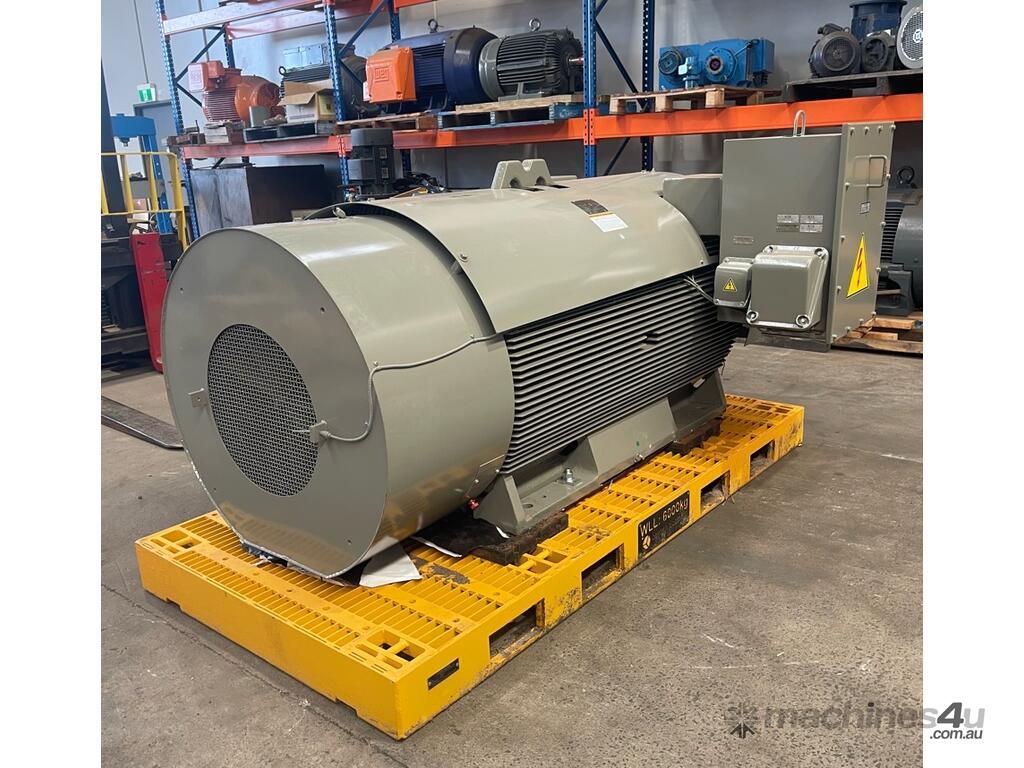

- Mining Cover

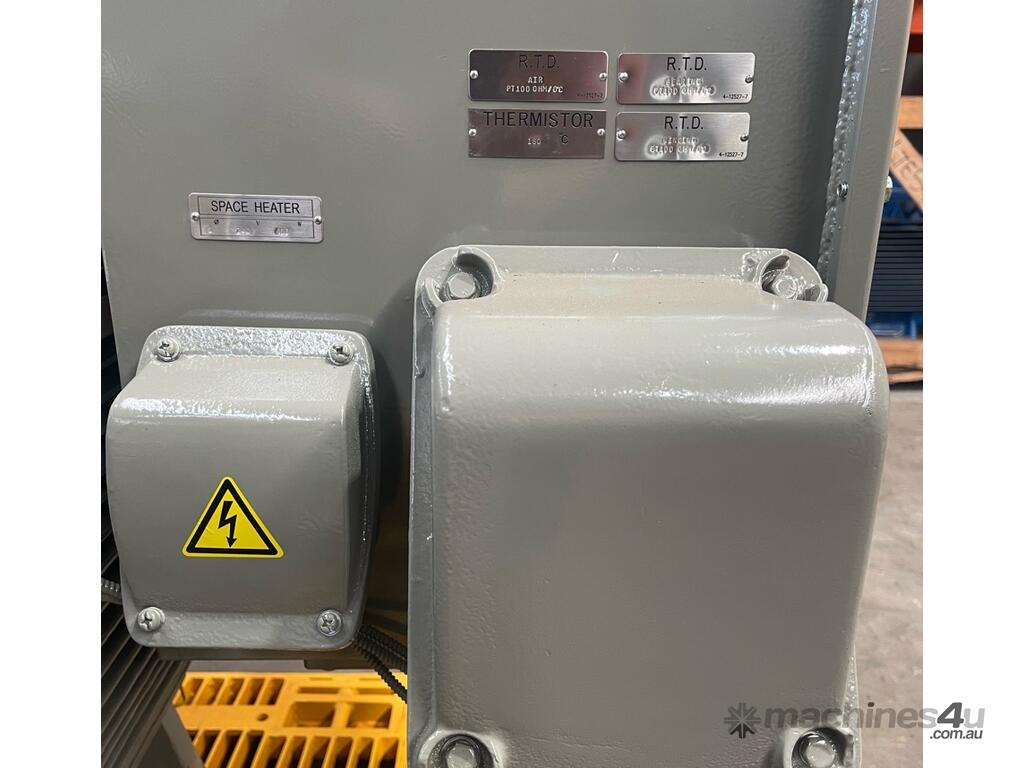

- Heater / Thermistors / Winding & Bearing sensors
Critical dimensions:

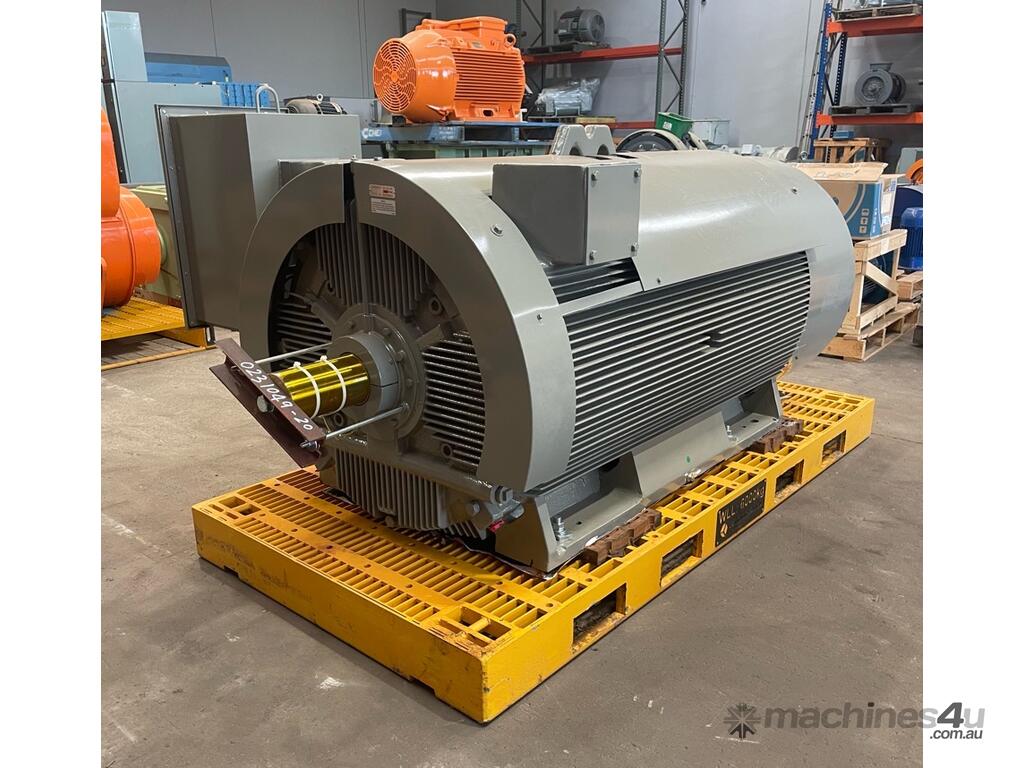

Shaft: 120 mm DIA x 210 mm long
Centre shaft height: 450 mm

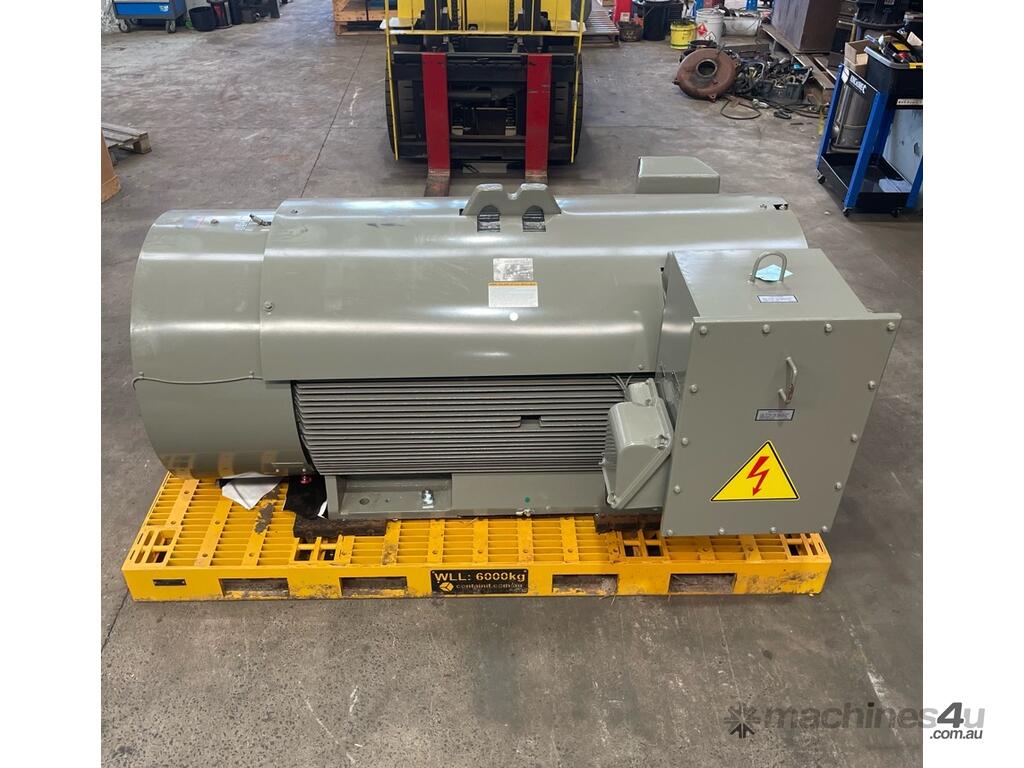

Total Length: 2250 mm (incl. shaft)
Total Width: 1525 mm (incl. LHS to D.E. box)
Total Height: 1168 mm
Feet Measurements;
Across 'A' - 750 mm
Front to back 'B' (2 holes) - 900 mm & 1120 mm
Front hole to shaft 'C' - 315 mm
Available QTY: 1
Condition: New / Unused. Warehouse Storage
exStock Seaford VIC 3198 Australia
Available for immediate despatch - Freight services Australia Wide available on request
