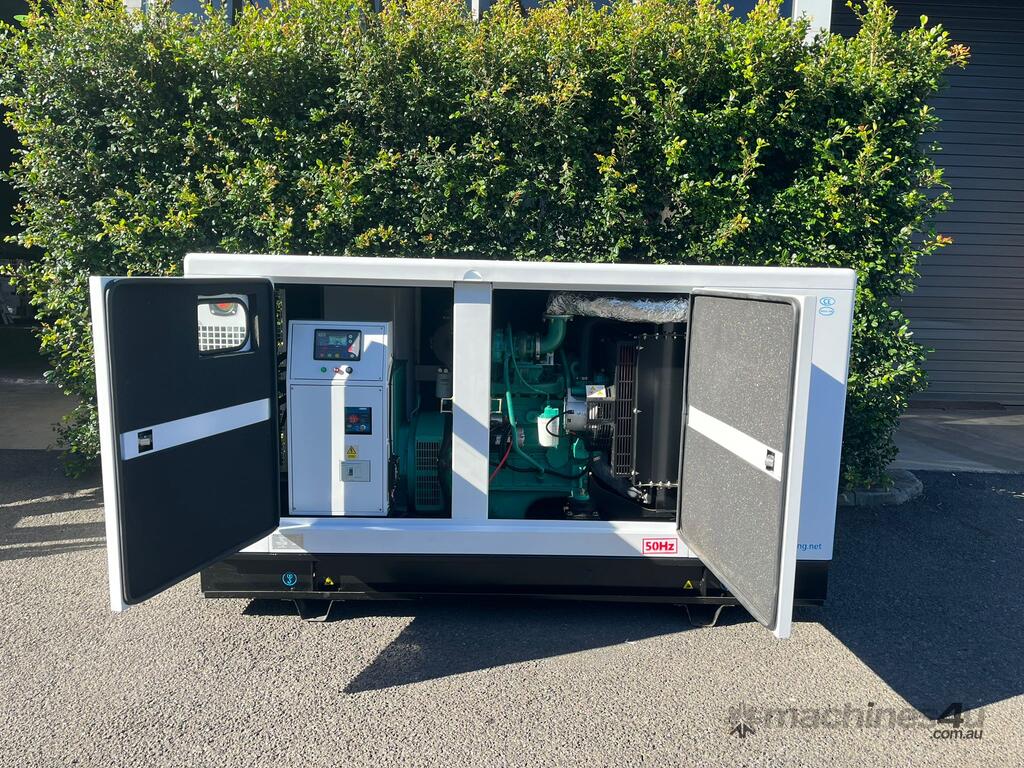

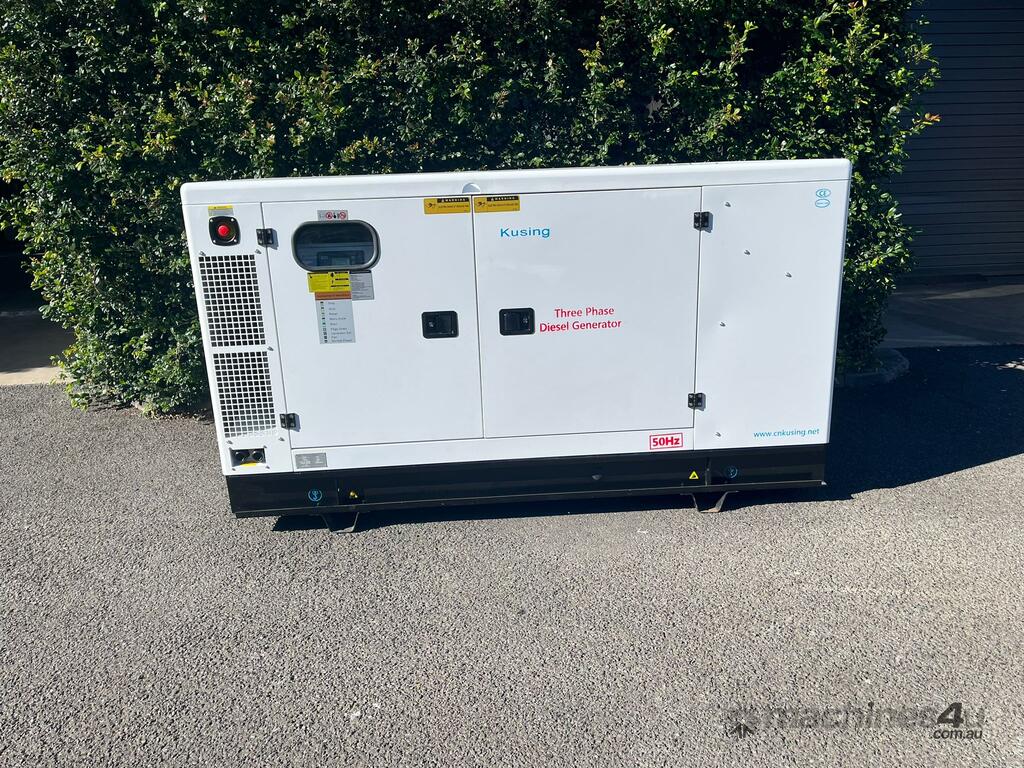

50KVA Cummins/Stamford Silenced Diesel Generator 415V + ATS

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.

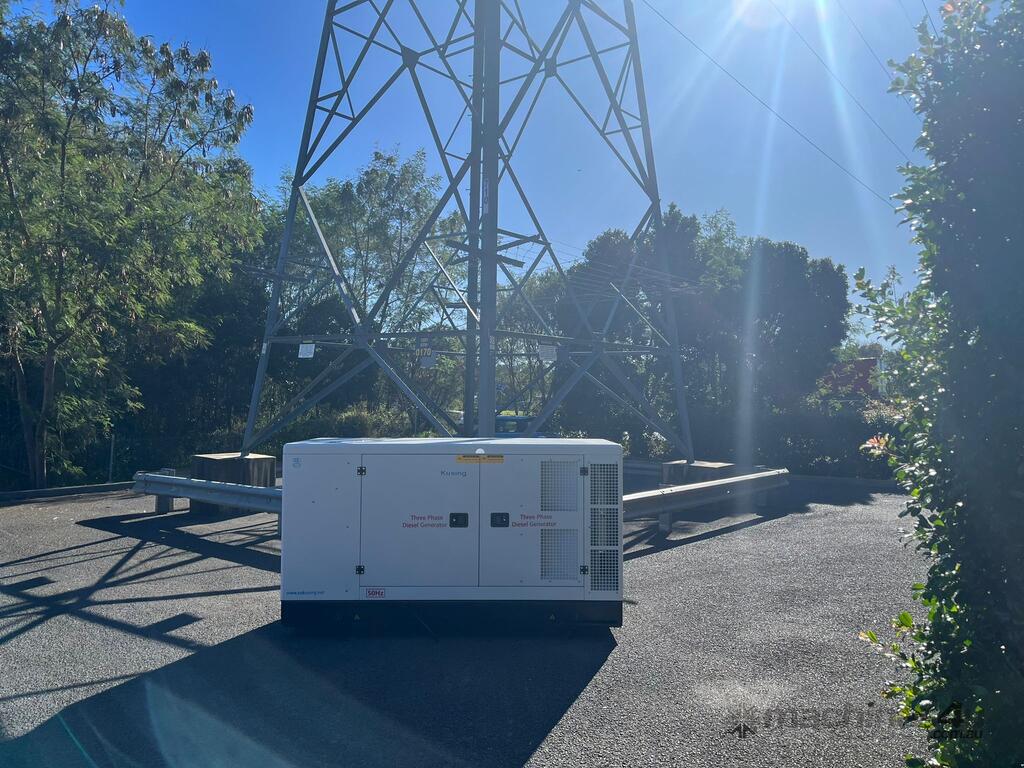

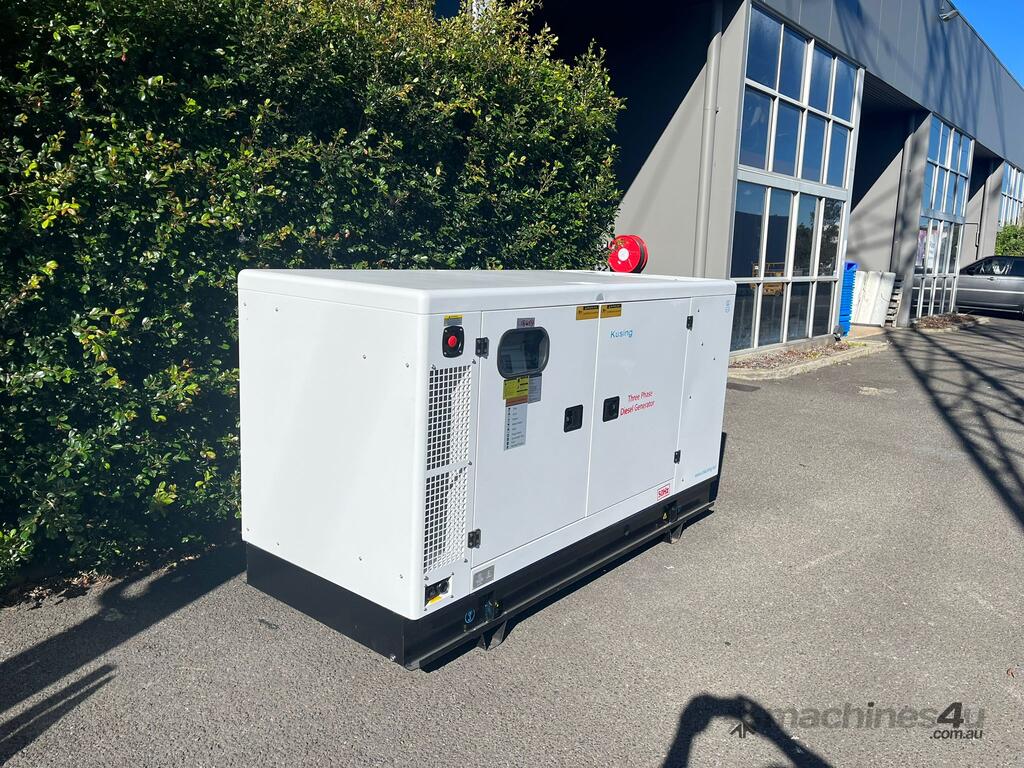

• Strong weatherproof silent canopy with various lifting locations

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

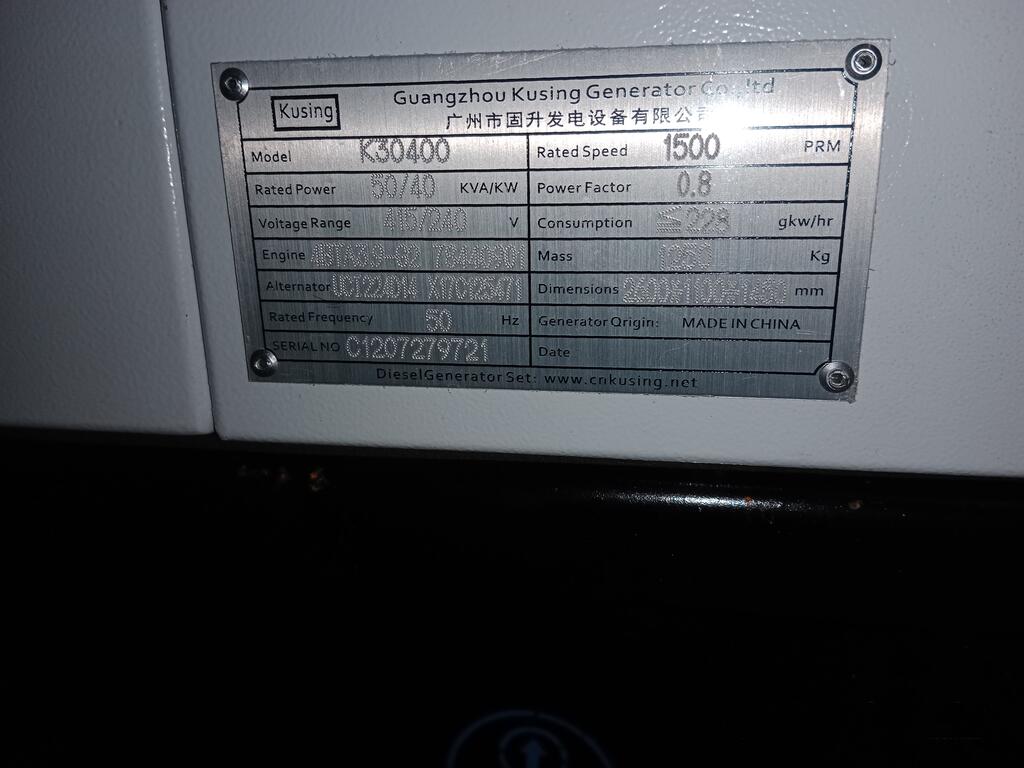

Generator Model CK30400
Prime Power 50KVA
Standby Power 55KVA
Rated Current 72 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) Inbuilt
Fuel Tank Capacity Est. 160 Litres
Noise Level 75dB 7m
Controller Kusing AD6132
Main Breaker Switch 100A
Internal Protection IP23
Dimensions 2600L x 1100W x 1450mm
Weight 1250kg

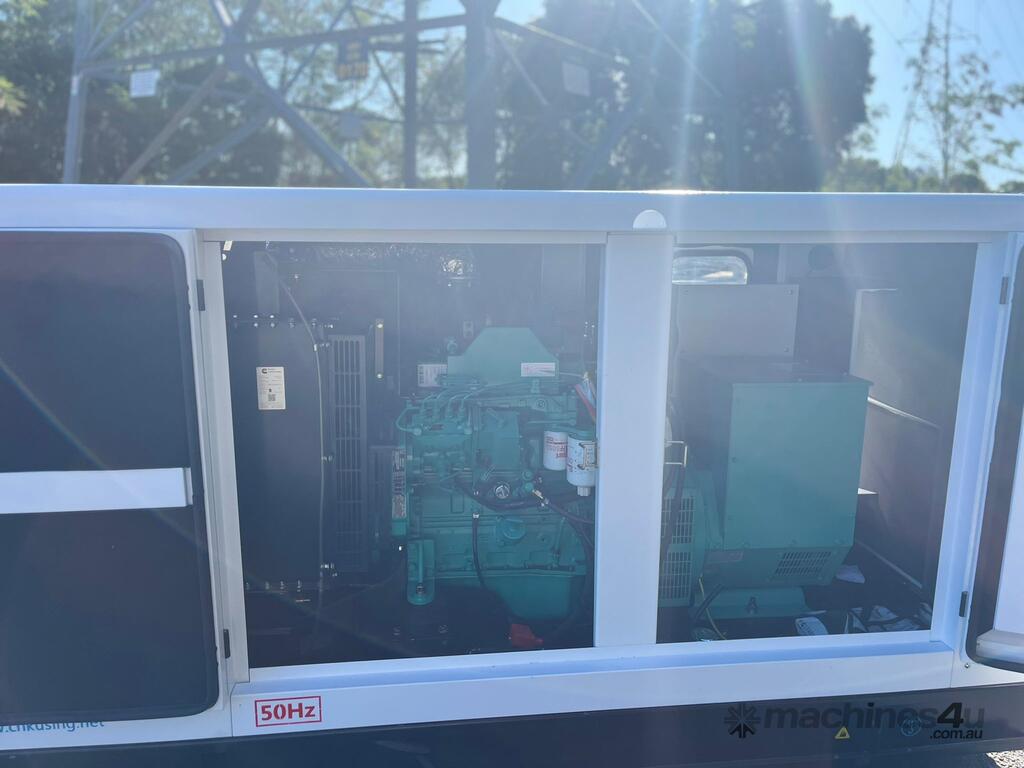

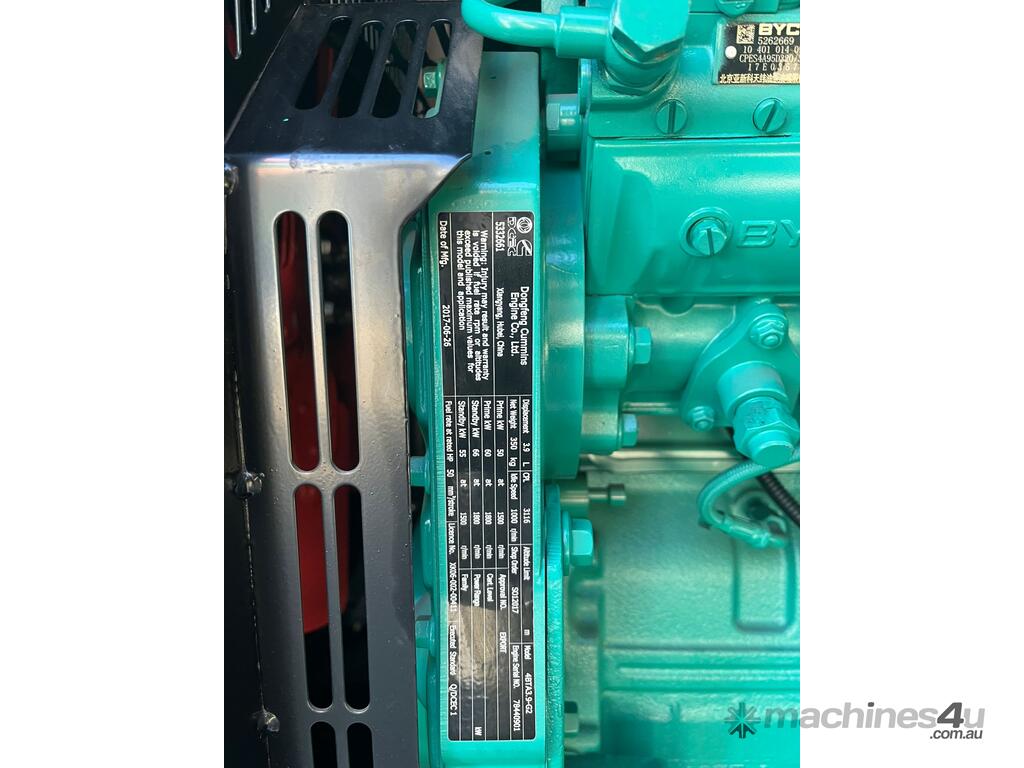

Engine Make Cummins
Engine Model 4BTA3.9-G2
Bore 102mm
Stroke 120mm

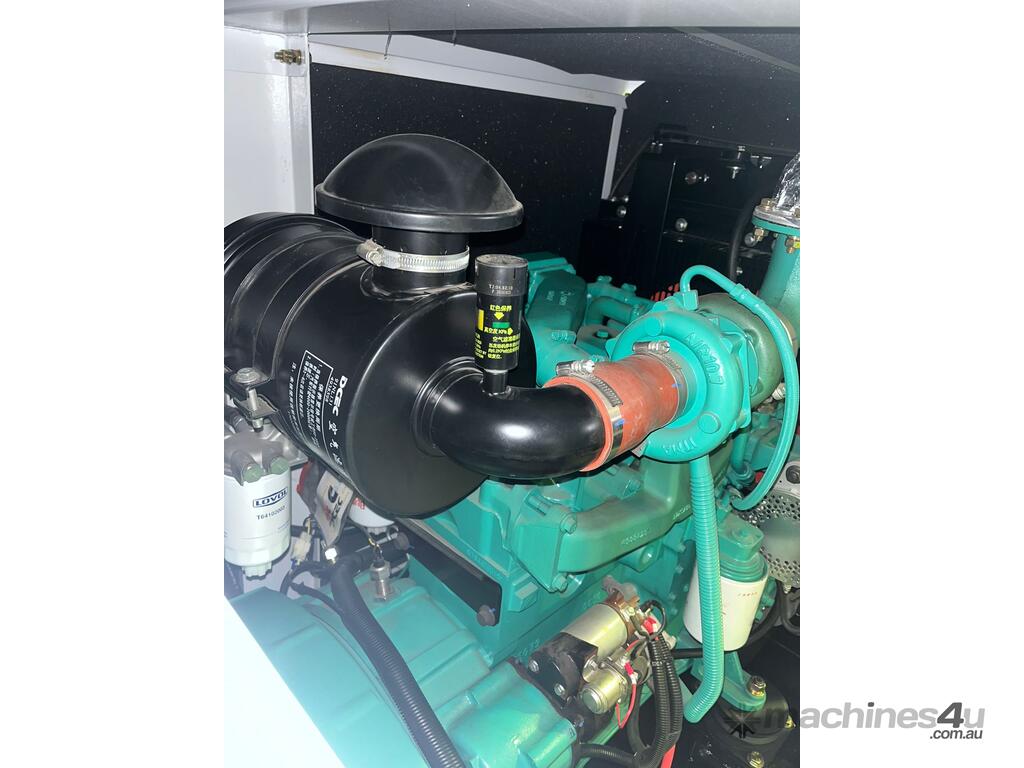

Air Aspiration Turbo Charged
RPM 1500

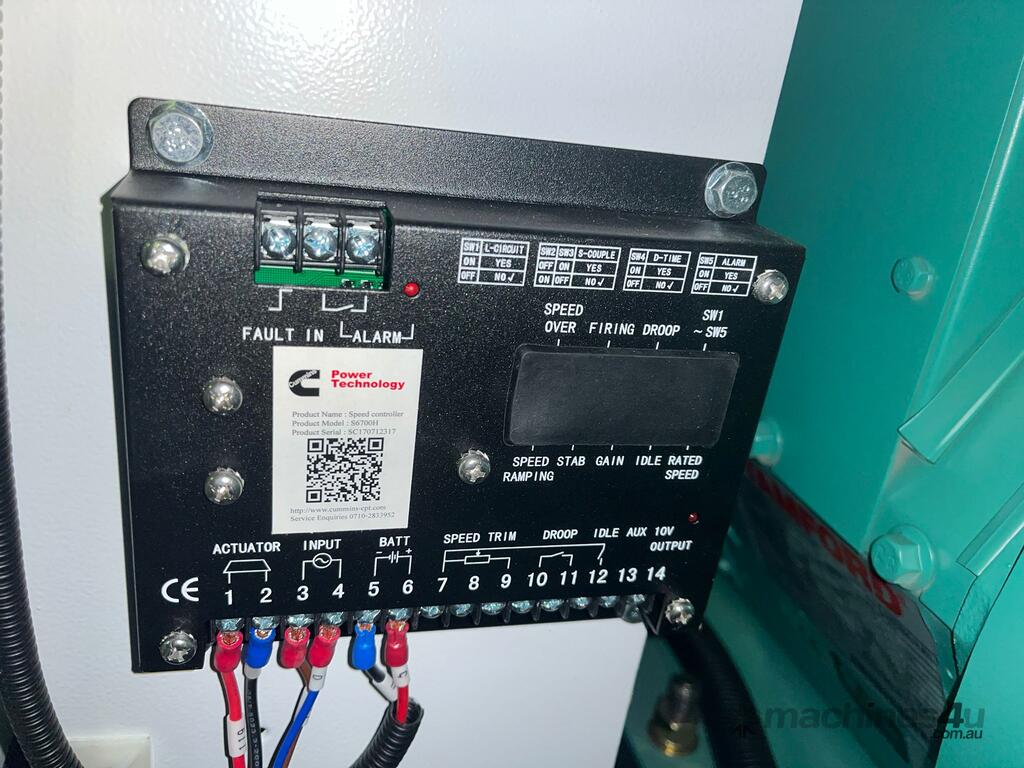

Speed Governor Electronic
Start System 24V
Fuel Consumption 10.5 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 13 Litres
Coolant Capacity 15 Litres

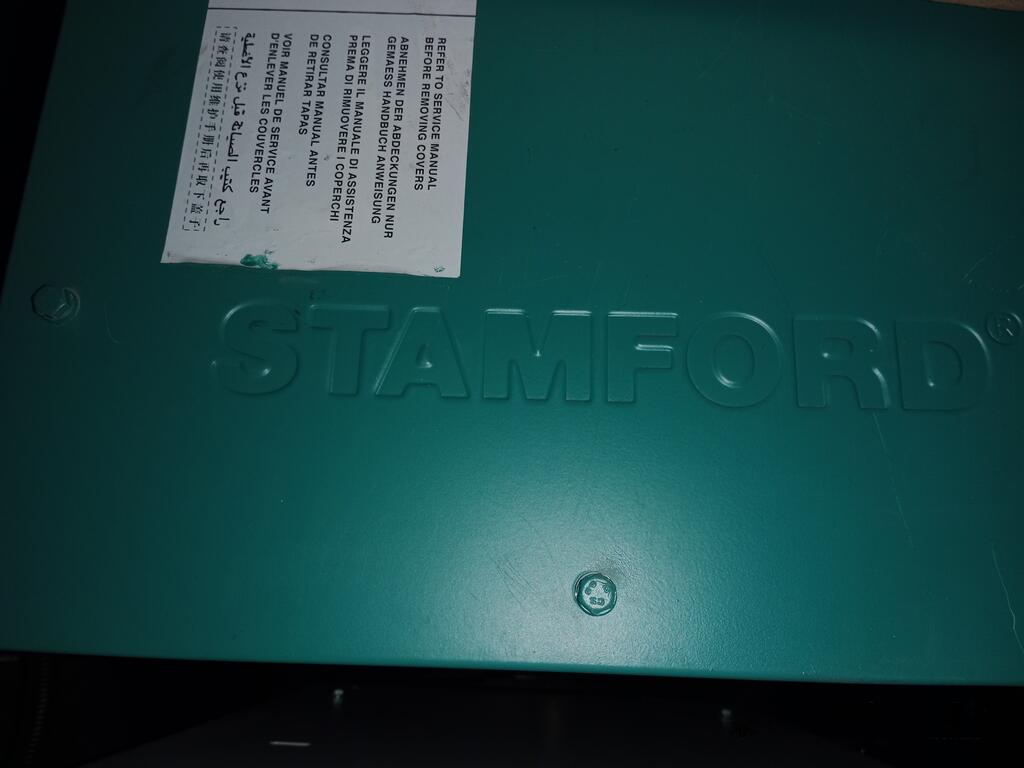

Alternator Make Stamford
Alternator Model UC.1224D14
Voltage 415V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H

Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty.

Shipping

For a shipping price to deliver to your location, please contact us on or sales1wellku
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
