#513-404T Dial Test Indicator Metric 0.08mm/0.01 Travel

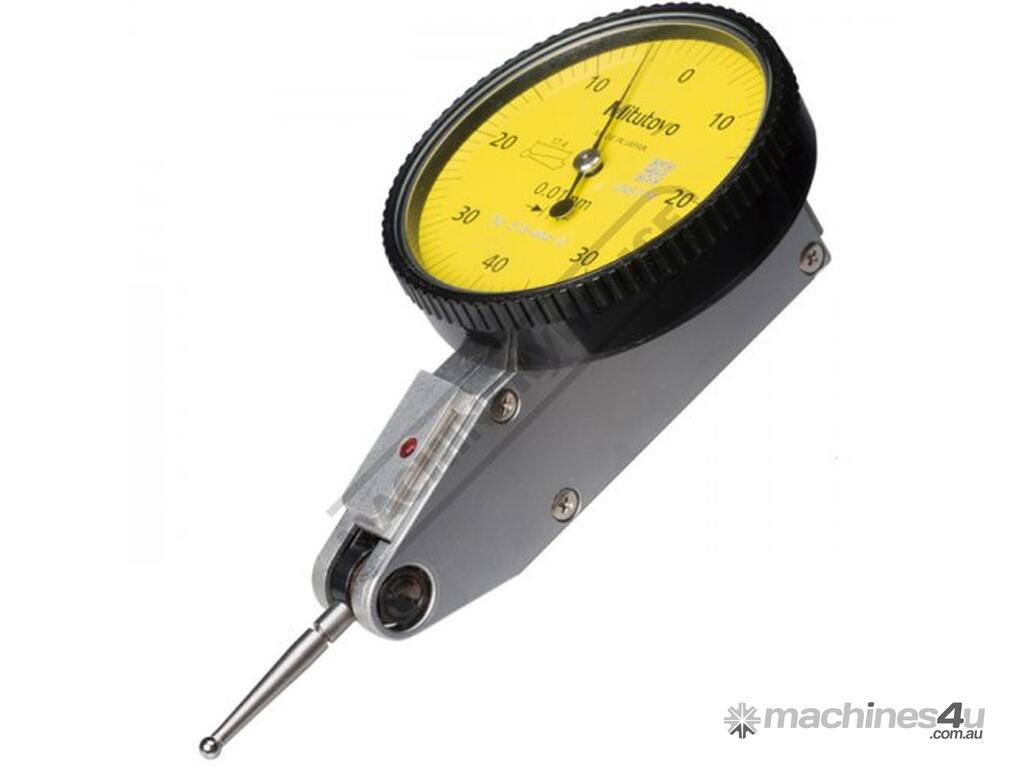

MITUTOYO #513-404T Dial Test Indicator Metric 0.08mm/0.01 Travel
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M085

Designed to probe surfaces that cannot be reached with a normal dial gauge. Useful both for alignment and for measurement purposes.
Mitutoyo’s proprietary new design permits smooth pointer operation. Strong frame provides excellent rigidity and durability.
The pointer and carbide contact point are only slightly magnetizable*, and so they are hardly affected by a magnetic environment.
In addition, models with a ruby contact point are available. The ruby contact point also has several times the abrasion resistance of carbide contact point and is safely usable with an electric discharge machine thanks its being a non-conductor.
Clear and concise wide dial face allows excellent visibility.
The surface of the crystal is hard-coated for excellent scratch resistance.
Inspected according to JIS B 7533:2015

Features:
0.01 mm graduation dial test indicator with a 40mm outside diameter bezel.
0.8mm measuring range
17.4mm stylus length with carbide contact point
Drastically enhanced durability sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is marked on the dial face to reorder a replacement.
Multi-layer coatings on the crystal.


Specifications:
ORDER CODE: M085
Range: 0 - 0.8mm
Graduations: 0.01mm
A (mm):
B (mm):
B1 (mm): ~
C (mm):
D (mm):
d (mm):
E (mm):
F (mm):
G (mm): ~
H (mm): ~
I (mm): ~
J: ~
K (mm): ~
L (mm):
L1 (mm): ~
Ø (mm):
