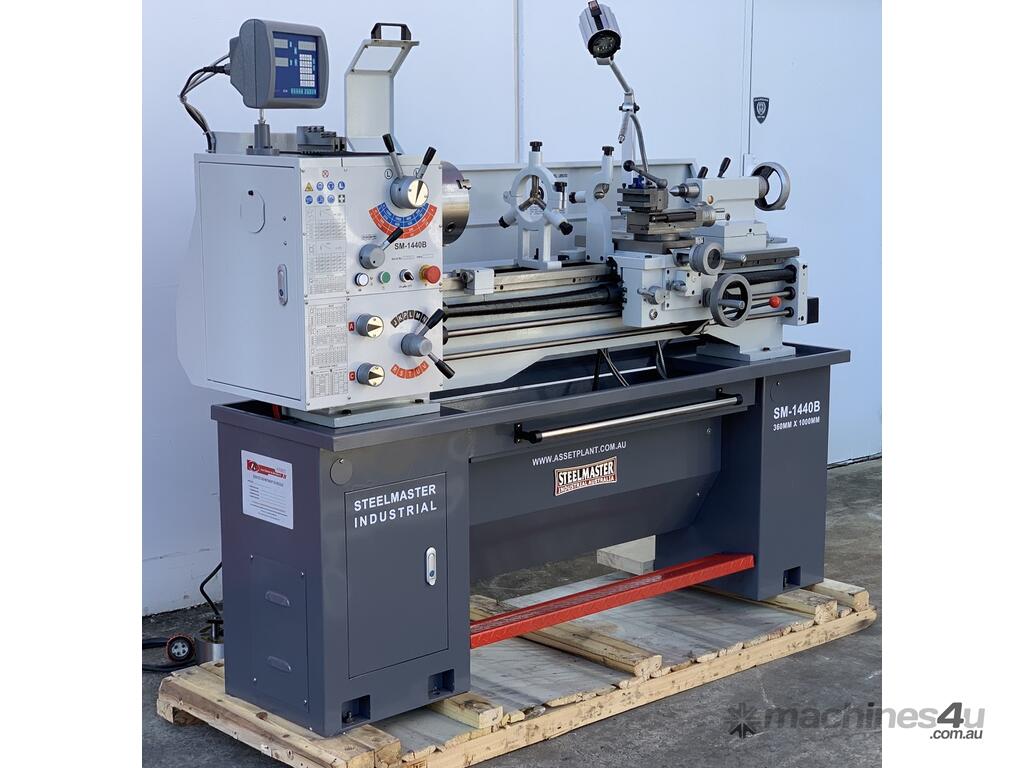

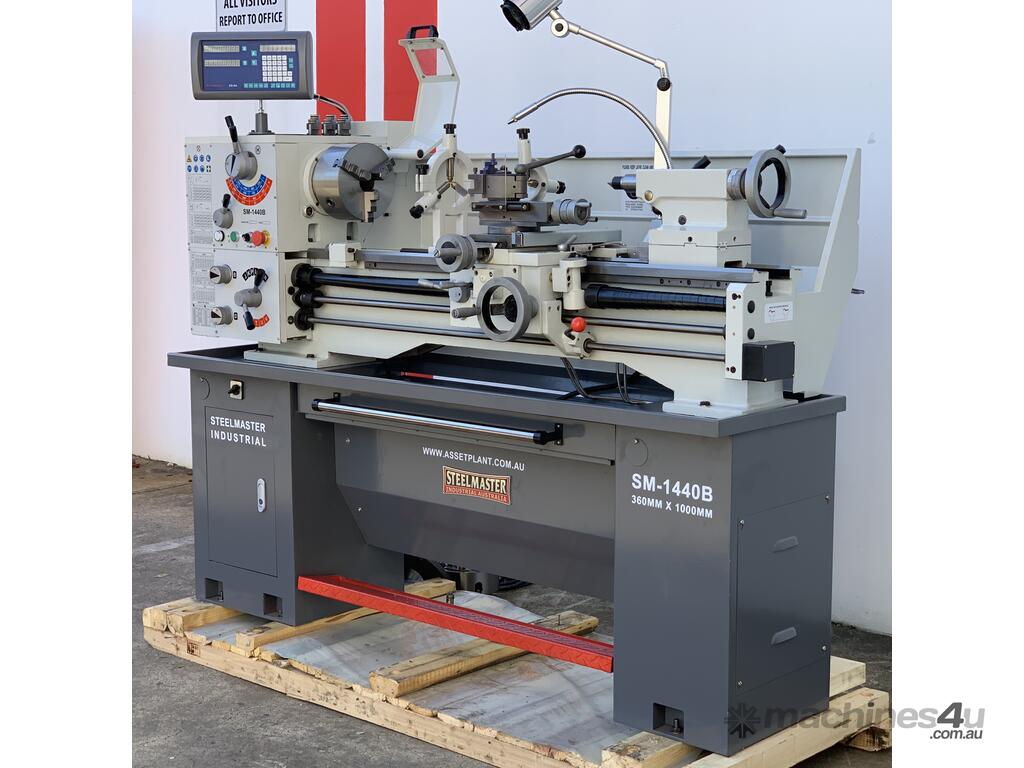

51mm Spindle Bore Metal Lathe, 1000mm Bed, 35 ~ 1900RPM (16 Speeds) - Feature Packed

SM-1440B. Centre Lathe Volt. Steelmaster. 51mm Bore, 1000mm Centres, 356mm Swing.
2 Speed Box, Fixed & Travelling Steadies, 3 & 4 Jaw Chucks, 2 Axis DRO - Toolkit - Volt
## NEW 2 X SPEED MOTOR = 16 SPEEDS - EURO QUICK CHANGE TOOL POST & 4 X THREAD TYPES - IMP, METRIC, DP & MODULAR ##
Description
Safety, reliability and convenience - the SM-1440B Floor Lathe has heaps of heavyweight features for a reasonable price including a 51mm spindle bore. Driven by a powerful 1.5Kw, V motor, this metal monster will tackle the toughest machining jobs with ease. D1-5 cam-lock spindle is the most reliable and accurate chuck and plate mounting system for lathes. Add an extra long foot brake and apron mounted switch control and you have precise, safe control when threading or working up close to those difficult shoulders. Hardened gear-head gears make speed and feed changes fast and a pleasure to perform. Features like these will save you time and provide a wider margin of safety. - Not to mention feature packed.

Features
? induction-hardened and ground cast iron bed and slide ways
? spindle holding camlock system

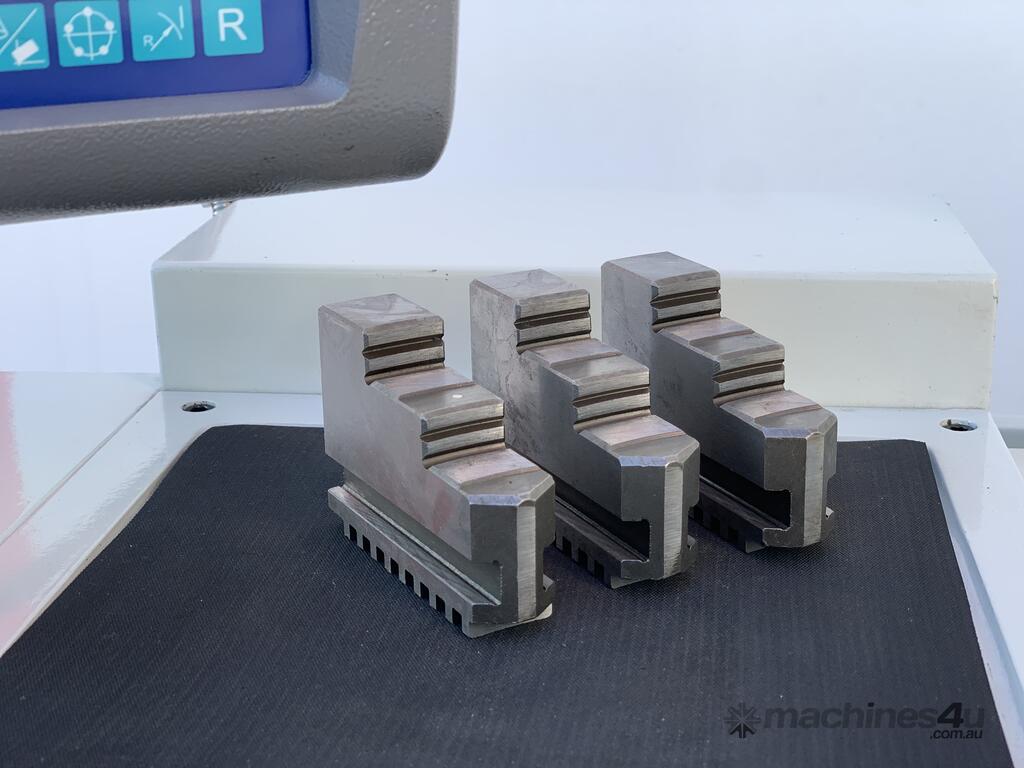

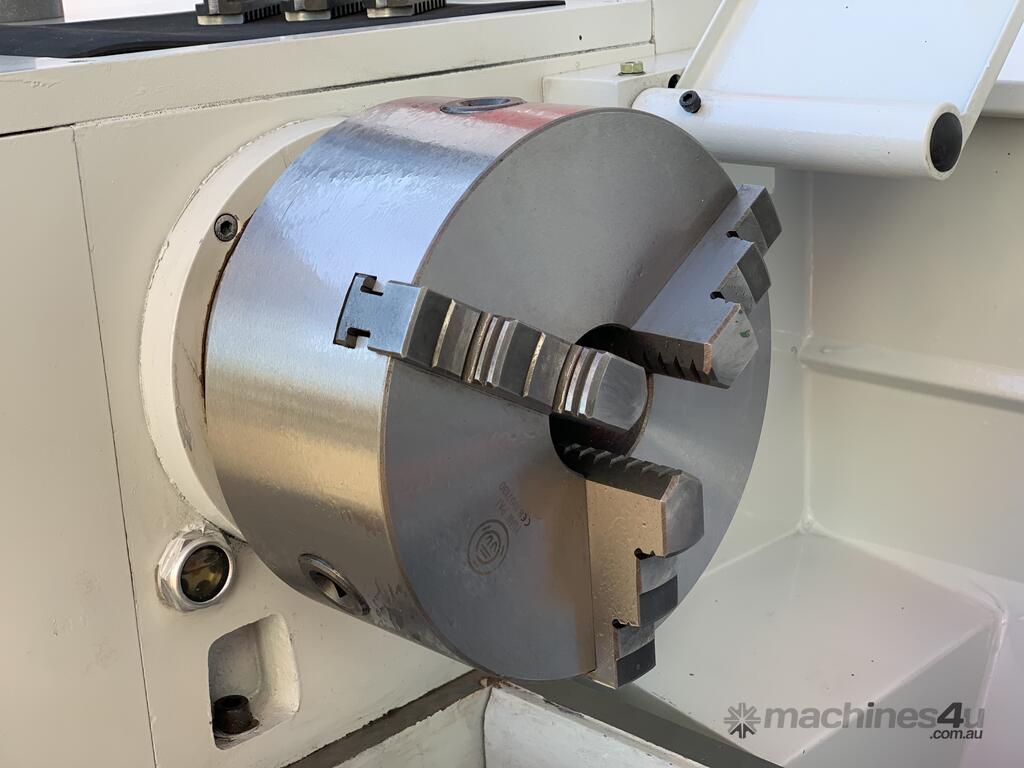

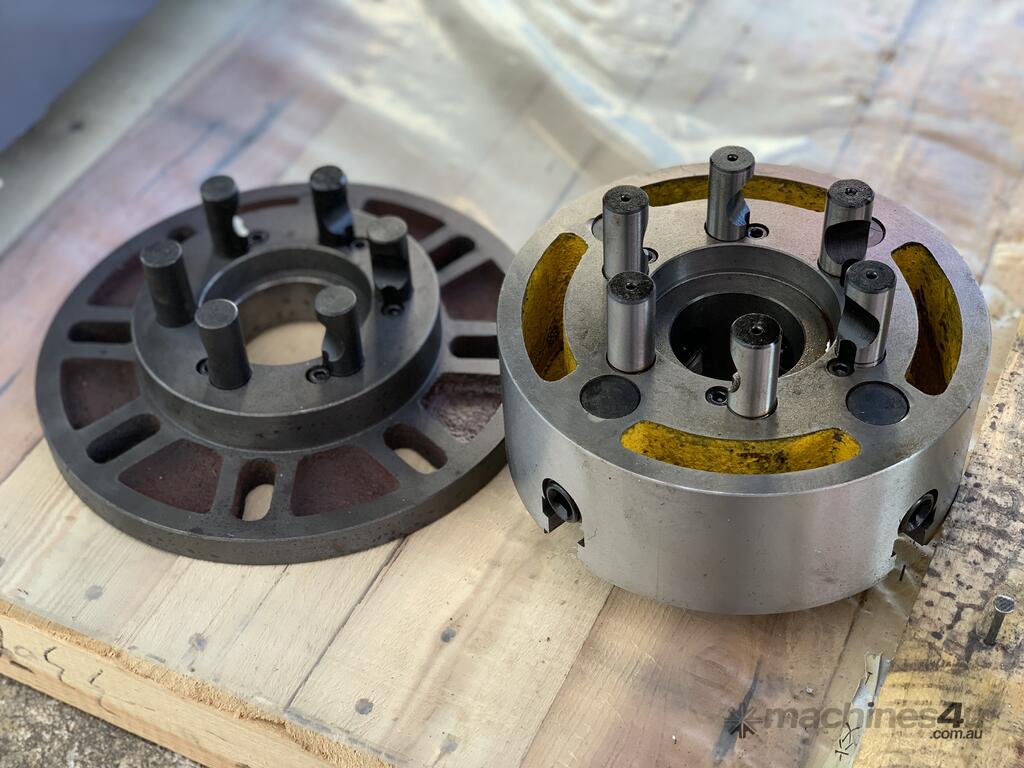

? 200mm 3 & 4 jaw chucks, faceplate, fixed & travelling steadies standard
? main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy

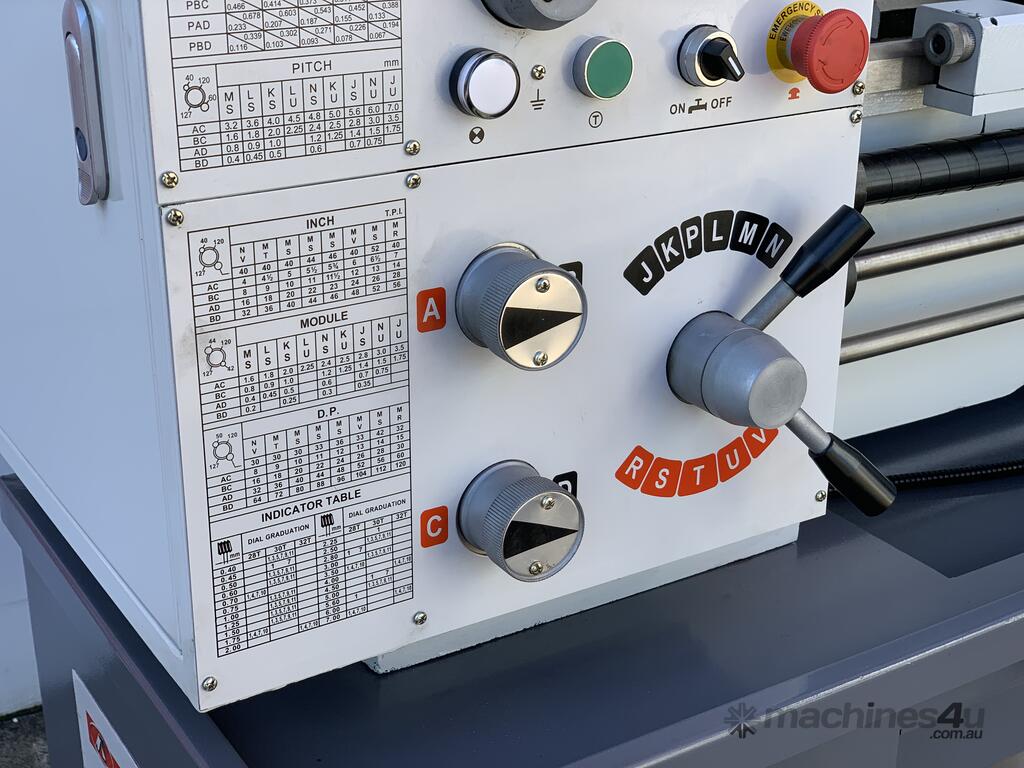

? huge thread cutting ranges - metric / imperial / DP & modular

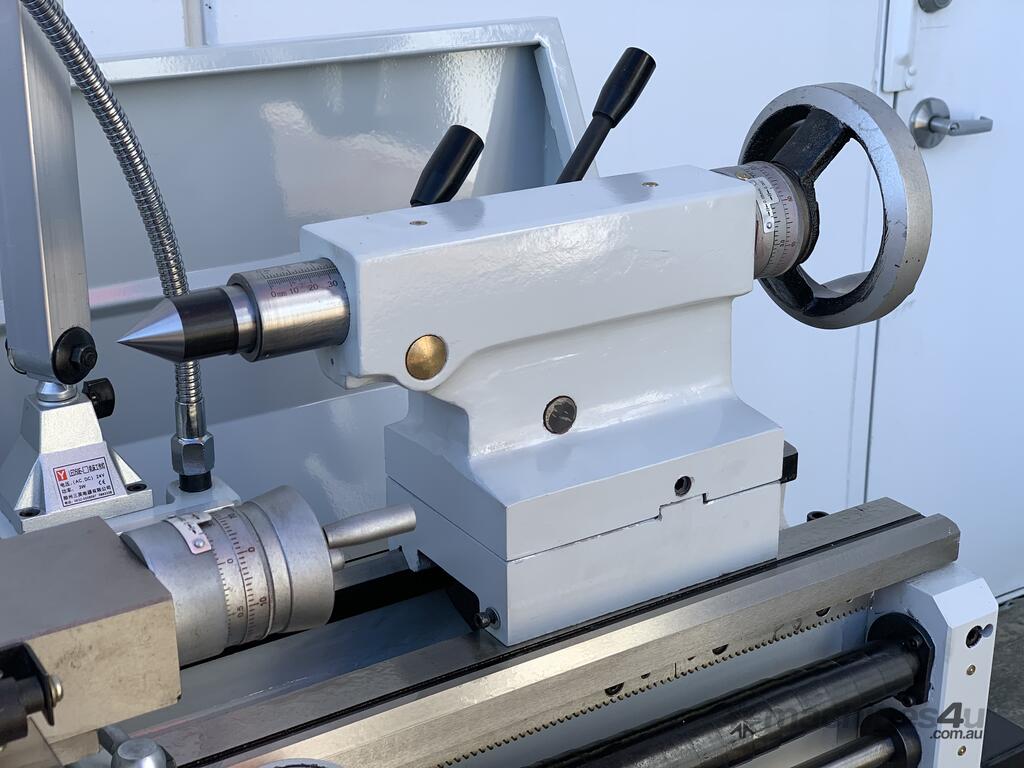

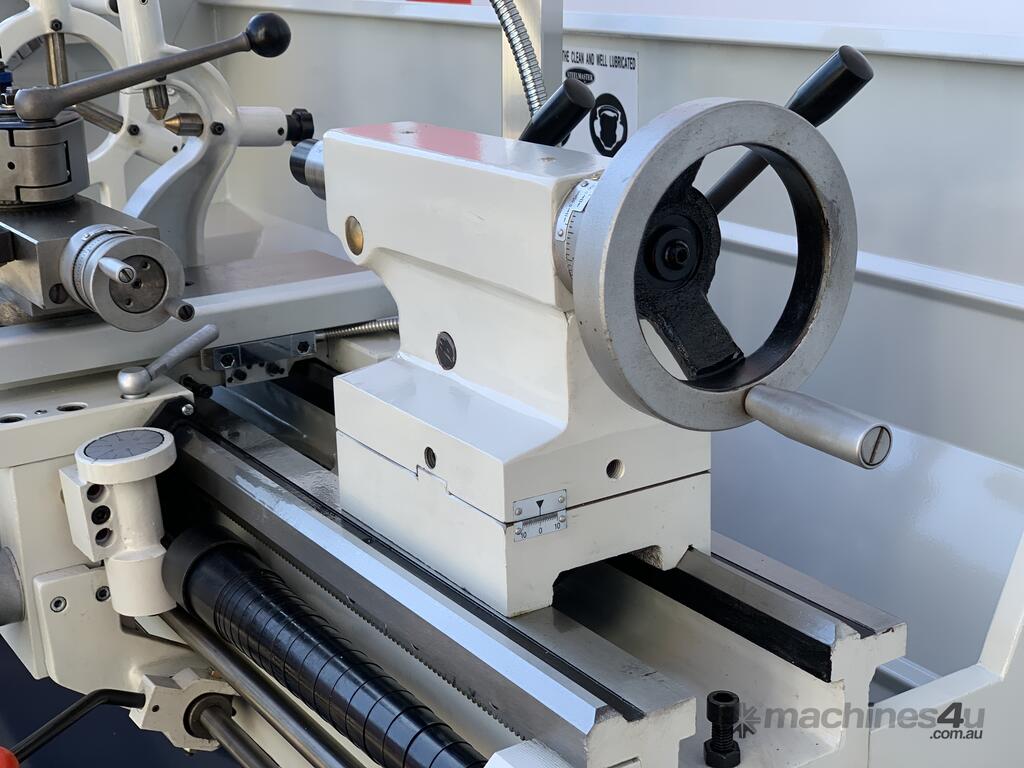

? transversal adjustment of tailstock for taper cutting applications

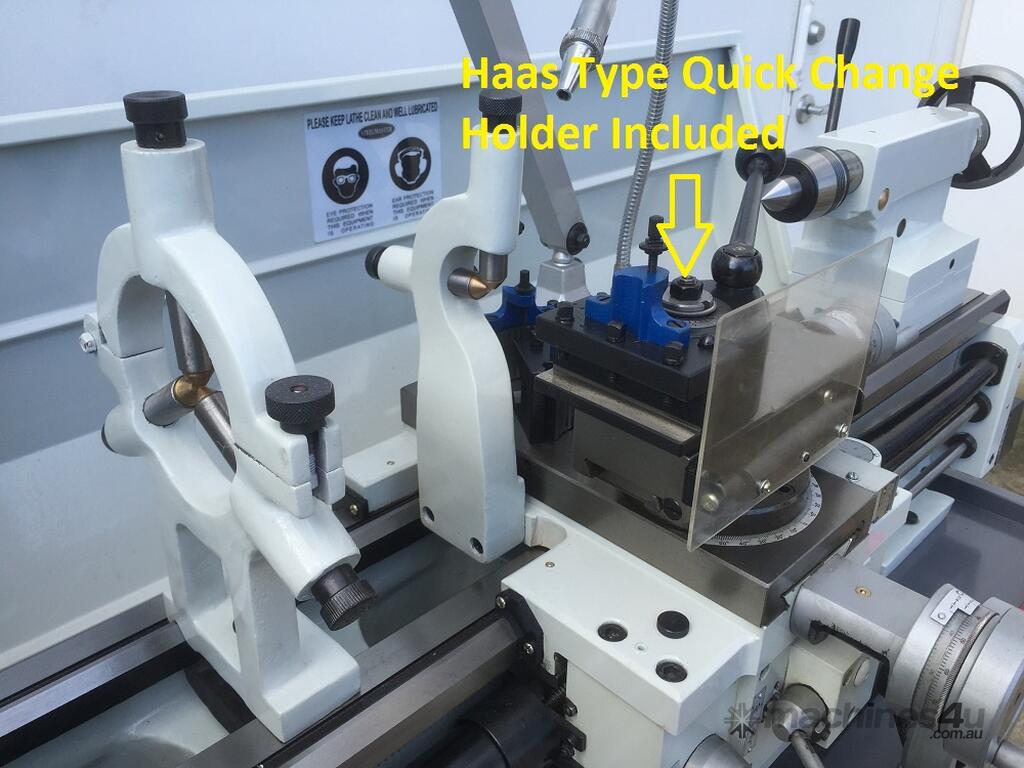

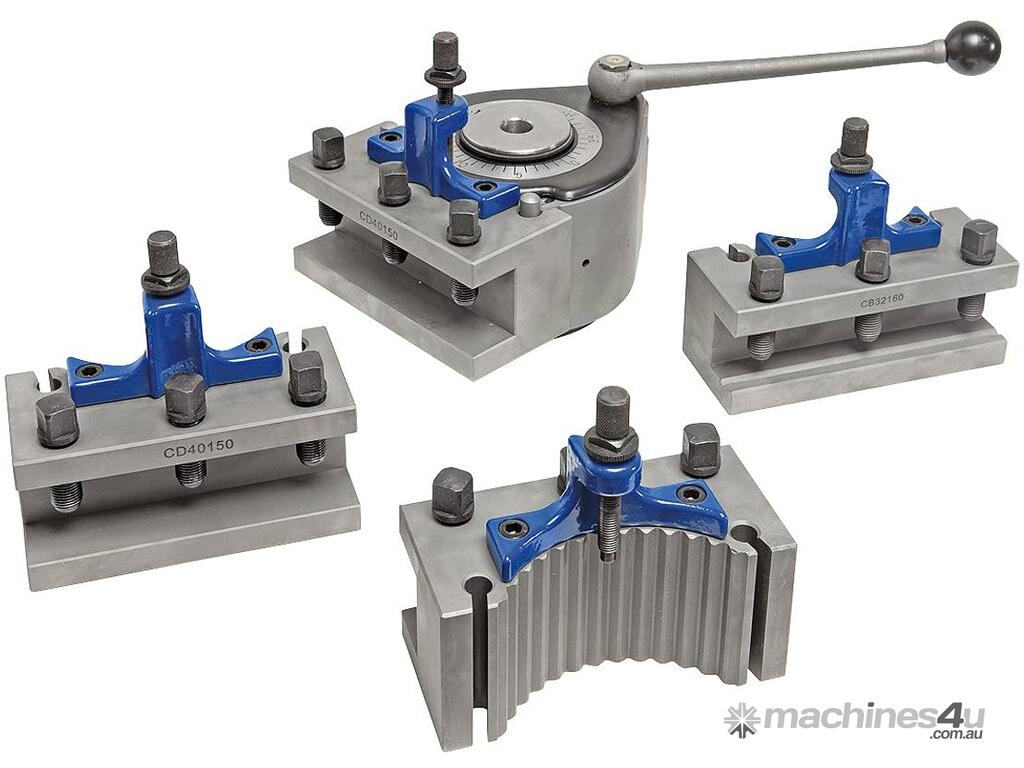

? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning

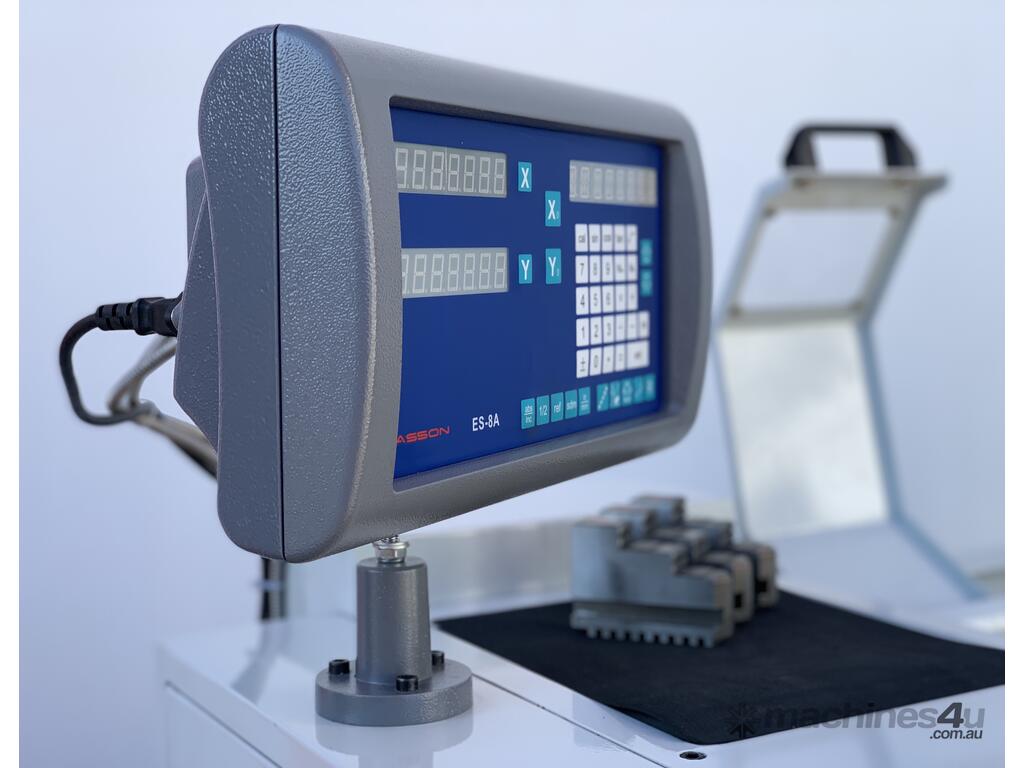

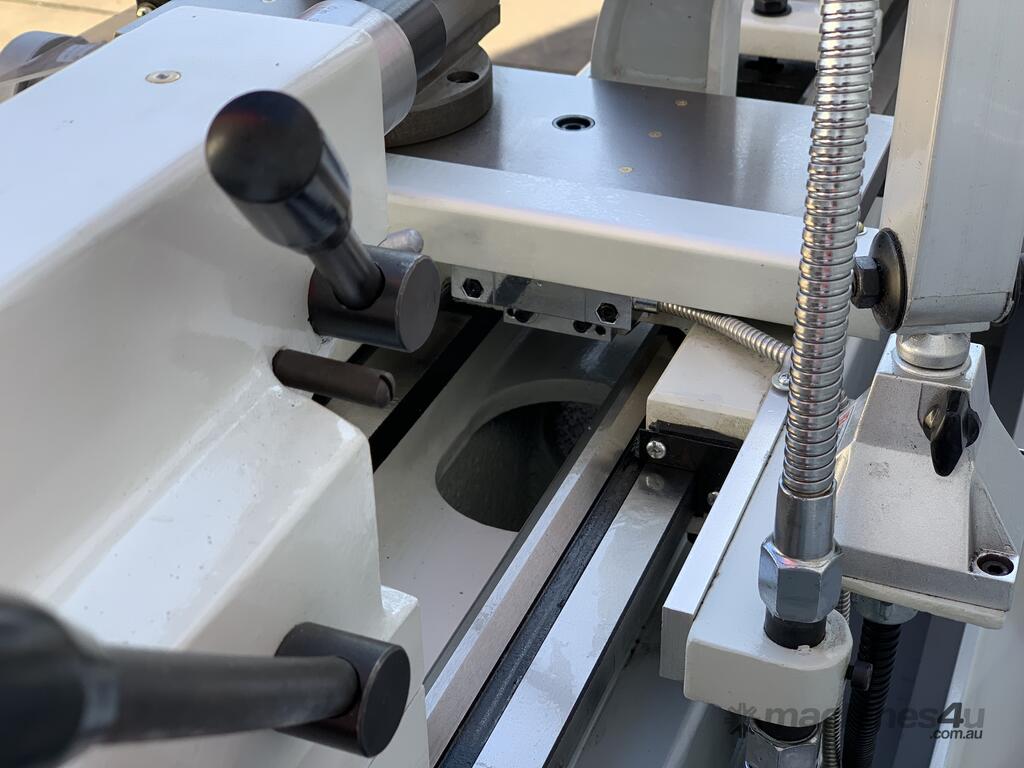

? 2 axis DRO fitted as standard
? safety covered lead screw
? safety interlocks on chuck guard, gear box and foot brake
? V / 1.5Kw
? CE compliant

Technical Data Snap-Shot
?364mm swing over bed
?476mm swing in gap
?230mm gap width
?1000mm between centres
?51mm spindle bore
?speeds(16)- High & Low 35/62/70/105/125/210/300/330/420/500/600/950/100/1900
?160mm - cross slide travel
?88mm - top slide travel

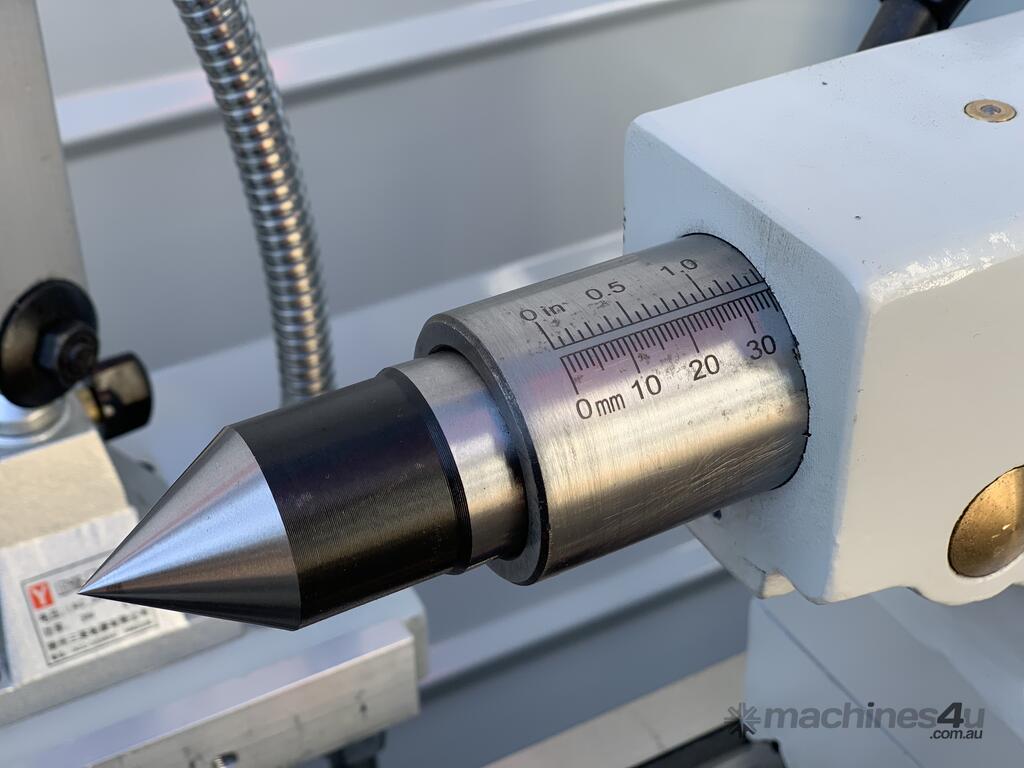

?100mm - tailstock travel
?40mm - tailstock diameter
?187mm - bed width
?headstock MT6
?MT4 tailstock taper
?42mm tailstock diameter
?Thread Cutting – Metric (mm) 0.4mm ~ 7.0mm – (32)
?Thread Cutting – Imperial (Inch) 4tpi ~ 56tpi – (32)
?Thread Cutting – Module 0.35 ~ 3.5 – (27)
?Thread Cutting – D.P. 8 ~ 120 – (32)
? cutting tools to suit - 16mm & 20mm Shanks
? metric leadscrew fitted
?200mm 3 jaw chuck
?200mm 4 jaw chuck
?faceplate supplied
?fixed & travelling steadies
? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning

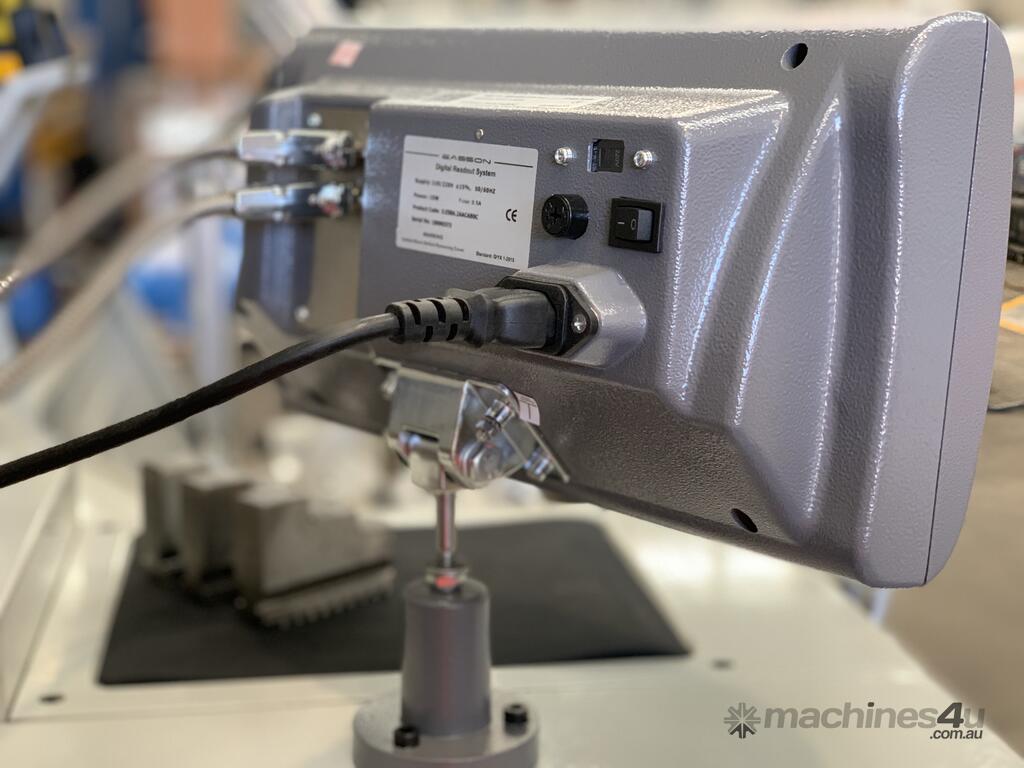

?2 axis digital read out fitted
?shipping dimensions - 1900mm x 1100mm x 1145mm
?power - V 1.8Kw - 15 amp
?approx weight: 720kg

EQUIPMENT & ACCESSORIES SUPPLIED
## FREE 9 Pice Tool Kit & MT Live Centre

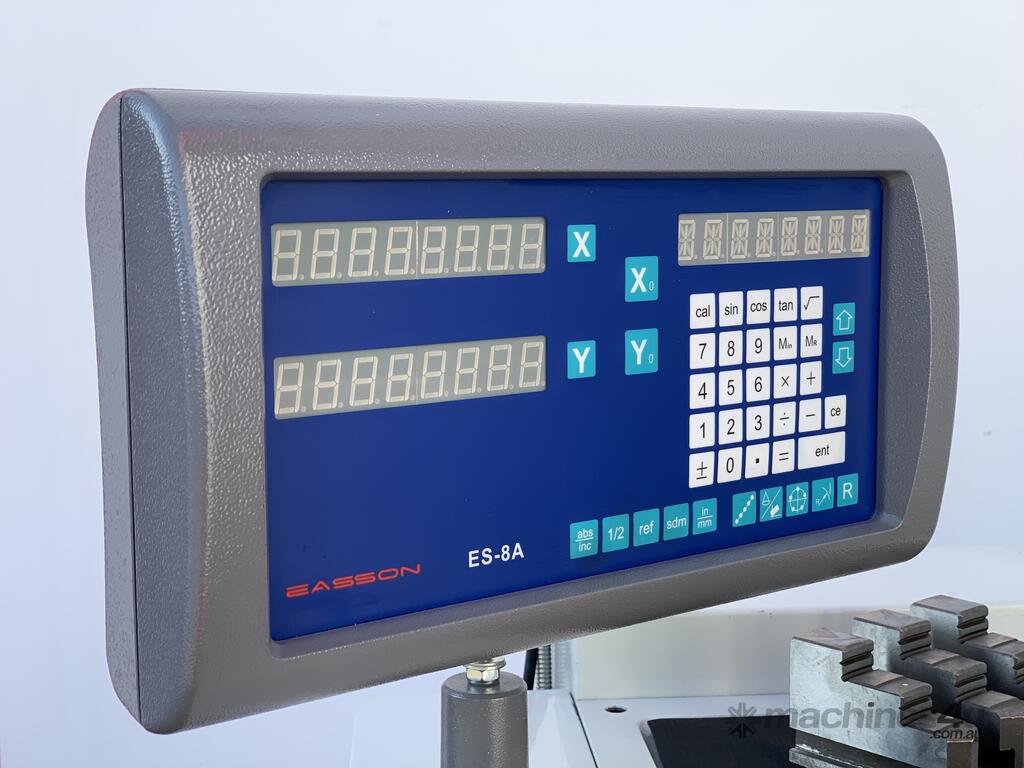

Easson 2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 x travelling steady, full length splash guard up to 1000mm,
covered leadscrew, interlocked chuck guard, headstock cover.
